Description

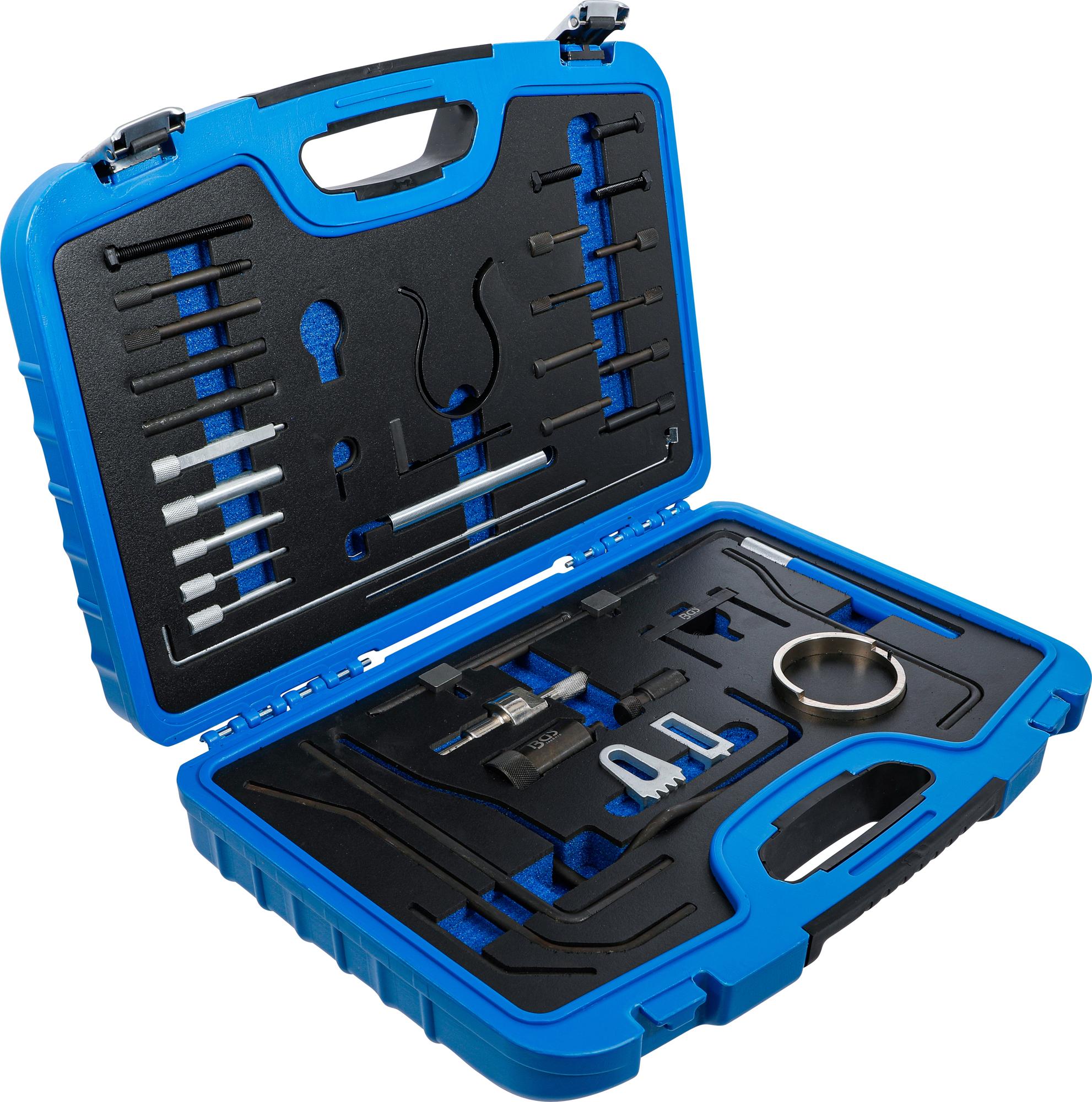

for setting and checking the engine timing
suitable for the following car models:
Citroën AX, Berlingo, BX, C5, C15, C25, Dispatch, Evasion, Jumper,Jumpy, Relay, Saxo, Synergie, Visa, Xsara, Xantia, XM, XJR, ZX, etc.
Peugeot 106, 205, 306, 405, 406, 605, 806, J5, Boxer, Expert, Partner, Solara, Talbot Expres, Talbot Horizon, etc.
PSA gasoline engines 1.9 - 1.1 - 1.4 - 1.6 - 1.8 - 1.9 - 2.0 - 1.6 - 1.8 - 2.0 - 2.2 16V (turbo and twin camshaft)
PSA diesel engines 1.4 - 1.5 - 1.7 - 1.8 - 1.9 - 2.1 - 2.5 D / TD / TDI - 1.4 - 1.6 - 2.0 - 2.2 HDI
also suitable for identical engines in Fiat, Ford, Nissan, Renault, Rover, Toyota, etc.

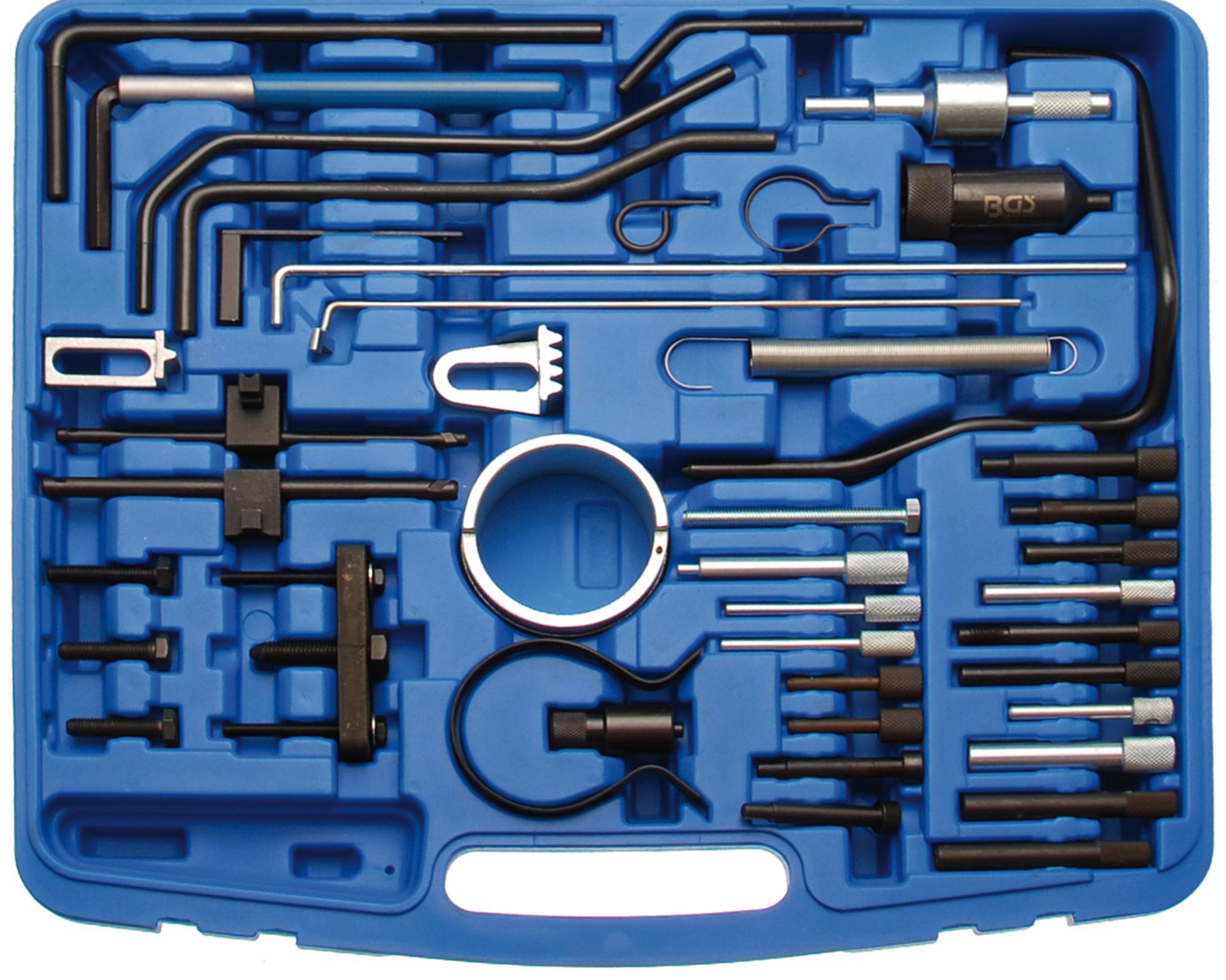

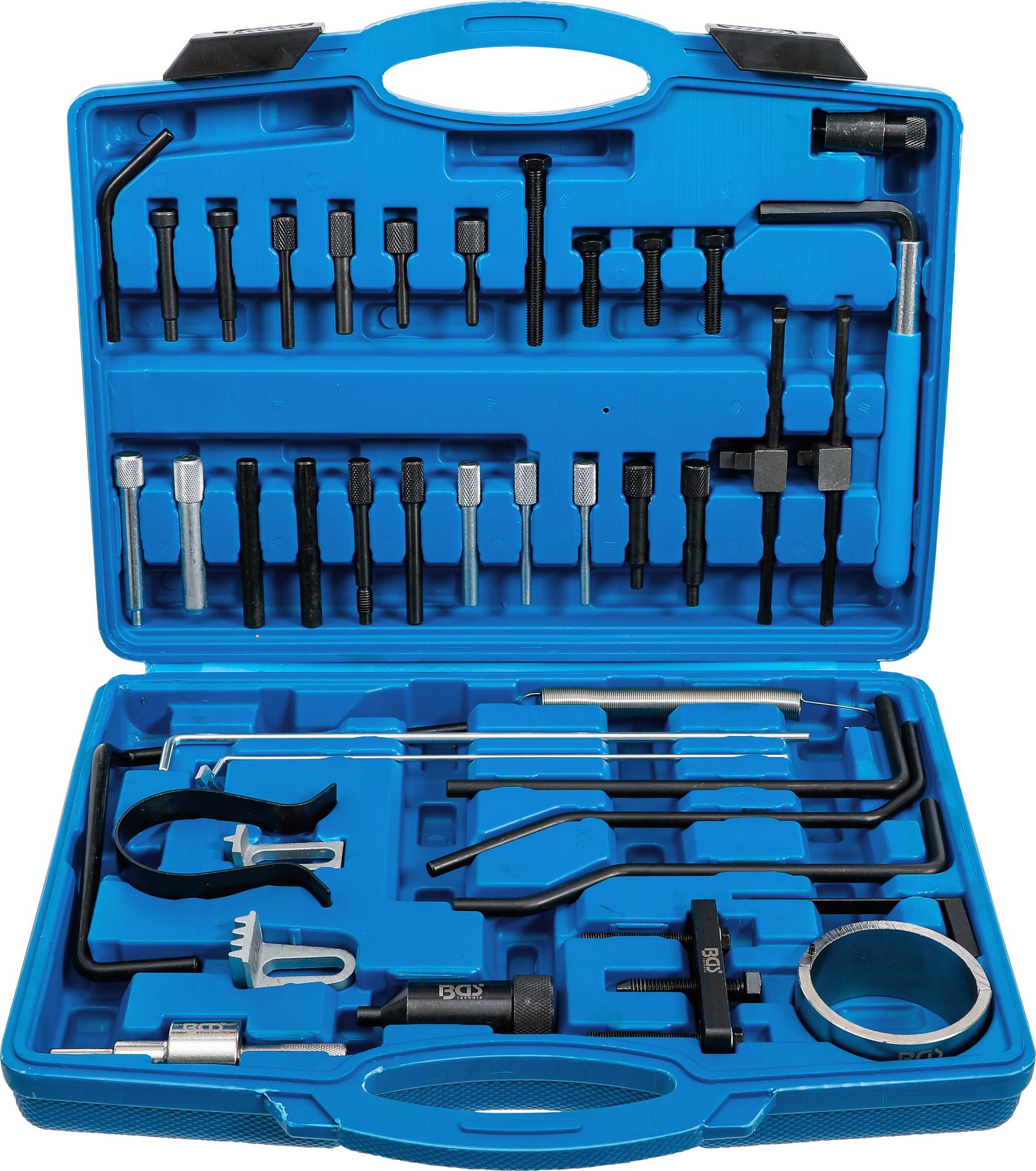

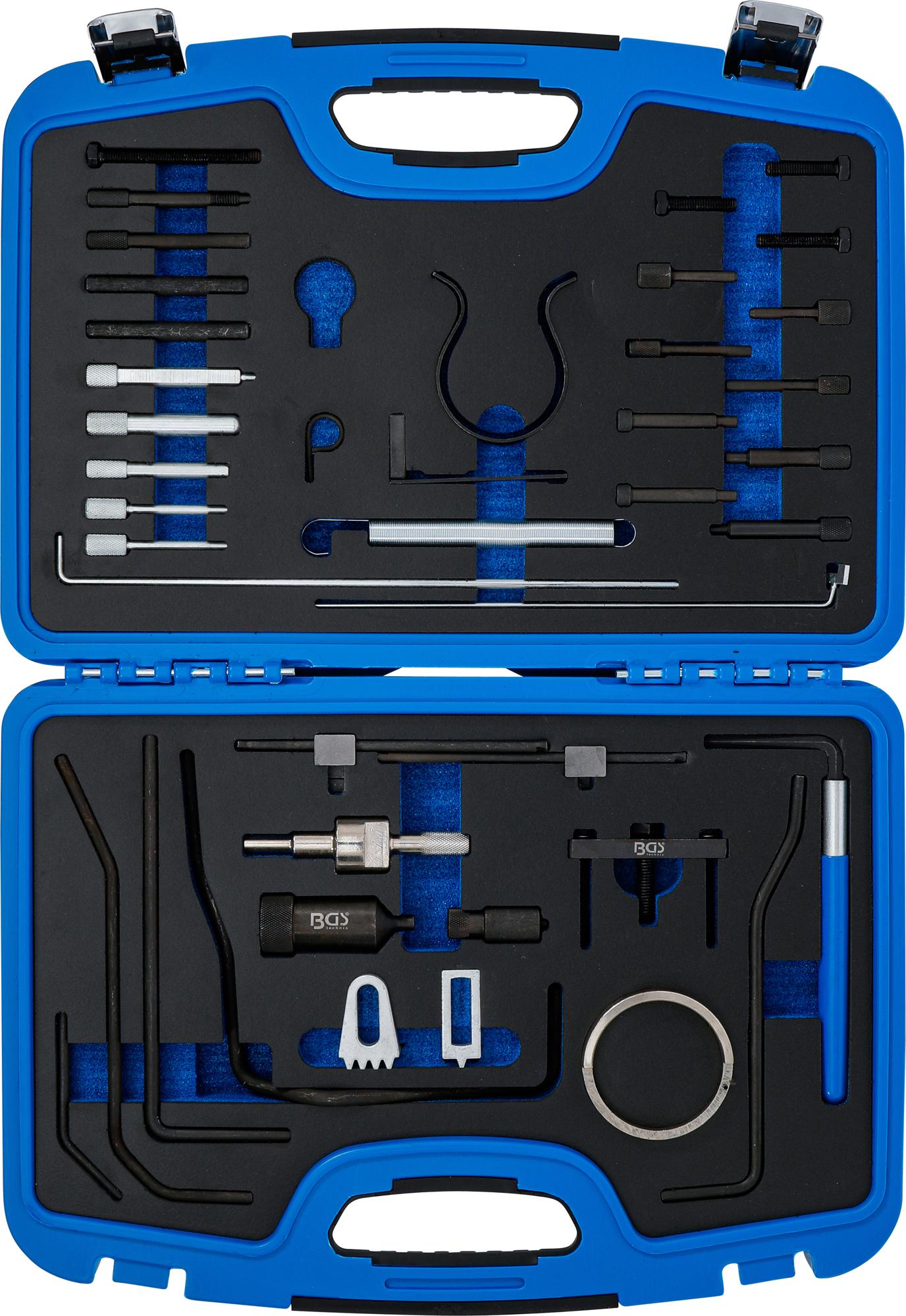

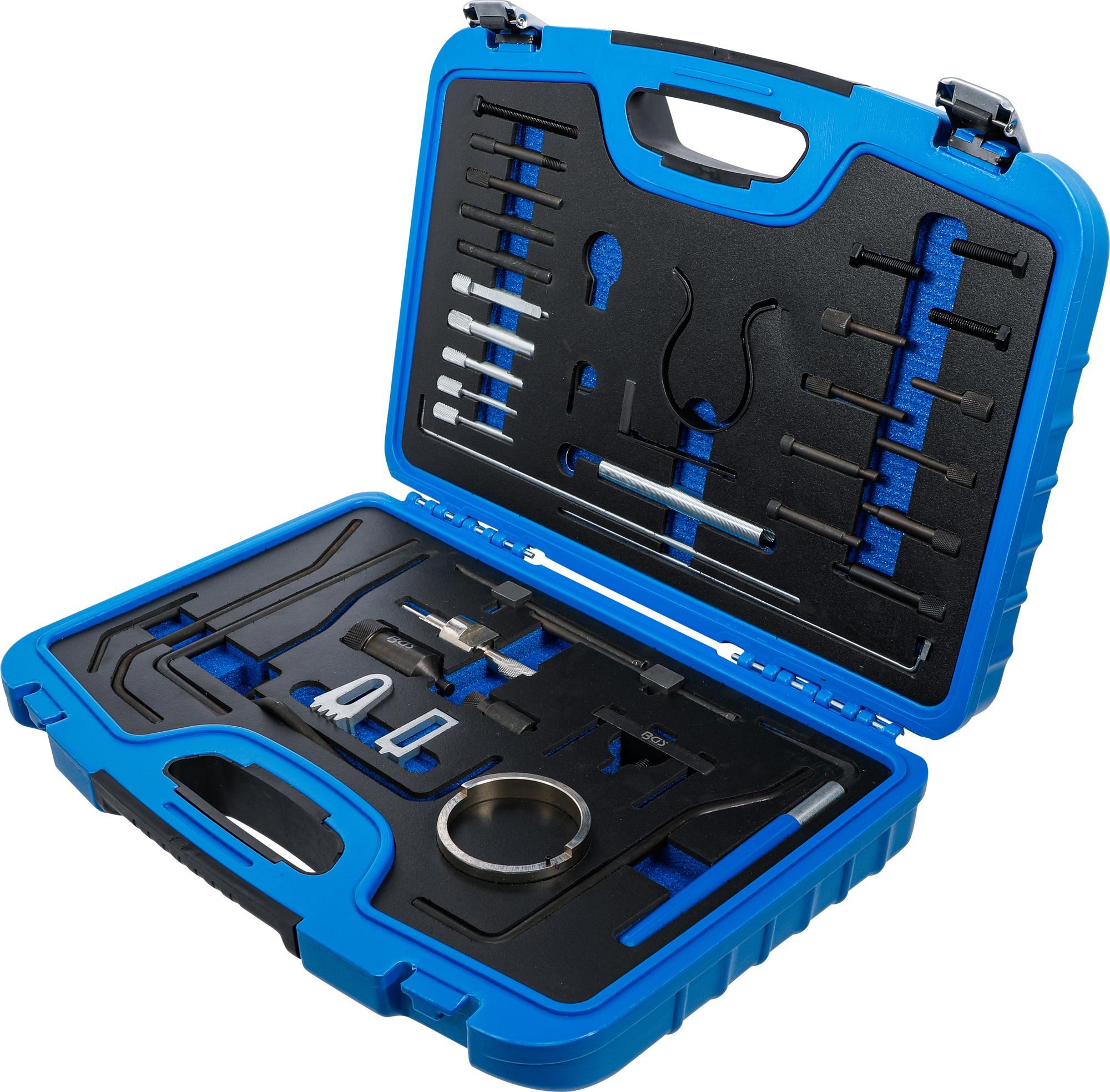

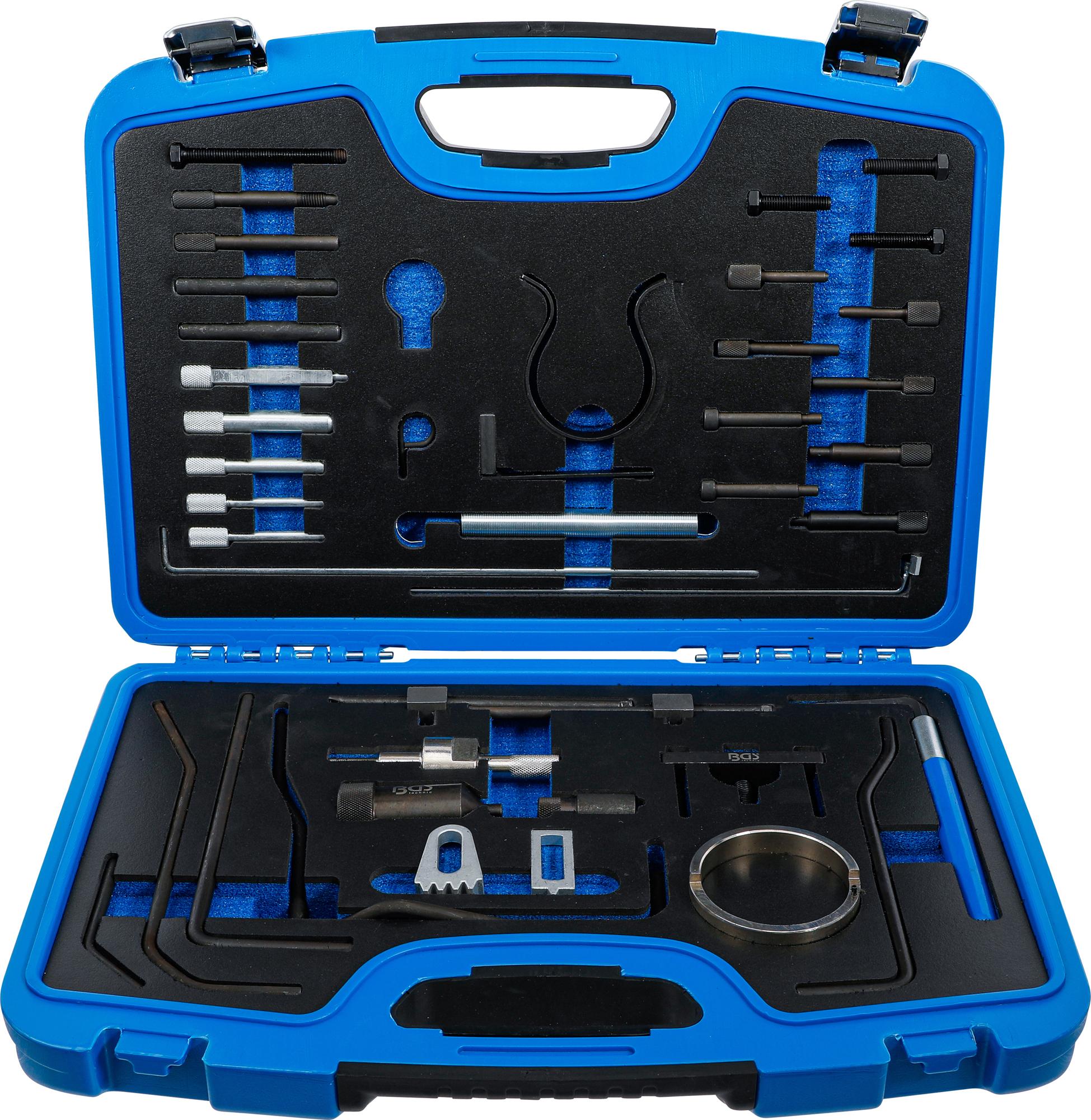

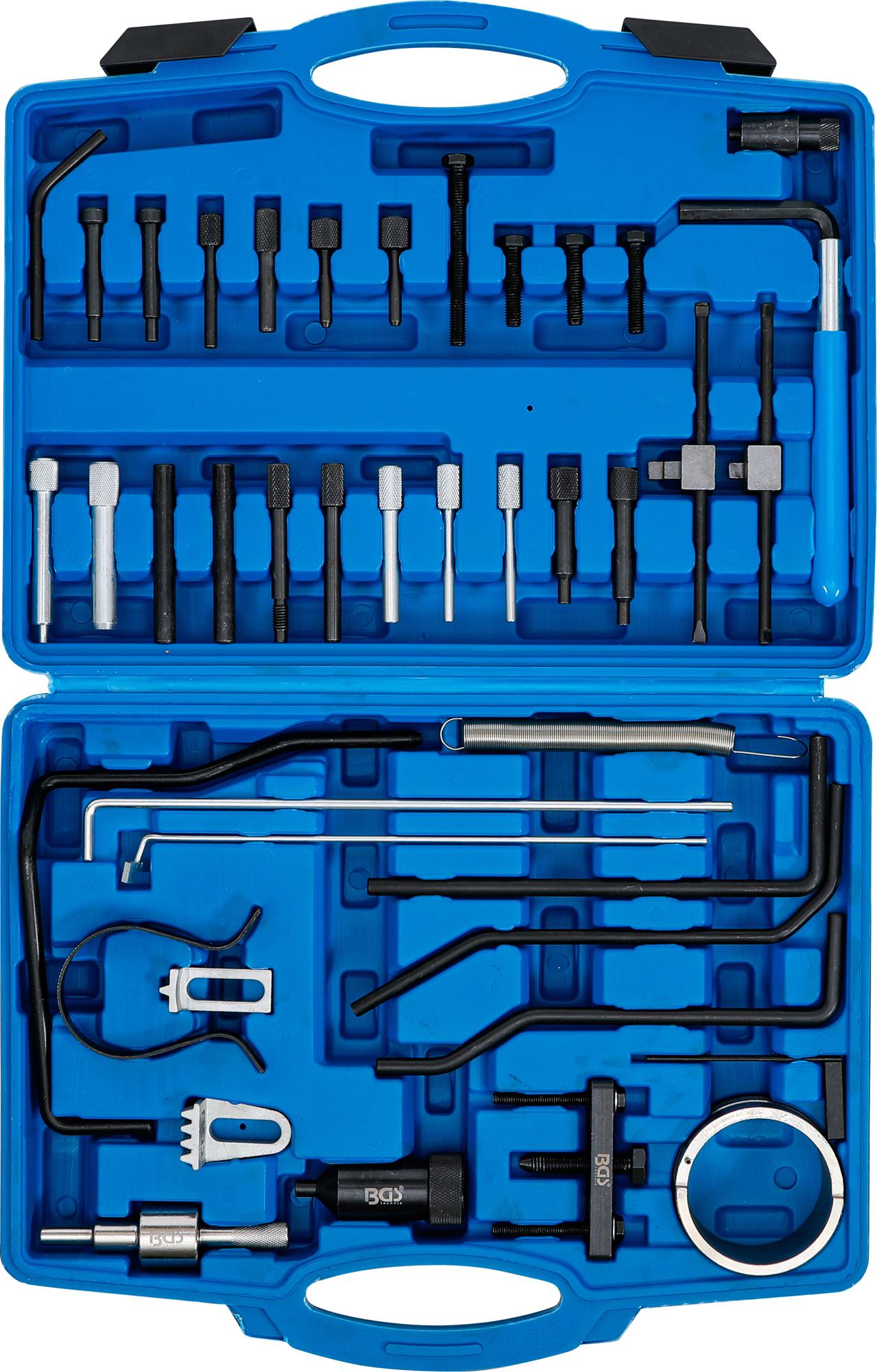

scope of delivery:
flywheel timing pin with spring, to be used as 0188X, 0189X
tensioner wrench 8 mm, to be used as OEM 7017-TW
flywheel locking pin 7 mm, to be used as OEM 7017-TR
angled adjustment pin 8 mm, to be used as OEM 0188D, 7004TG, 9767-34, 0153G, 7014-TJ. 1 860 863 000, 0153N
tensioner tool, to be used as OEM 4507-TJ, 9767.89, 0188Q1, 0132X1Z, 0132X
camshaft locking pin, to be used as OEM 0189A, 1 871 008 100
idler lever, to be used as OEM 0188J2
idler lever, to be used as OEM 5711-TE, 0178E, 0188J/J1
puller, to be used as OEM 0174, 0188P, 018892, 7015-T
timing belt retaining clip, to be used as OEM 0189K, MOT1436, 4533-TAX, 0188K, 0187J, 0132AK, 0153AK, 1 870 00 100
flywheel locking tool, to be used as OEM 0195K, 4507-TL
tensioner tool, to be used as OEM 0189S1
flywheel locking tool, to be used as OEM 1867030000, 0153A, 9765.54, 6012T, 1860161000
tensioner tool, to be used as OEM 0189S2
angled locking pin 5 mm
flywheel locking pin (automatic transmission), to be used as OEM 0189R
camshaft locking pin, to be used as OEM 0189AZ
crankshaft locking tool, to be used as OEM 0288D, 0188Y, 7014
flywheel locking pin, to be used as OEM 0189C
flywheel locking tool, to be used as OEM 0188F, 0134Q, 1870765001, 1870827000, 0134AF, 9044-T, 1871000400
camshaft locking pin (CA1), to be used as OEM 4533-TAC1, 0132AJ1
camshaft & crankshaft locking tool, to be used as OEM 0188M, 0187B, 0194B, 303-1277, MOT1430, 0189B, 303-735, 49JE01061, 21-263
camshaft locking pin (CA2), to be used as OEM 0132AJ2, 2000023000, 0188M, 4533-TAC2
injection pump locking tool, to be used as OEM 4527-TS1
injection pump locking pin, to be used as OEM 0188H, 1 860 965 000
flywheel locking pin, to be used as OEM 49JE02020, 0194C, 21-262, 999-7121, 999-7169, 303-734
2 camshaft and crankshafts locking pin, to be used as OEM 4507-TB, 7014-TN, 0132-R, 0153-AB, 0158-G
2 camshaft and crankshaft locking tools, to be used as KM-955, 7014-TM
2 camshaft locking pins, to be used as OEM 9041-TZ, 5711-TC
2 crankshaft locking pins,to be used as OEM 5711-TD, 119790, 0194A, 1860617000, 303-732, 07744-00104-00, 49JE02018, 0178D, 9997169, 4527-TS2, 21-260, 999-7169, 0132AB
camshaft locking pin, to be used as OEM 0189L
screw M8 x 80 mm
3 mm tensioner pin, to be used as OEM 0153AL, 4200TA
centering clip for crankshaft pulley, to be used as OEM 0188AH
crankshaft locking tool 6 mm, to be used as OEM 4507-TA, 0132Z, 0132QZ
Technical data
Gross weight 4550 g
To be used as OEM1 11 9 790 Mini
To be used as OEM2 MOT1436 | MOT1430 Renault
To be used as OEM3 0188X | 0189X | 0188D | 0153G | 0153N | 0153N | 0188Q1 | 0132X1Z | 0132X | 0189A | 0188J2 | 0178E | 0188J/J1 | 0174 | 0188P | 0188K | 0187J | 0132AK | 0153AK | 0195K | 0153A | 0189S1 | 0189S2 | 0189R | 0189AZ | 0288D | 0188Y | 0189C | 0188F | 0134Q | 0134AF | 0132AJ1 | 0188M | 0187B | 0194B | 0189B | 0132AJ2 | 0188M | 0188H | 0194C | 0132-R | 0153-AB | 0158-G | 0194A | 0178D | 0132AB | 0189L | 0153AL | 0188AH | 0132Z | 0132QZ | 7014-TJ | 4507-TJ | 5711-TE | 7015-T | 0189K | 4533-TAX | 4507-TL | Citroën
To be used as OEM4 0188X | 0189X | 0188D | 0153G | 0153N | 0153N | 0188Q1 | 0132X1Z | 0132X | 0189A | 0188J2 | 0178E | 0188J/J1 | 0174 | 0188P | 0188K | 0187J | 0132AK | 0153AK | 0195K | 0153A | 0189S1 | 0189S2 | 0189R | 0189AZ | 0288D | 0188Y | 0189C | 0188F | 0134Q | 0134AF | 0132AJ1 | 0188M | 0187B | 0194B | 0189B | 0132AJ2 | 0188M | 0188H | 0194C | 0132-R | 0153-AB | 0158-G | 0194A | 0178D | 0132AB | 0189L | 0153AL | 0188AH | 0132Z | 0132QZ | 7014-TJ | 4507-TJ | 5711-TE | 7015-T | 0189K | 4533-TAX | 4507-TL | Peugeot
To be used as OEM5 1860863000 | 1871008100 | 1867030000 | 187000100 | 1860161000 | 1870765001 |1870827000 | 1871000400 | 2000023000 | 1860617000 | 1860965000 Fiat
To be used as OEM6 9997121 | 9997169 Volvo
To be used as OEM7 303-1277 | 303-735 | 303-734 | 303-732 | 21-263 | 21-262 | 21-260 Ford
To be used as OEM8 49 JE01 061 | 49 JE02 020 | 49 JE02 018 | 49 JE02 021 Mazda
To be used as OEM9 KM955 Opel / Vauxhall
