Aprašymas:
Gamintojas:
compact set composition
suitable for daily workshop use
for checking and setting the engine timing
the tools are protected in the hard foam tray and are stowed in the recesses in a non-slip manner

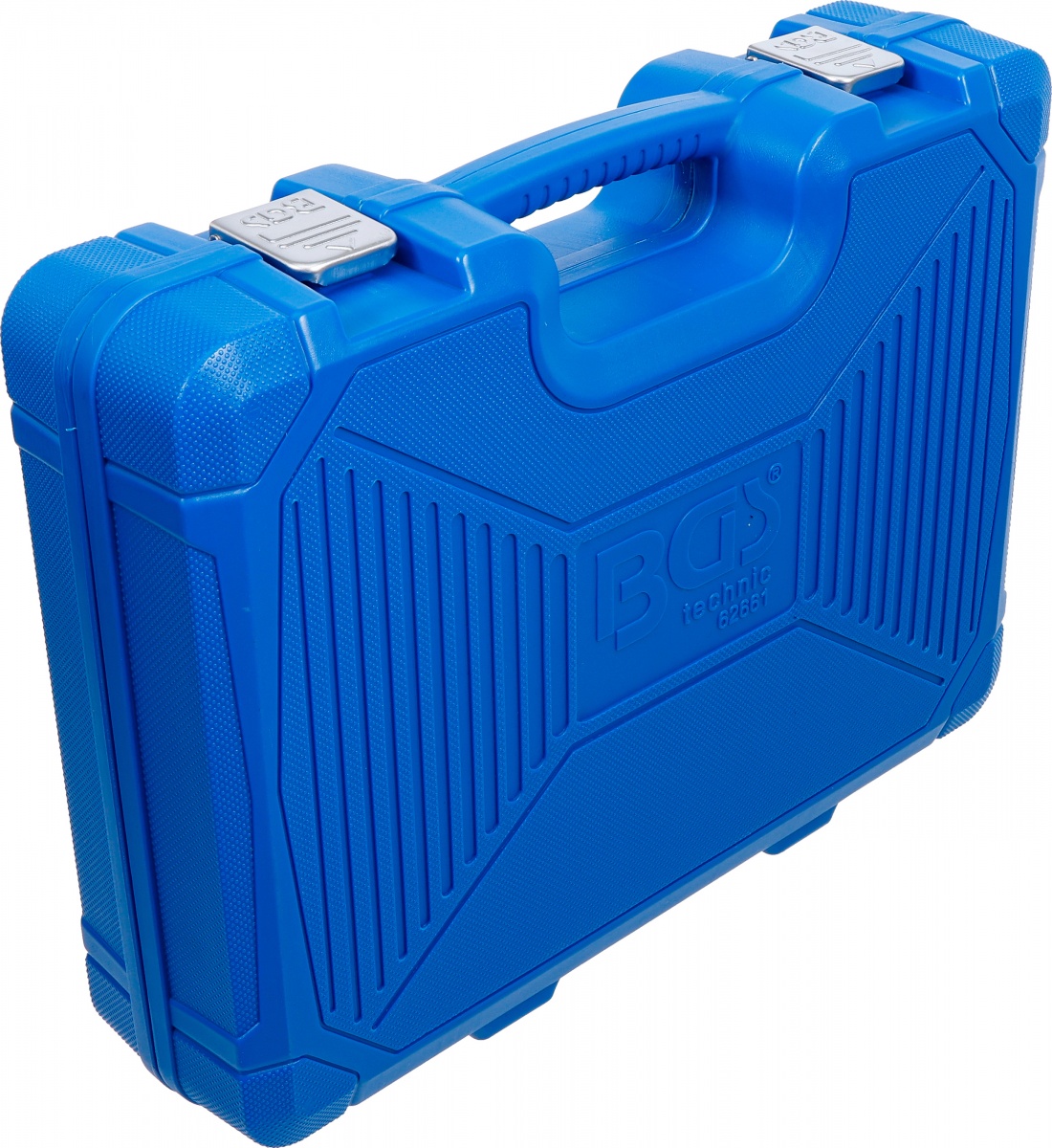

safe and tidy storage in blow mold case
suitable for:
for Mercedes-Benz engines of the M254 and M256 series
installed in the following vehicle models:
Mercedes-Benz AMG GT 270 KW (2018–2026)
Mercedes-Benz AMG GT 320 kW (2018–2026)
Mercedes-Benz CLE Cabriolet 297 kW (2024–2026)
Mercedes-Benz CLE Cabriolet 347 kW (2024–2026)
Mercedes-Benz CLE Coupé 297 kW (2024–2026)
Mercedes-Benz CLE Coupé 347 kW (2024–2026)
Mercedes-Benz CLS 270 kW (2018–2025)
Mercedes-Benz CLS 320 kW (2018–2025)
Mercedes-Benz E-Class 320 kW (2018–2023)
Mercedes-Benz E-Class 270 kW (2018–2023)
Mercedes-Benz E-Class 280 kW (2023–2026)
Mercedes-Benz E-Class 450 kW (2023–2026)
Mercedes-Benz E-Class Coupé/Cabriolet 320 kW (2018–2024)
Mercedes-Benz E-Class Coupé/Cabriolet 270 kW (2020–2024)
Mercedes-Benz GLE 270 kW (S) (2019–2026)
Mercedes-Benz GLE 320 kW (2019–2025)
Mercedes-Benz GLE Coupé 320 kW (2020–2025)
Mercedes-Benz GLE Coupé 270 kW (2020–2025)
Mercedes-Benz GLS 270 KW (2019–2025)
Maybach GLS 270 kW (2020–2025)
Maybach S-Class 270 kW (2020–2025)
Mercedes-Benz S-Class 270 kW (2017–2026)
Mercedes-Benz S-Class 320 kW (2017–2021)
Mercedes-Benz S-Class 230 kW (2020–2025)
Mercedes-Benz S-Class 270 kW (2020–2025)

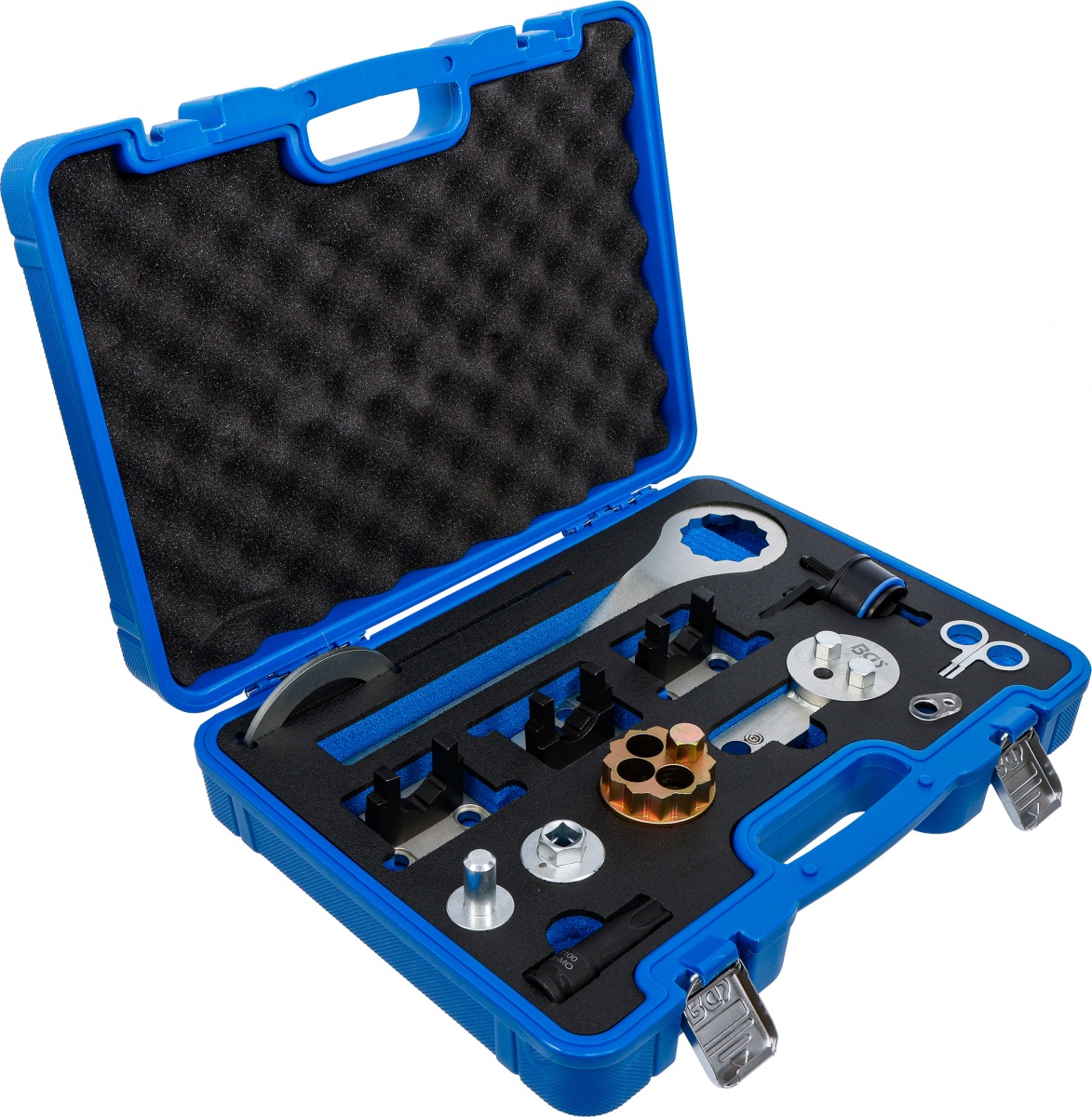

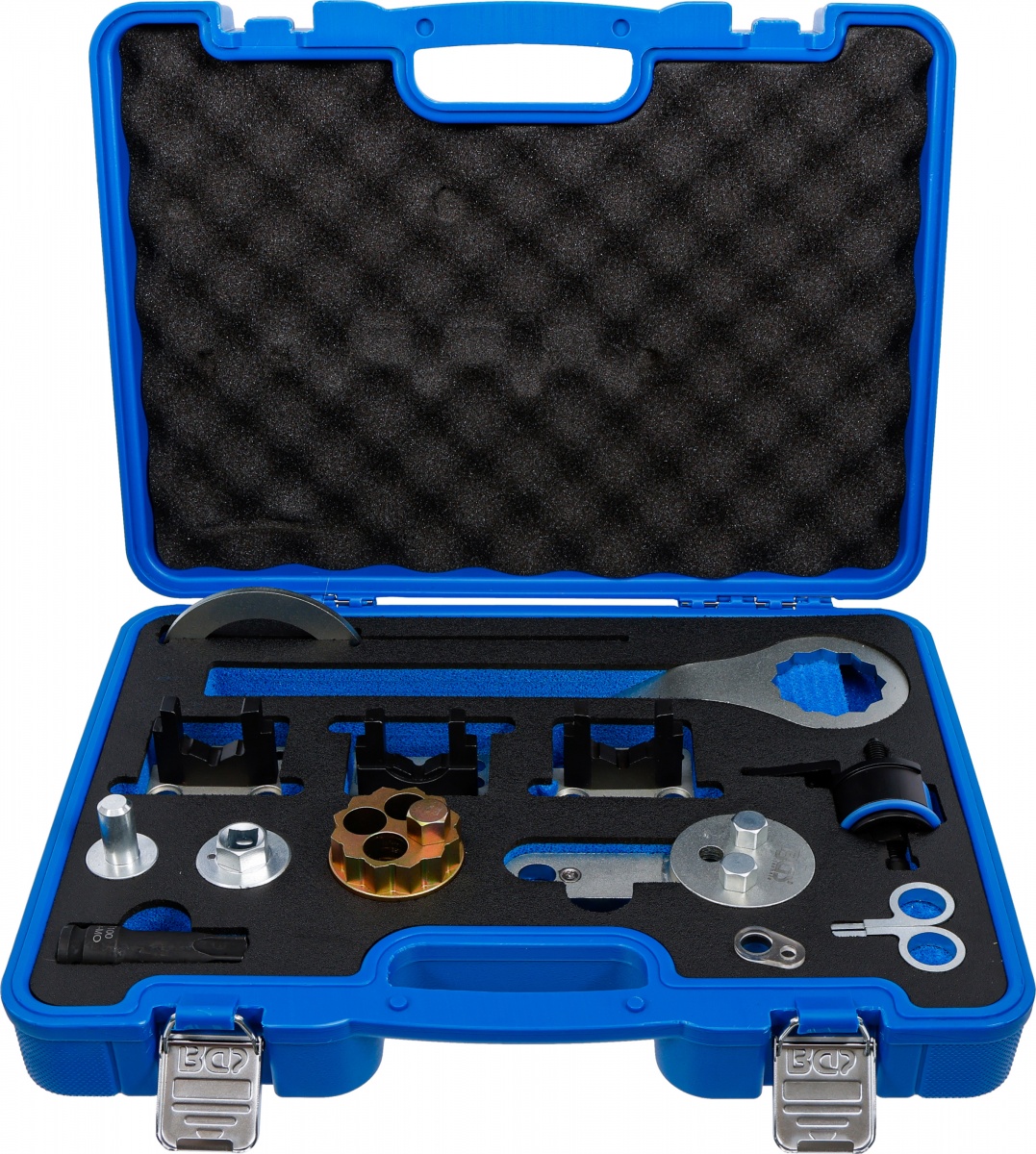

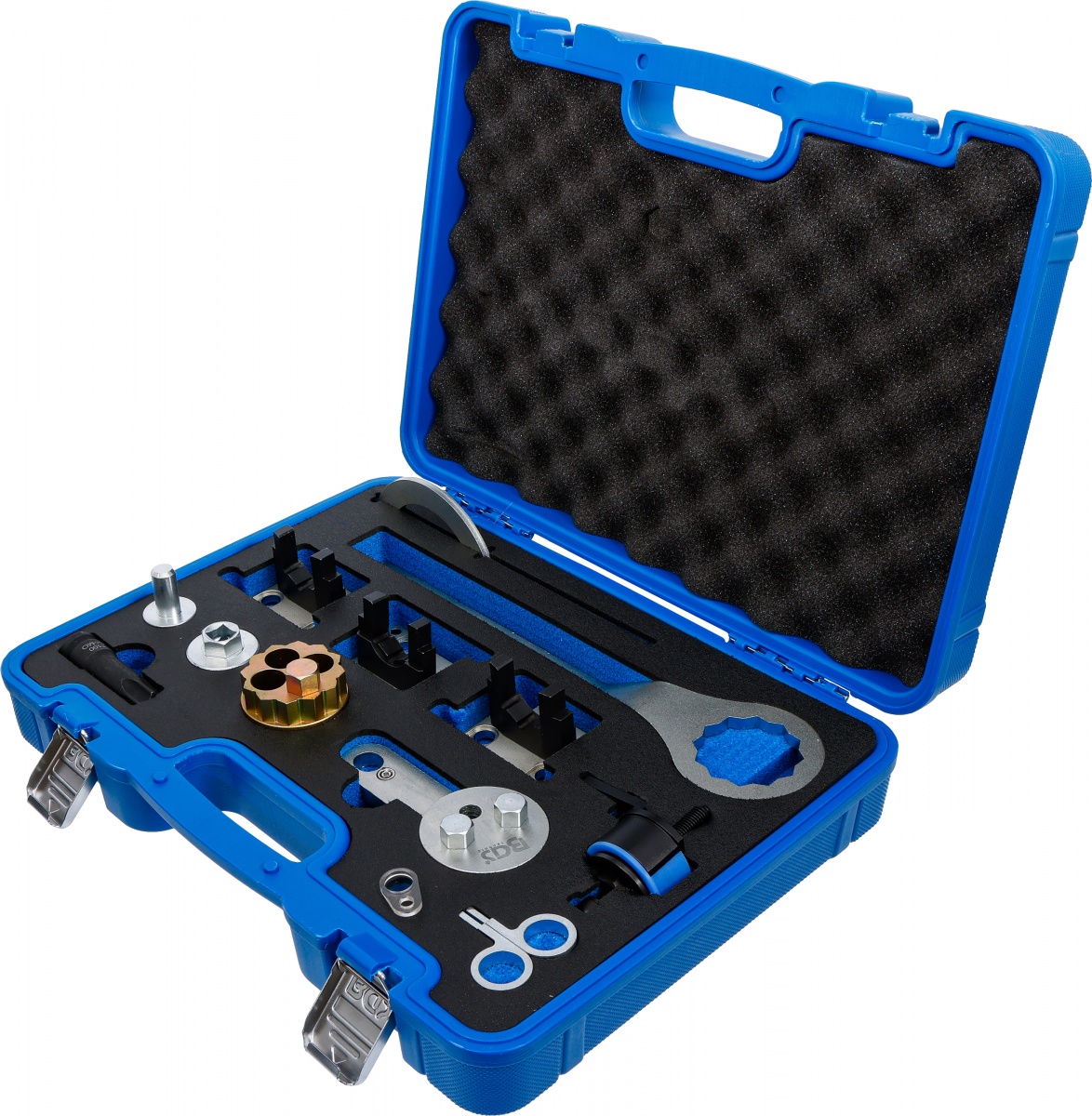

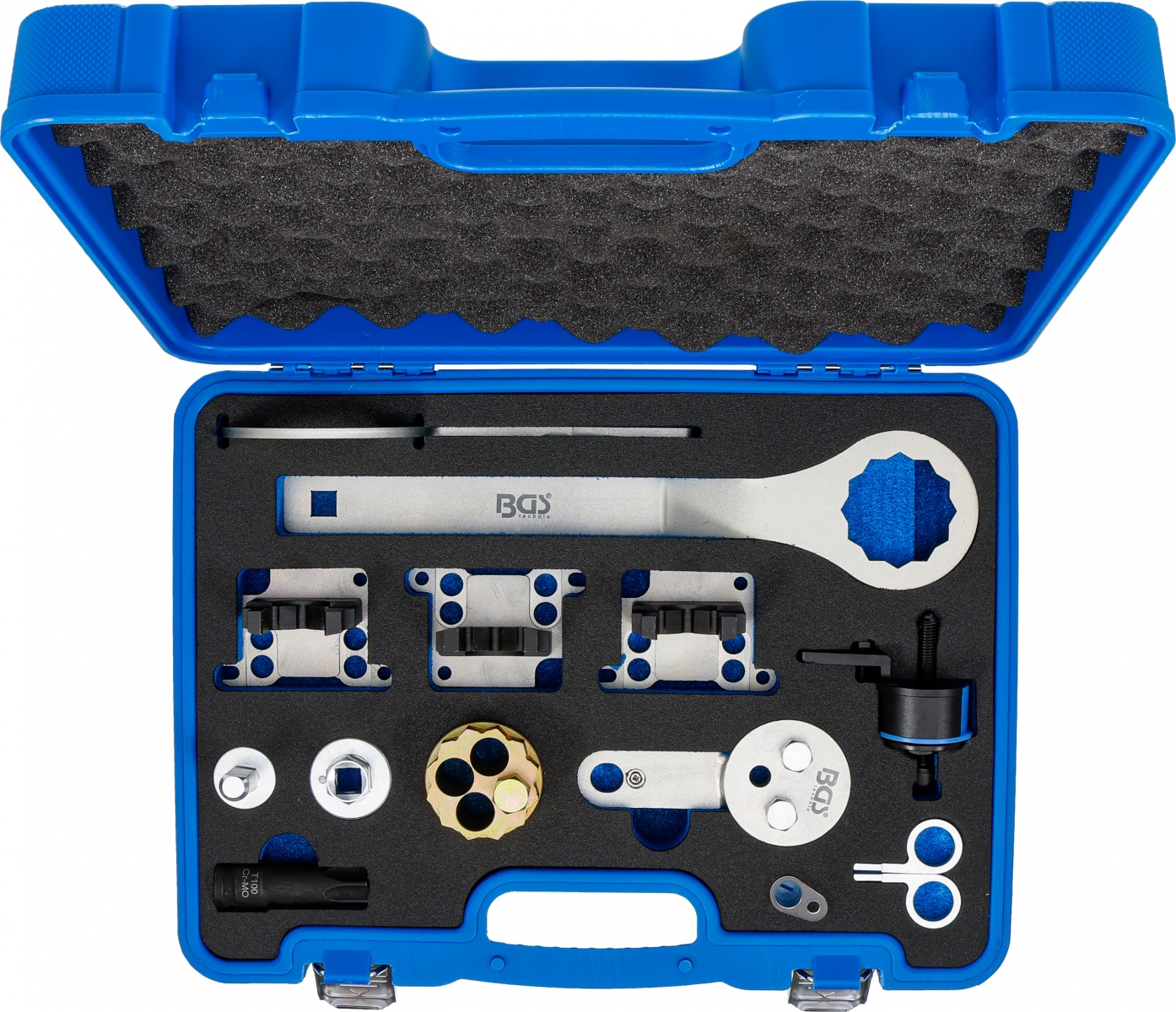

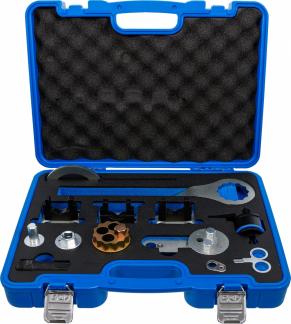

Scope of delivery:
1 camshaft turning tool, to be used as OEM 177 589 01 09 00
1 crankshaft pulley holding tool, to be used as OEM 654 589 00 40 00
1 camshaft setting tool, to be used as OEM 256 589 00 23 00
1 camshaft setting tool, to be used as OEM 256 589 00 23 00
1 camshaft setting tool, to be used as OEM 256 589 00 23 00
1 diesel high-pressure pump puller, to be used as OEM 654 589 00 14 00
1 crankshaft locking pin, to be used as OEM 654 589 00 21 00
1 camshaft socket, to be used as OEM 177 589 01 09 00
1 crankshaft Pulley Holding Tool, to be used as OEM 654 589 00 40 00
1 crankshaft adjustment tool, to be used as OEM 654 589 00 21 00
1 bit socket, T-Star (for Torx) tamperproof, T100, for camshaft adjuster
1 camshaft locking tool adapter, to be used as OEM 654 589 03 21 01
1 camshaft adjuster locking tool, to be used as OEM 256 589 02 31 00

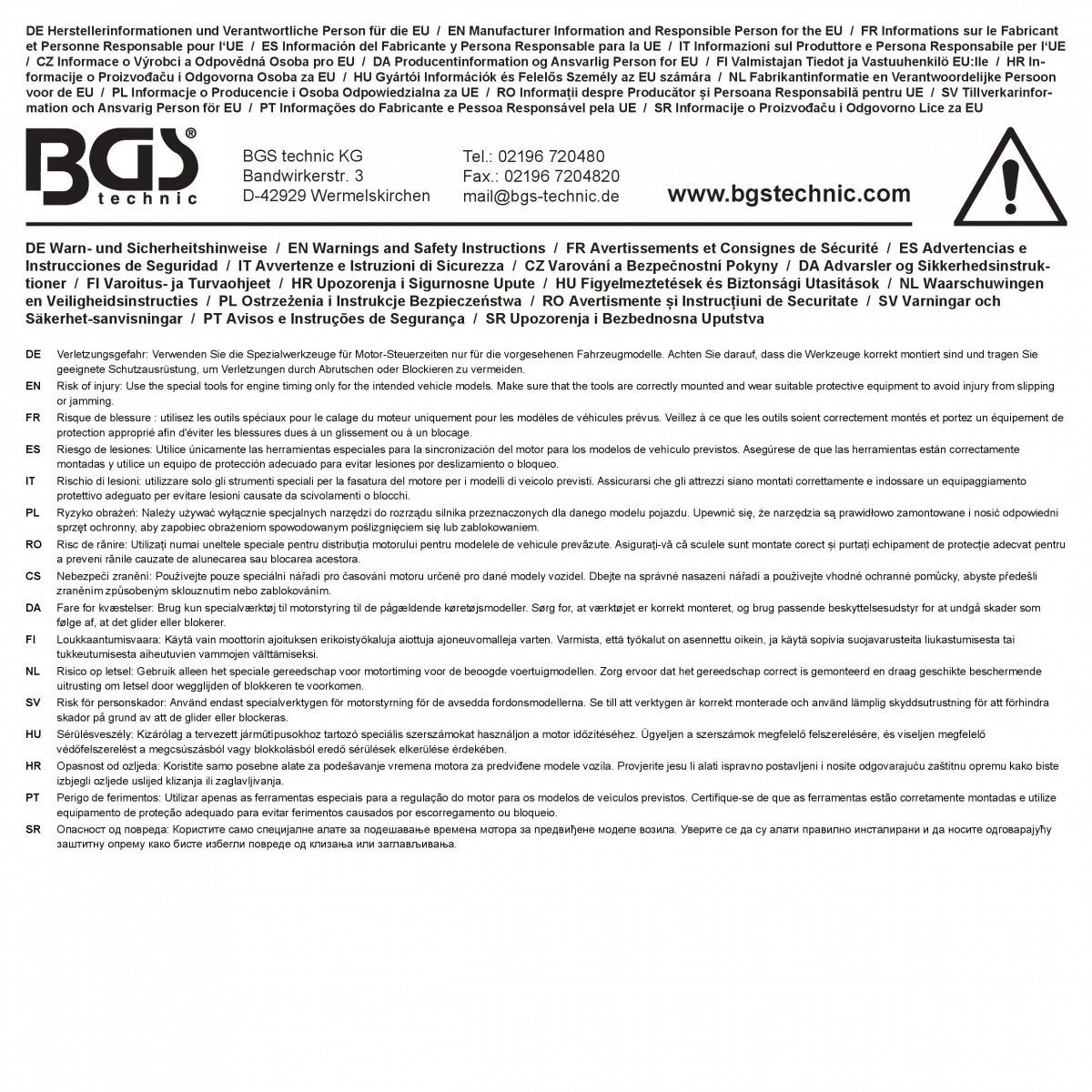

Warnings and Safety Instructions
Risk of injury: Use the special tools for engine timing only for the intended vehicle models. Make sure that the tools are correctly mounted and wear suitable protective equipment to avoid injury from slipping or jamming.
To be used as OEM1:
Mercedes-Benz
177 589 01 09 00
654 589 00 40 00
256 589 00 23 00
654 589 00 14 00
654 589 00 21 00
654 589 03 21 01
256 589 02 31 00
Number of parts:
13
Package dimensions (LxwxH) :
426 x 320 x 110 mm
Gross weight: 5.512 kg
