Aprašymas:
Gamintojas:
suitable for daily workshop use
for checking and setting the engine timing
to be used in conjunction with tool kit item 74684
the tools are protected in the hard foam tray and are stowed in the recesses in a non-slip manner
each individual tool has its appropriate place
suitable for all BGS workshop trolleys and drawers of storage system combination
VAG vehicle models with 1.0L / 1.2L / 1.4L TSI engines EA211
1.0L CHZA, CHZL, DKLD, CHZB, CPGA, DKRA, CHZC, DBYA, DKRB, CHZD, DKJA, DKRC, CHZF, DKLA, DKRF, CHZJ, DKLB, CHZK, DKLC
1.2L CJZA, CJZB, CJZC, CJZD, CYVA, CYVB, CYVD
1.4L CHPA, CXSA, CMBA, CZCA, CPVA, CZDA, CPVB, CZDD, CPWA, DGEA, CUKB, DGEB, CUKC, DJKA

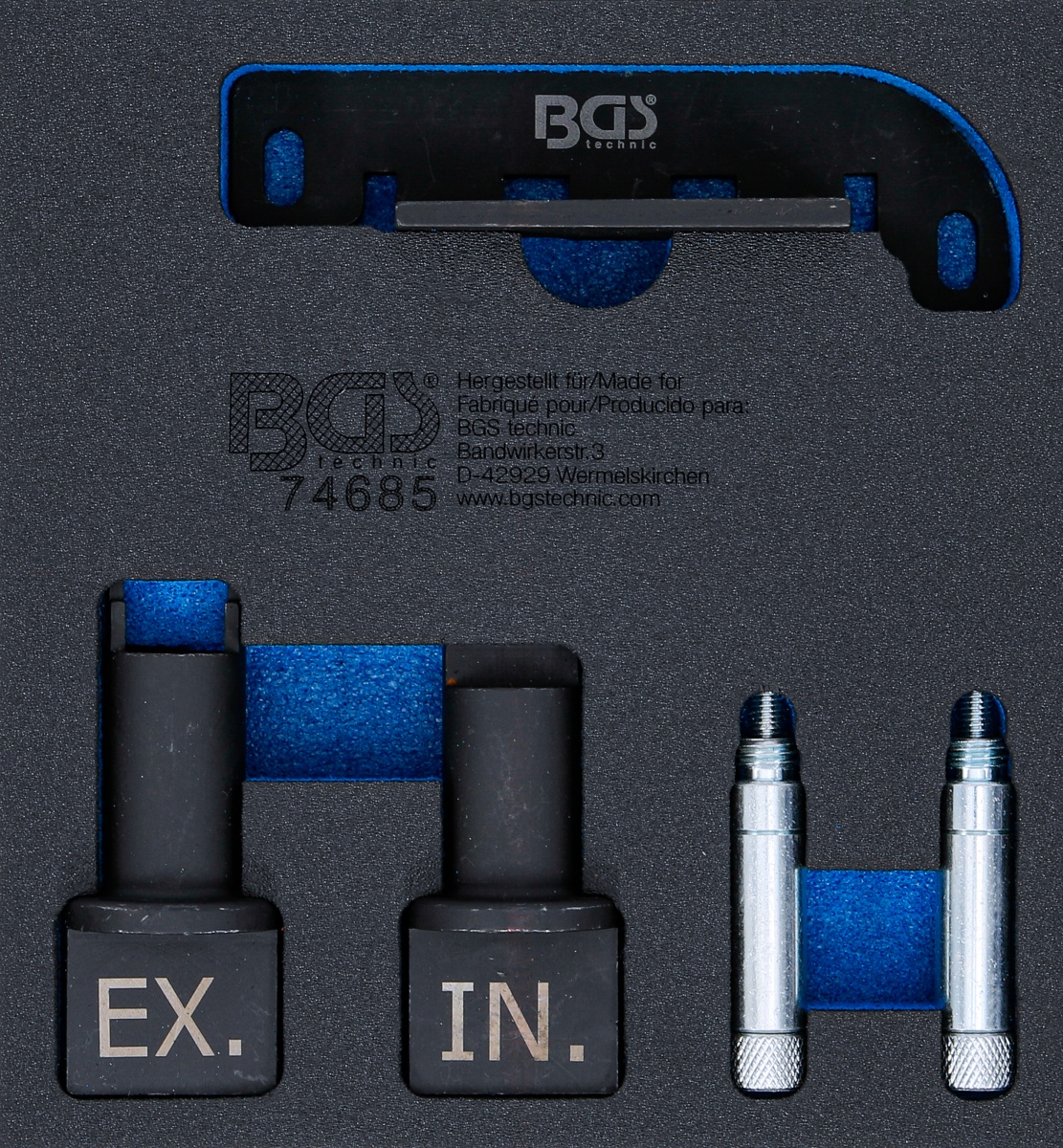

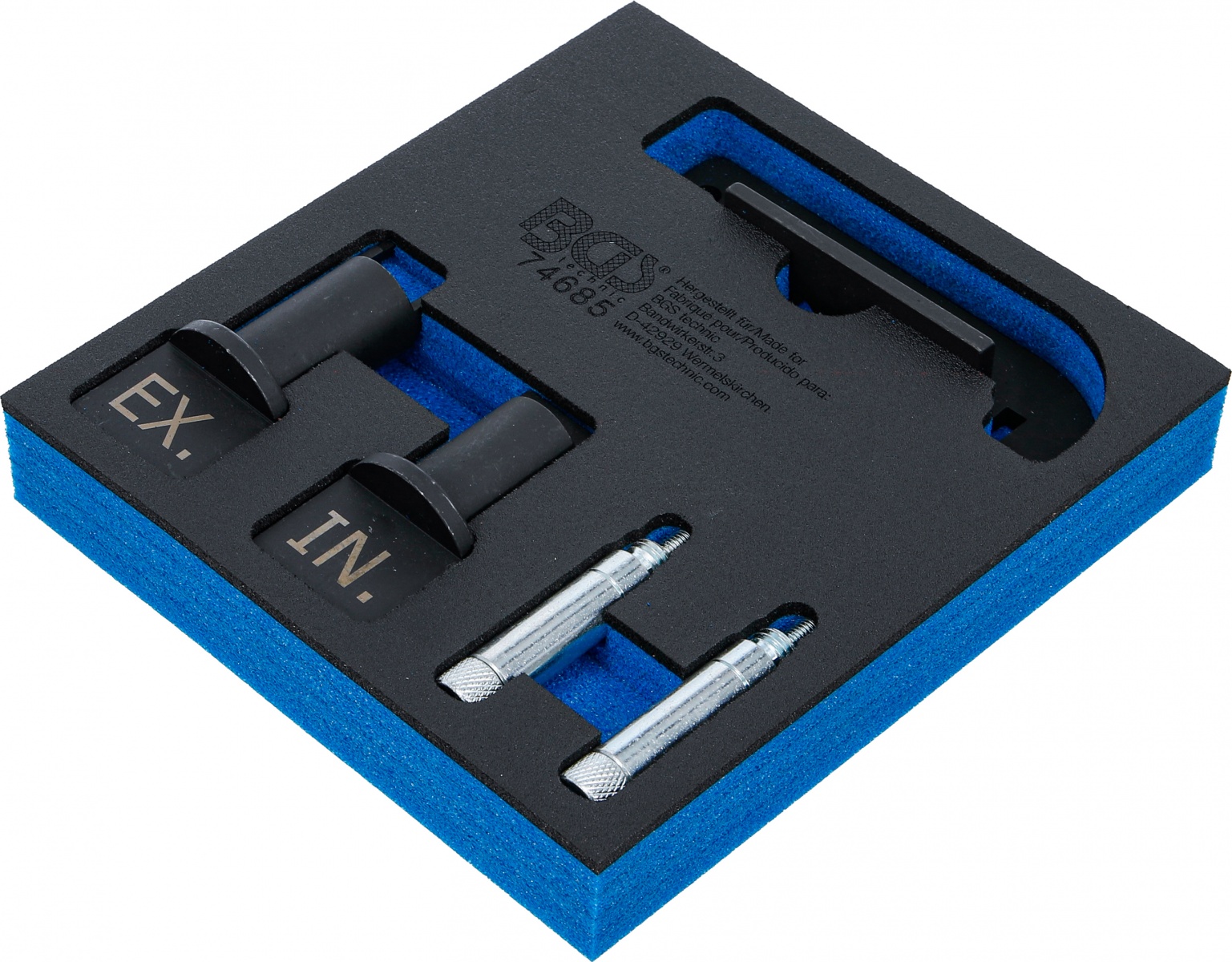

2 adapter plate spacers, to be used as OEM VAS 611 007
1 intake camshaft adapter 1.0L / 1.2L / 1.4L TSI, to be used as OEM VAS 611 007
1 exhaust camshaft adapter 1.0L / 1.2L / 1.4L TSI, to be used as OEM VAS 611 007
1 inclinometer reference tool 1.0L / 1.2L / 1.4L TSI, to be used as OEM VAS 611 007
Length:
204 mm
Height:
32 mm
Width:
189 mm
To be used as OEM1:
Audi
VAS 611 007
To be used as OEM2:
Seat
VAS 611 007
To be used as OEM3:
Škoda
VAS 611 007
To be used as OEM4:
Volkswagen
VAS 611 007
Package dimensions (LxwxH) :
215 x 211 x 59 mm
Gross weight: 1.322 kg
