Aprašymas:
Gamintojas:
for the removal and installing of the two-piece engine support silent blocs
suitable for:
for support bearings with the following equivalent numbers:
1K0199313AQ, 1K0199313AS, 1K0199867, 1K0199867A, 1K0199867P, 1K0199867Q, 1K0199868, 1K0199868A, 1K0199868C, 1K0199868P, 1K0199868Q, 3C0199867B, 3C0199867C, 3C0199868 B, 3C0199868C, 5Q0198037, 5Q0198037A, 5Q0198867, 5Q0198868
for the following vehicle models:
Audi A3 (8P1) (May 2003–)
Audi TT (8J3, 8J9) (August 2006–June 2010)
Seat Altea (5P5, 5P5, 5P8) (March 2004–)
Seat Leon (1P1) (May 2005–)
Seat Toledo III (5P2) (April 2004–May 2009)
Škoda Octavia (1Z3, 1Z5) (February 2004–December 2010)
Volkswagen Caddy III (2KA, 2KB, 2KH, 2KJ, 2CA, 2CB, 2CH, 2CJ) (April 2004–August 2010)
Volkswagen EOS (1F7, 1F8) (June 2006–)
Volkswagen Golf Plus (5M1, 521) (Jan 2001–)
Volkswagen Golf V (1K1, 1K5) (October 2003–2009)
Volkswagen Golf VI (5K1, AJ5) (Oct 2008–)
Volkswagen Jetta III (1K2) (August 2005–October 2010)
Volkswagen Touran (1T1, 1T2, 1T3) (August 2003–)
Volkswagen Passat (3C2, 3C5, 362, 365) (March 2005–June 2010)
Volkswagen Scirocco (137) (May 2008–)
Volkswagen Tiguan (5N) (September 2007–)

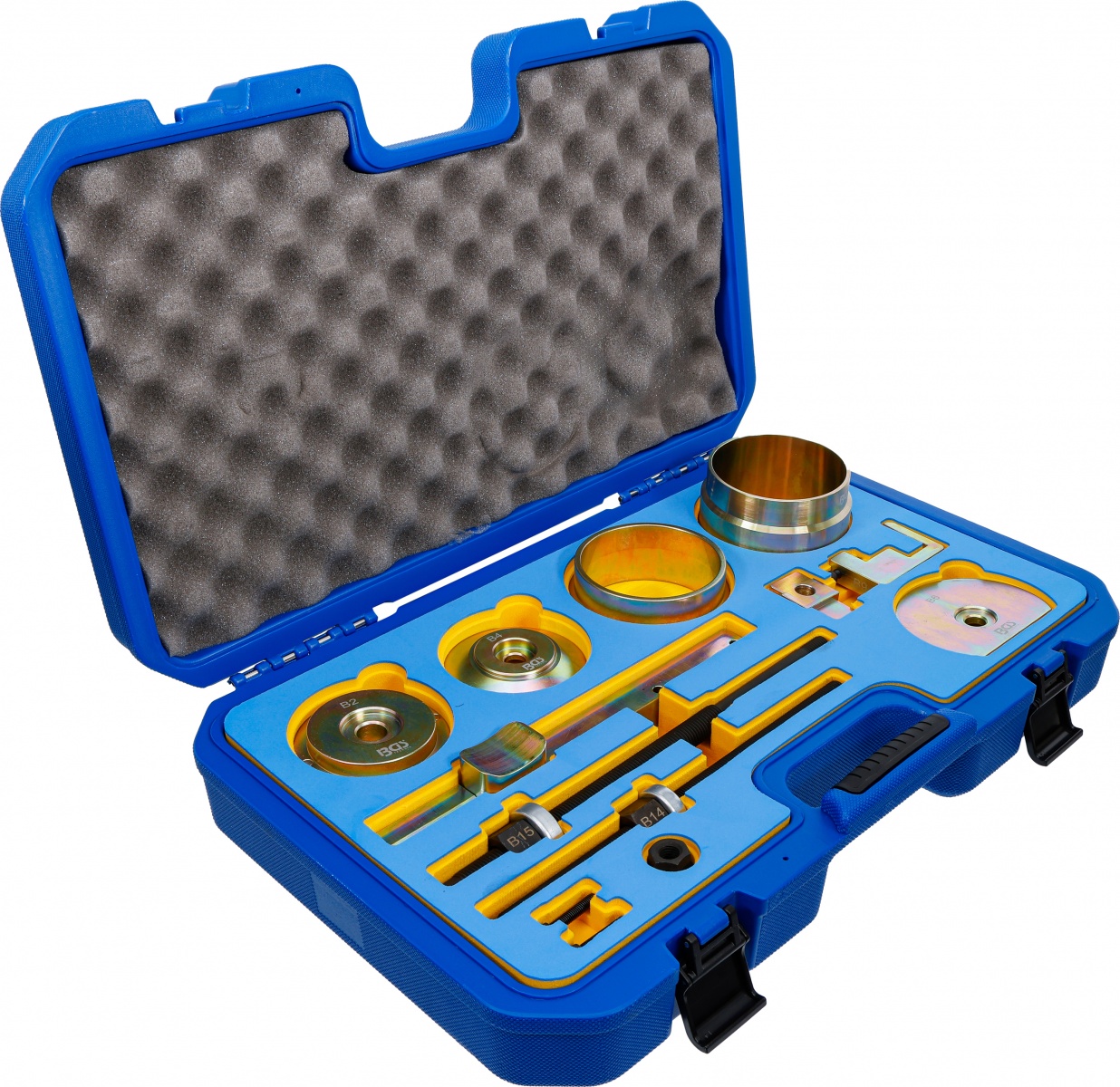

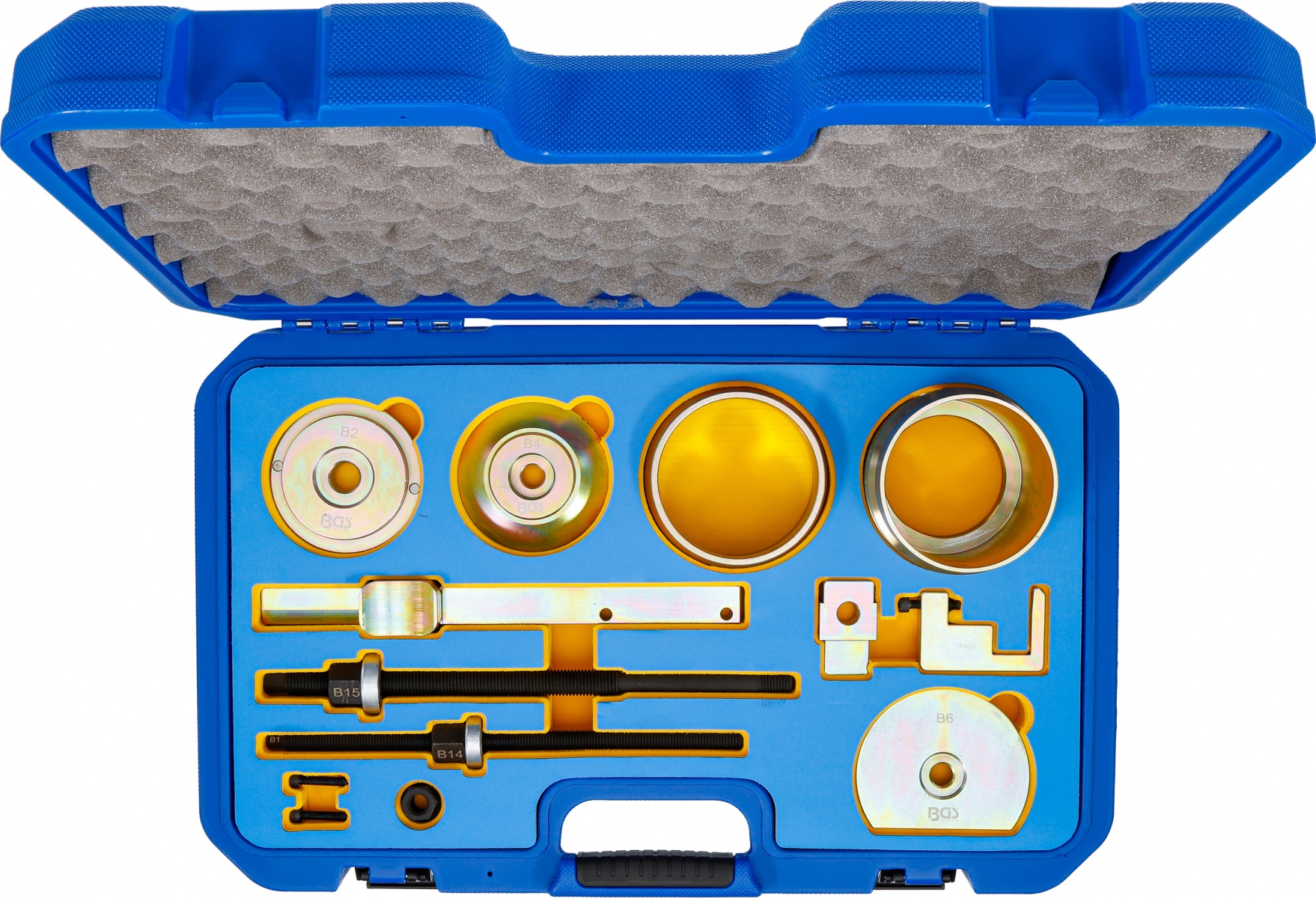

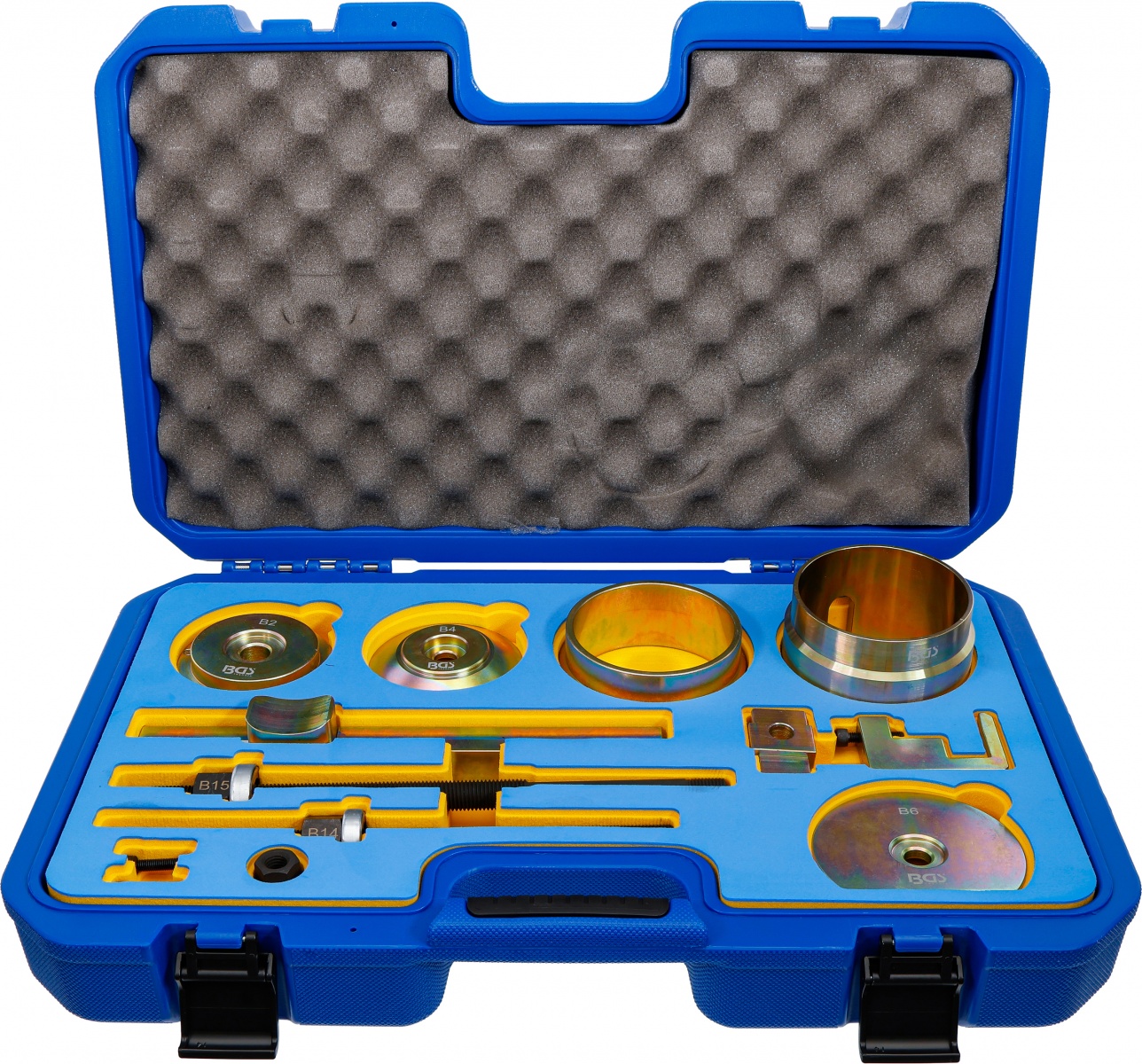

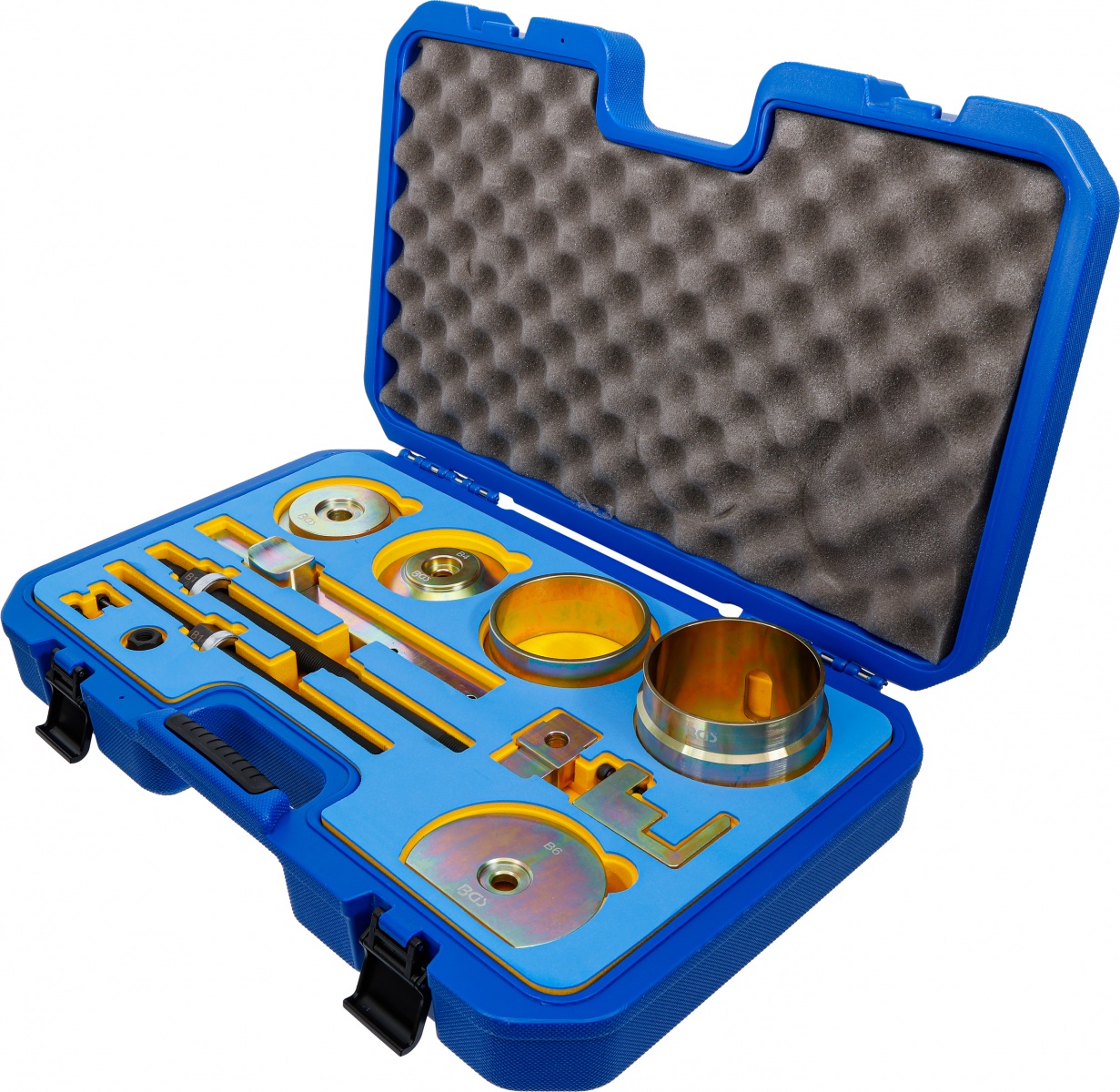

Scope of delivery:
1 mounting spindle M12x1.75, height 280 mm
1 spindle nut with bearing, M12x1.75
1 removal spindle M16x2, height 310 mm
1 removal/installation plate, Ø 89.5 mm, height 22 mm
1 removal sleeve, Ø 106 mm, height 92 mm
1 removal plate, Ø 89 mm, height 17 mm
1 assembly sleeve, Ø 106 mm, height 45 mm
1 assembly plate, Ø 82 mm, height 15 mm
1 fixing plate, length 280, width 22, height 2 mm
1 fixing plate, length 22, width 45.5, height 31.8 mm
1 fixing plate, length 16, width 49, height 72 mm
1 support bearing alignment insert, length 18, width 33.7, height 56 mm
1 nut M12x1.75
5 hexagon screws M6x1, length 30 mm

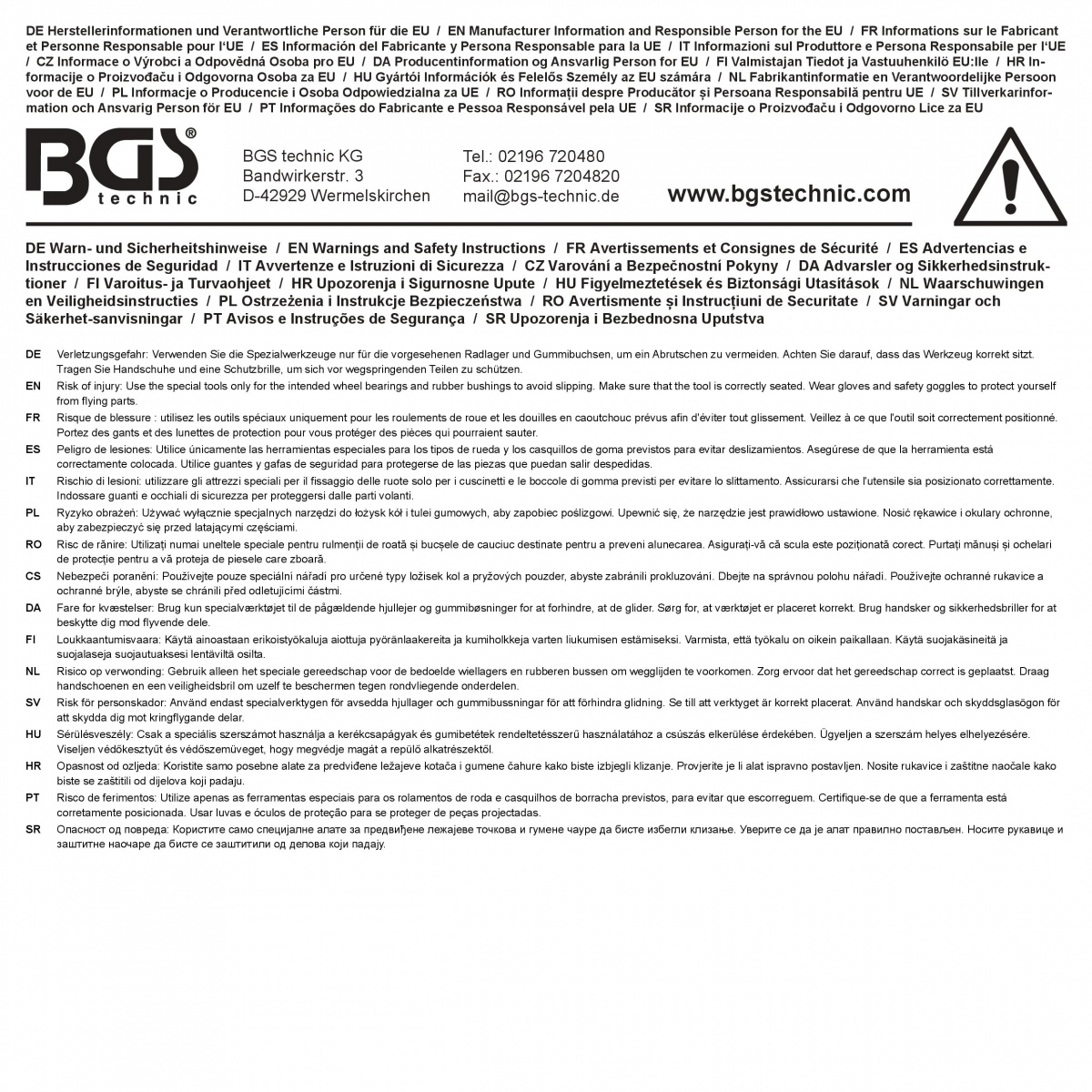

Warnings and Safety Instructions
Risk of injury: Use the special tools only for the intended wheel bearings and rubber bushings to avoid slipping. Make sure that the tool is correctly seated. Wear gloves and safety goggles to protect yourself from flying parts.
Surface finish:
Galvanised
Number of parts:
15
Package dimensions (LxwxH) :
536 x 339 x 120 mm
Gross weight: 8.43 kg
