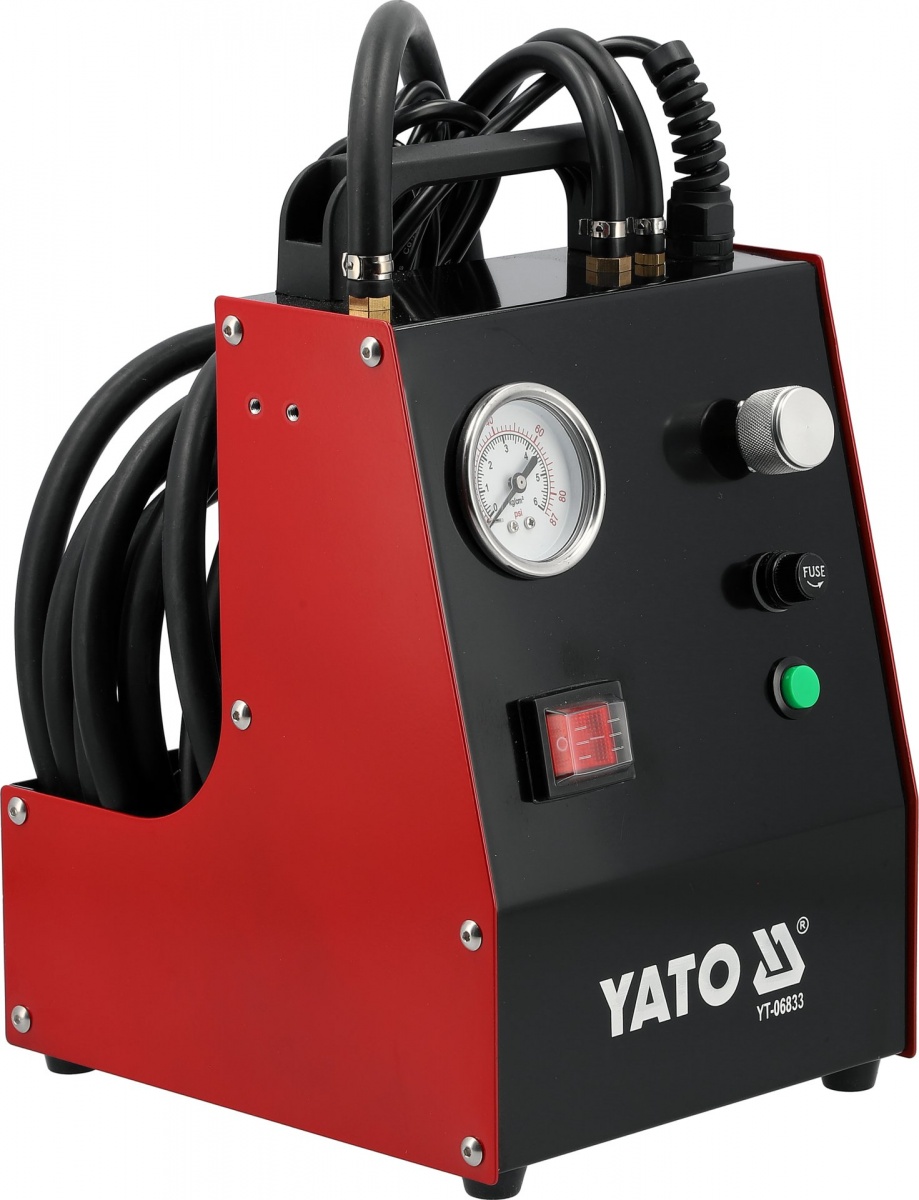

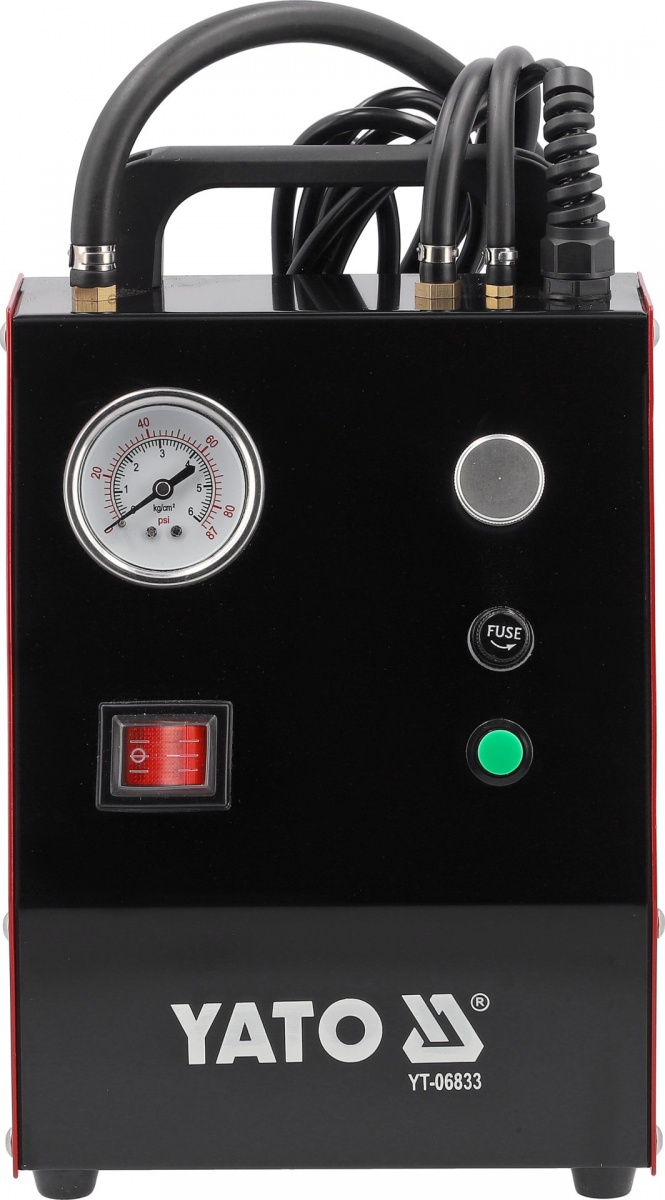

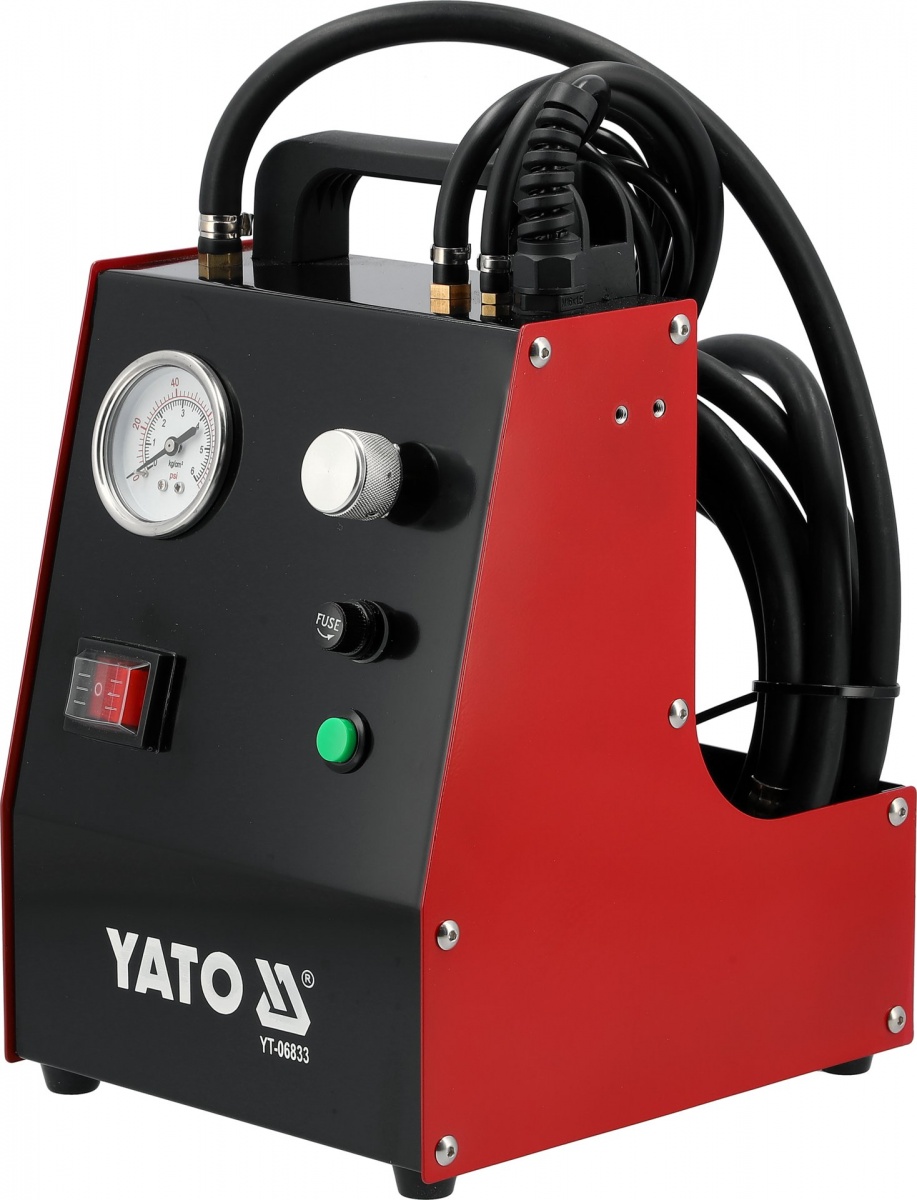

The YT-06833 brake bleeding device is a professional service tool designed for comprehensive brake system maintenance in passenger cars and light commercial vehicles. It allows for controlled bleeding, filling, and changing of brake fluid, eliminating the risk of air pockets. The automatic pump with pressure regulation allows for one-person operation, significantly streamlining and speeding up the service process.
The device operates based on a stable operating pressure, forcing new brake fluid through the system while simultaneously removing used fluid and air bubbles. A built-in pressure gauge and adjustment knob allow for precise setting of operating parameters within the recommended range for the given vehicle. A pressure monitoring system and automatic shut-off if pressure is not generated increase operational safety and protect the system from damage. Continuous fluid circulation reduces the risk of moisture absorption, which is crucial for maintaining the braking system's performance.

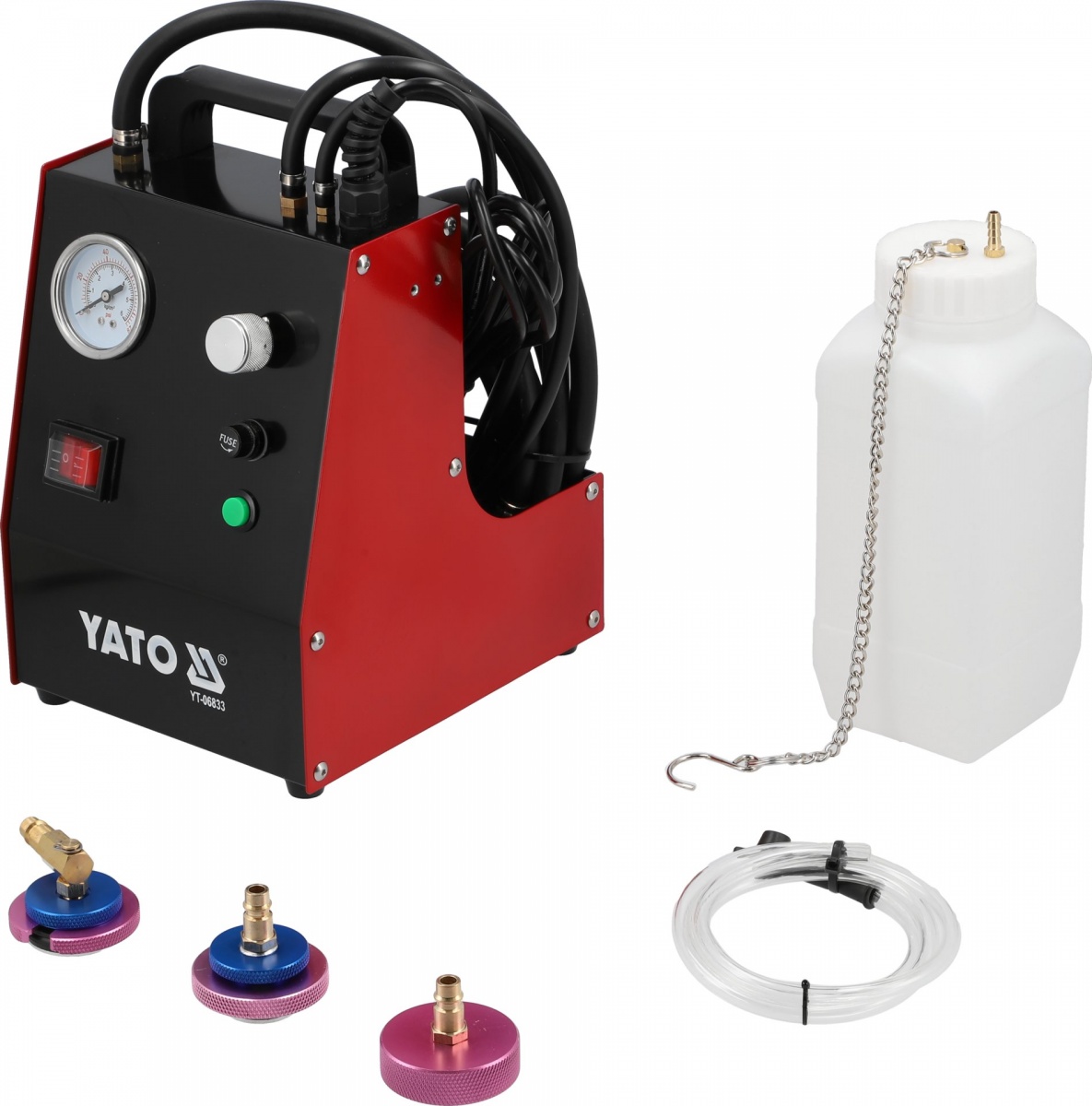

The device's design includes a used fluid reservoir, a hose system with quick-connect fittings, and a set of adapters ensuring compatibility with various types of reservoirs. A carefully thought-out arrangement of operating elements, including the suction hose and pressure equalization hose, enables stable operation and real-time process control. Key Features and Technical Parameters:
Type: Brake Fluid Bleeding and Replacement Device
Application: Brake System Service – Bleeding, Filling, and Fluid Replacement
Power: 35 W
Maximum Pressure: 0.3 MPa / 3 kg/cm² / 43.5 PSI
Operating Pressure: 0.16-0.20 MPa / 1.6-2.0 kg/cm² / 23.2-29.0 PSI
Maximum Fluid Flow: 1.2 L/min
Automatic Pressure Pump – Stable Operation and Quick Fluid Replacement
Pressure Adjustment via Knob – Adaptable to Vehicle Requirements

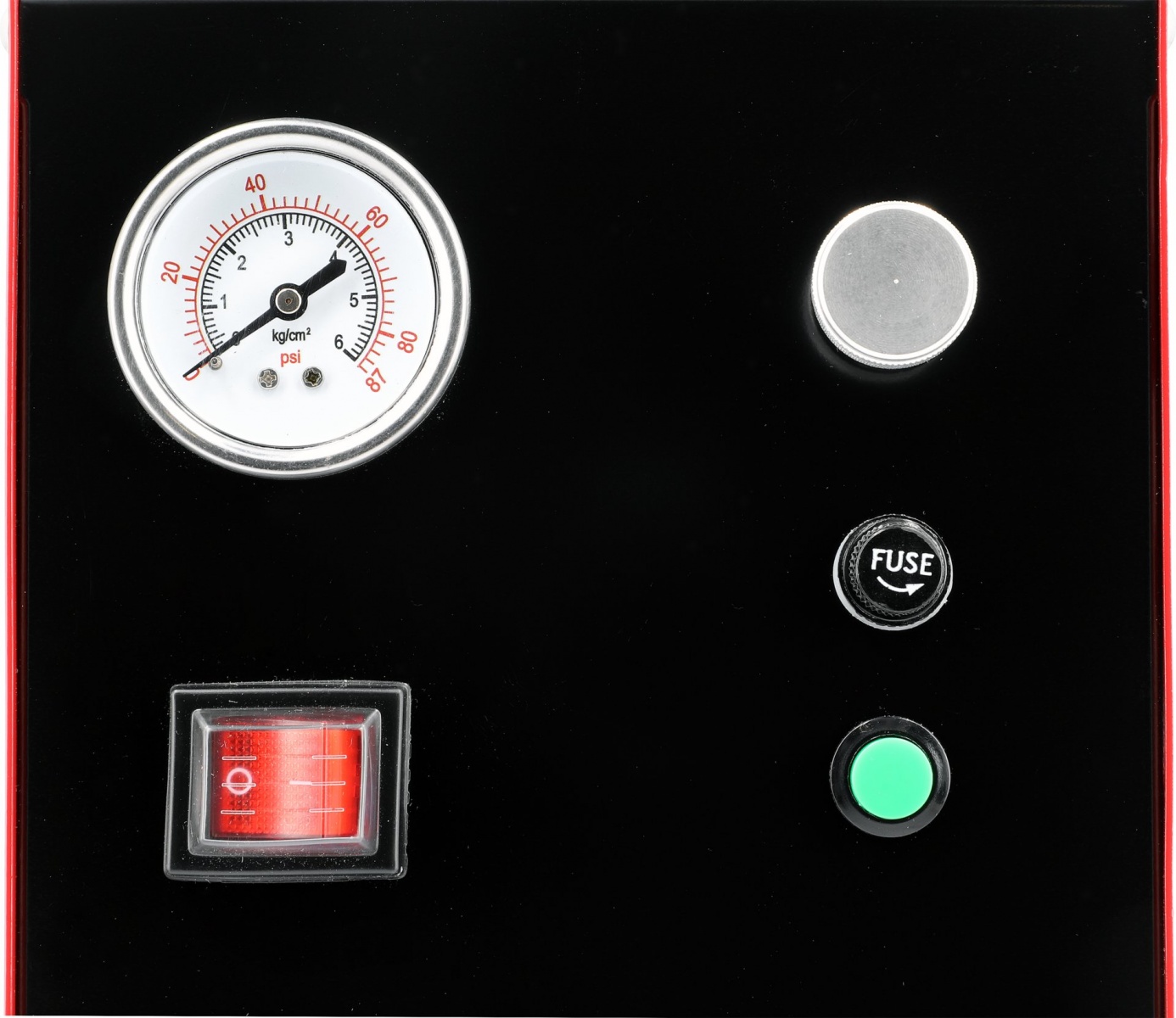

Built-in Pressure Gauge for Continuous Monitoring of Operating Parameters
Pressure Monitoring System and Automatic Shut-Off in the Event of Irregularities
Single-Person Operation

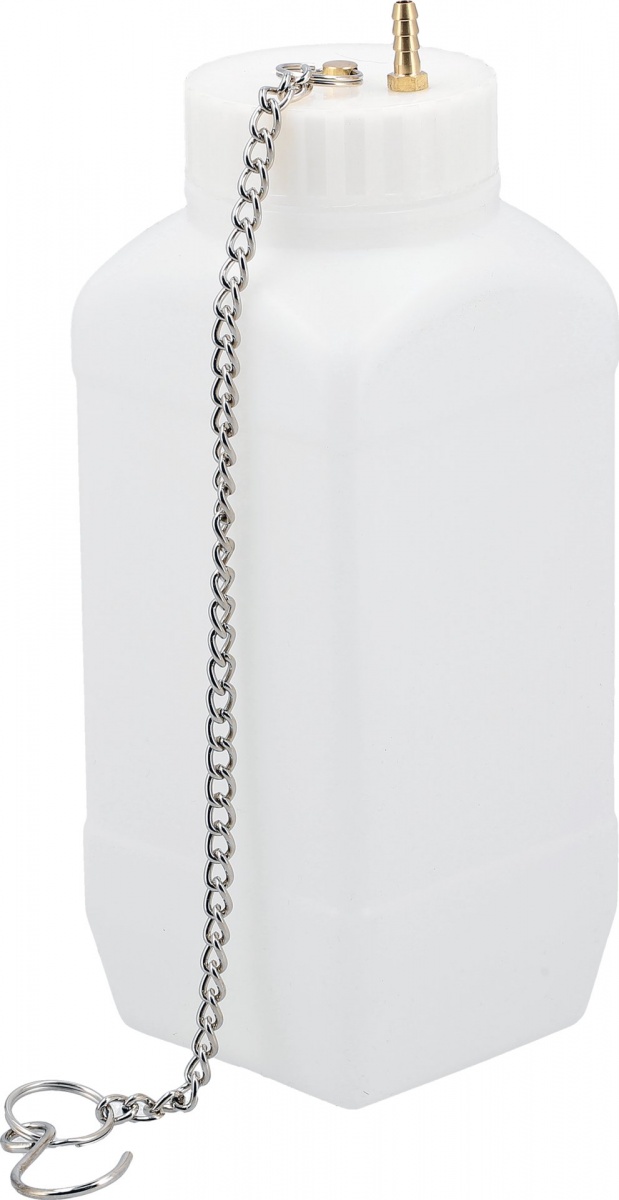

Waste Fluid Tank with Drainage System
Brake Fluid Hose and Quick-Connect Hose
Suction Hose and Pressure Equalizing Hose – Process Control

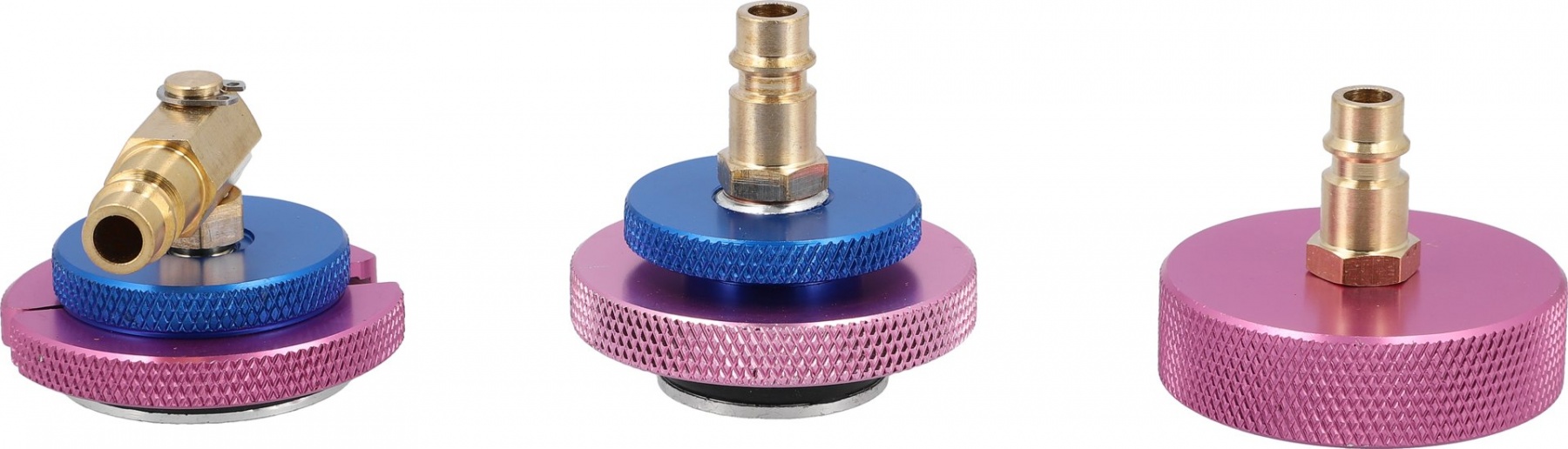

Adapter Set – Wide Compatibility with vehicle systems
Weight: 5 kg
This device significantly streamlines the process of changing and bleeding brake fluid, ensuring repeatable parameters and high operational efficiency. With precise pressure regulation, continuous fluid flow, and the ability to be operated by a single operator, it is a reliable tool for automotive workshops and specialized services.
Index YT-06833
Barcode 5906083124013
Unit of measure PCE
Volume 23.598
Weight 5.5
