Aprašymas:
Gamintojas:
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Series
GRF
Operating pressure
0.6-0.8 MPa
Max. pressure
0.8 MPa
Required air flow
170-708 l/min
Capacity
40 l
External dimensions
860x480x330 mm
Tank dimensions
306x508 mm
Hose length
2.5 m
Hose width
23.5 mm
Air supply hose inside diameter
3/8" (9.5 mm)
Air connection diameter (PT)
standard
Material
steel plate
Surface finish
sandblasted
Wheels
yes
Wheel quantity
2
Wheel diameter
150 mm
Acoustic pressure
66.9 dB(A)
Acoustic power
86.9 dB(A)
Vibrations
<2.5 m/s²
Weight
17 kg
Set includes
sandblaster, a hose sucking abrasive, air connection hose with spigot, nozzle x4 (Ø1, Ø2, Ø3, Ø4 mm)
Symbol
YT-55830
Collapse parameters

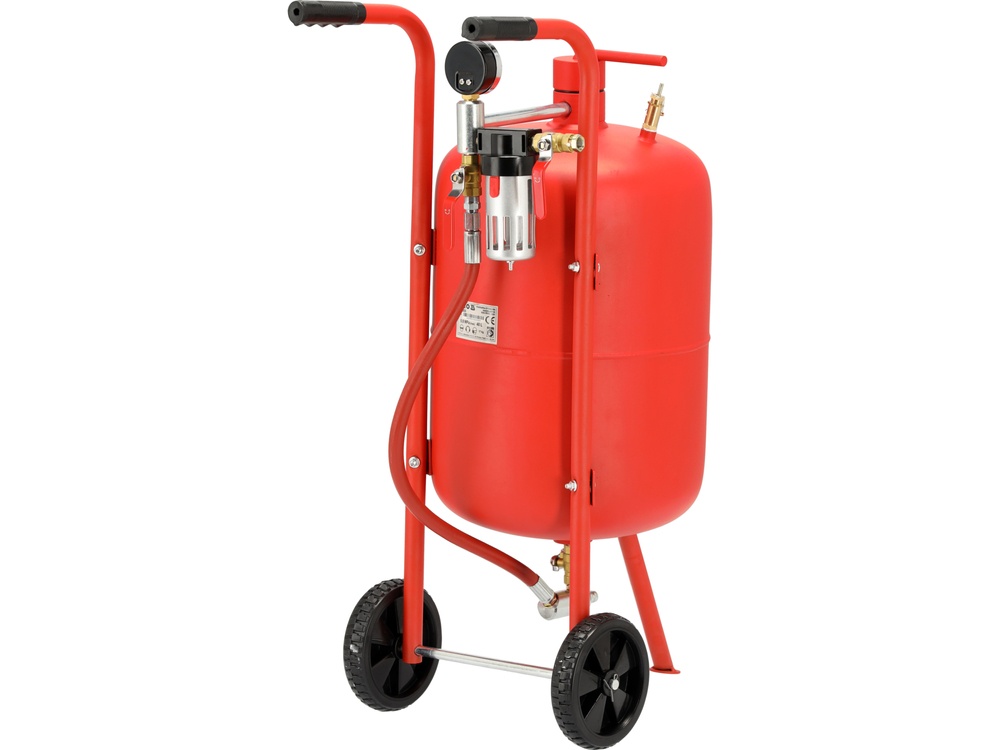

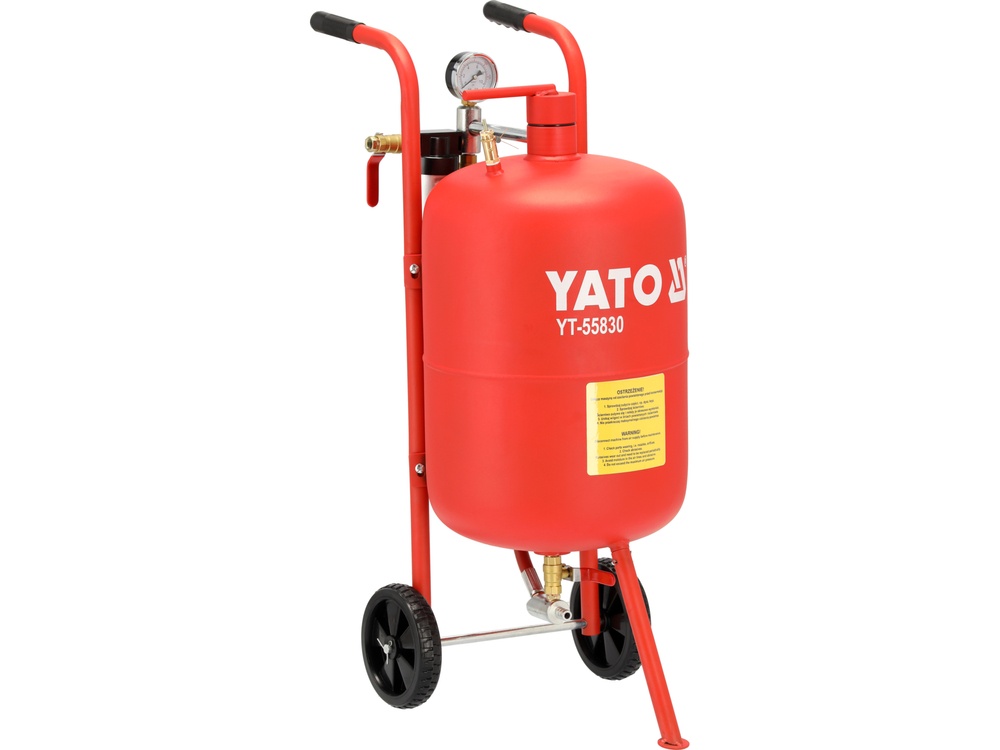

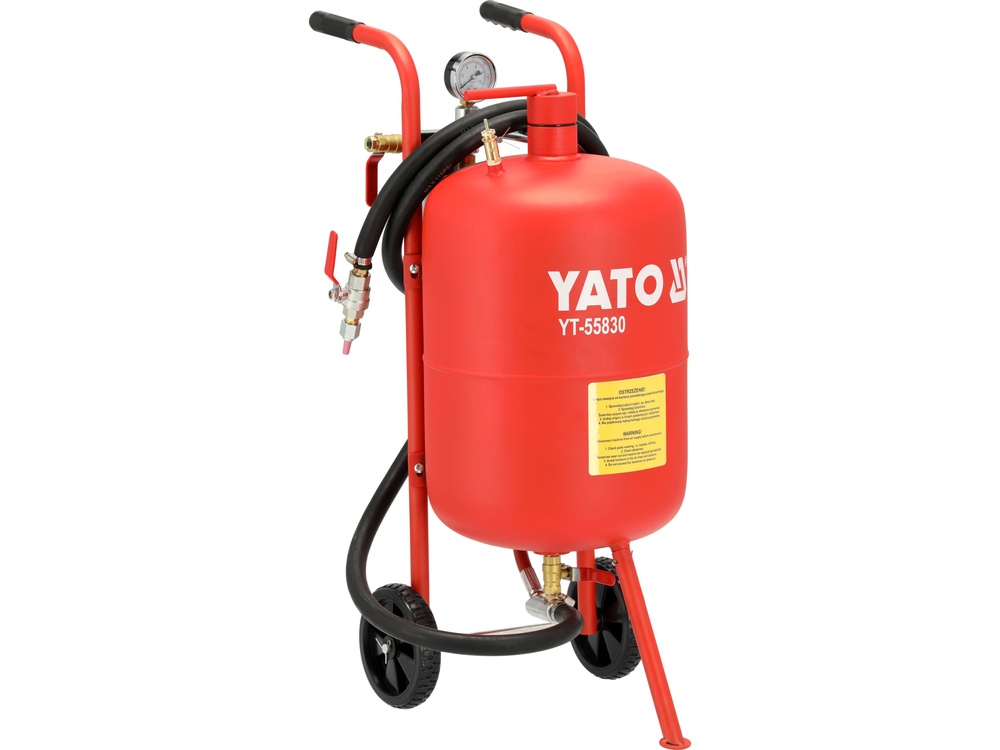

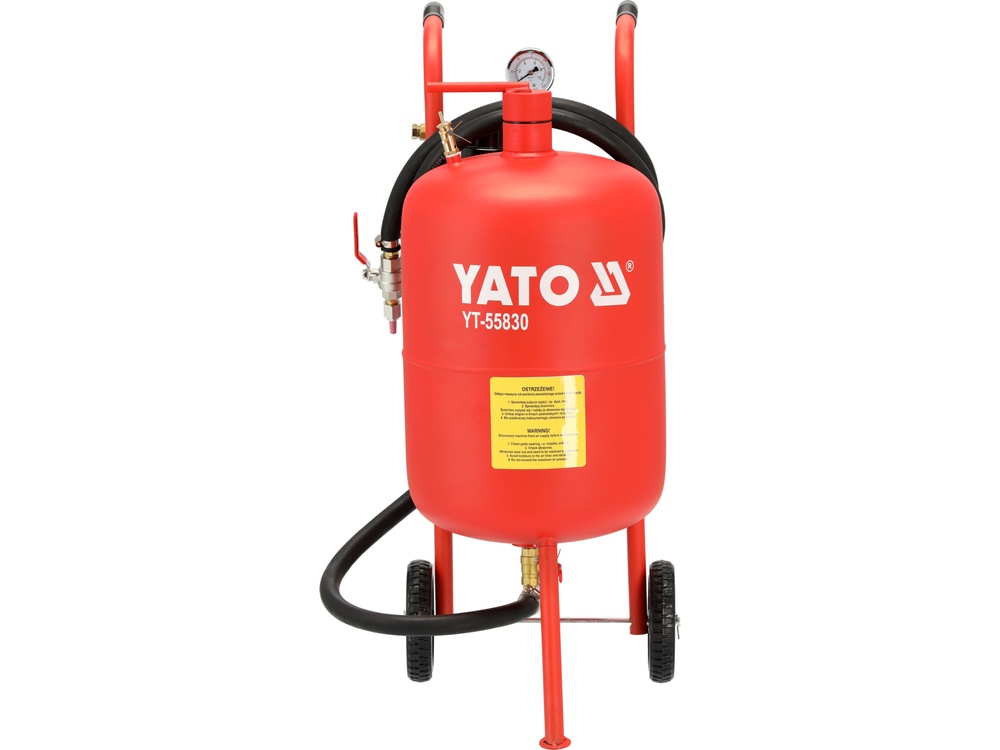

A reliable syphon sandblaster with a capacity of 40 liters, designed for professional use in workshops, locksmith shops, and renovation work. Thanks to a maximum working pressure of 0.8 MPa, it offers high efficiency in removing rust, paint, or contaminants from metal, stone, and other surfaces requiring precise cleaning.
It stands out with its optimized design - the use of a syphon abrasive delivery system allows for a stable flow of material and less waste during work.
3/8" connection allows for quick connection to pneumatic installation without the need for additional adapters
working pressure: 0.6-0.8 MPa (60-125 PSI)
maximum pressure: 0.8 MPa

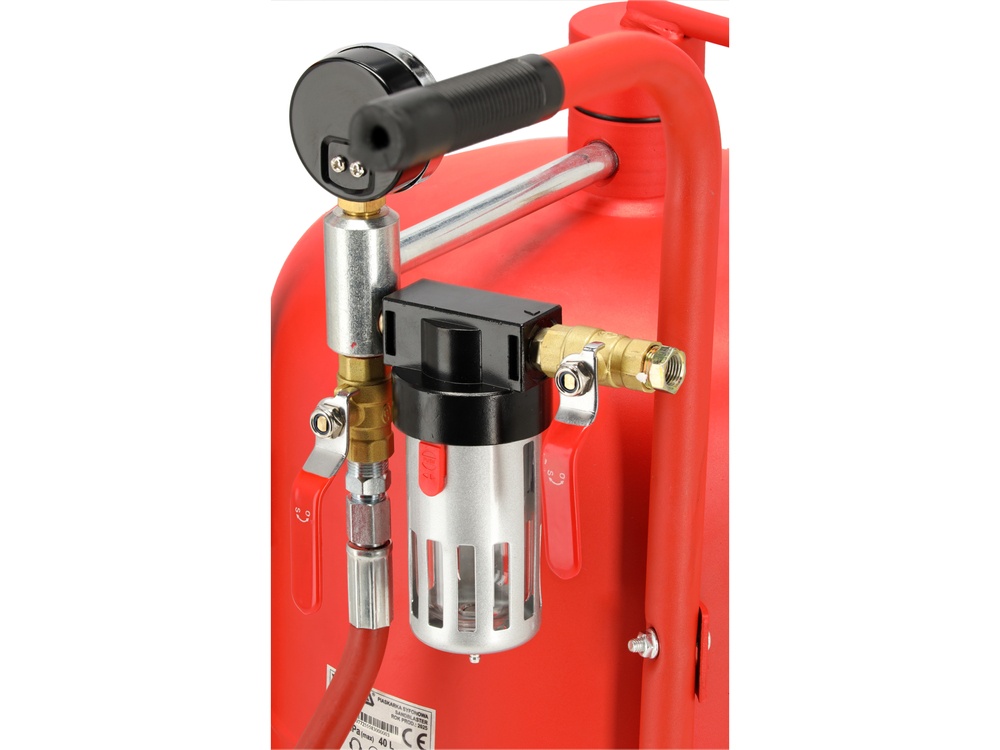

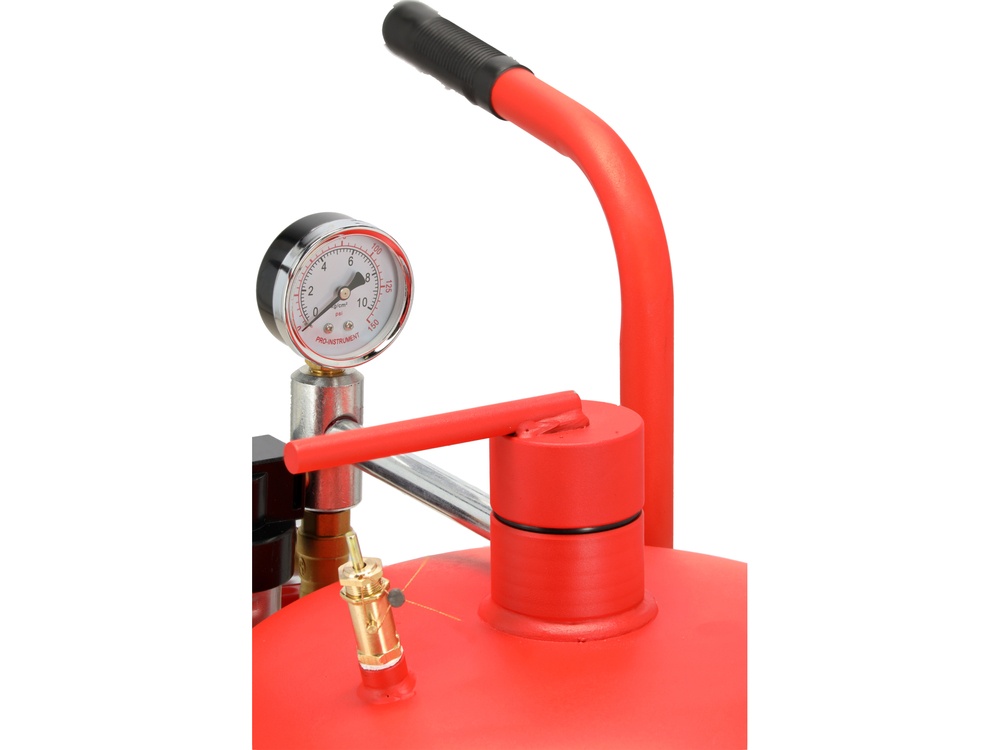

pressure adjustment allows for precise adjustment
required airflow: 170-708 l/min
capacity: 40 l
material: steel sheet finished by sandblasting method

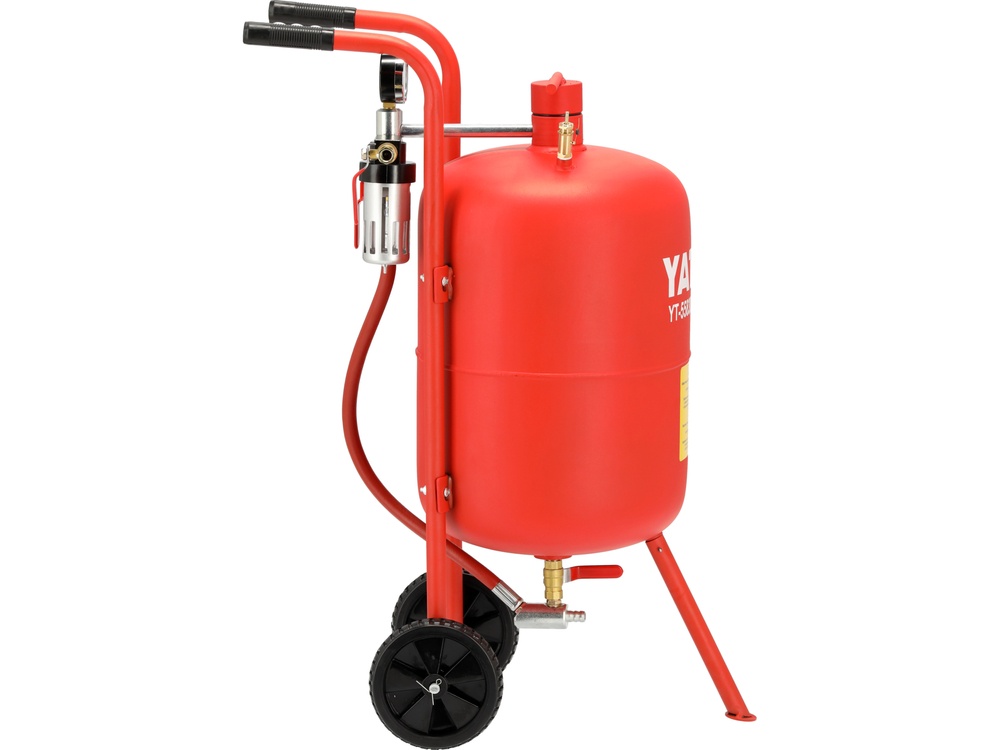

2 rubber wheels with a diameter of 150 mm facilitate the transport of the device, even on uneven surfaces, useful in the field or when frequently moving between workstations
dimensions: 860 x 480 x 330 mm
tank dimensions: 306 x 508 mm

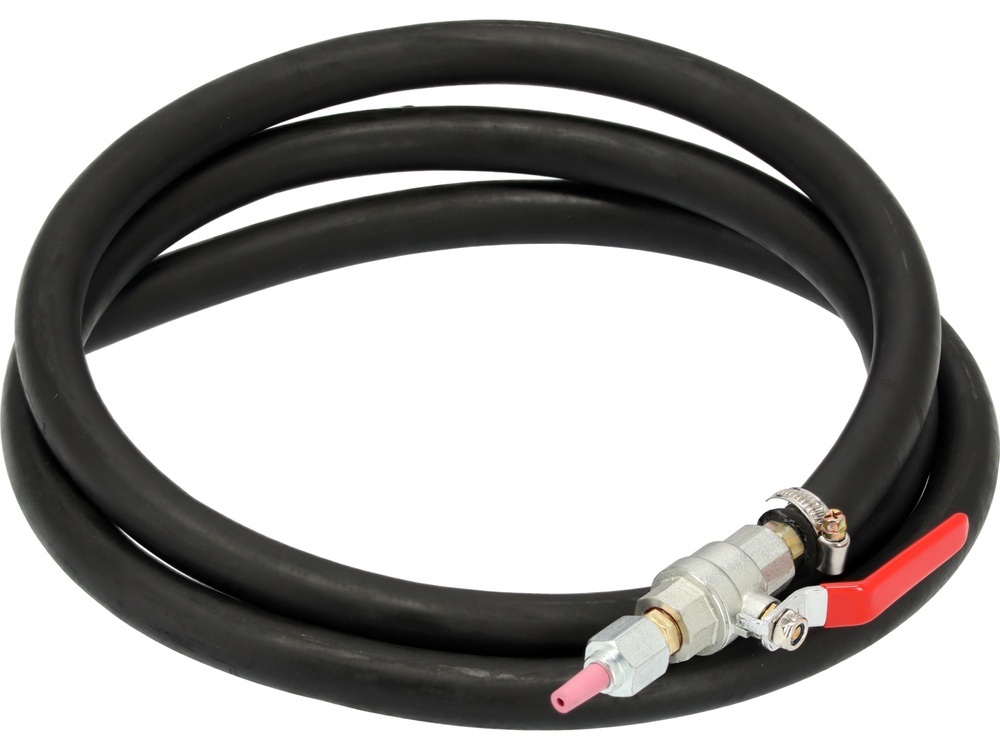

2.5 m long hose with a diameter of 23.5 mm
weight: 17 kg
included: abrasive suction hose, air connection hose with nozzle, 4 nozzles with diameters of 1, 2, 3, and 4 mm
Usage warnings:
Disconnect machine from air supply before maintenance. 1. Check parts wearing, i.e. nozzles, orifices. 2. Check abrasives. Abrasives wear out and need to be replaced periodically. 3. Avoid moisture in the air lines and abrasive. 4. Do not exceed the maximum air pressure.
