Aprašymas:
Gamintojas:
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Series
GRE
Measuring range
0-200 mm
Measurement accuracy
±0.02 mm, ±0.001"
Metric scale
yes
Inch scale
yes
Material
stainless steel
Reading type
electronic
Display type
liquid crystal LCD
Reading resolution
0.01mm, 0.0005"
Power supply
battery
cell type
3V; CR2032
Battery capacity
220 mAh
Working temperature range
5~40 ˚C
Storage temperature
-20 ~ +60 ˚C
Application
performing height measurements of various objects and elements, for scribing and marking [eng]
Symbol
YT-72280

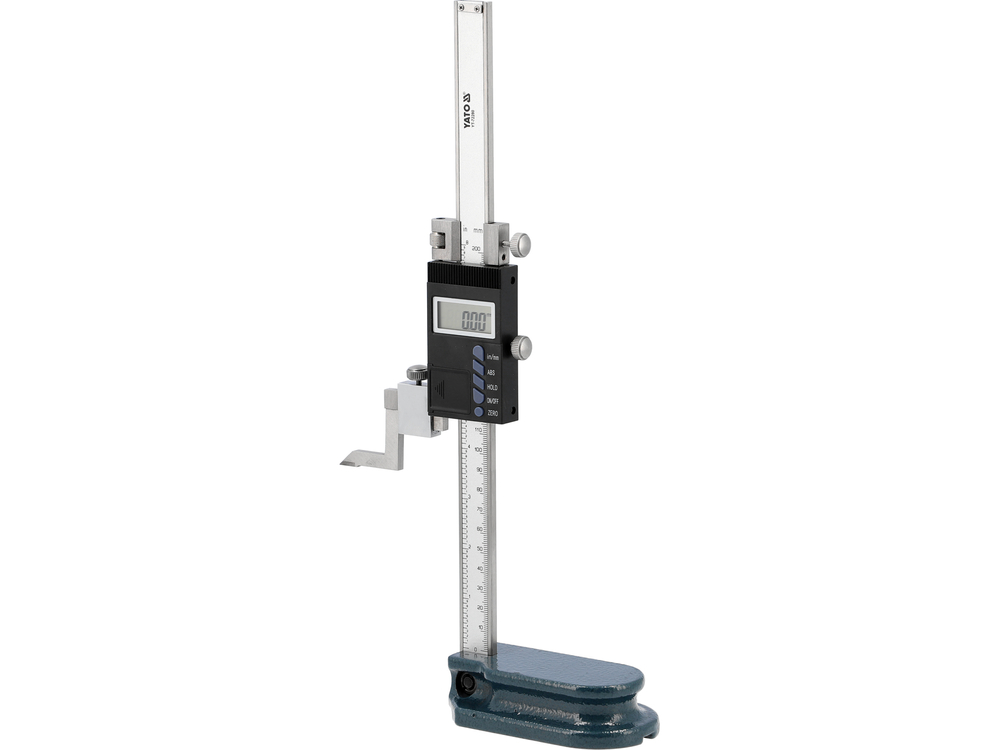

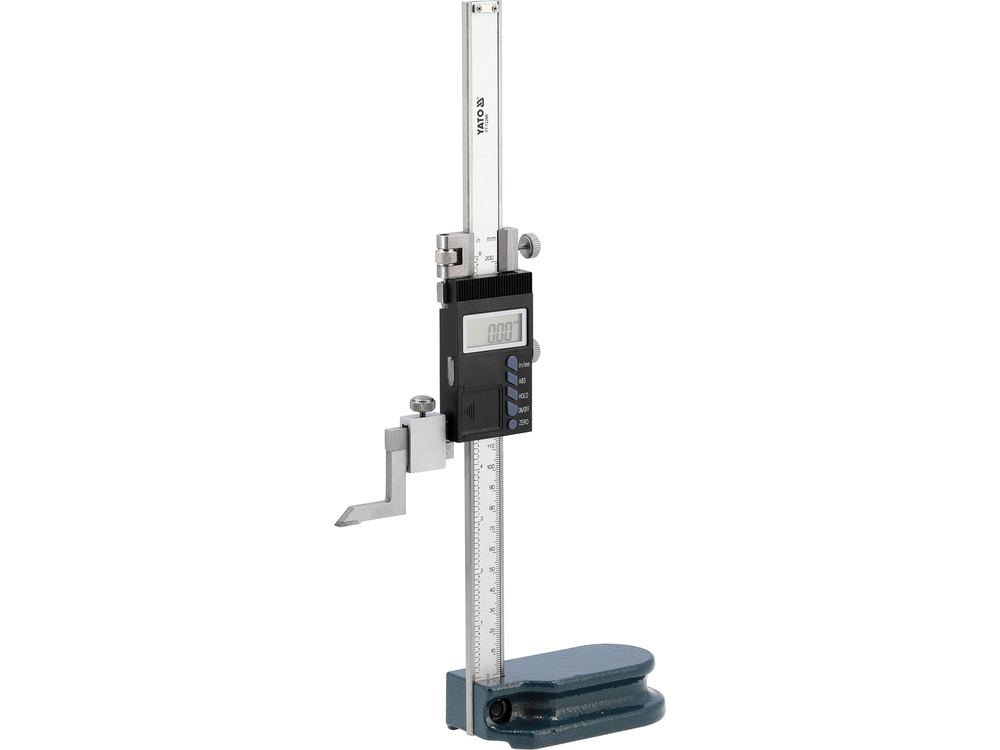

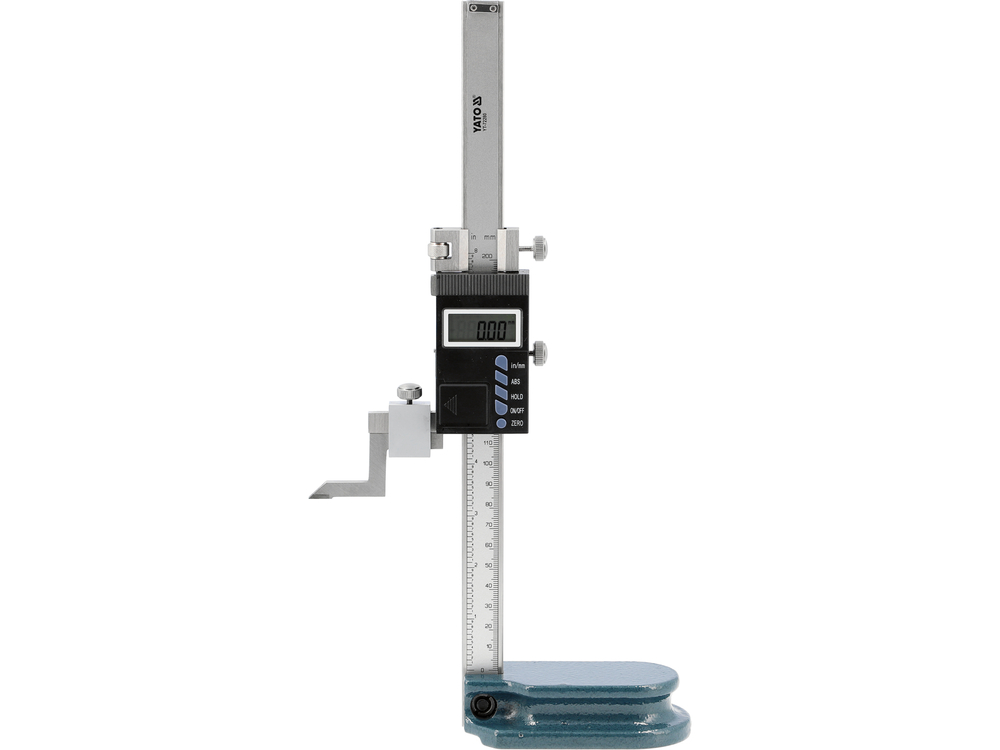

An electronic altimeter is a precise tool designed for measuring the height of various objects and elements, tracing and marking surfaces. It is used in mechanical workshops, measurement laboratories, and assembly work where high accuracy and repeatability of results are required.
measurement range from 0-200 mm
measurement accuracy ±0.02 mm|±0.001" and reading resolution 0.01 mm|0.0005" ensure reliable results even for measurements requiring high precision

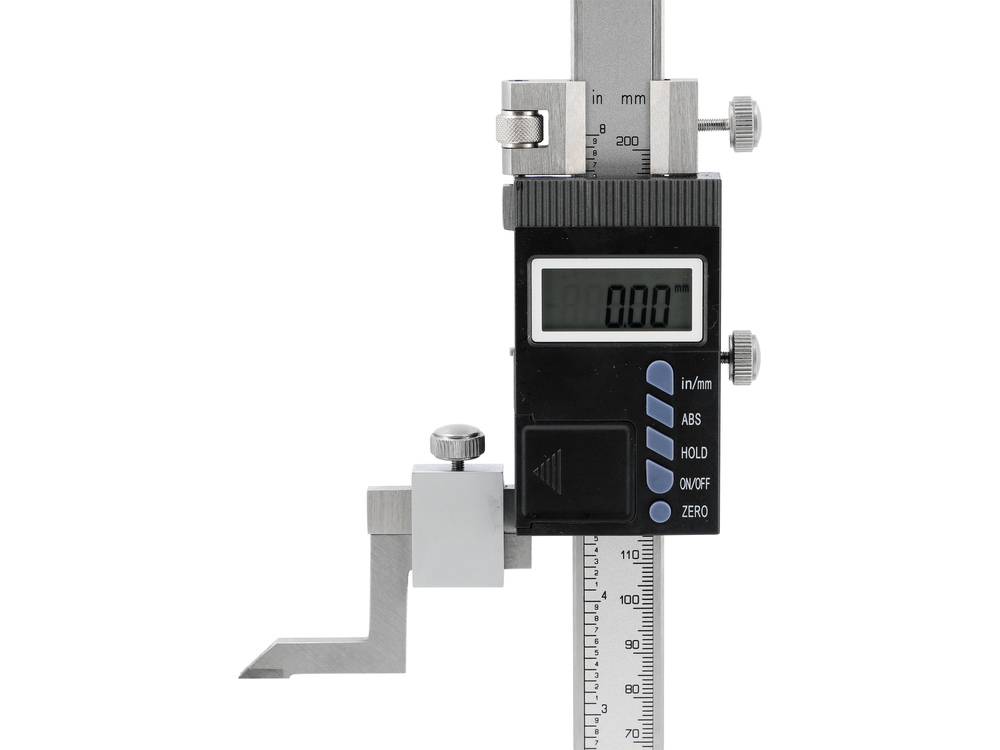

convenient electronic reading on a liquid crystal LCD display in metric and imperial scale
body made of high-quality stainless steel with high resistance to deformation and wear ensures durability, stability, and repeatability of measurements
operating temperature range of 5-40°C allows for use in standard workshop and production conditions
storage temperature range from -20 to +60°C
powered by a 3V battery (CR2032 type) with a capacity of 220 mAh ensures long and stable device operation
