Index
YT-30357
Barcode
5906083126871
Unit of measure
PCE
Volume
0.33
Weight
0.138

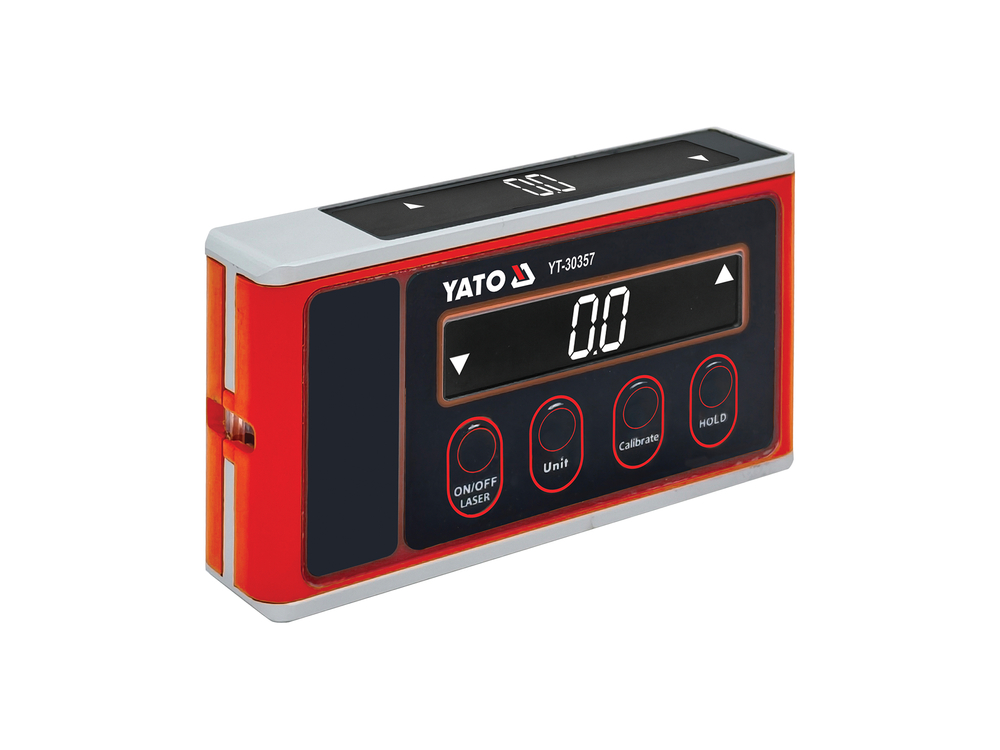

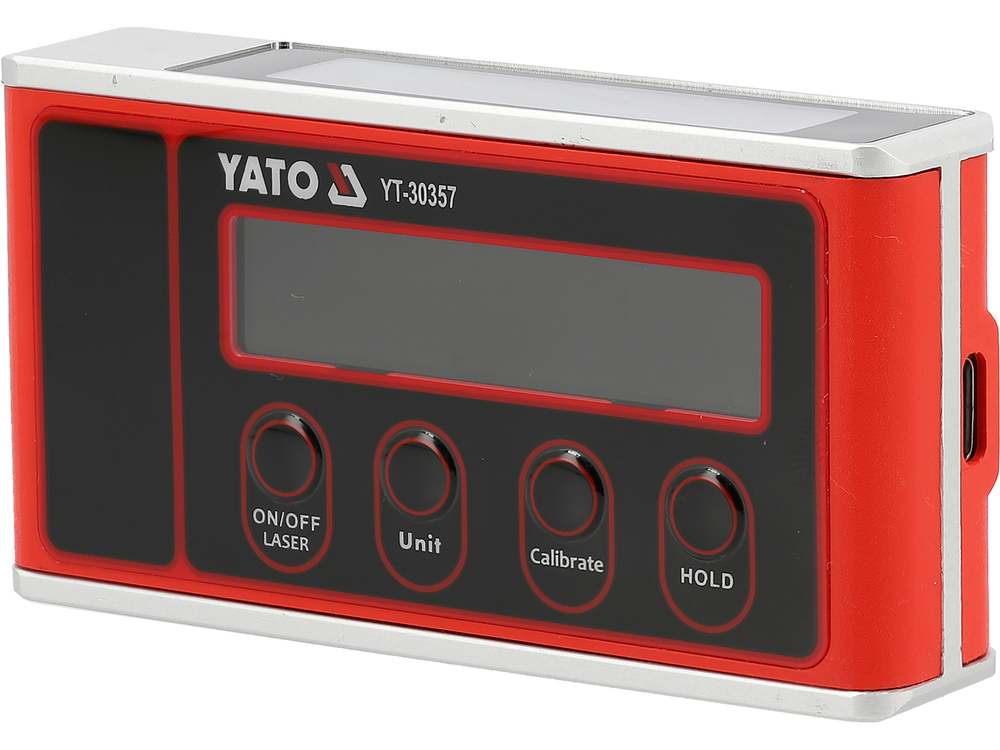

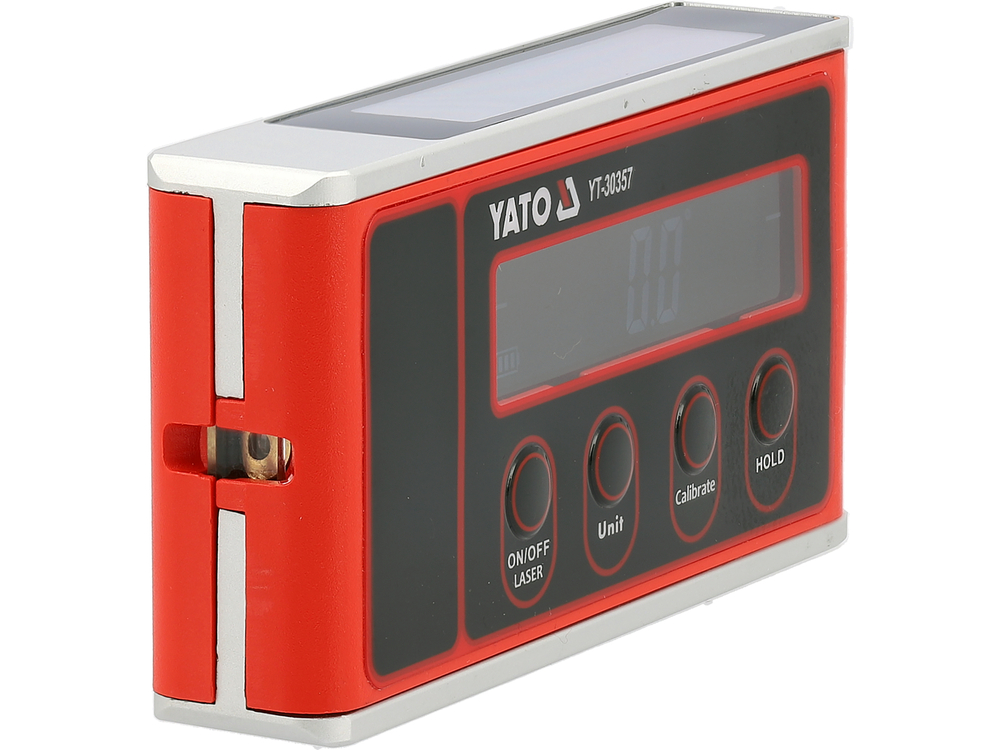

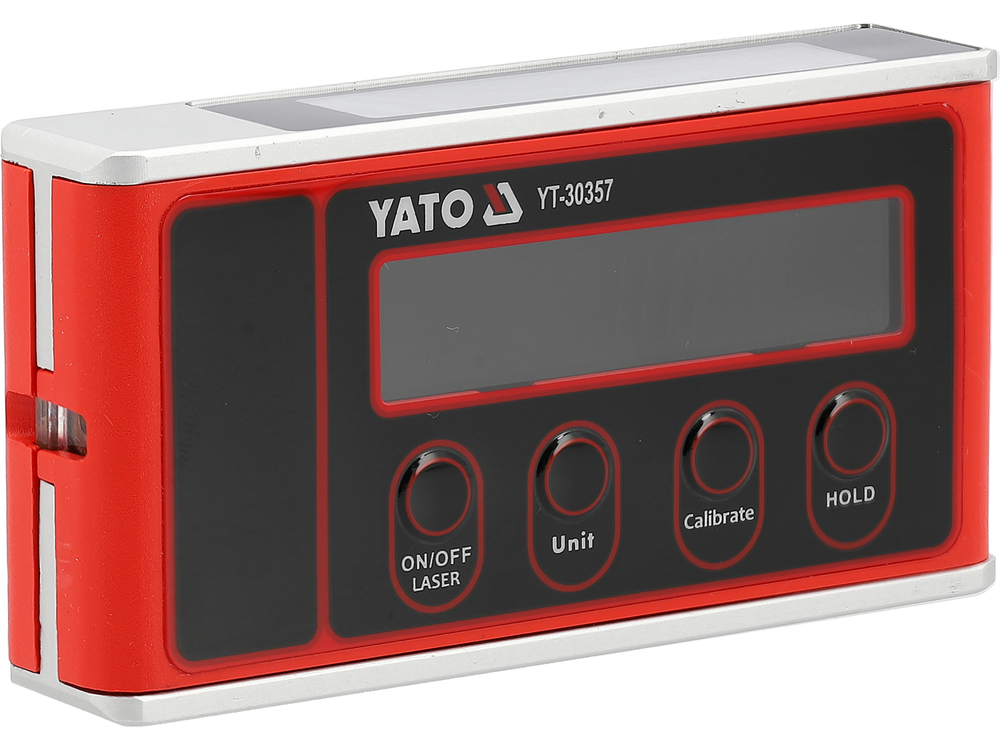

The YT-30357 electronic pocket level with laser is a multifunctional measuring instrument designed for checking horizontal, vertical, and tilt angles, as well as for establishing reference lines during assembly and finishing work. The built-in laser enables quick marking and precise alignment of components, while the electronic measurement system ensures high accuracy. The compact design is suitable for both workshop and field installation.
The device is equipped with a clear LCD display with automatic display rotation, a measurement hold function, and a Li-Ion battery charged via a USB-C port. The aluminum profile and magnet in the base allow for stable attachment to steel components, increasing comfort and precision of measurements.
Key Features:
Electronic level, plumb, and slope measurement
Built-in laser for marking and establishing a reference line
Laser range: up to 20 m
Measuring range: 0°-90°
Accuracy:
±0.1° for 0° and 90°
±0.2° from 1°-89°
Red laser with a wavelength of 620-640 nm
Laser power: < 1 mW
Laser class: II

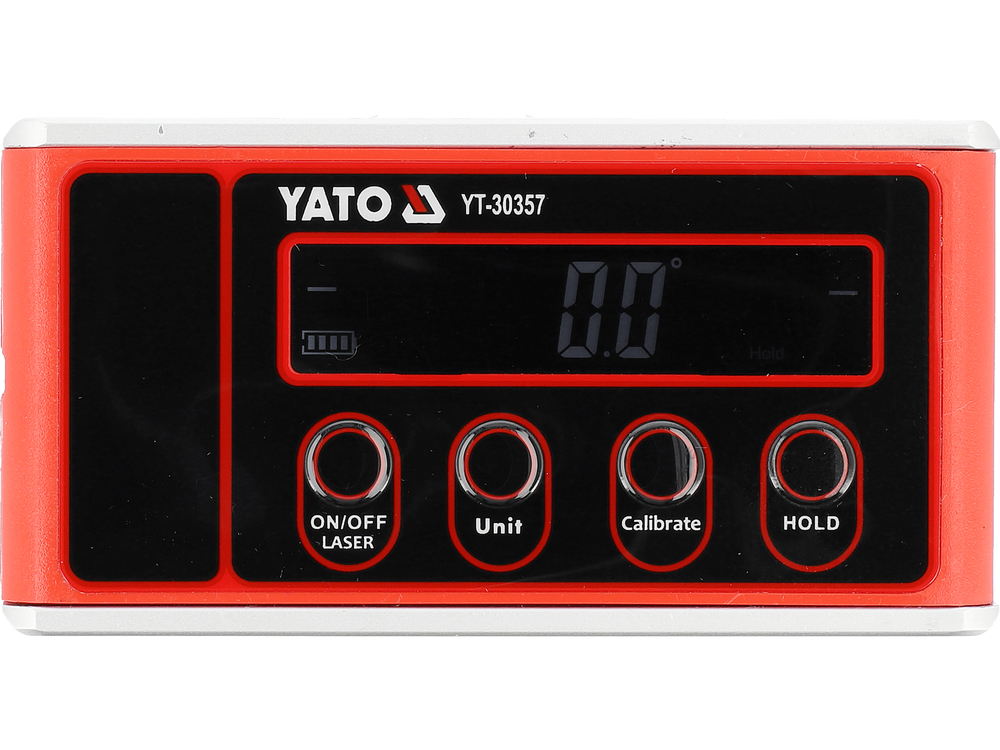

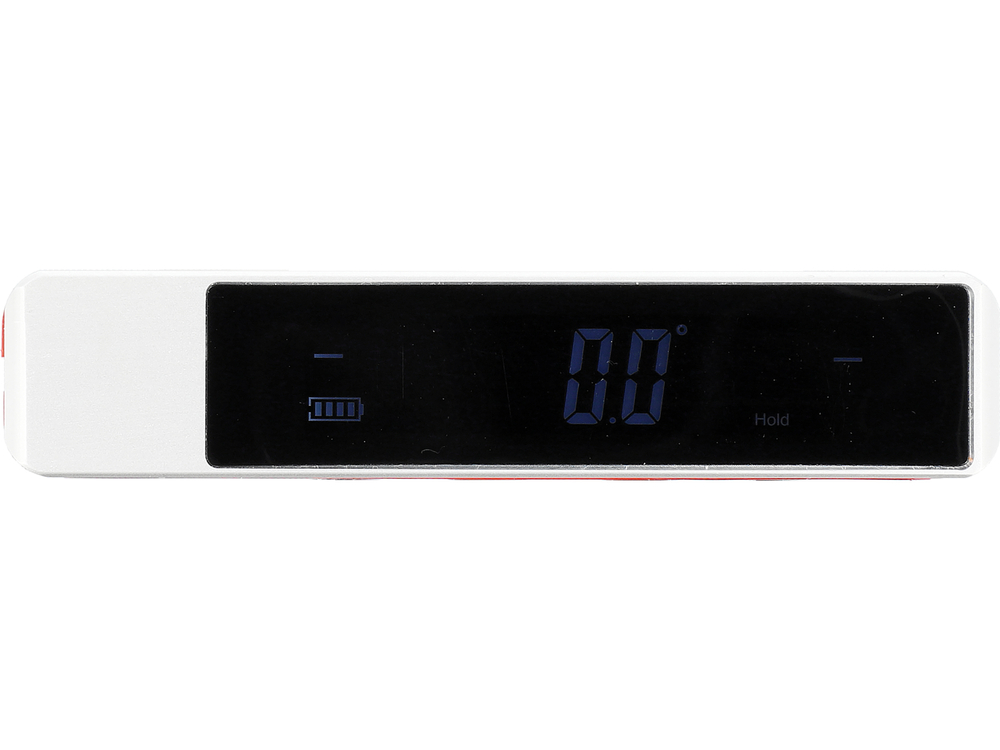

LCD display with automatic 180° display rotation
Results can be displayed in various units:
degrees
percent
inches per foot (decimal)
inches per foot (fraction)
millimeters per meter (mm/m)
HOLD function to freeze the measurement result
Calibration button for high measurement accuracy
Automatic shut-off after approximately 180 seconds of inactivity and manual reset Power-off
Battery level indicator with four-segment battery symbol
Built-in 3.7 V / 700 mAh Li-Ion battery
Charging via USB Type-C port
High-quality aluminum profile

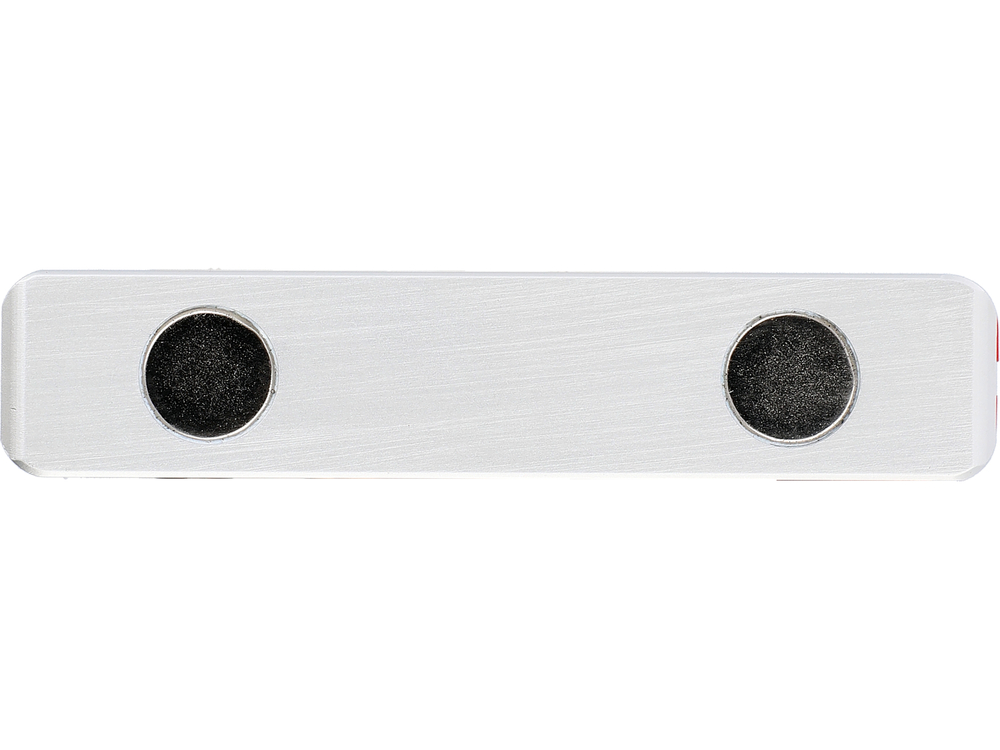

Magnet for mounting to steel surfaces
Compact dimensions: 91 x 48 x 19 mm
Weight: 92 g
Applications:
Determining reference lines during assembly and routing
Checking the level, plumb, and angle of inclination of elements
Assembly of furniture, steel structures, and built-ins
Installation, renovation, and finishing work requiring precise positioning of elements
