Product description

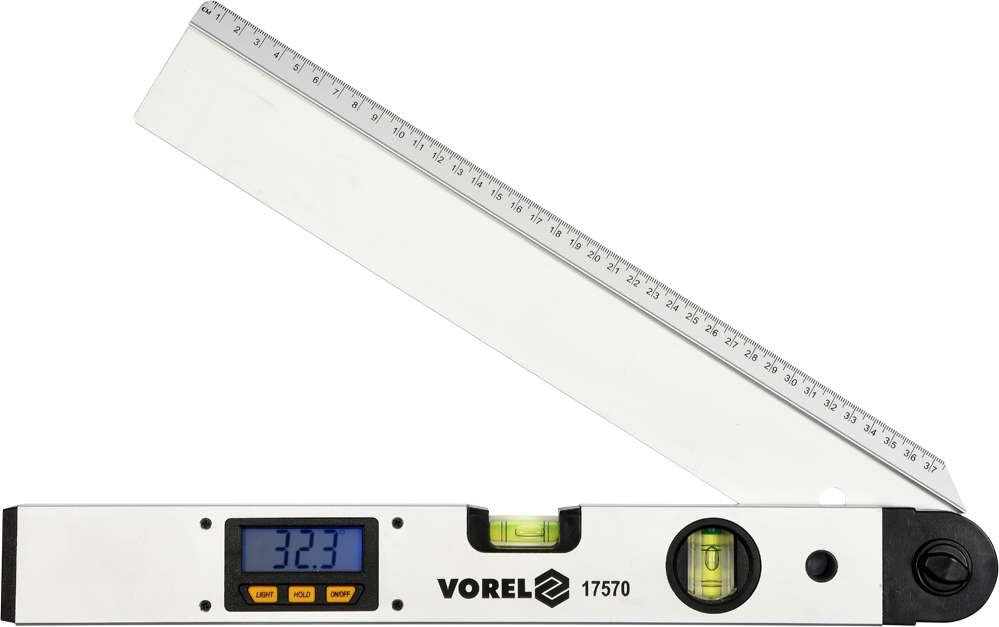

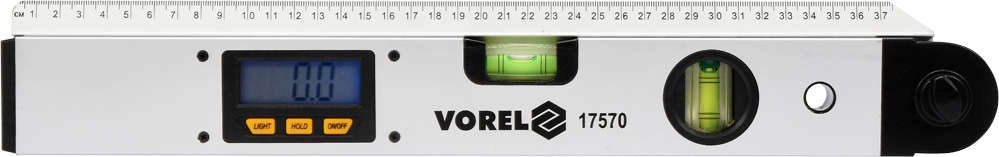

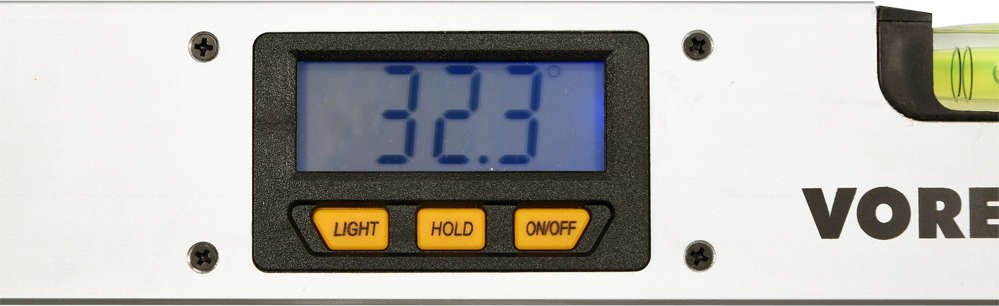

The electronic protractor is designed for precise determination of angles in the measurement range from 0 ° to 230 ° with scaling every 0.1 °. The body is made of an aluminum profile and functions as a spirit level equipped with two vials. With its help, we can precisely define 180 or 90 ° lines. The 400 mm long movable frame has a millimeter scale permanently applied on its edge. We read the measurement results on the illuminated large LCD screen. Hold function - to temporarily lock the measurement result and the automatic switch-off function that protects 9V batteries, increases the use value of the protractor.
Purpose / application
For easy and precise angle measurements in construction, installation, assembly etc.
Usage method
Loosen the clamping knob and set the protractor arms to the desired position, then read the result of the angle measurement on the screen.
Contents of the package
Protractor, 1.5 V batteries, instructions.
Parameters
Vials [pcs]: 2
Length [mm]: 400
