Описание:
Марка:
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Series
GRD
Functions
cutting wires, insulation stripper
Max. cutting diameter
10.5 mm
Cross section F mm2
0.75-2.5
Cross section F AWG
18~14
Length
175 mm
Body material
steel 65Mn
Handle material
PP, TPR
Spring
yes
Lock
yes
Symbol
YT-19692

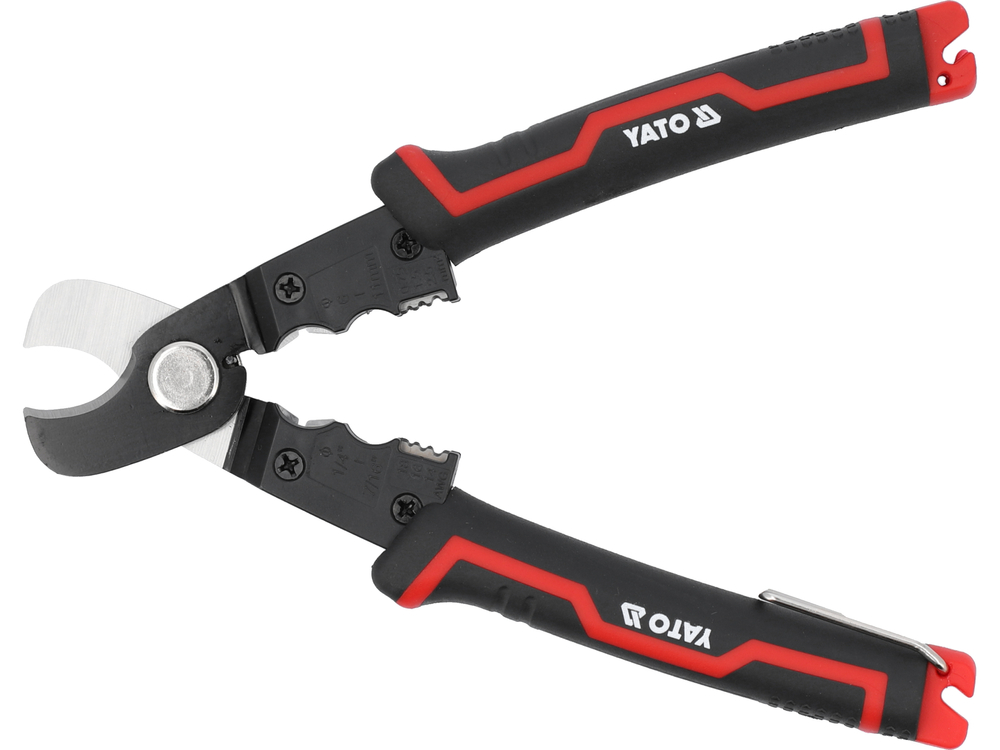

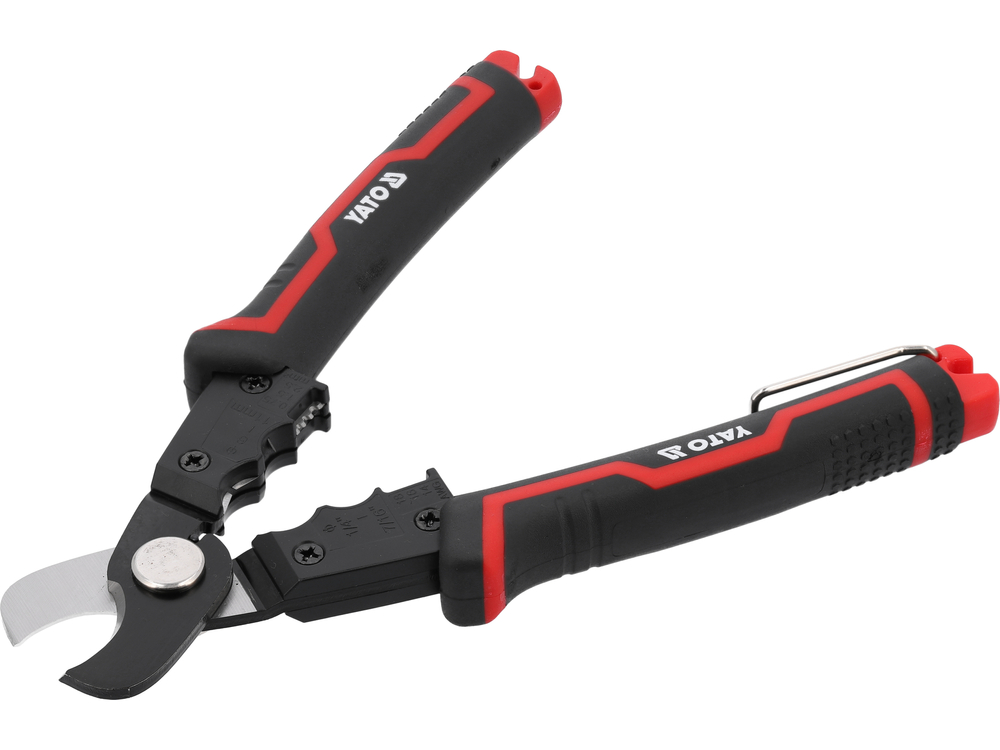

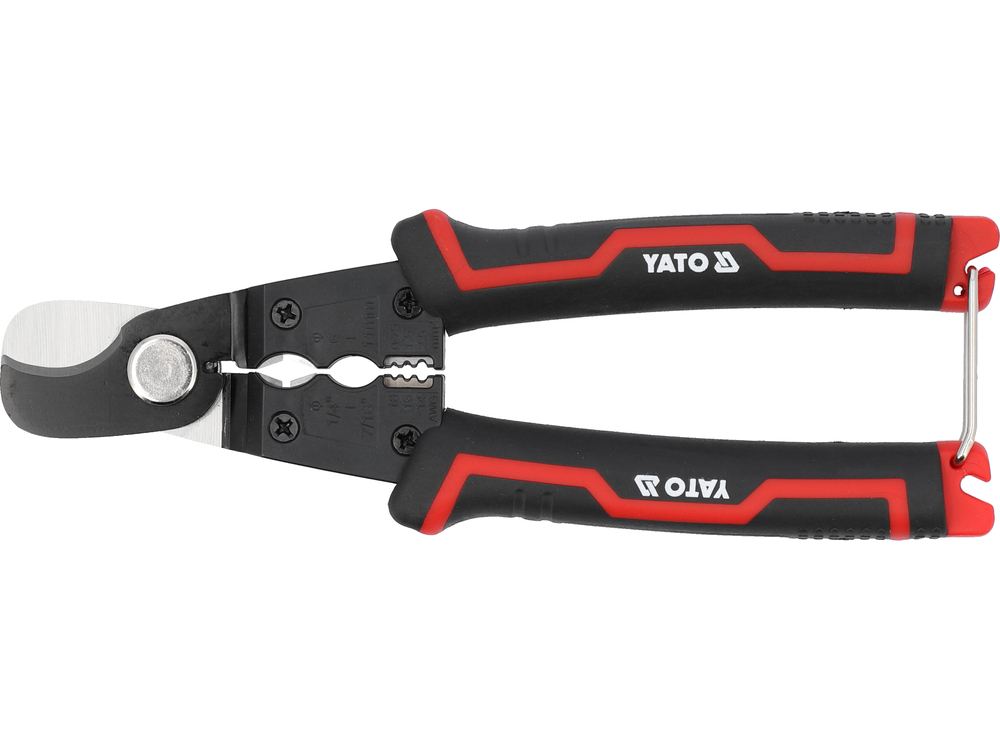

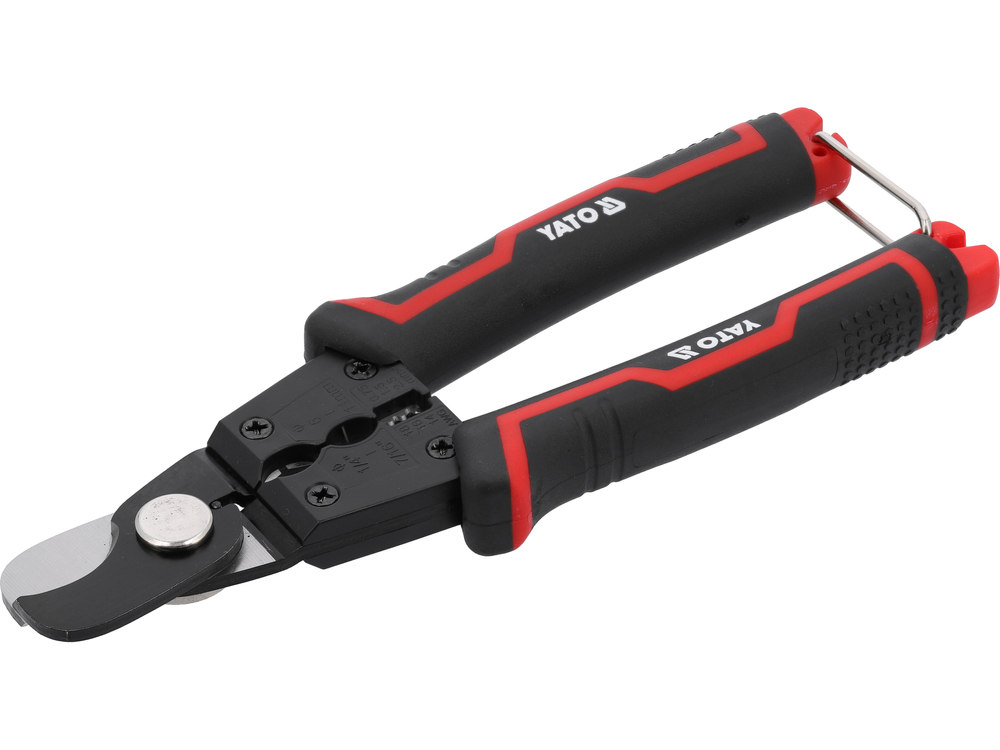

Wire cutting and insulation stripping pliers are a versatile tool that works well both in an electrical workshop and during home installation work.
The body made of 65 Mn steel guarantees durability and resistance to wear
The cutting blade with a thickness of 3 mm ensures precise and clean cutting
The ergonomic handle made of TPR and PP improves work comfort and reduces hand fatigue
The massive rivet with a built-in rebound spring automatically allows the pliers to work smoothly within a certain range of motion, maintaining cutting repeatability and precision
The opening lock allows safe storage and controlled use of the tool
The pliers allow for convenient removal of insulation in various ways:
Longitudinal insulation stripping from a round wire with a diameter of 6-11 mm (middle hole in the body)
Cross insulation stripping from a round wire with a diameter of 6-11 mm (upper hole)
Insulation stripping from individual wires with cross-sections of 0.75/1.5/2.5 mm² (18/16/14 AWG) (lower hole)
Technical data:
Length: 175 mm
Blade thickness: 3 mm
Maximum cutting diameter: 10.5 mm
Single wire sections: 0.75/1.5/2.5 mm2 (18/16/14 AWG)
Insulation stripping wire range: 6–11 mm
Body material: 65 Mn steel
Handle: TPR+PP
Spring mechanism hidden under the rivet
Weight: 170 g
Usage warnings:
Warning! Always use personal safety equipment at work.
