YT-65137
ANGLE VICE 100 MM
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Type of attachment
fixed
Jaw width
100 mm
Jaw spacing
60 mm
Pressure force
35 kg
Dimensions
150x150x55 mm
Height
55 mm
Wall thickness
13 mm
Working angle
90 ˚
Hole size
10x32 mm
Screw diameter
12 mm
Weight
3.5 kg
Application
locksmith, for making connections from strips or boards
Symbol
YT-65137

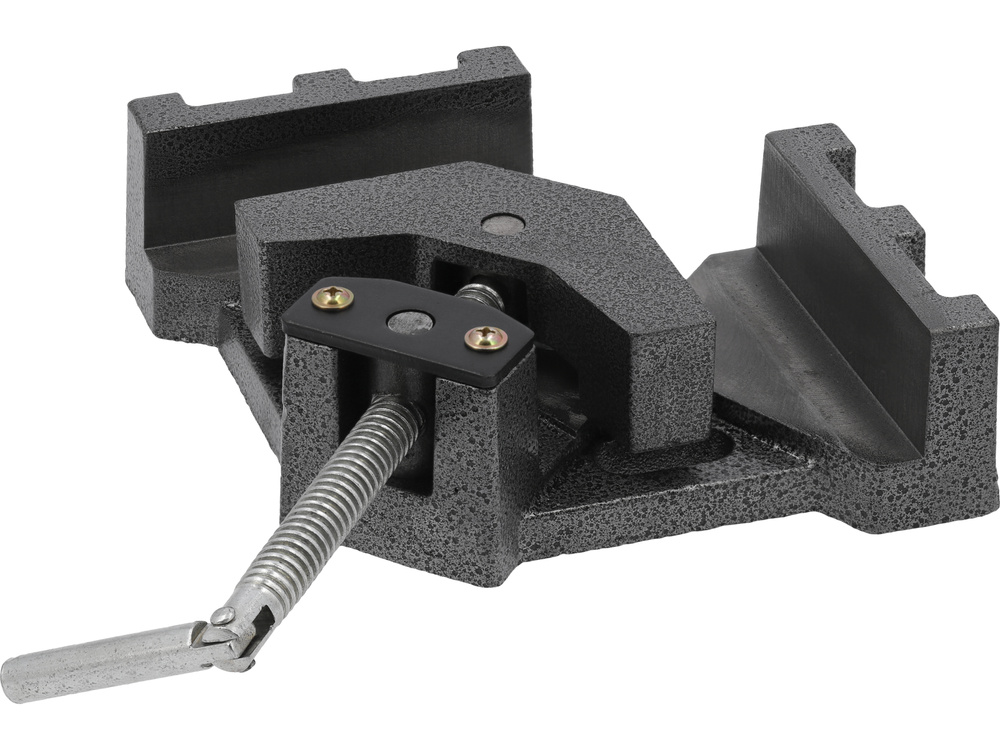

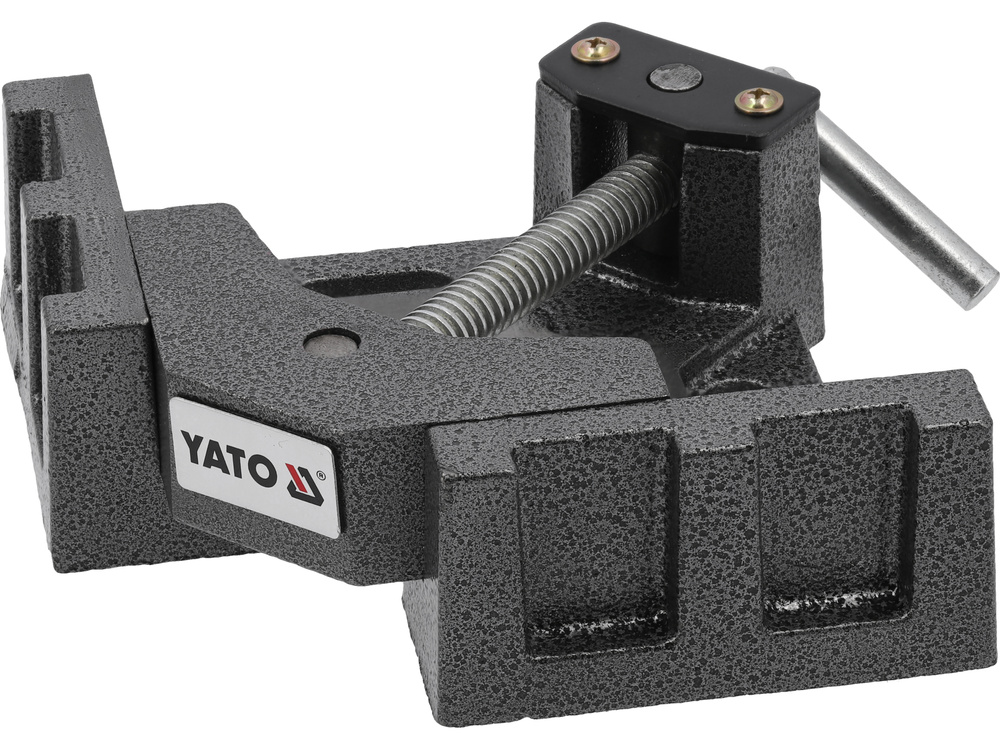

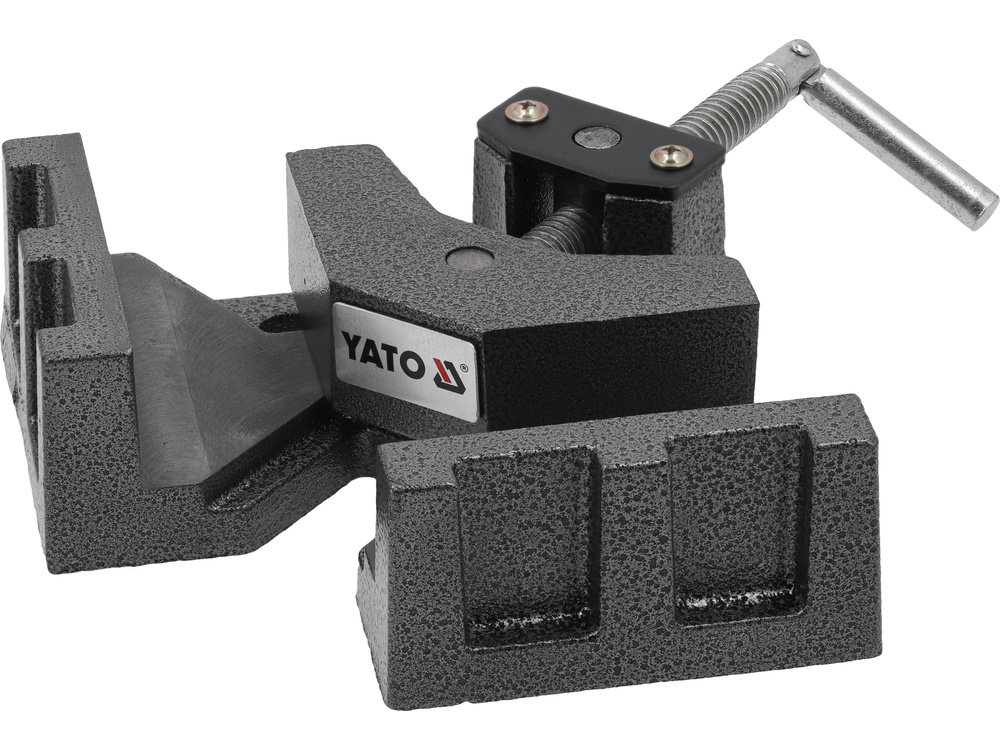

Angle vice for clamping materials at an angle of 90°. The clamping screw mounted in the movable shaft allows for asymmetric setting of the clamping jaw, and thus holding elements of different thicknesses. Used in welding, carpentry or mechanical workshops, among others, for making connections from strips or boards.
jaw width: 100 mm
max. jaw opening: 60 mm
pressure force: 35 kg
material: cast iron, surface finished with hammer varnish
trapezoidal screw with a diameter of 12 mm ensures smooth movement and high load resistance
replaceable jaws
permanently mounted to the worktop
dimensions of the hole for mounting on the worktop: 10 x 32 mm
body dimensions: 150 x 150 x 55 mm
wall thickness: 13 mm
weight: 3.5 kg
The vice is compatible with replaceable magnetic jaw covers of different hardness, e.g. YT-65001, YT-65006.
