Описание:
Марка:
Mark
Yato
Symbol
YT-44677
Series
GRD
Material
HSS 4241
Application
stainless steel, acid-resistant steel, cold-rolled steel
Surface finish
titanium nitride coated, polished
Type of tool holder
cylindrical

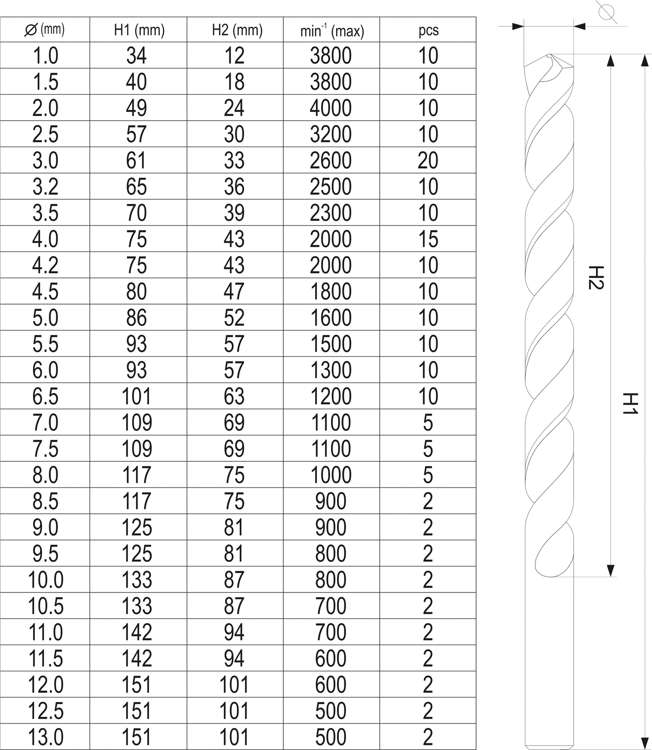

Diameter
1, 1.5, 2, 2.5, 3, 3.2, 3.5, 4, 4.2, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11, 11.5, 12, 12.5, 13 mm
Turnover
3800, 3800, 4000, 3200, 2600, 2500, 2300, 2000, 2000, 1800, 1600, 1500, 1300, 1200, 1100, 1100, 10000, 900, 900, 800, 800 , 700, 700, 600, 600, 500, 500 min⁻¹
DIN
338
Total length
34, 40, 49, 57, 61, 65, 70, 75, 75, 80, 86, 93, 93, 101, 109, 109, 117, 117, 125, 125, 133, 133, 142, 142, 151, 151, 151 mm
Length of the working part
12, 18, 24, 30, 33, 36, 39, 43, 43, 47, 52, 57, 57, 63, 69, 69, 75, 75, 81, 81, 87, 87, 94, 94, 101, 101, 101 mm
Drill point angle
135˚
Split point
Yes

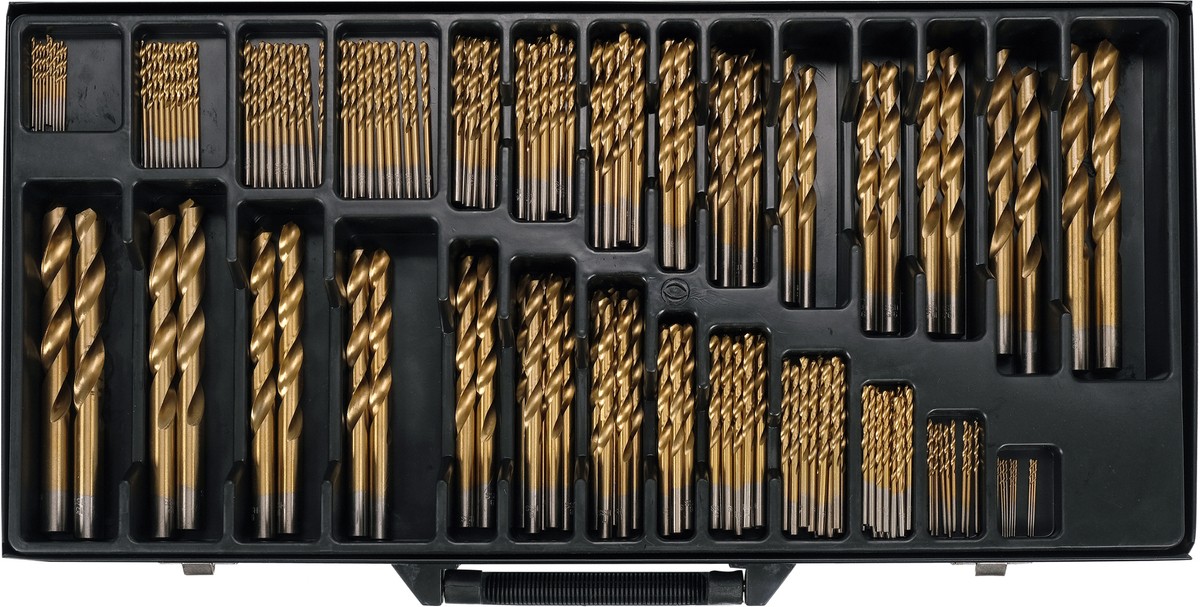

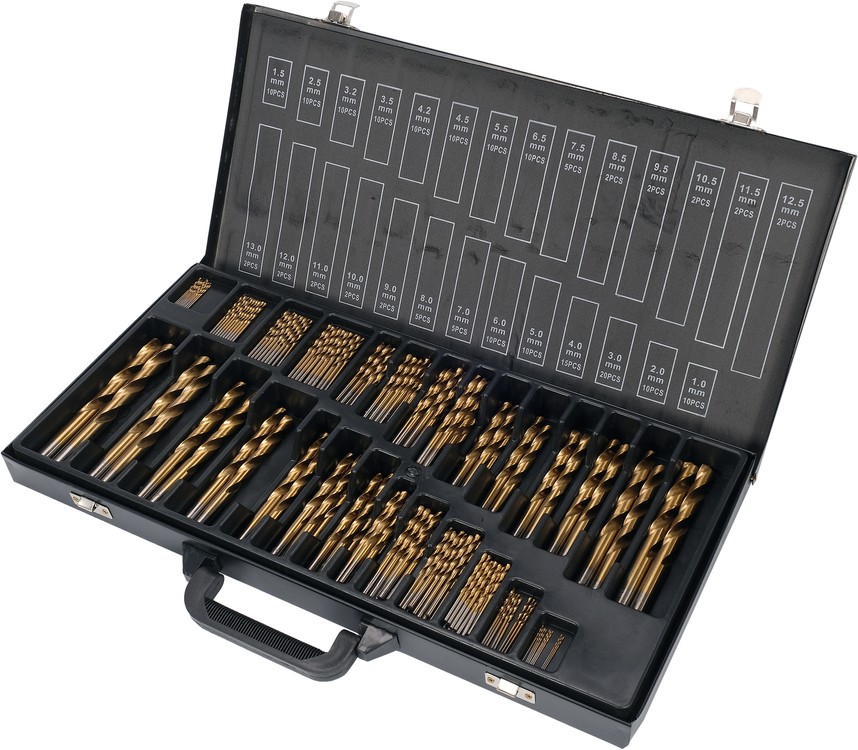

Number of pieces in set
190
190PCS,HSS4241, TITANIUM COATED, DIN 338,SPLIT POINT,135 DEGREES, ROUND SHANK
1.0/1.5/2.0/2.5/3.2/3.5/4.2/4.5/5.0/5.5/6.0/6.5mmx10pcs
3.0mmx20pcs
4.0mmx15pcs
7.0/7.5/8.0mmx5pcs
8.5/9.0/9.5/10.0/10.5/11.0/11.5/12.0/12.5/13.0mmx2pcs
