Марка:
YT-07696
TORQUE WRENCH 1/2" WITH ADJUSTMENT WINDOW RANGE 40-220NM
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Type
with range viewing window
Tool holder size
1/2" (12.7 mm)
Torque
40-220 Nm
Tolerance
CW ±3, CCW ±5 %
Calibration certificate
yes
Length
500 mm
Head material
CrMo SCM-440
Handle material
40Cr
Number of teeth
72
Direction of rotation switch
yes
Application
precise tightening of threaded connections
Symbol
YT-07696

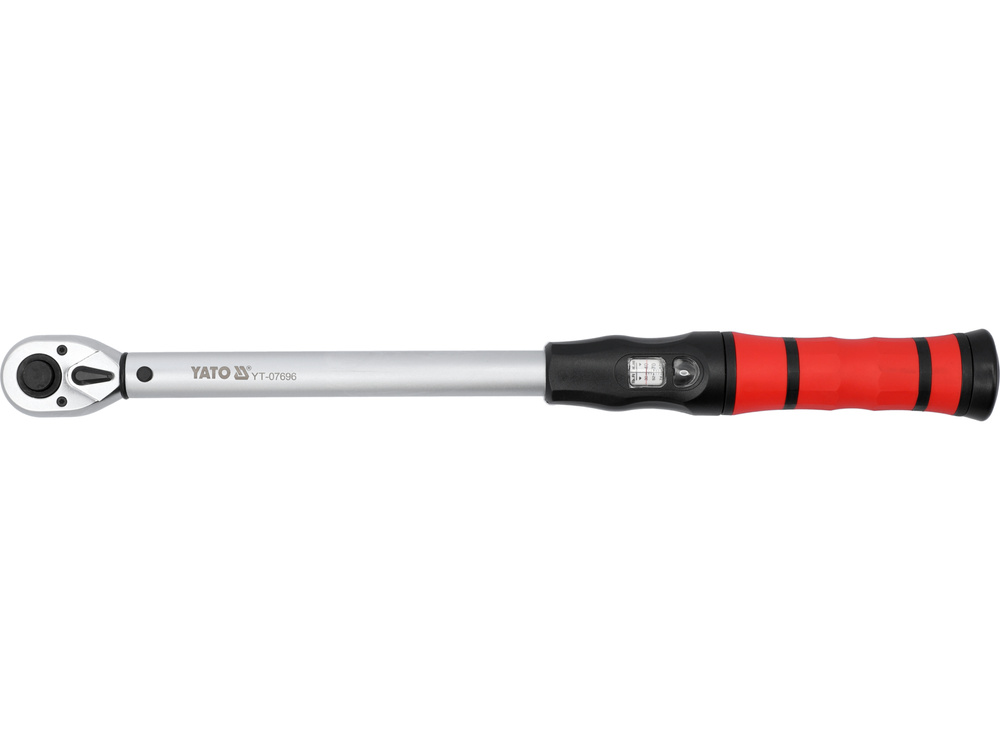

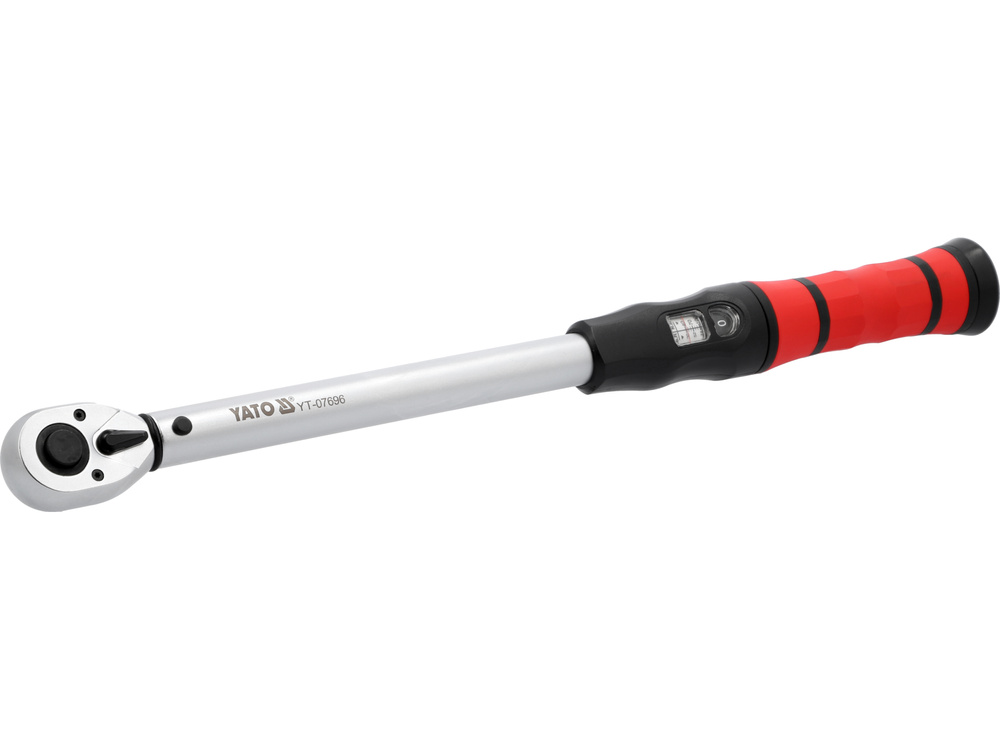

A torque wrench for precise tightening of threaded connections with a specified torque. Equipped with a double range viewing window.

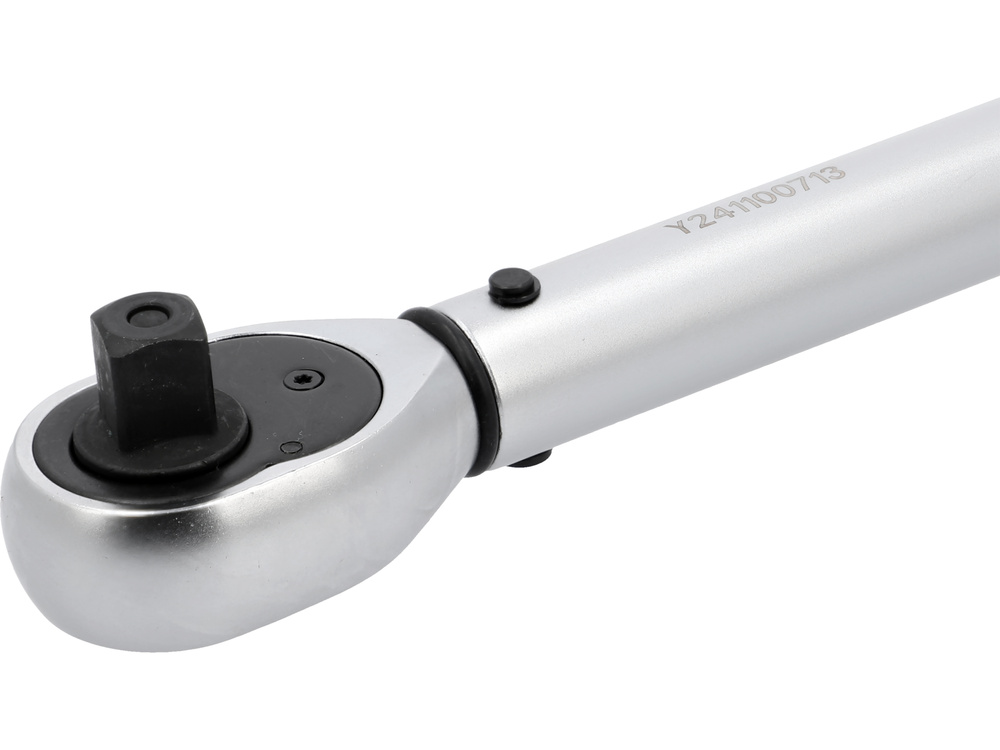

ratchet head made of high-alloy CrMo steel SCM-440
ergonomic handle made of 40 Cr steel provides comfort during long-term work
tool holder: 1/2" (12.7 mm)
torque: 40-220 Nm
length: 500 mm
accuracy: ±3% (CW -/+3%, CCW -/+5%)
main metric and inch scale
72 teeth
push-pull mechanism at the end of the handle locks the required torque

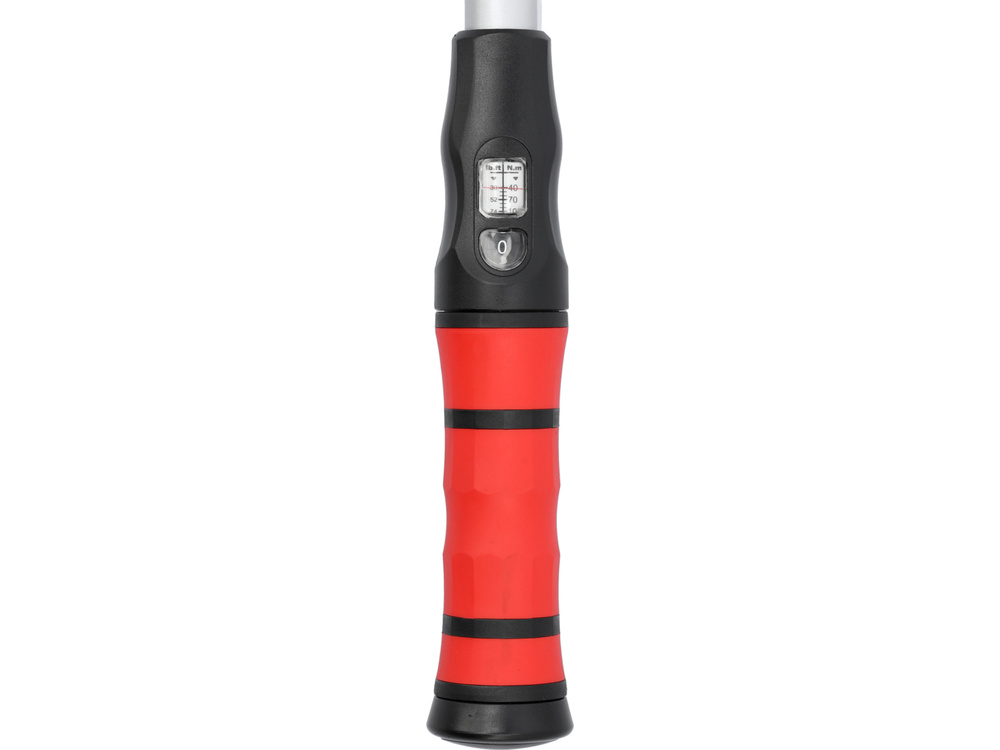

special double window design with a clear display
rotation direction switch
* Each wrench has a unique serial number, which makes it easy to track the original data.
