Description
Technical data
suitable for thin material made of non-ferrous metal, plastic as well as sheet steel
circular, deburring-free drilling and reaming of sheet metal, pipes and profiles in materials up to 5 mm thickness
deburring up to 2.5 mm material thickness
sheets are centered, drilled, reamed and deburred in a single operation
absolutely smooth running
high cutting performance

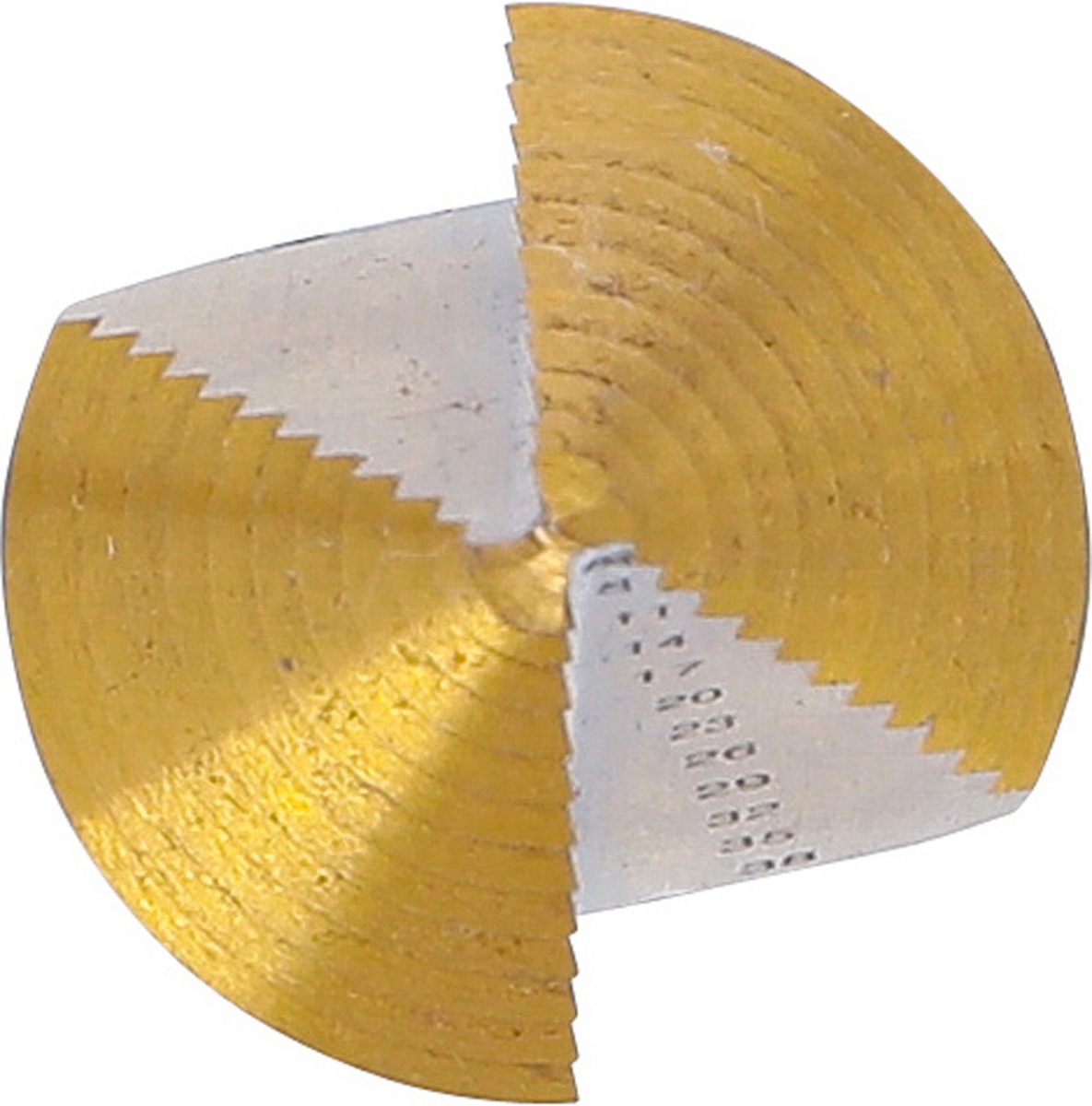

tip with fully ground cross cut
right-hand cutting
with triangular shank (Ø 10 mm) for reliable power transmission

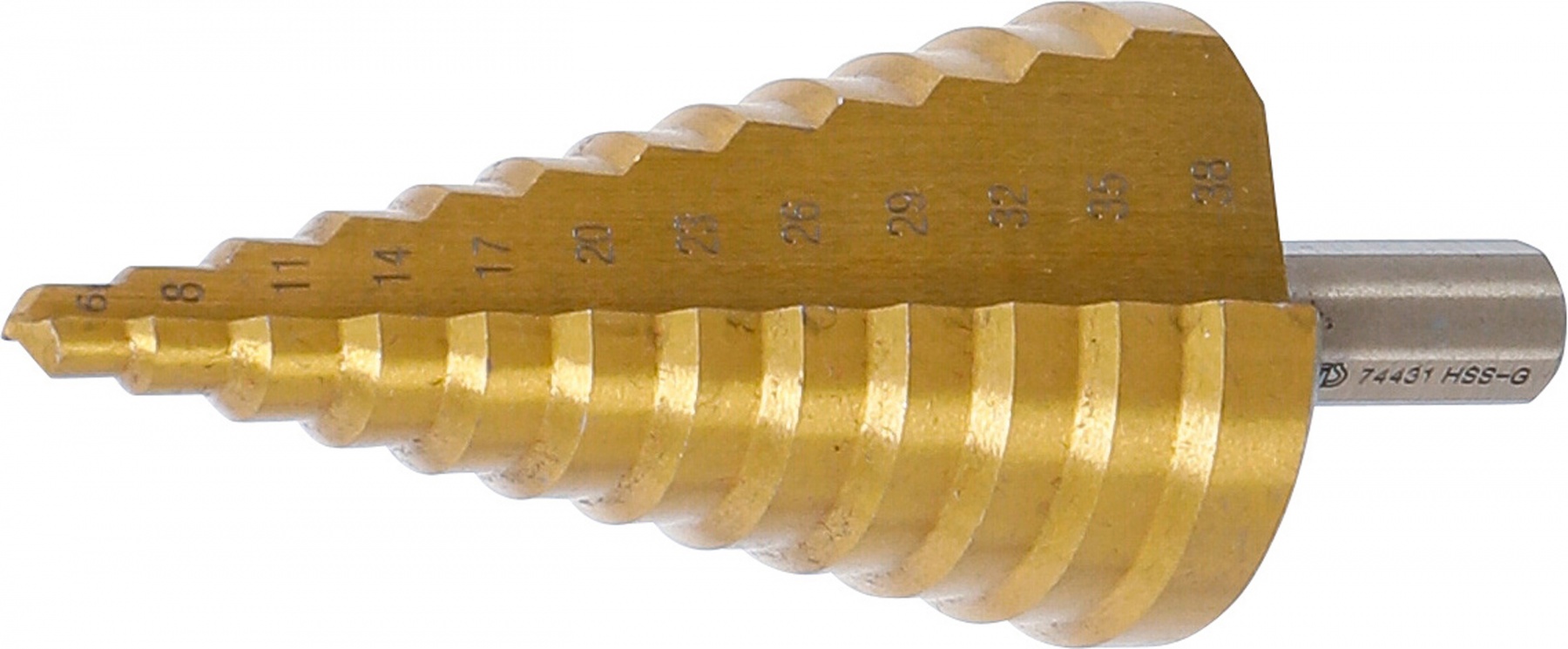

drilling steps: 6, 8, 11, 14, 17, 20, 23, 26, 29, 32, 35, 38 mm
split point: 118°
