Description
for removing and installing of rubber bushings on rear axles
suitable for following vehicle models:
Toyota Avensis (M2)
Toyota Corolla
Toyota Corolla Verso (E12)
Toyota Previa (R3)
Toyota Yaris (P10, P13)
Toyota Yaris Verso (P20, P21, P22)
Toyota Camry, Picnic (XM1)
fits on rubber bushings with the following original spare part numbers:
48725-28050, 28725-44050, 28725-44050, 48725-02220, 48725-12580, 48725-0F010, 48725-47010, 48725-52010, 48725-52020, 48725-0D011, 48725-0D050

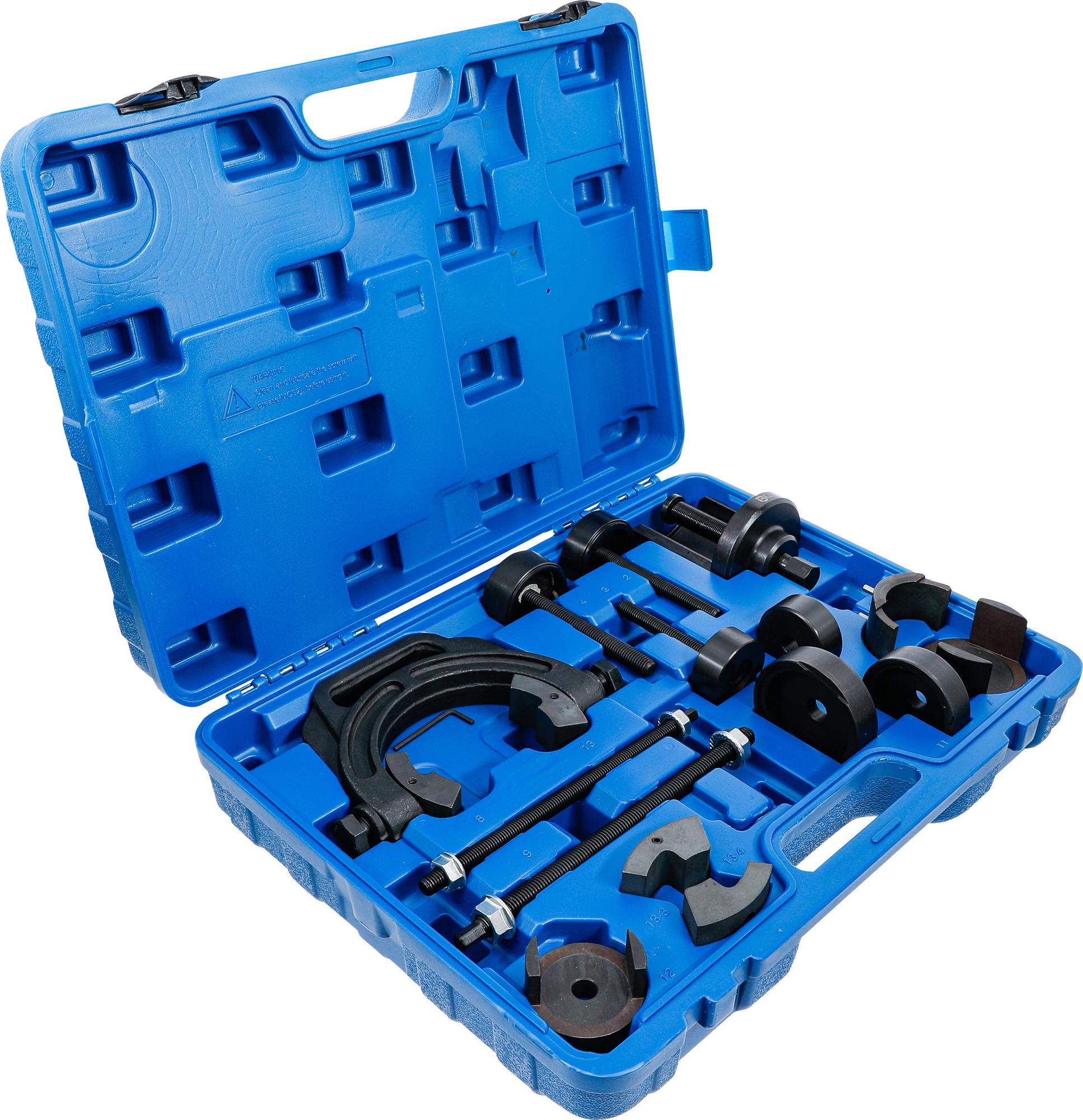

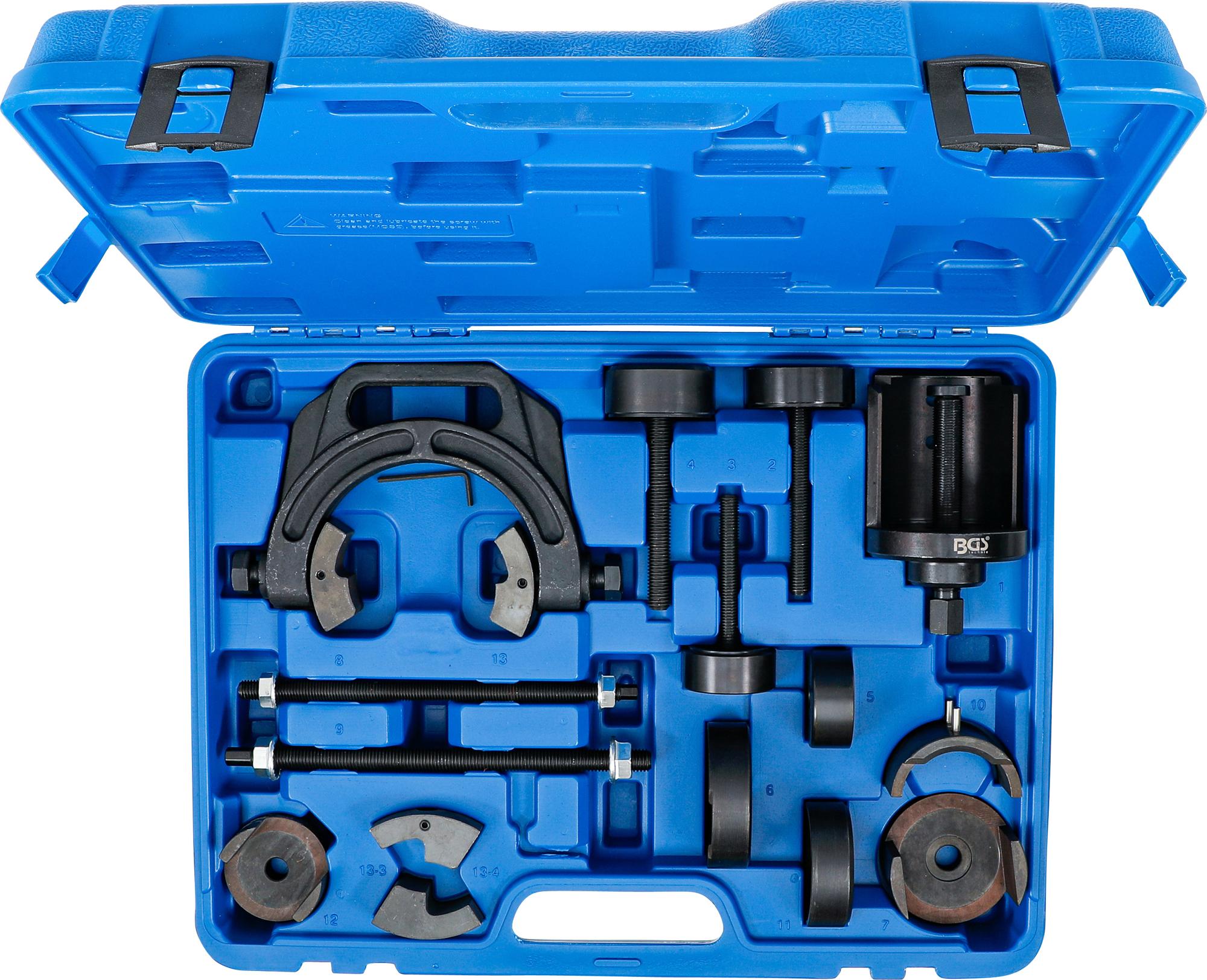

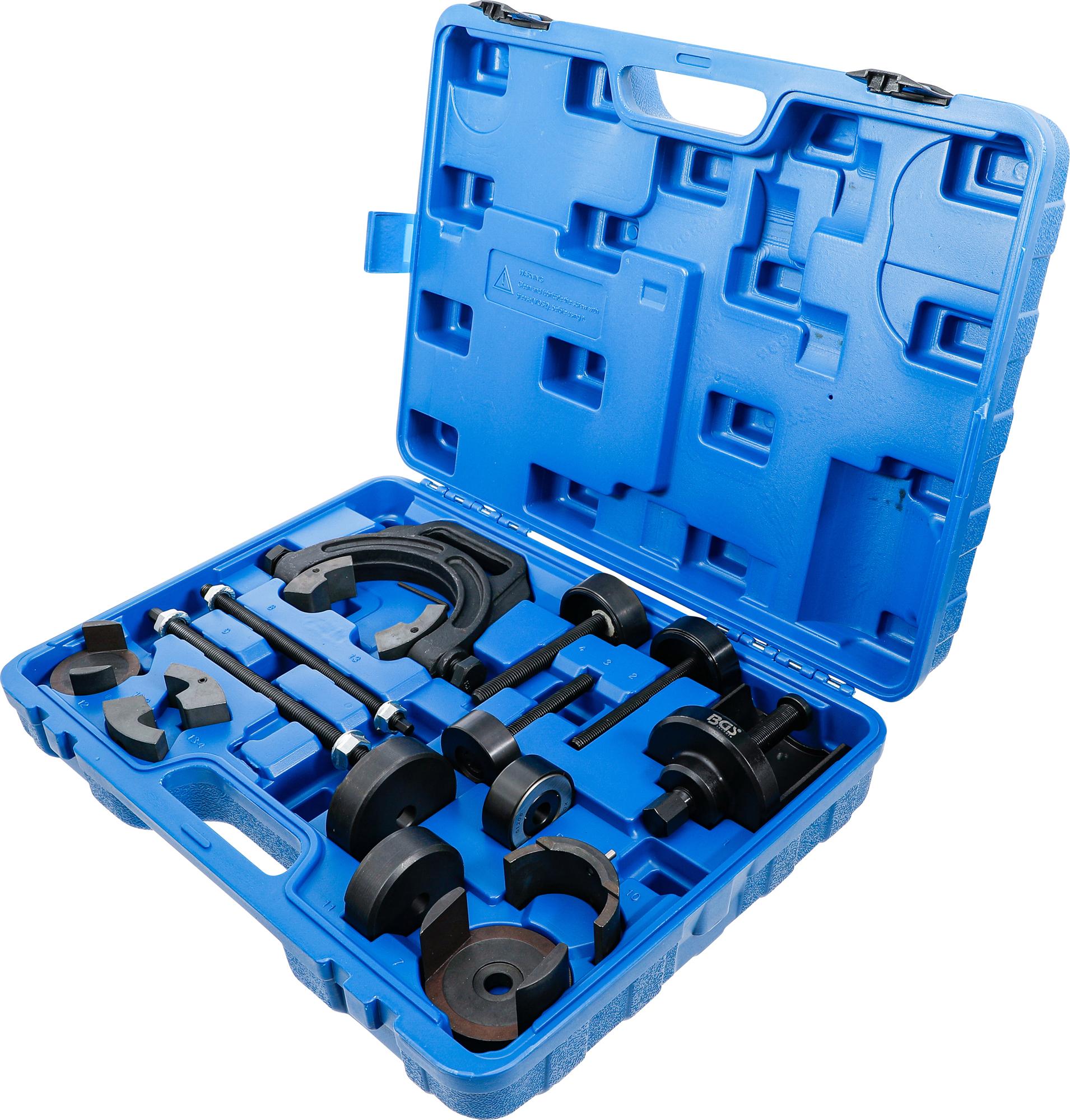

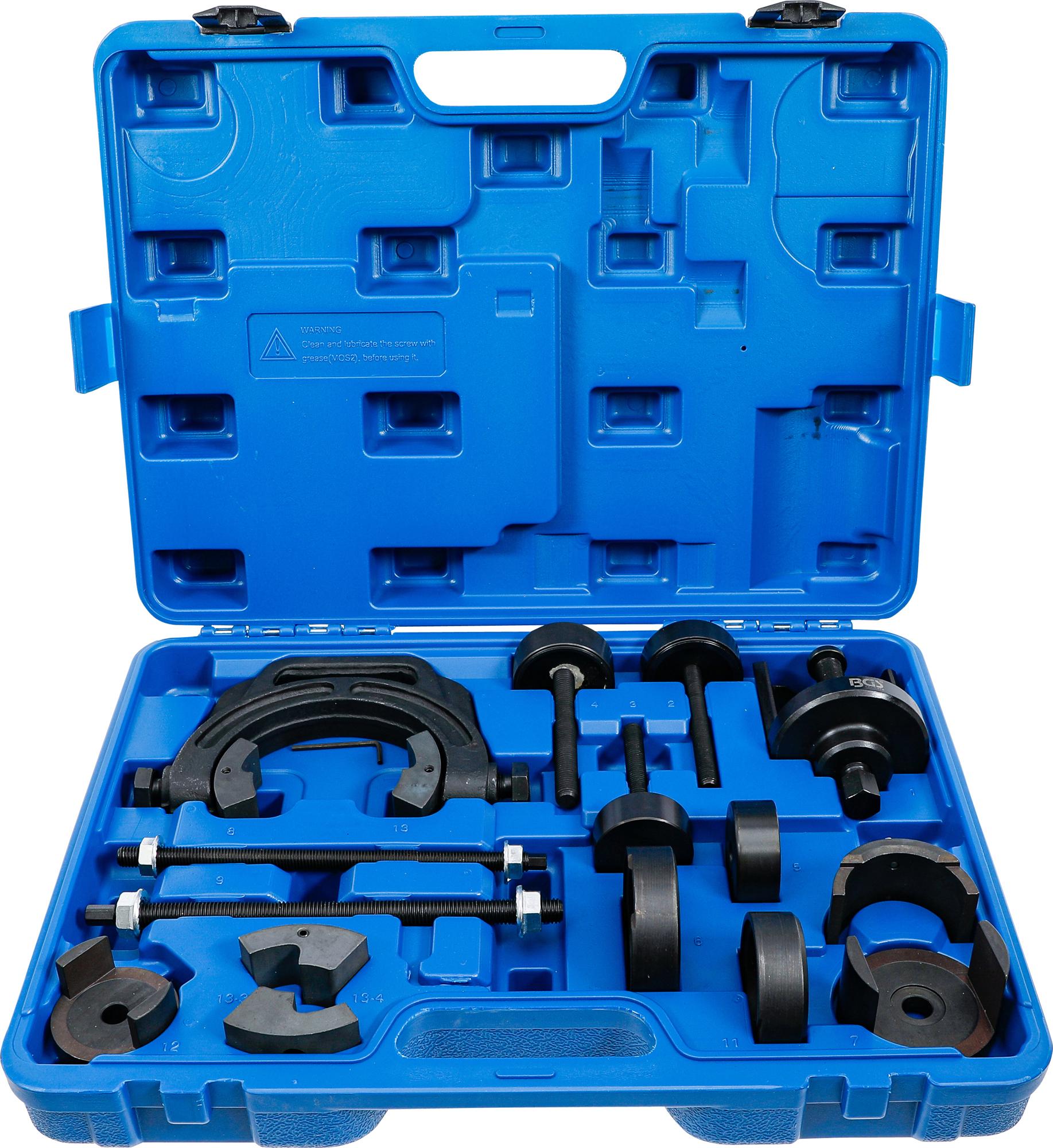

scope of delivery:
1 disassembly tool, half round open, with spindle, Ø 92 x 122 mm height
1 disassembly pressure piece with spindle (for medium-sized bushings), M12 x 1.5
1 disassembly pressure piece with spindle (for small bushings), M12 x 1.5
1 disassembly pressure piece with spindle (for large bushings), M14 x 2.0
1 ball bearing, Ø 57 x 23 mm height
1 assembly pressure plate for medium and large-sized bushings, Ø 84 x 24 mm height
1 assembly pressure piece for medium and large-sized bushings, Ø 9.5 x 52 mm height
1 pulling spindle, M12 x 1.75
2 pulling spindle nut, M12 x 1.75
1 pulling spindle, M14 x 2.0
2 pulling spindle nut, M14 x 2.0
1 reduction shell for for small bushings
1 assembly pressure plate for small bushings
1 assembly pressure piece for small bushings
1 C-bracket
2 C-bracket bolts, M16 x 24
2 holding clamps for medium and large-sized bushings
2 holding clamps for small bushings
Technical data
Gross weight 11572 g
