Описание:
Марка:
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Series
GRF
Power
1400 W
Rotations
9000-28000 min⁻¹
Voltage
230-240 V a.c.
Frequency
50 Hz
Holder size
6 or 8 mm
Cutting unit stroke
55 mm
Speed adjustment
yes
Electronic rotation adjustment
yes
Soft start
yes
Wire length
3 m
Electric insulation class
II
Protection grade
IP20
Acoustic pressure
91.0 ± 3.0 dB(A)
Acoustic power
99.0 ± 3.0 dB(A)
Vibrations
4.23 ± 1.5 m/s²
Weight
4.77 kg
Set includes
milling machine, guide x2, dust extraction connection, reducing sleeve
Symbol
YT-82385

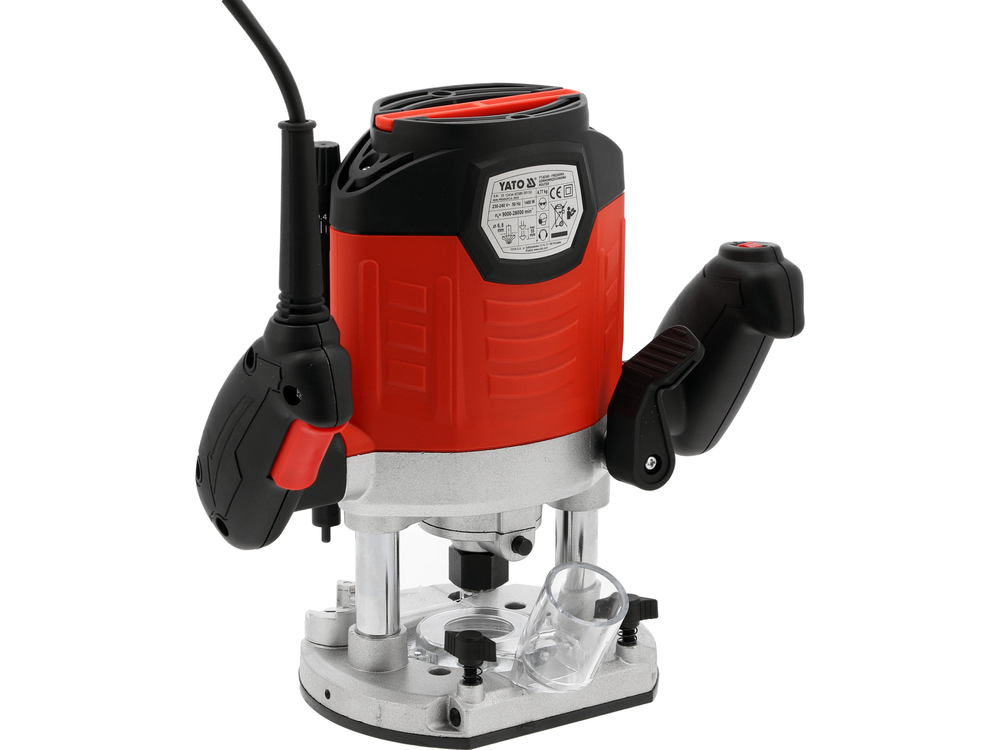

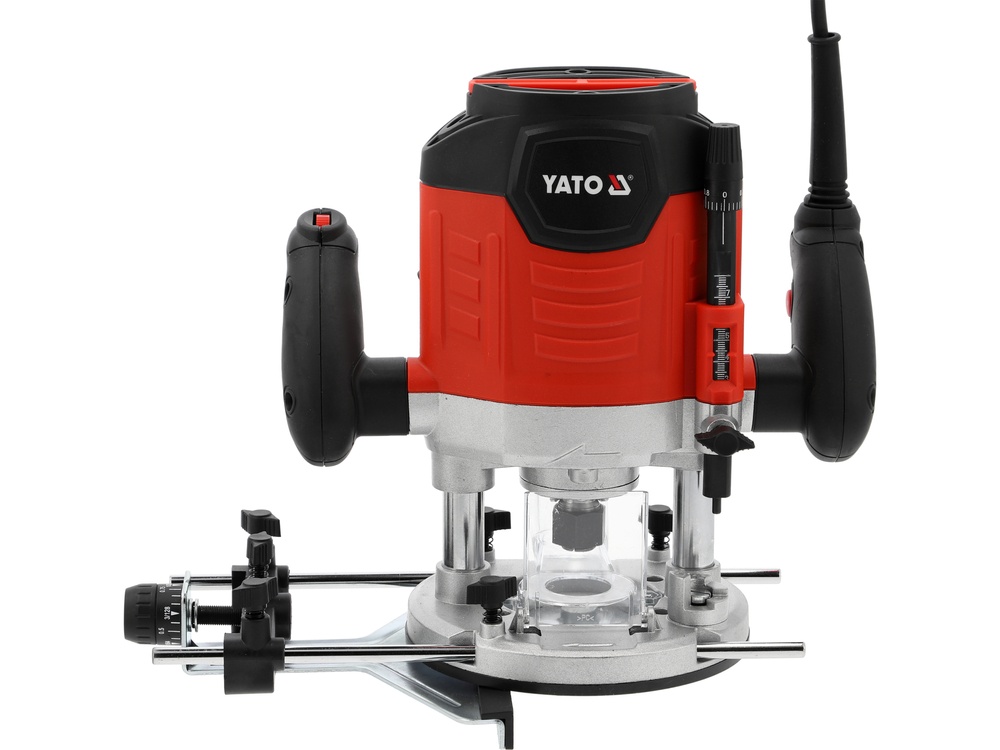

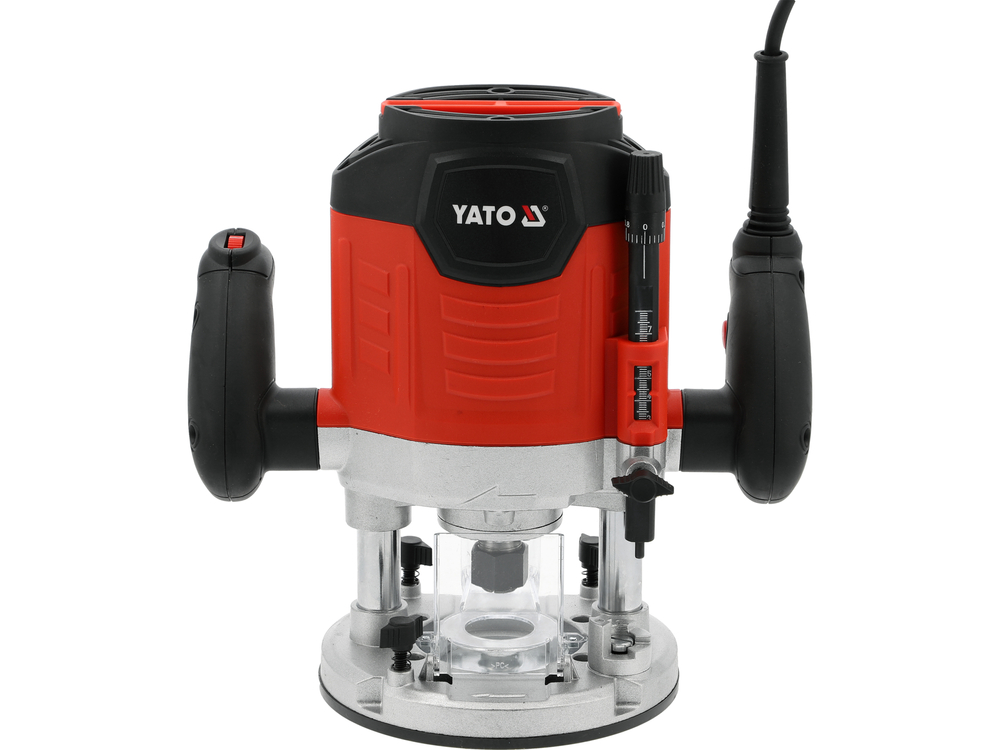

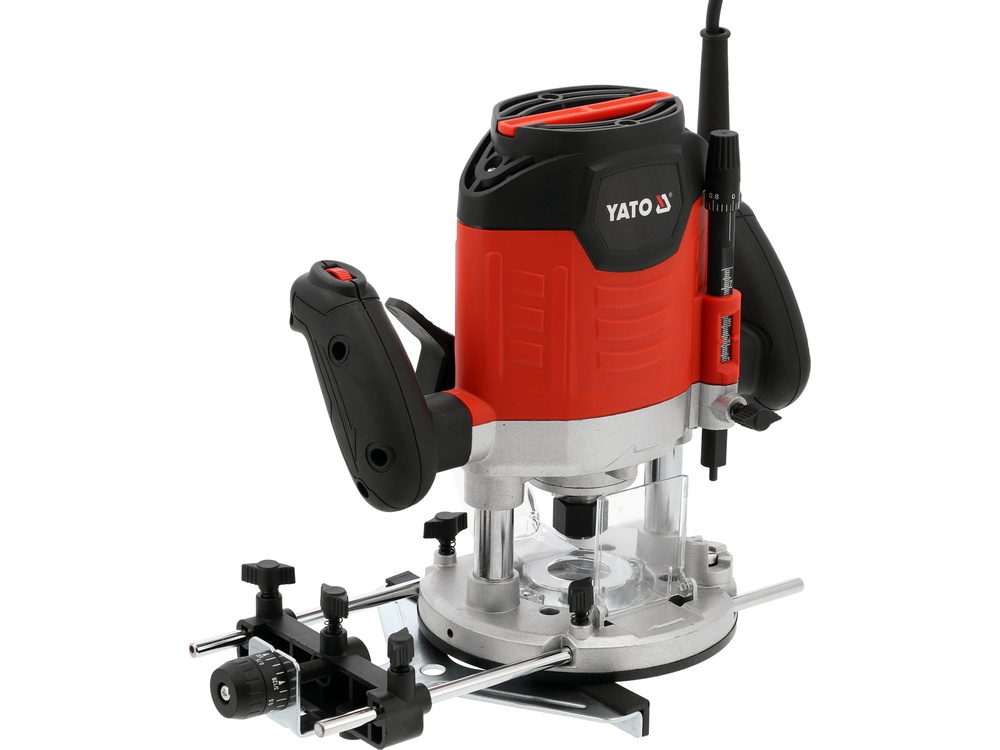

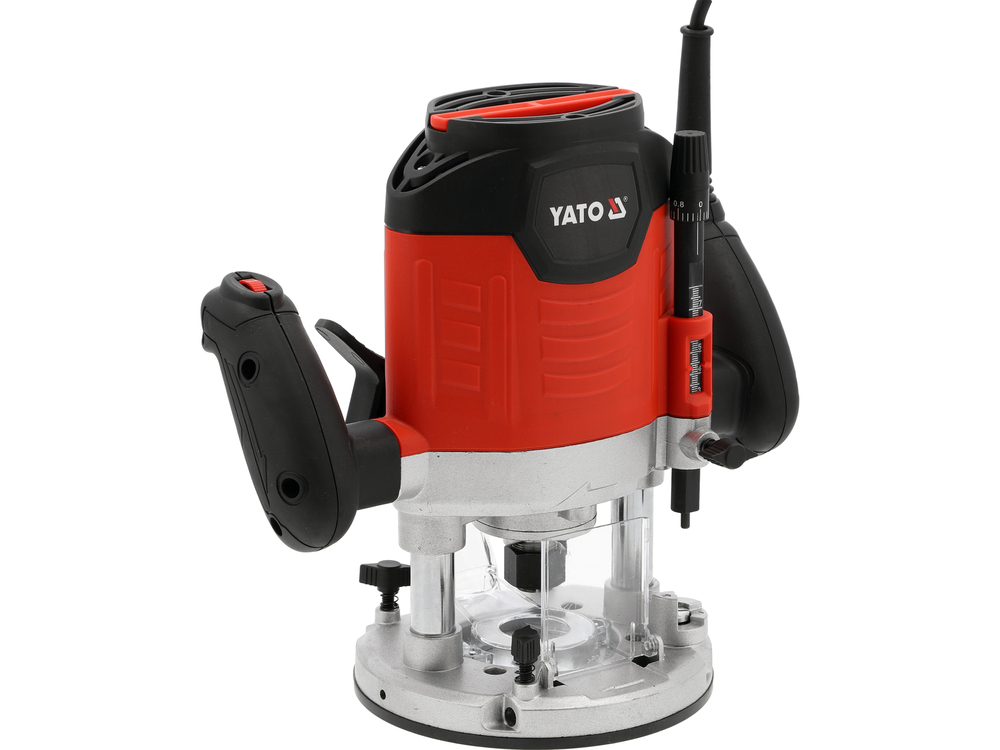

Strong milling machine with durable construction designed for work in a carpentry and roofing workshop - shaping edges, milling grooves, and woodworking joints. It is used for processing wood and wood-derived materials. Soft start and speed stabilization make the operation of the milling machine comfortable and safe, providing constant control over the tool and precise progress of work.
electronic regulation of rotational speed depending on the type of material being processed and the diameter of the cutter

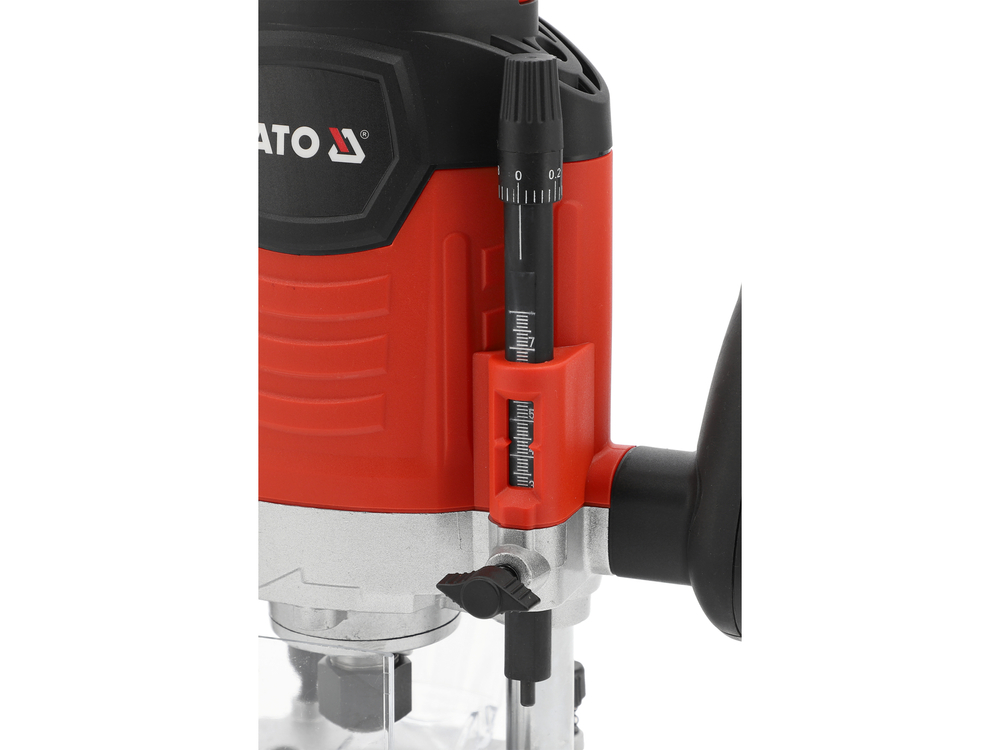

depth gauge with micrometric knob allows precise setting of milling depth, indicating the value in the housing window

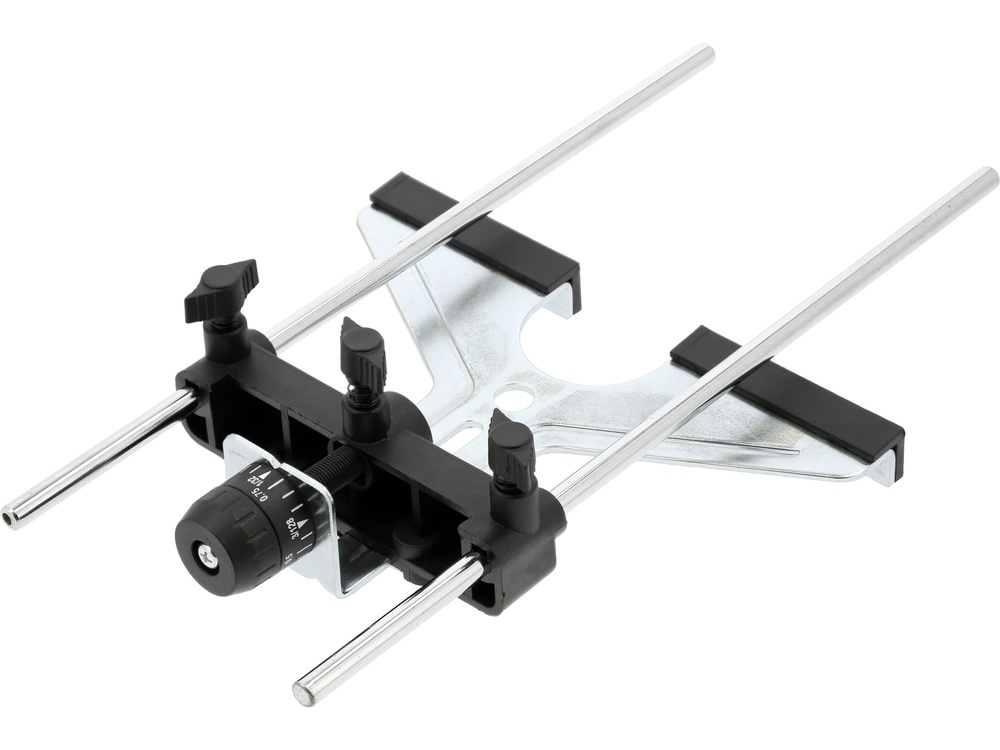

parallel milling guide stabilizes the tool movement and maintains an ideal cutting line even on longer sections
circular milling guide facilitates transitions, allowing for even and repeatable edges of arcs and rounds
dust extraction connection allows to maintain cleanliness in the workplace by connecting an industrial vacuum cleaner
Parameters:
electronic regulation of rotational speed: 9000-28000 min⁻¹
power: 1400 W
tool handle size: 6 and 8 mm
milling unit stroke: 55 mm
soft start function
speed stabilization function
3-meter power cord
protection class: IP20
weight: 4.8 kg
included: 2 guides, dust extraction connection, and reducing sleeve
