Product description
The classic caliper is made of stainless steel and allows measurements to be made in the range from 0-200mm. with an accuracy of 0.02mm. A clear and legible scale influences the accuracy and ease of reading the indicated values. The whole is placed in a durable and handy package. Enables external, internal measurements, height and depth measurements.
Technical data
Measuring range 0 - 200 mm / 0 - 8 inches
Resolution: 0.02 mm (0.001 in)
Accuracy: ± 0.02 mm (0.001 in)
Working temperature: 5OC - 40OC / 41OF - 104OF
Humidity effect: No significance below 80% relative humidity

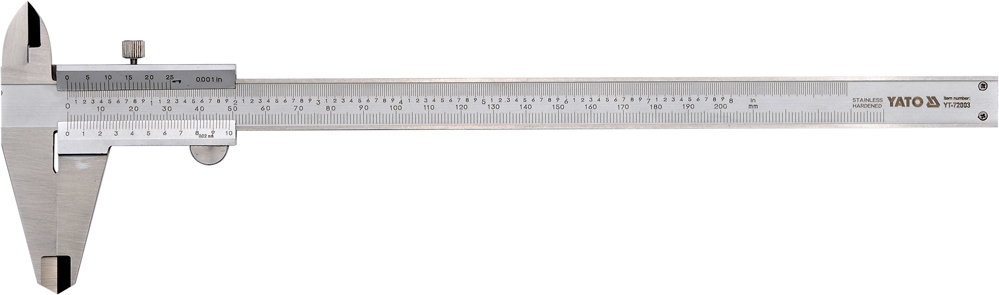

The caliper has:
- measuring surfaces for external measurements
- measuring surfaces for internal measurements
- depth gauge
- surfaces for measuring the stroke
- guide
- main scale
- vernier
- fixing screw
Purpose / use
Intended for external and internal measurements, height and depth measurements.

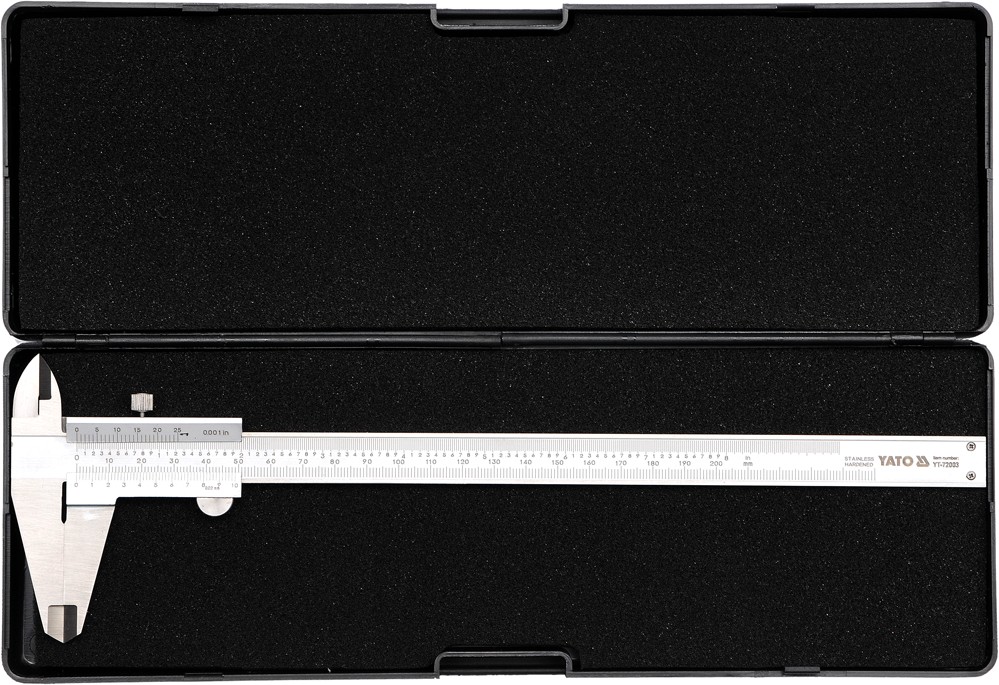

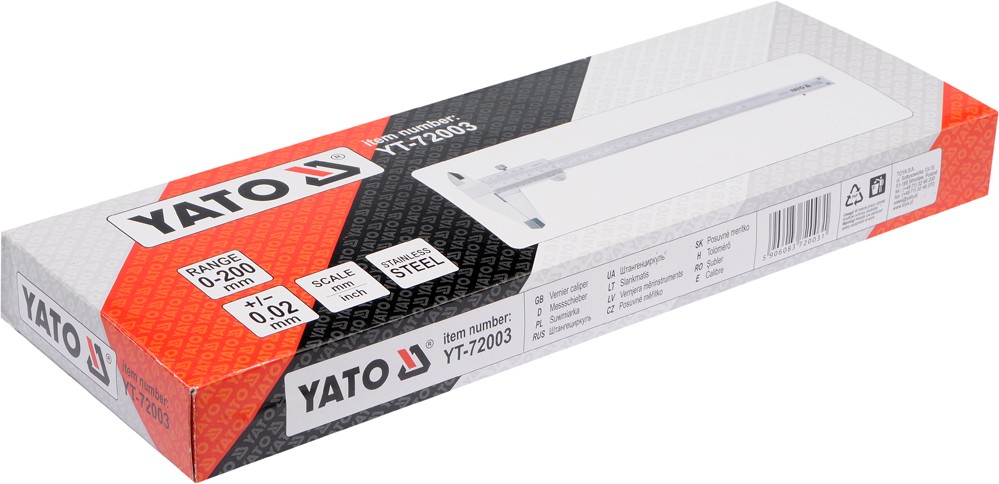

Contents of the package
Caliper,

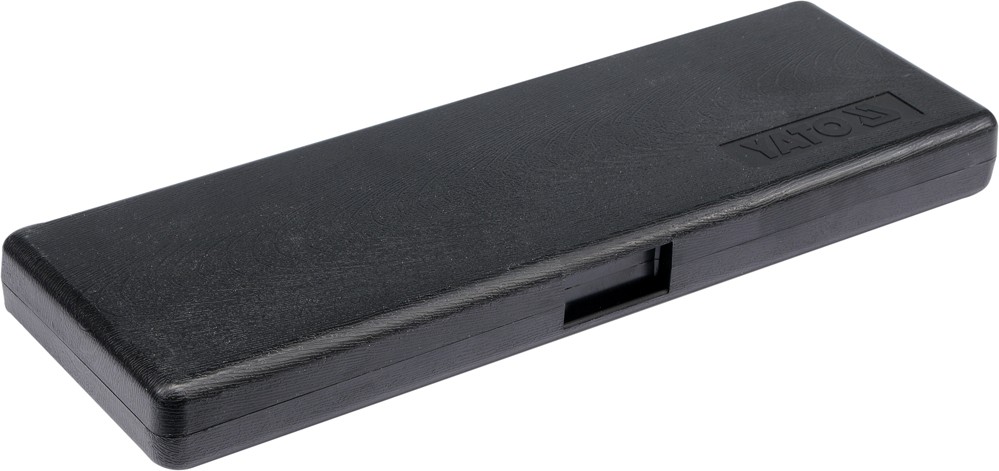

Case
Technical data
Index number YT-72003
EAN 5906083720031
Brand Yato
PCS unit
Gross weight (kg) 0.4670
Length [mm] 200
Accuracy [mm] 0.02
Type of traditional reading
