Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Series
GRF
Symbol
YT-82488

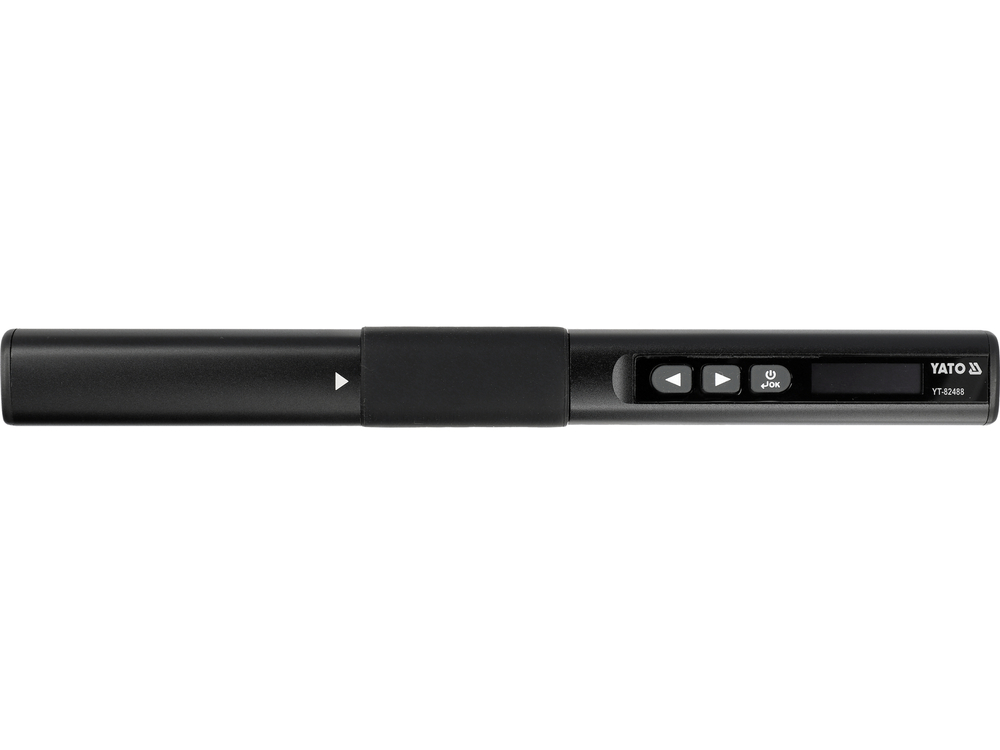

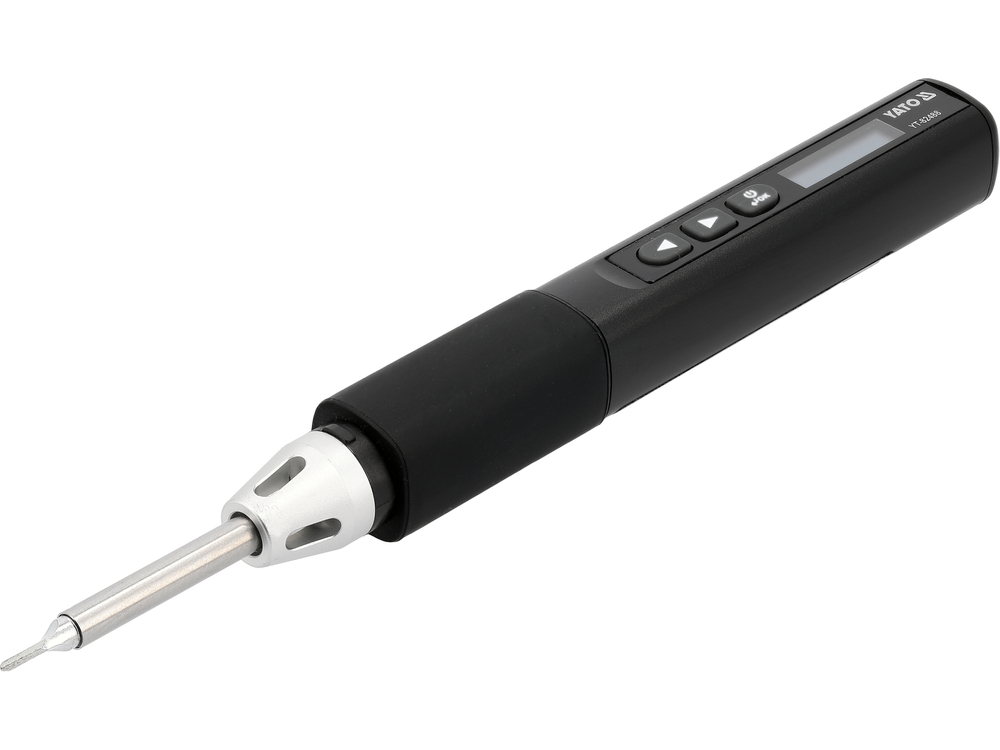

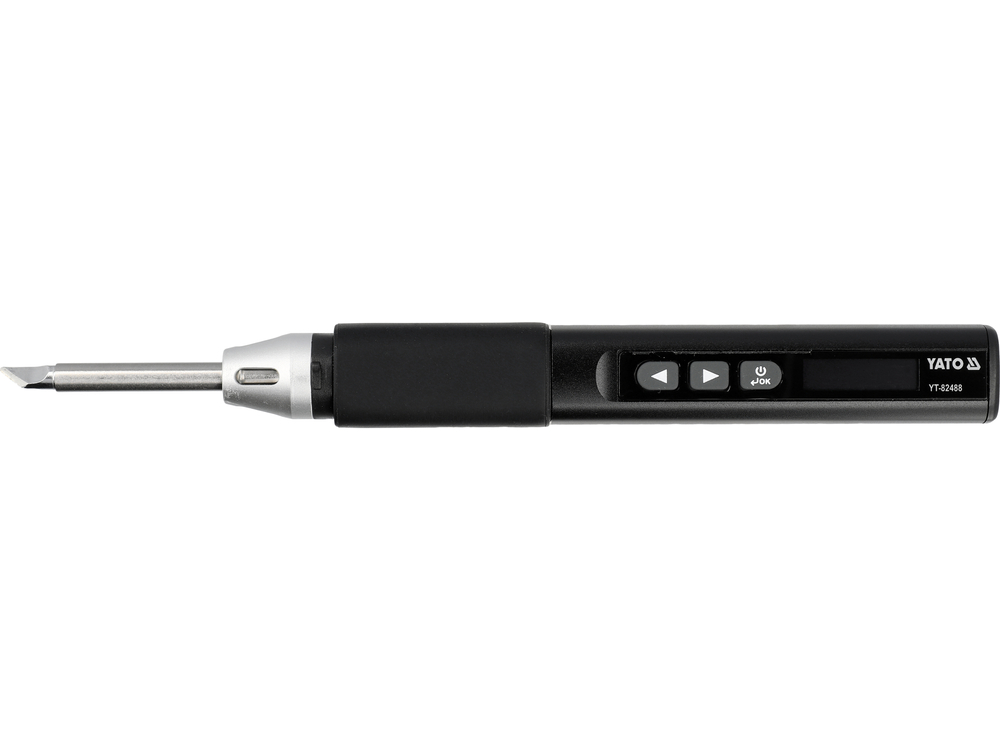

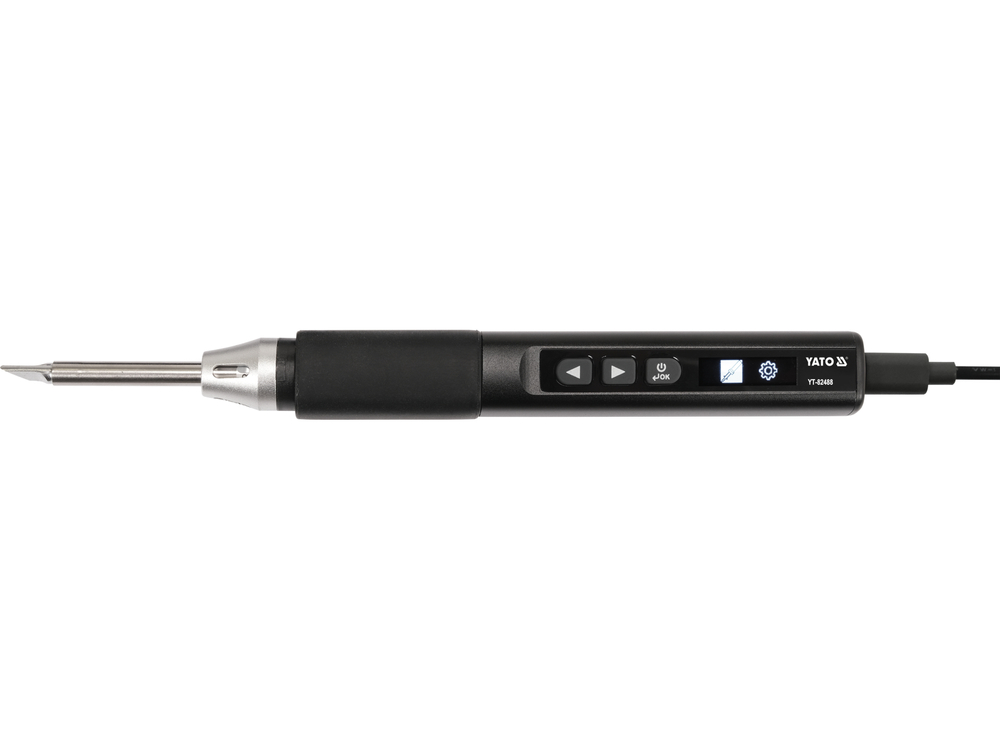

Portable digital soldering iron using T12 tips, designed to be powered by a USB-C port from sources with a voltage of 5-28 V, e.g. via PD/QC power banks, laptop chargers, or fast phone chargers. This solution eliminates the need for a traditional stationary power supply and allows you to set up a soldering station practically anywhere.
The tip construction combines a heating element, temperature sensor, and working end in one housing, ensuring very fast reaching of the desired temperature and its stable maintenance during work. Temperature regulation, calibration, sleep mode, and automatic shutdown functions work similarly to solutions used in full-size soldering stations, enabling precise work on both through-hole components and SMD assembly.

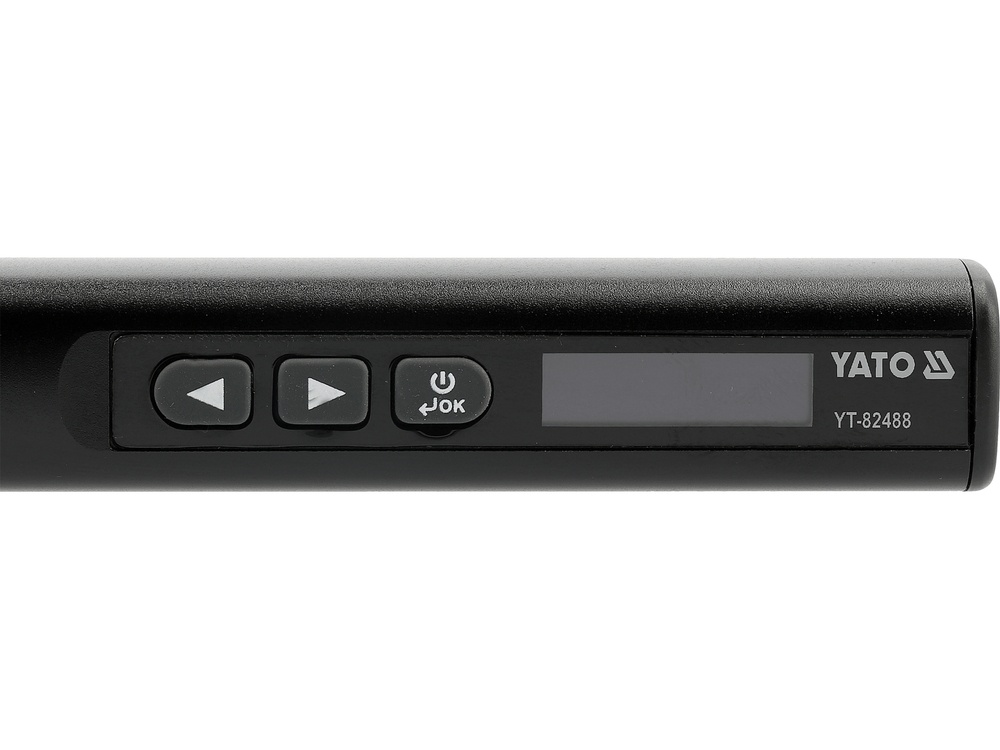

OLED display provides information about:
current temperature
set temperature
heating status
operating/sleep mode
currently used device power
Power supply:

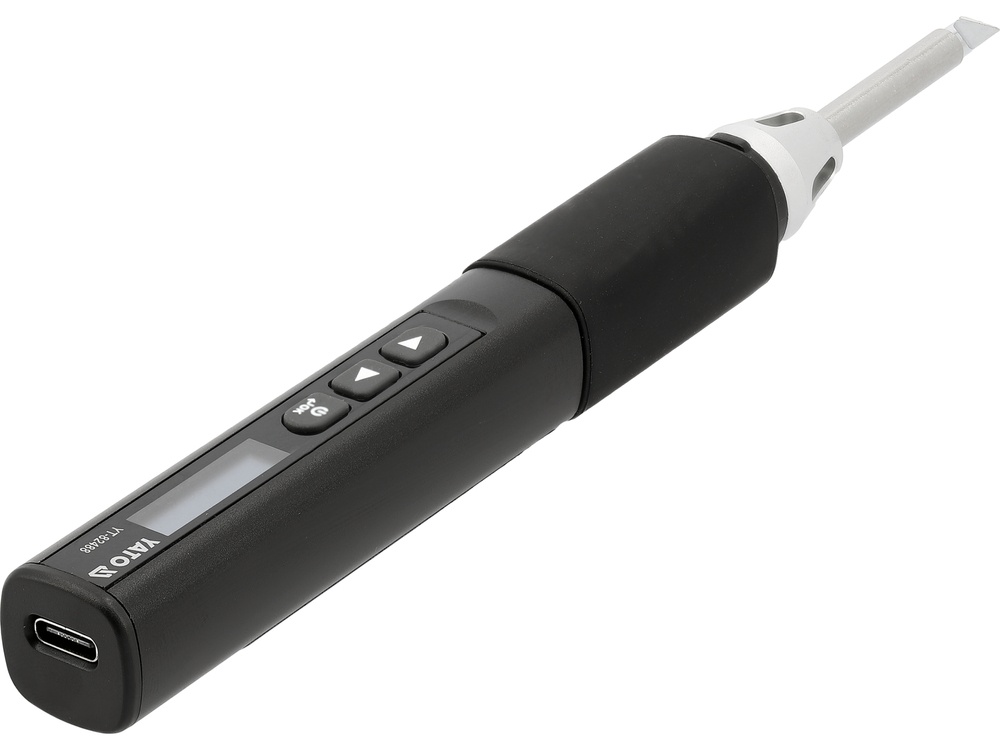

connector: USB-C
supported protocols: PD/QC
voltage range: 5-28 V DC
maximum power: up to 96 W at 28 V
recommended operating voltages: typical PD profiles (e.g. 9-20 V)
Operating range and settings:
operating temperature: 100°C - 450°C
calibration: from -99°C to +99°C
sleep mode activated after 5 minutes of inactivity prevents the tip from overheating during breaks, prolonging its lifespan and reducing oxidation of the coating
automatic shutdown function: 5 / 10 / 15 / 20 min or off
Construction:
materials: aluminum, ABS, and silicone
dimensions: 196 x 19 x 19 mm
weight: 67 g (with tip)

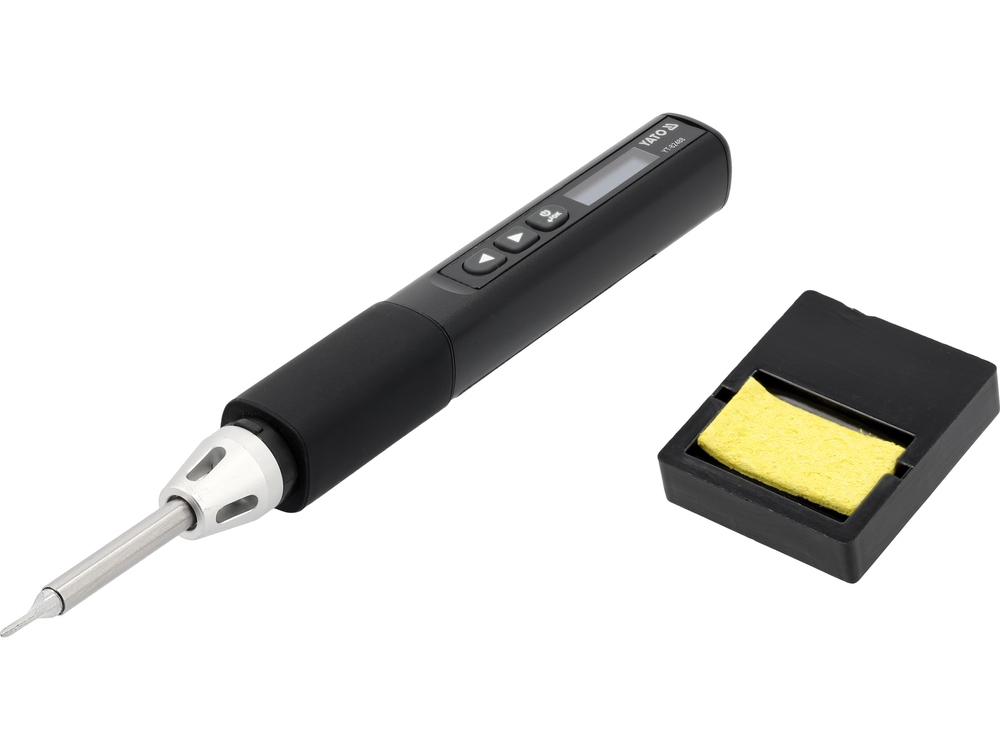

Accessories included:

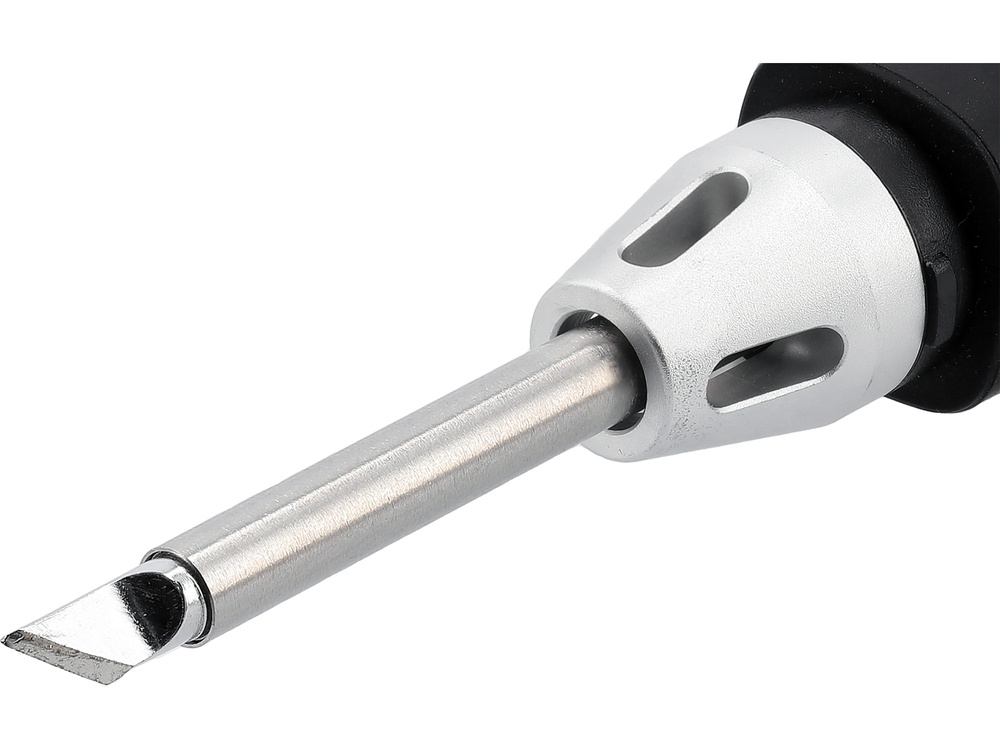

T12-K tip

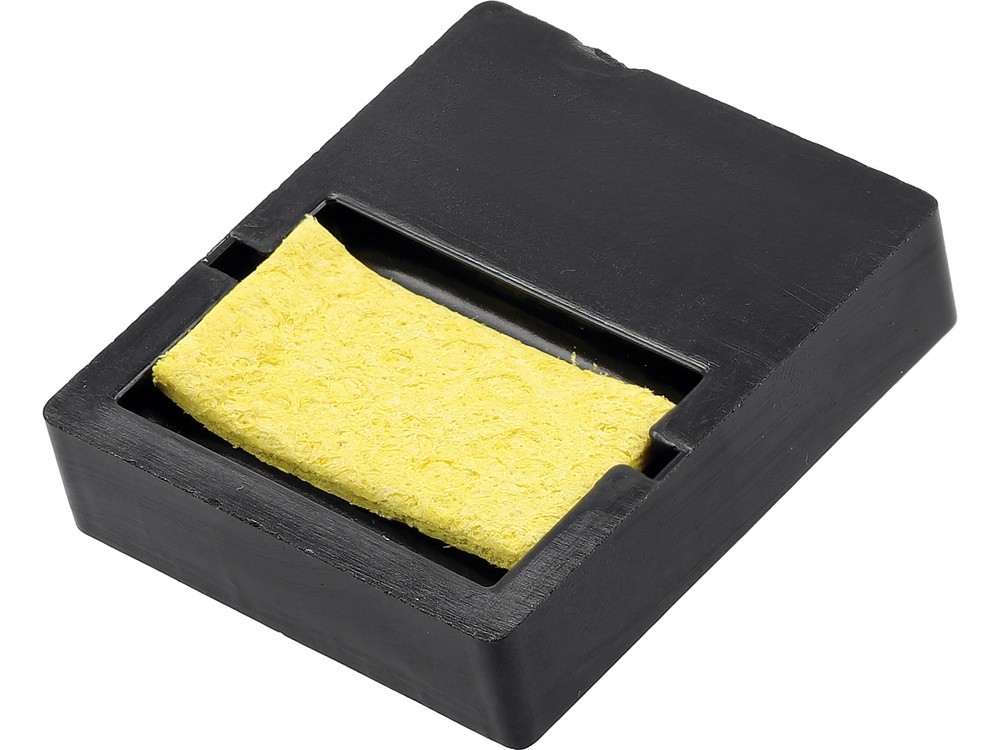

stand with sponge for tip cleaning
USB-C cable
the model does not include a transport penholder or crocodile clip adapters - the design has been simplified for typical USB-C power supply use
Application:
electronics service and mobile repairs
low-voltage installations
modeling and hobby
workshop tasks outside the soldering station
