Описание:
Марка:
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Series
GRF
Symbol
YT-820502

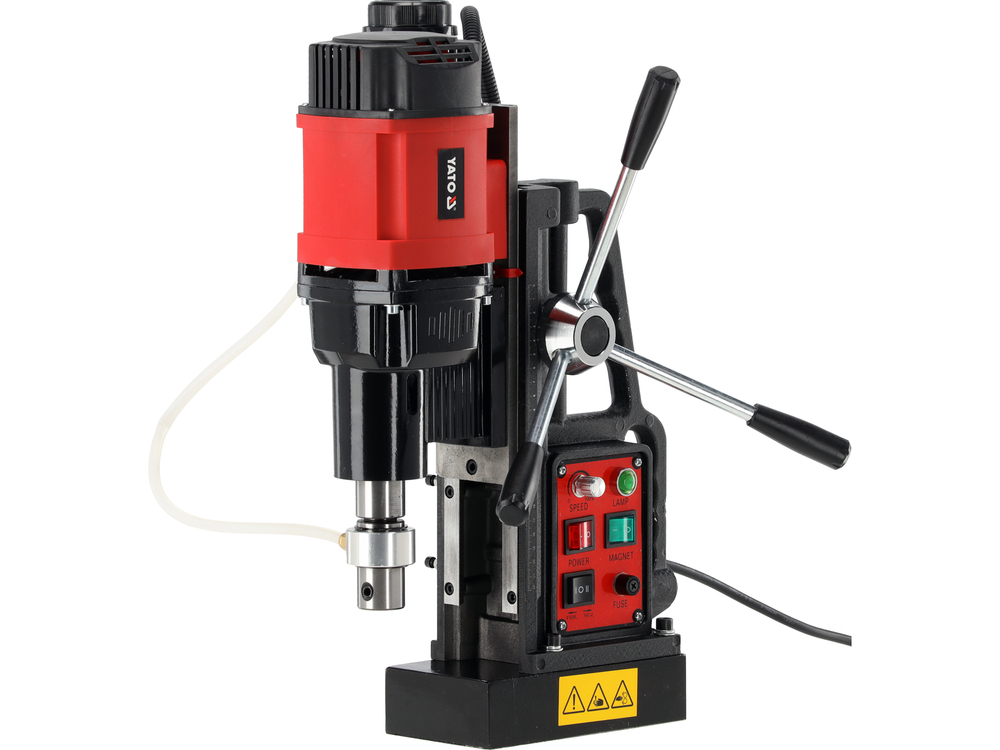

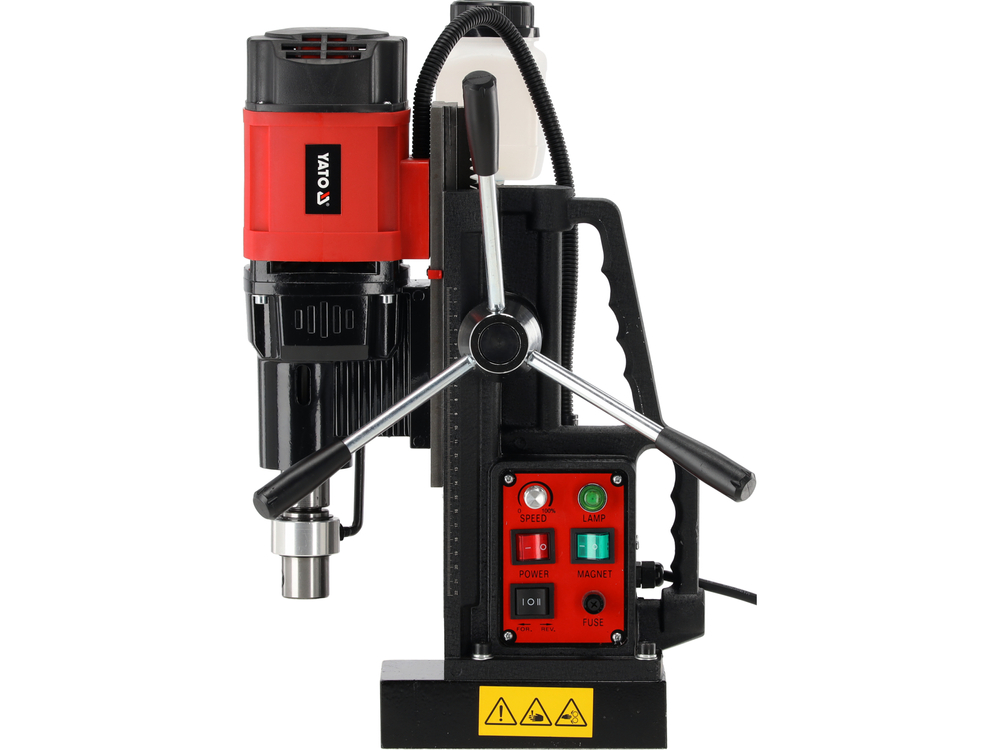

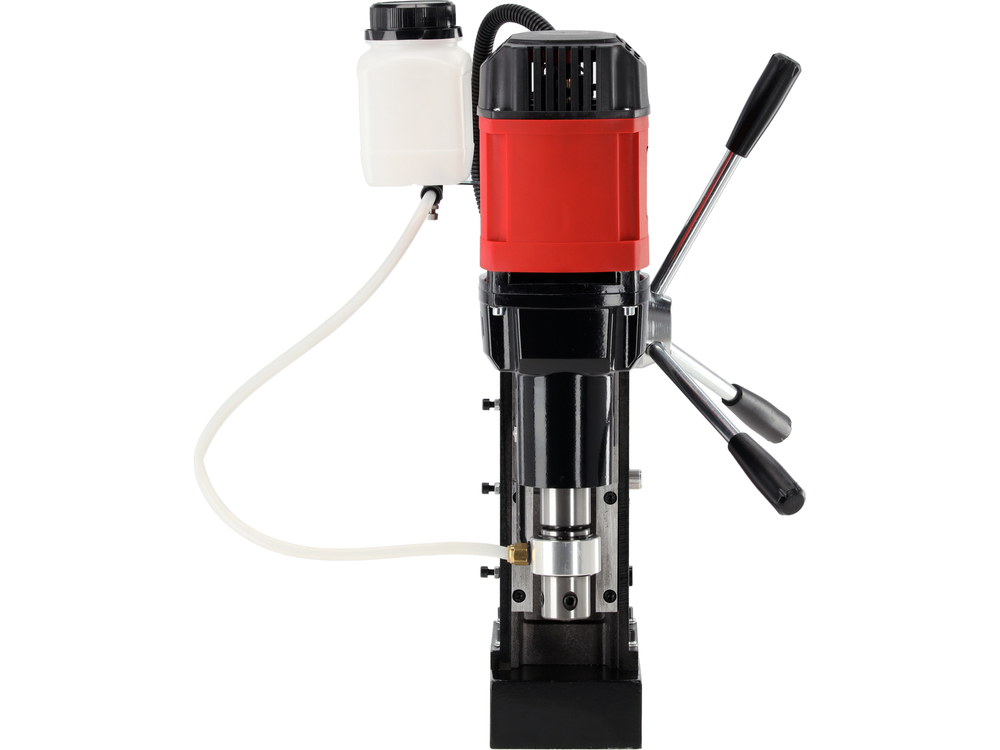

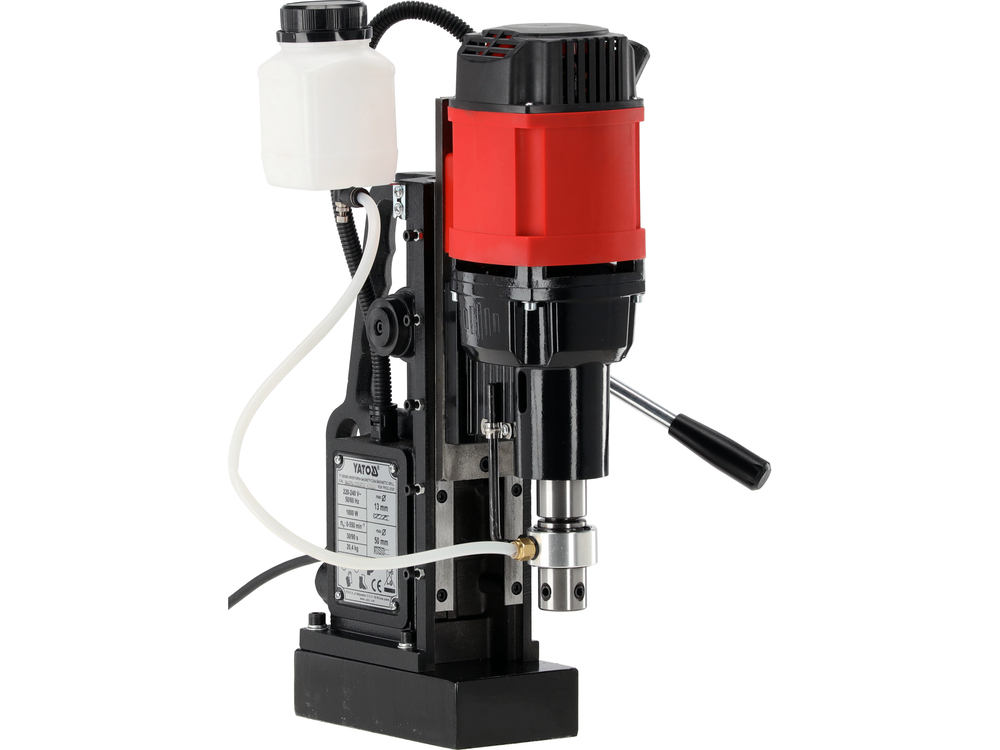

YATO YT-820502 magnetic drill is designed for making precise holes up to 50 mm in diameter in steel elements, profiles, and large load-bearing structures, especially during field assembly work. The electromagnetic base allows for stable mounting to ferromagnetic surfaces, allowing for work in horizontal, vertical, and inverted positions. A manual feed guide ensures precise tool guidance and repeatable machining, while the Morse MT2 chuck with Weldon adapter allows for use with both trepan milling cutters and twist drills. The device's design has been adapted for assembly, construction, metalworking, and workshop applications requiring mobility and high drilling precision. Key Features and Parameters:

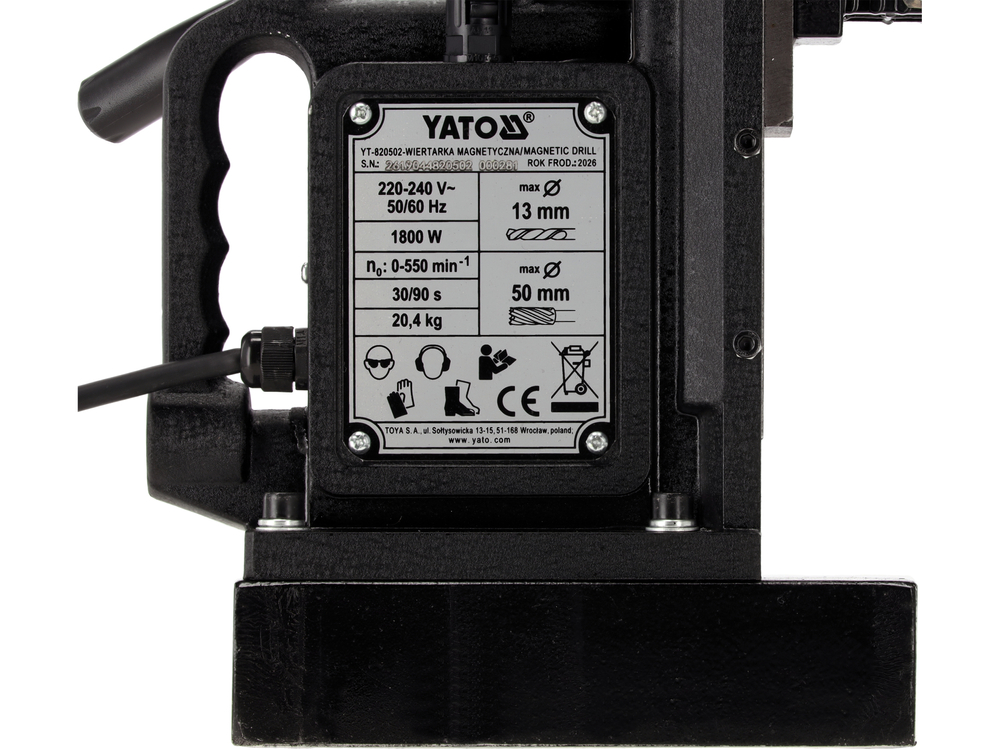

Motor Power: 1800 W
Rotation Speed: 0-550 rpm
Tool Holder: Morse MT2
MT2–Weldon Adapter for Trepanning Mills
Maximum Twist Drill Diameter: 13 mm
Maximum Trepanning Mill Diameter: 50 mm
Maximum Drilling Depth: 50 mm
Working Stroke: 180 mm
Electromagnetic Clamping Force: 13,800 N
Maximum Recommended Continuous Operation Time: Up to 3 Hours
Device Weight: 20.4 kg
Design and Functionality:
Electromagnetic foot for stable attachment to ferromagnetic surfaces
Can be used in horizontal, vertical, and inverted positions
Vertical guide with manual feed for precise tool guidance
Adjustable pressure of the guide carriage to the vertical guide
Smooth speed adjustment from 0-550 rpm rpm
Reverse rotation switch helps unclog jammed tools

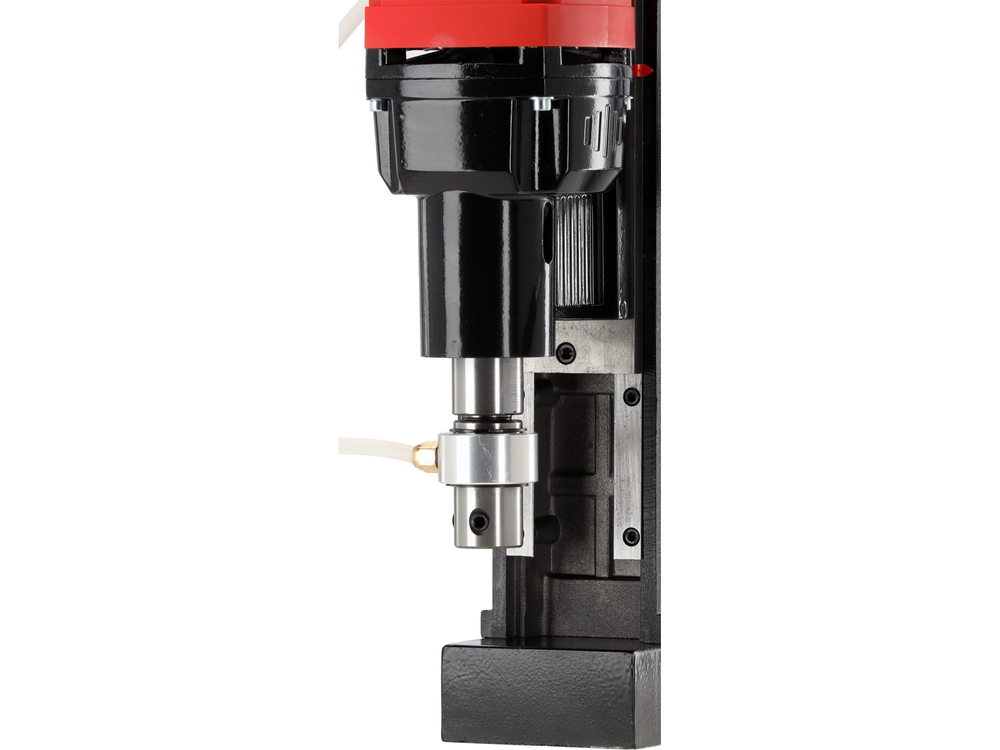

Tools can be mounted directly in a Morse MT2 taper or using a Weldon adapter
Tapping capability

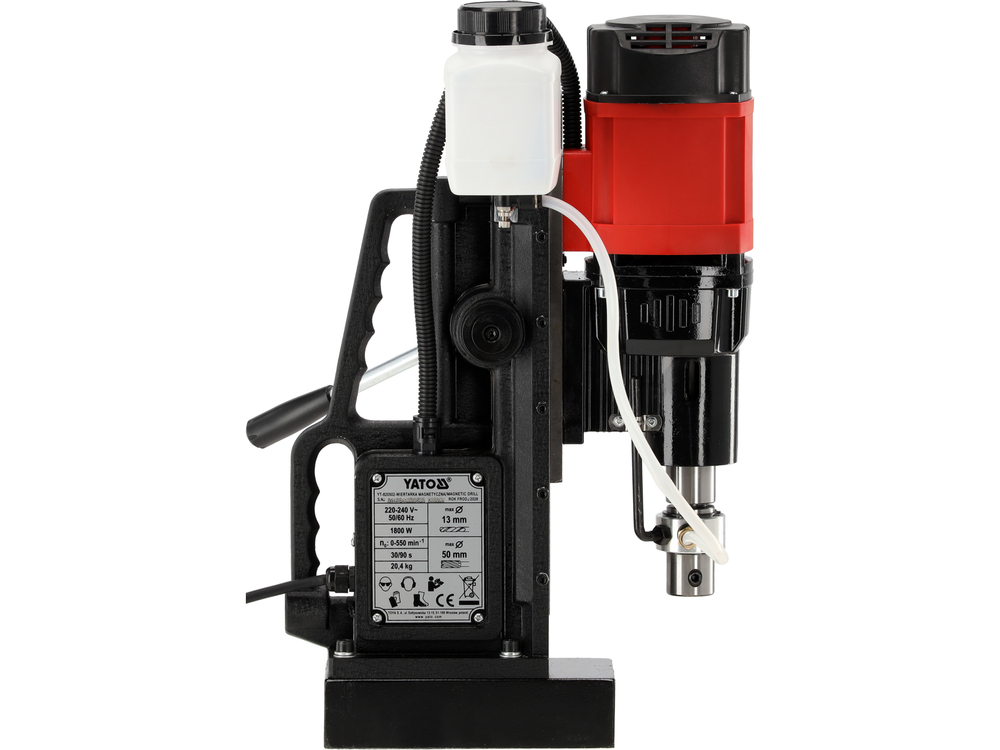

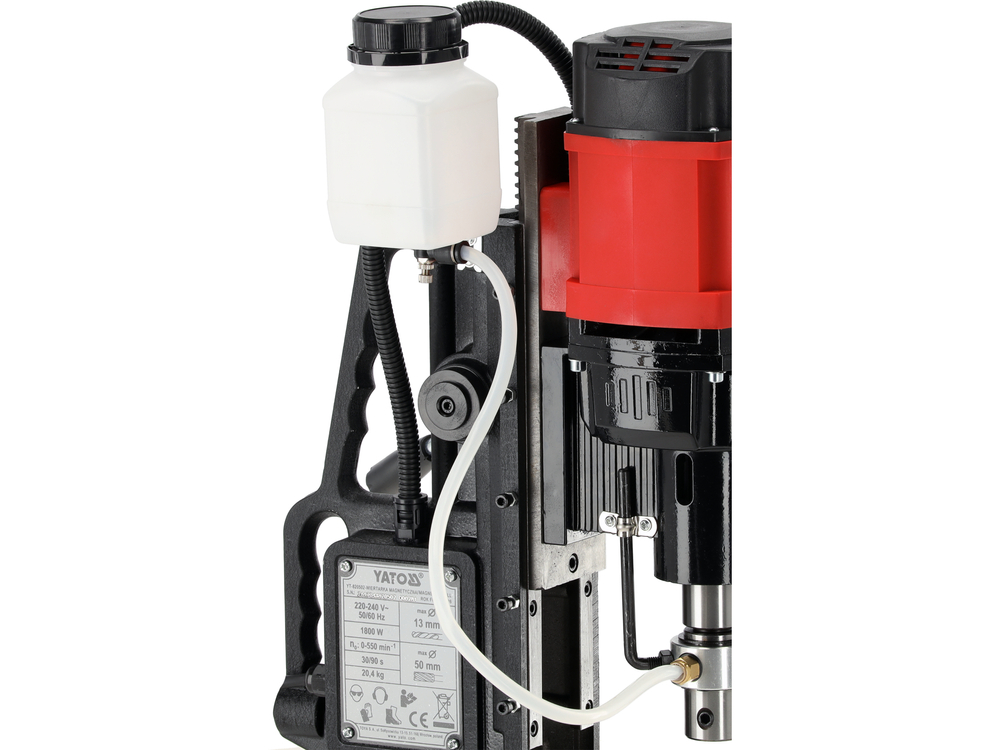

Coolant tank with fluid supply to the cutting zone
Cooling through the spindle when working with a Weldon adapter
Cutting paste or spray can be used for vertical and inverted operation
Minimum recommended substrate thickness: 12 mm
Minimum thickness for adhesion: 10 mm of continuous ferromagnetic steel
Ergonomic manual spindle feed lever for drilling control

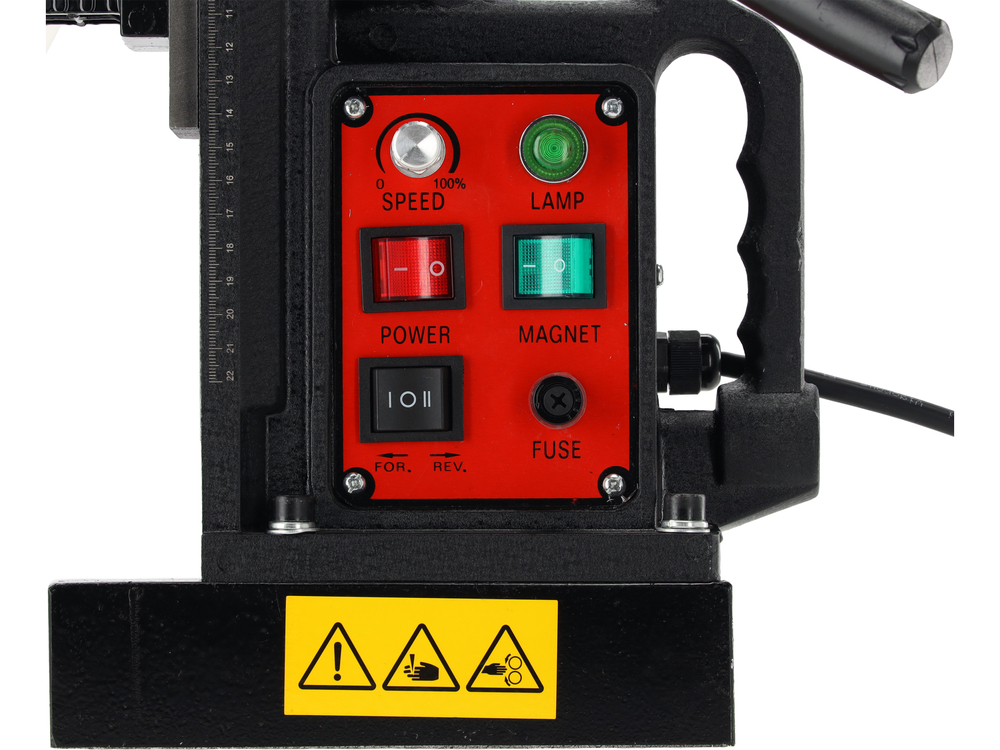

Separate motor and solenoid controls for increased safety and control
Operating parameters:
Sound pressure level LpA: 86.0 ± 3.0 dB (A)
Sound power level LwA: 99.0 ± 3.0 dB (A)
Vibration level: 6.5 ± 1.5 m/s²
For full clamping effectiveness, the work surface should be free of rust, paint, oil, and metal shavings. The YT-820502 model is suitable for drilling steel structures, profiles, and load-bearing elements, as well as for assembly, installation, and workshop work requiring stable clamping and high machining accuracy.
