Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Series
GRF
Symbol
YT-820501

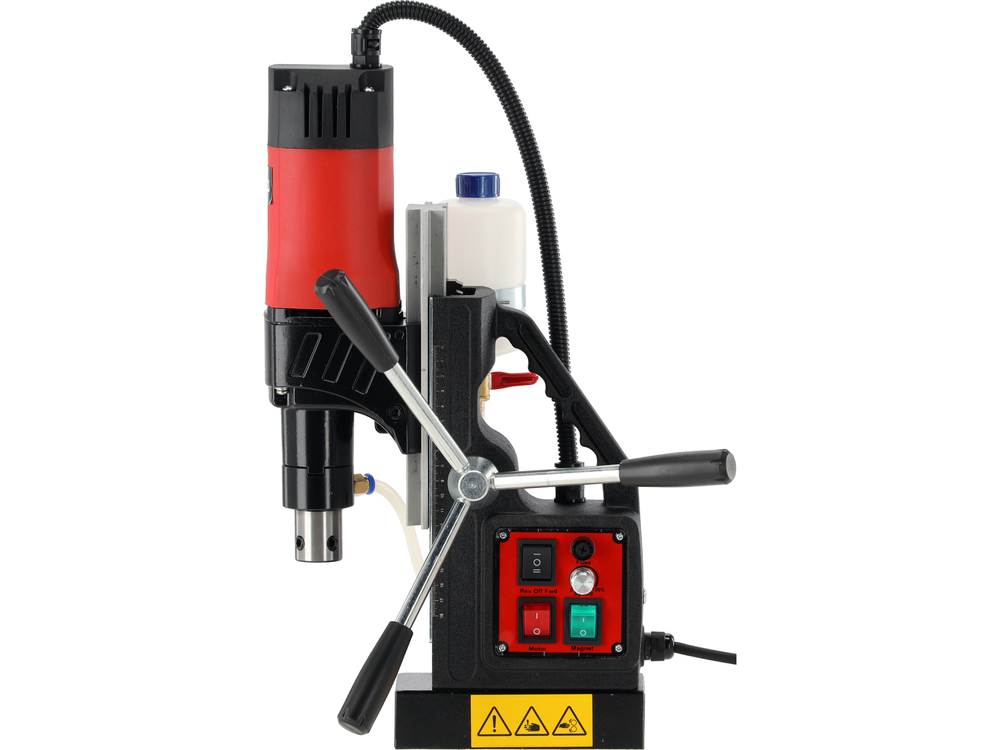

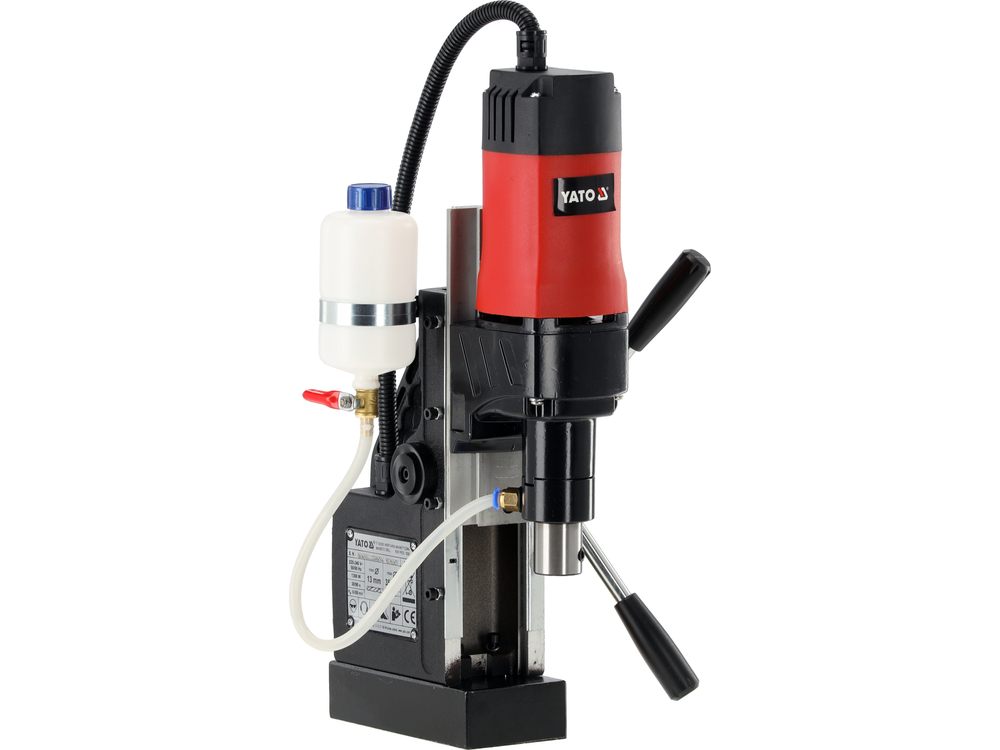

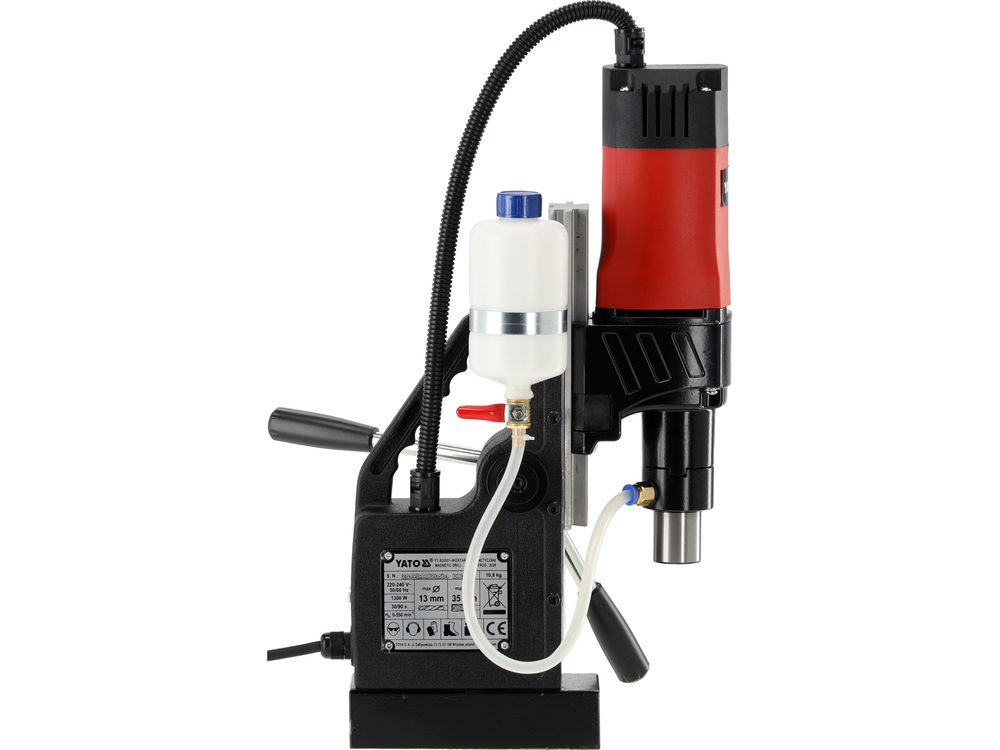

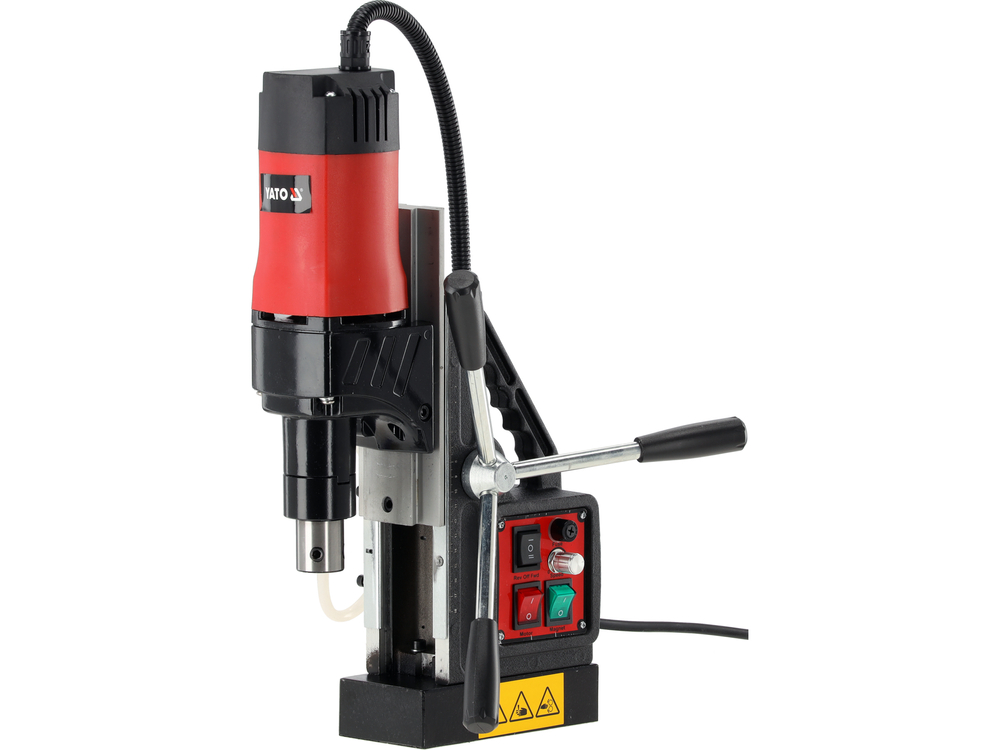

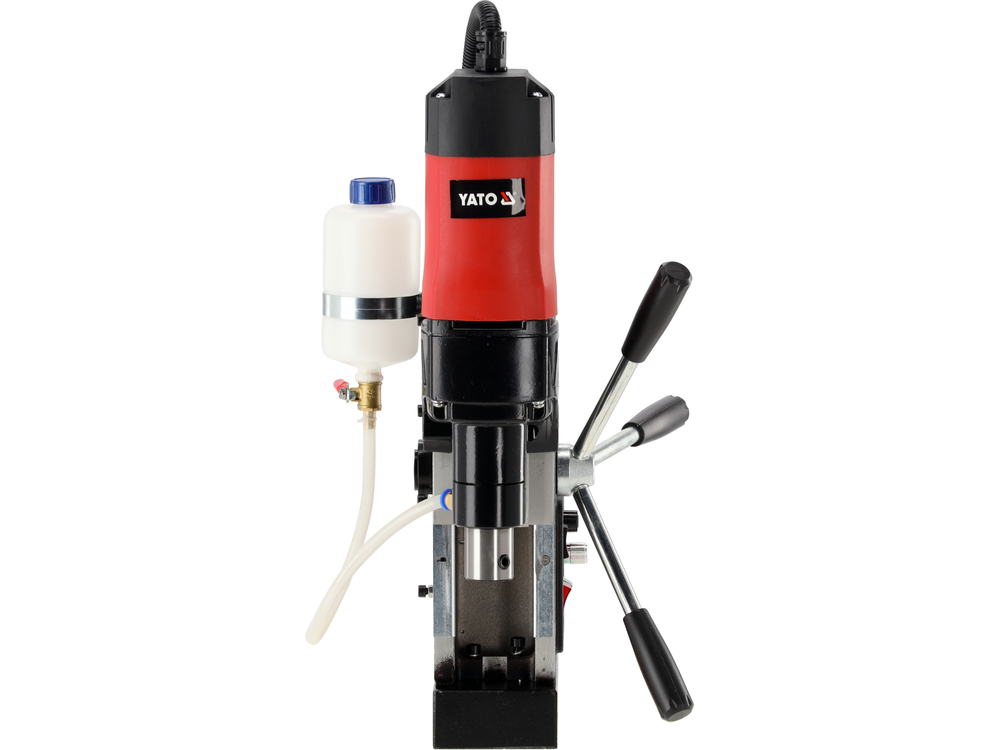

The YATO YT-820501 magnetic drill is designed for making precise holes up to 35 mm in diameter in steel elements, profiles, and supporting structures, especially during field assembly work. The electromagnetic base allows for stable attachment to ferromagnetic surfaces, allowing for operation in horizontal, vertical, and inverted positions. A manual feed guide ensures precise tool guidance and repeatable machining, while the 3/4" Weldon chuck enables use with trepanning cutters and industrial equipment. The compact design and portable nature of the device make it ideal for assembly, construction, metalworking, and workshop applications requiring high-precision drilling.
Key features and parameters:
Motor power: 1300 W
Rotation speed: 0-550 rpm
Tool holder: 3/4" Weldon (19 mm)
Maximum twist drill diameter: 13 mm
Maximum trepanning cutter diameter: 35 mm
Maximum drilling depth: 50 mm
Working stroke: 150 mm
Electromagnet clamping force: 11,500 N
Maximum recommended continuous operation time: up to 3 hours
Device weight: 10.8 kg
Design and Functionality:
Electromagnetic base ensures stable attachment to ferromagnetic surfaces
Can be used in horizontal, vertical, and inverted positions
Vertical guide with manual feed for precise tool guidance
Adjustable pressure of the guide carriage against the vertical guide
Continuous speed control from 0-550 rpm
Reverse switch helps unclog jammed tools

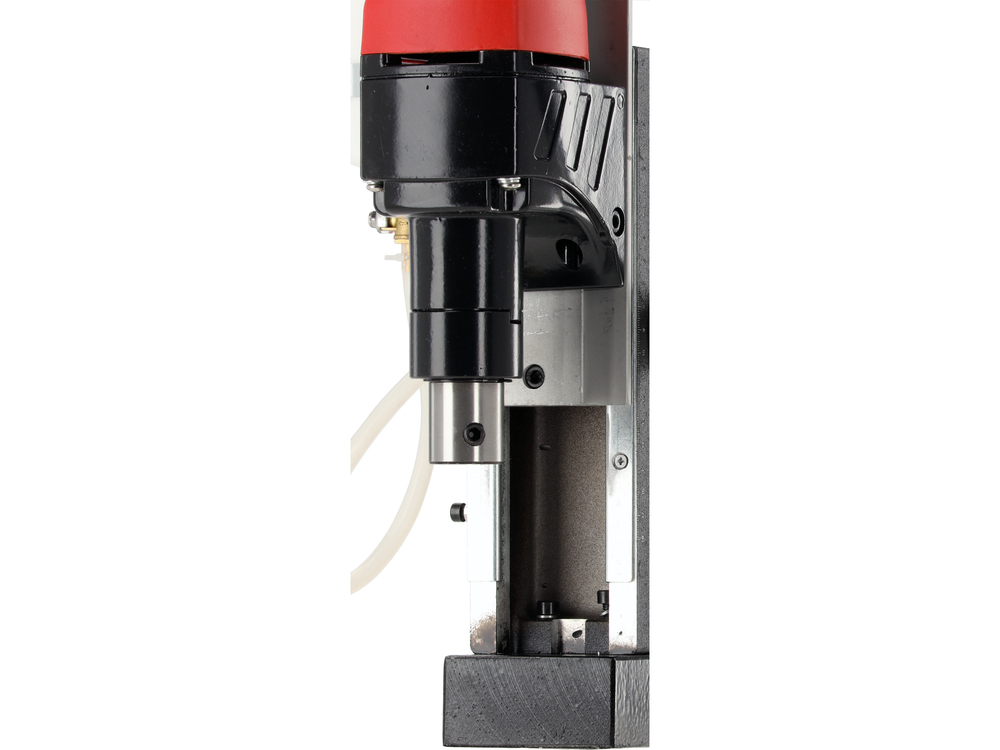

Weldon chuck suitable for use with trepan mills and twist drills
Tapping capability

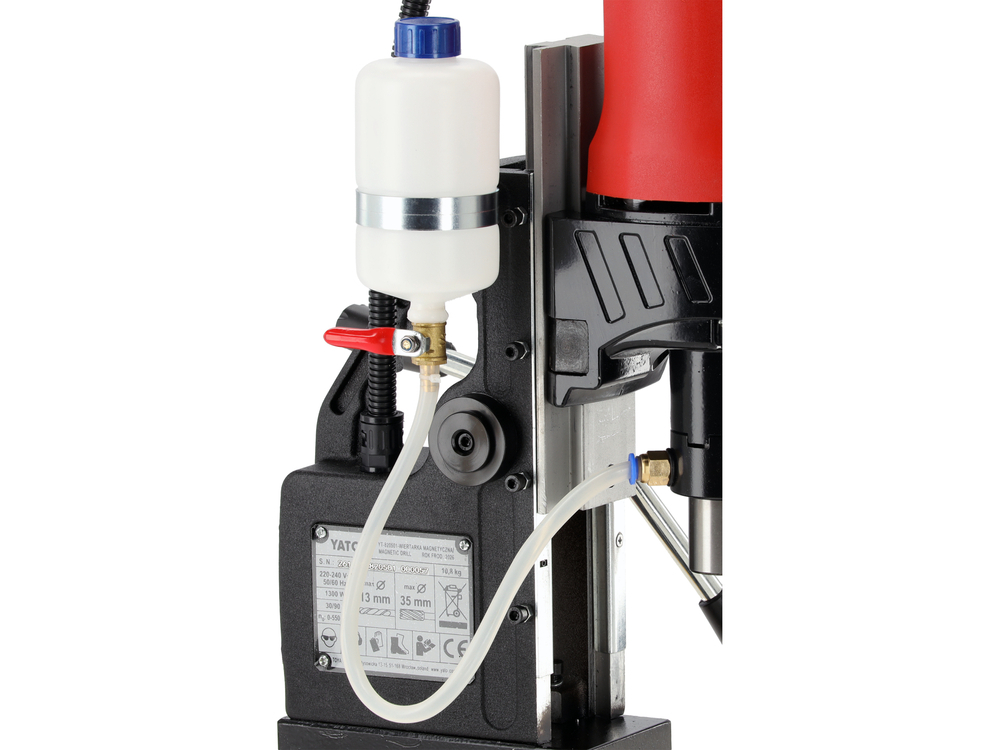

Coolant tank with fluid supply to the cutting zone
Ability to use cutting paste or spray during vertical and inverted operation
Minimum recommended material thickness: 12 mm for vertical and inclined operation
Minimum recommended material thickness: 15 mm for inverted operation
Ergonomic manual spindle feed lever provides control over the drilling process

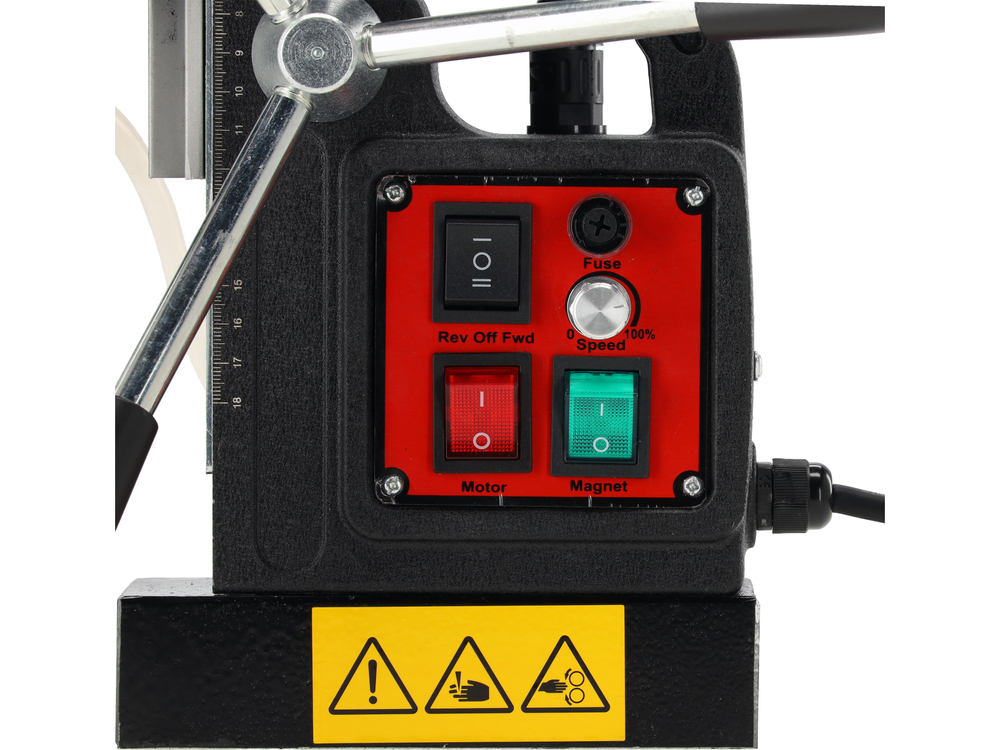

Separate motor and electromagnet controls for increased safety and Operational Control
Operating Parameters:
Sound Pressure Level LpA: 86.0 ± 3.0 dB(A)
Sound Power Level LwA: 99.0 ± 3.0 dB(A)
Vibration Level: 6.5 ± 1.5 m/s²
To achieve full clamping force, the working surface should be free of rust, paint, oil, and metal filings. The YT-820501 model is used for drilling steel structures, profiles, and load-bearing elements, as well as for assembly, installation, and workshop work requiring stable clamping and high machining accuracy.
