Описание:
Марка:
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Series
GRF
Power
2300 W
Force pressure
7 t
Max. pressure
24.2 MPa
Max. rotations
2800 min⁻¹
Voltage
230 V a.c.
Frequency
50 Hz
Log diameter
50-250 mm
Długość pnia
200-520 mm
Dimensions
116x42.5x61 mm
Oil tank capacity
3.5 l
Working mode
S6 40% 10 min
Nominal current
10.3 A
Acoustic pressure
75.8 ± 3.0 / 86.8 ± 3.0 dB(A)
Acoustic power
90.5 ± 3.0 / 93.0 ± 3.0 dB(A)
Electric insulation class
I
Protection grade
IP54
Weight
60 kg
Symbol
YT-79951

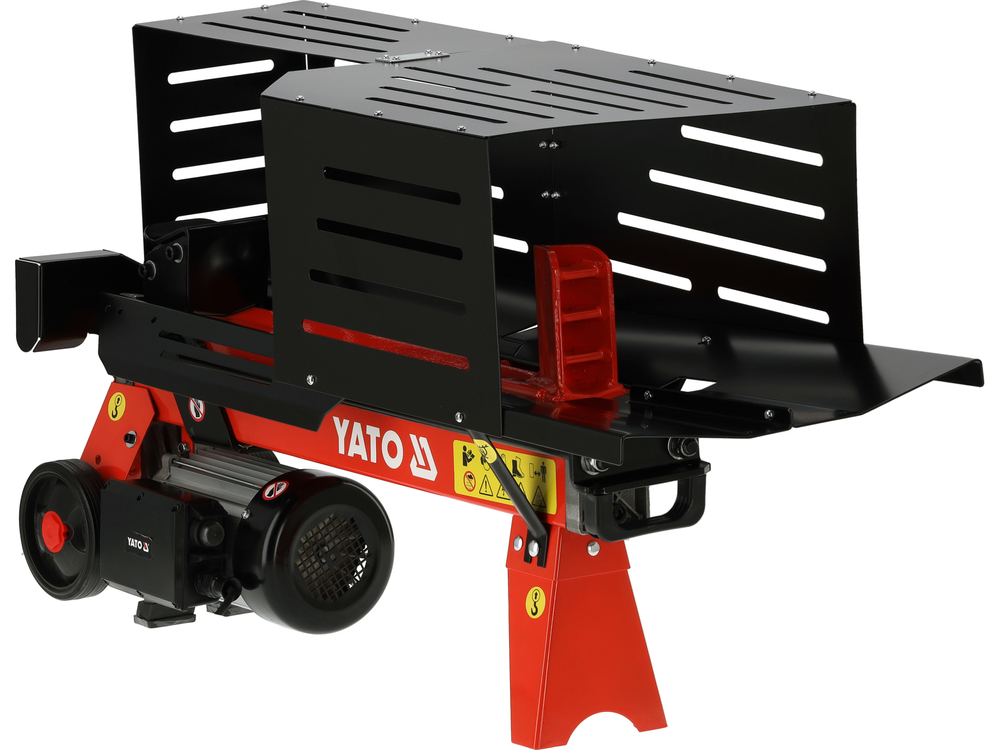

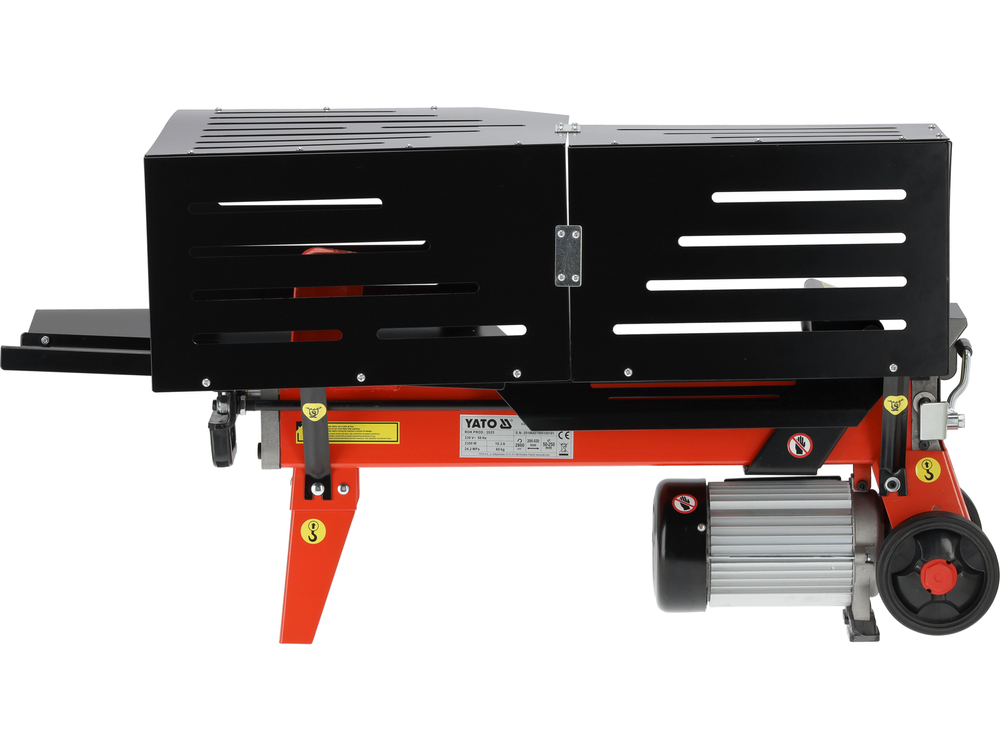

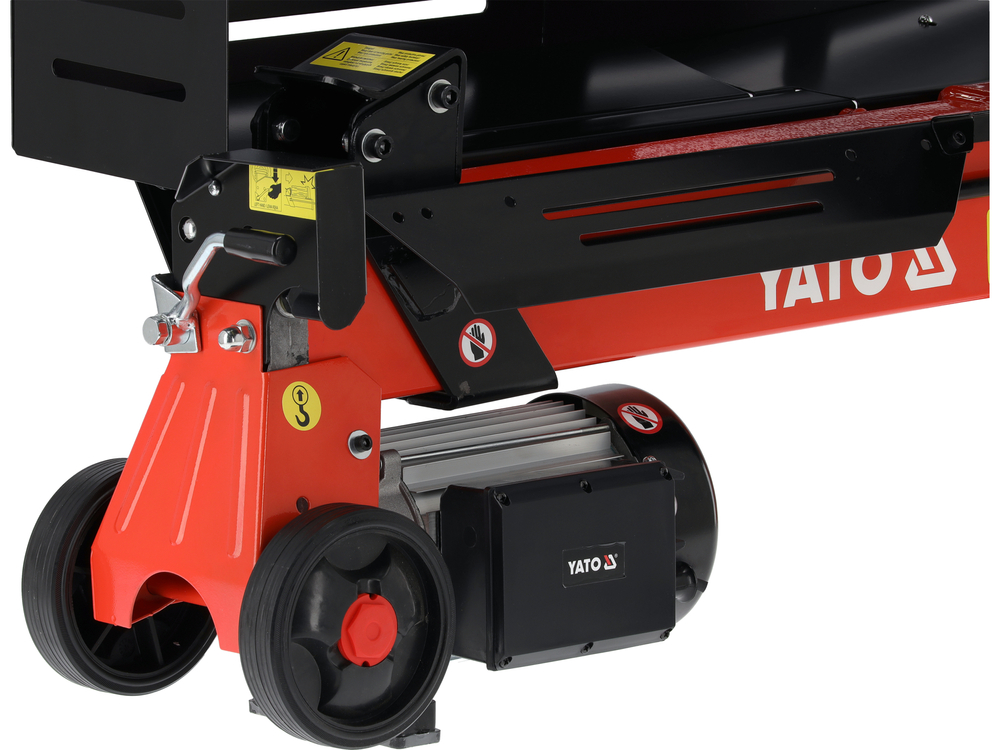

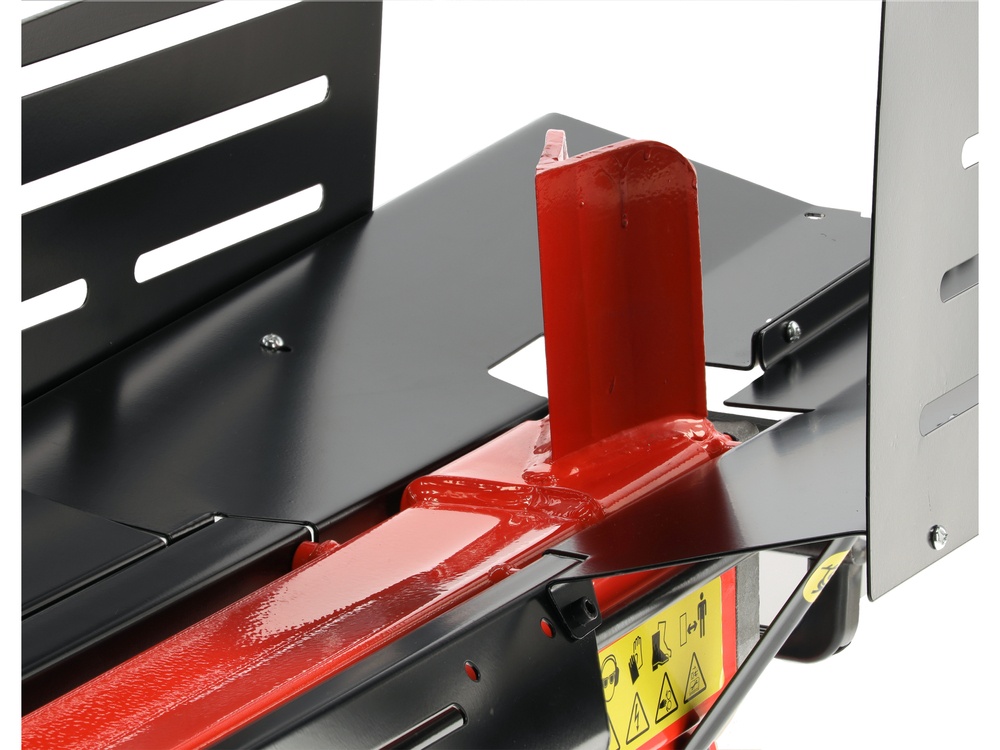

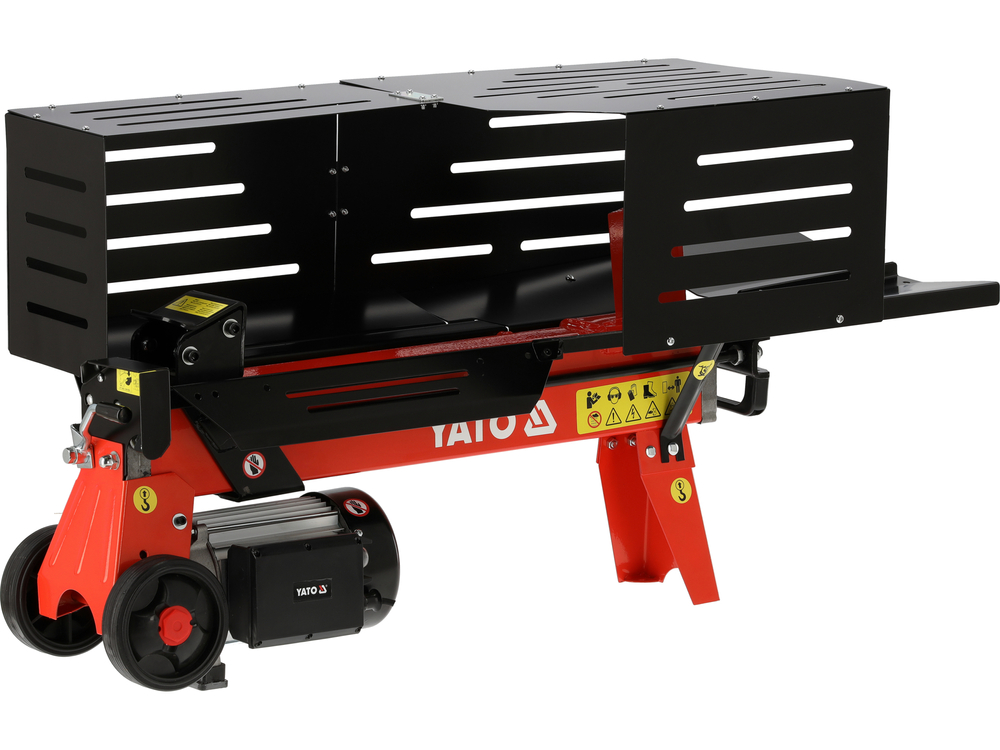

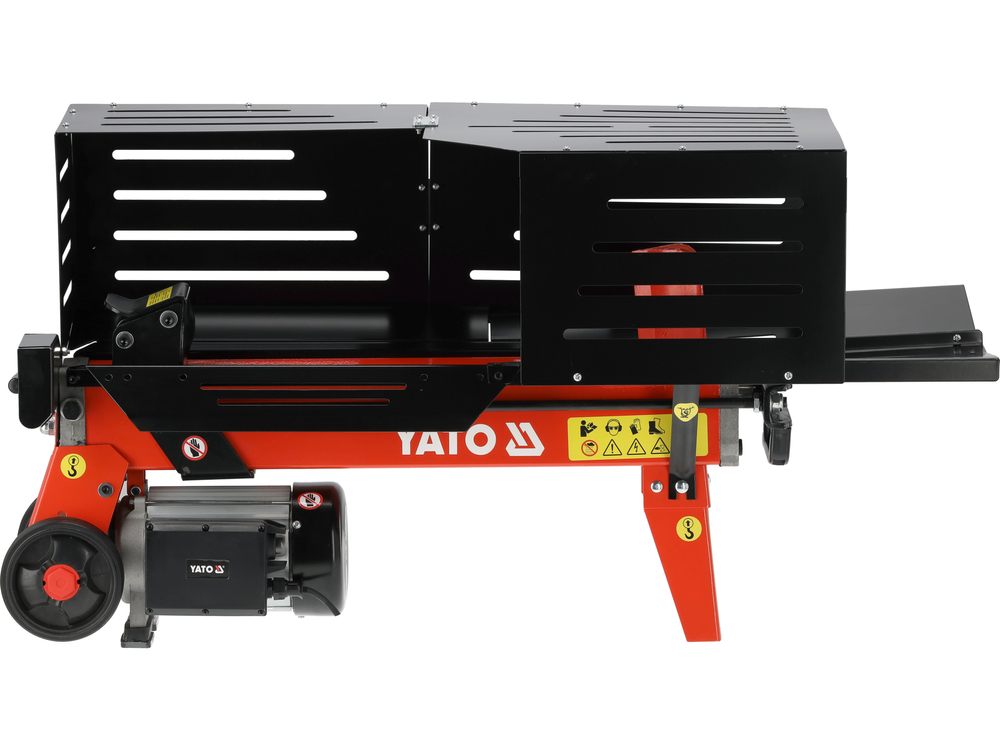

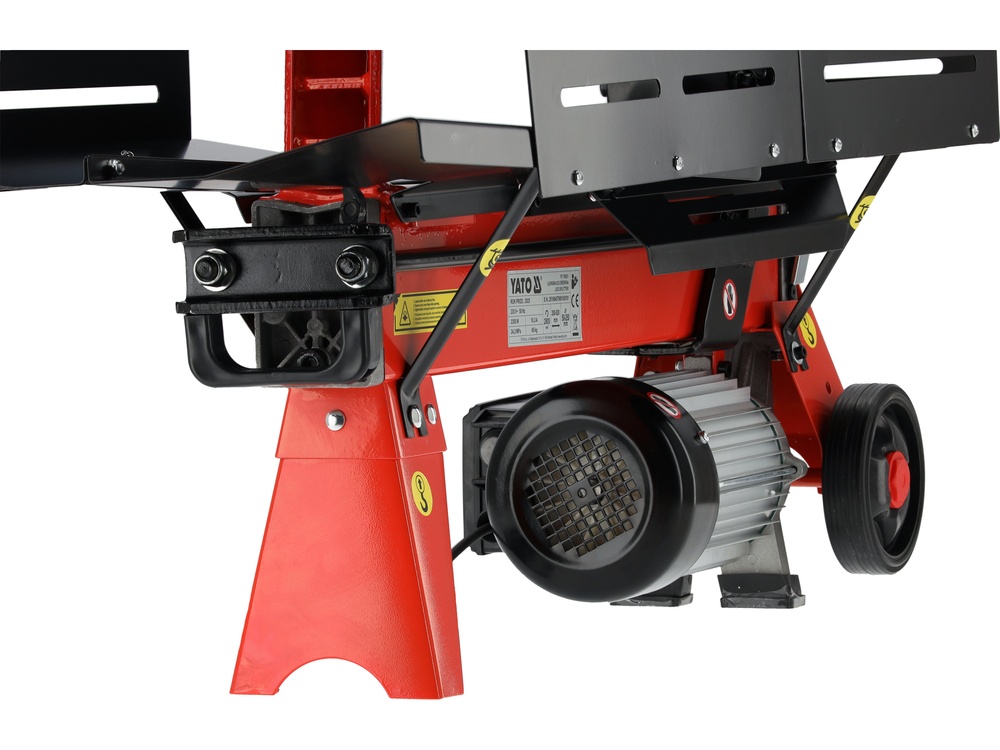

Efficient hydraulic log splitter for preparing firewood equipped with a system generating pressure up to 7 tons. The working pressure of 24.2 MPa allows for effectively splitting harder and thicker logs up to 520 mm in length and 250 mm in diameter. The 230 V electric drive enables use in a garage, workshop, or backyard utility area.
The 2300 W motor operates in S6 40% mode, making the device suitable for longer working cycles. The stable construction with a steel cover and low vibration level improve safety and comfort during firewood preparation for daily use.
Construction and safety:
splitting force up to 7 tons generated by a cylinder with a diameter of Ø60 mm
steel protective cage to prevent wood splinters
stable frame maintaining position during hydraulic pressure
vibration level < 2.5 m/s² improving work control
noise level 78.8 dB(A) / 89.8 dB(A) – suitable for home use
IP54 protection rating – protection against dust and moisture
Working parameters:
power supply: 230 V ~ 50 Hz
motor power: 2300 W
max. speed: 2800 min-1
hydraulic pressure: 24.2 MPa
working mode: S6 40% - 10 minutes
log length: 200-520 mm
log diameter: 50-250 mm
Hydraulic system:
hydraulic cylinder with high compression force of 7 tons
oil capacity: 3.5 l
even piston movement limiting wood jamming
stable splitting of seasoned wood and harder species
Dimensions and construction:
device dimensions: 116 x 42.5 x 61 cm
compact shape for easy setup and storage
steel construction resistant to working loads
weight: 60 kg
Application:
preparing wood for fireplaces and stoves
fuel for central heating boilers
wood for garden fire pits
use in households and on plots of land
