Описание:
Марка:
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Series
GRD
Diameter
110 mm
Hole saws diameter
33-103 mm
Drilling diameter
9.5 mm
Drill bit length
139 mm
Material
carbon steel
Surface finish
surfaced
Blade material
YG8
Set includes
talerz mocujący, wiertło centrujące
Application
aerated concrete, brick, silikat, ceramics
Symbol
YT-43919

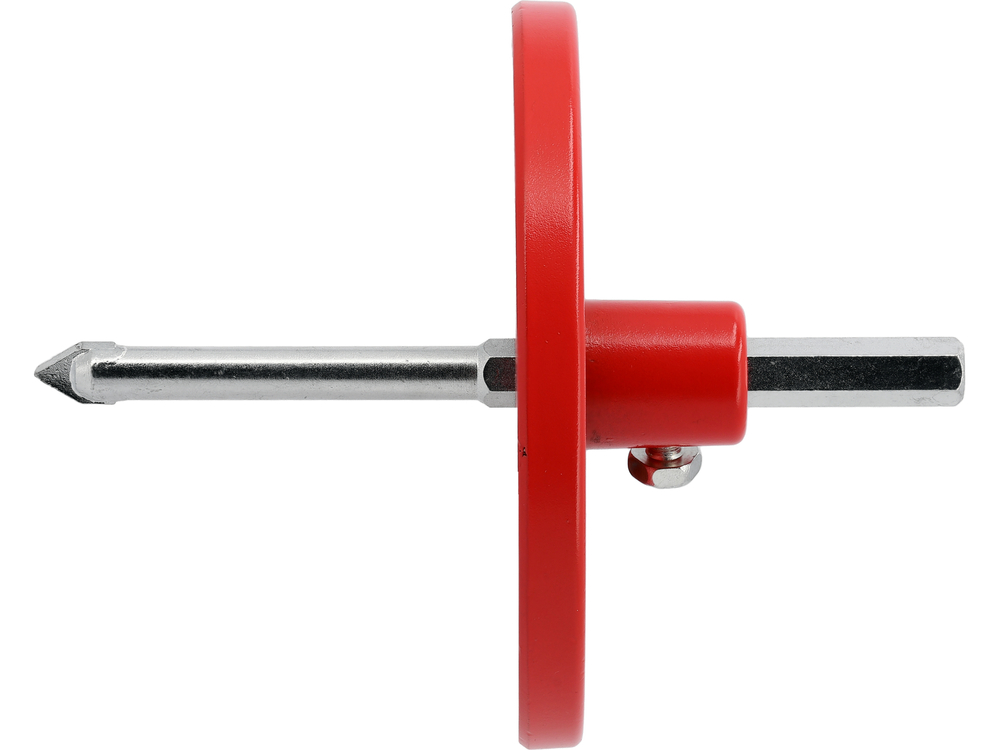

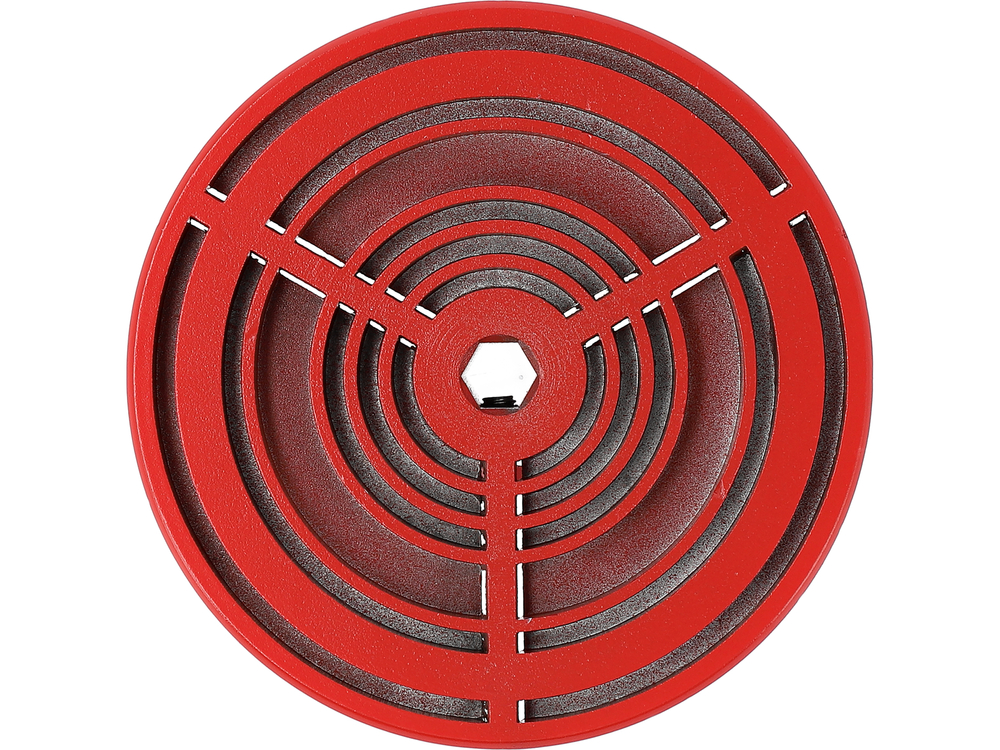

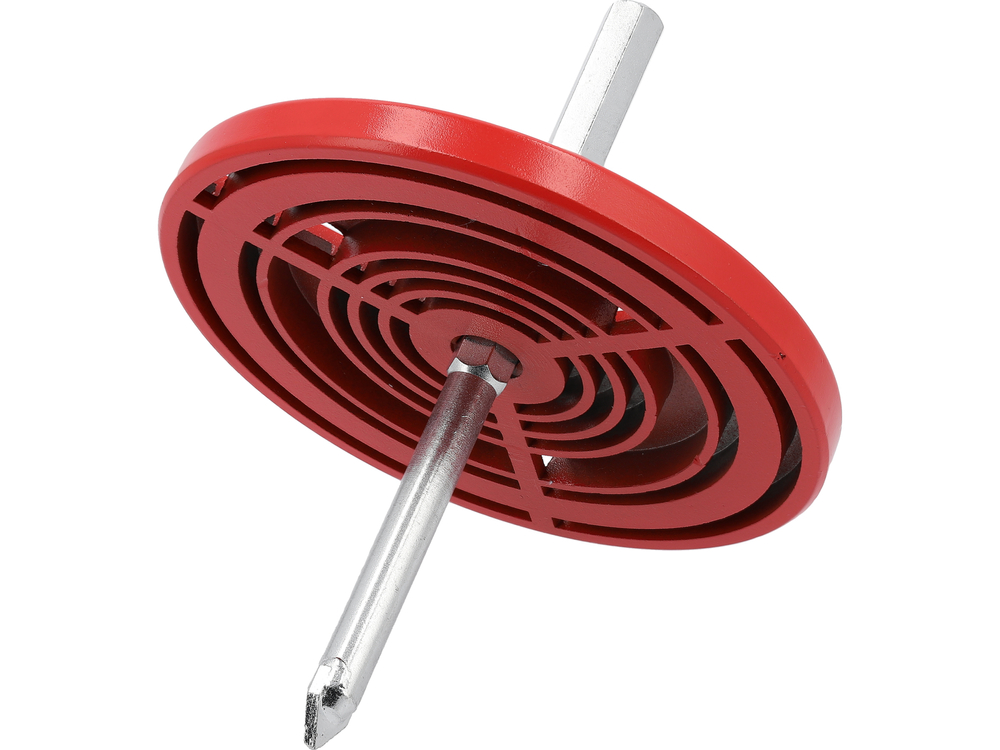

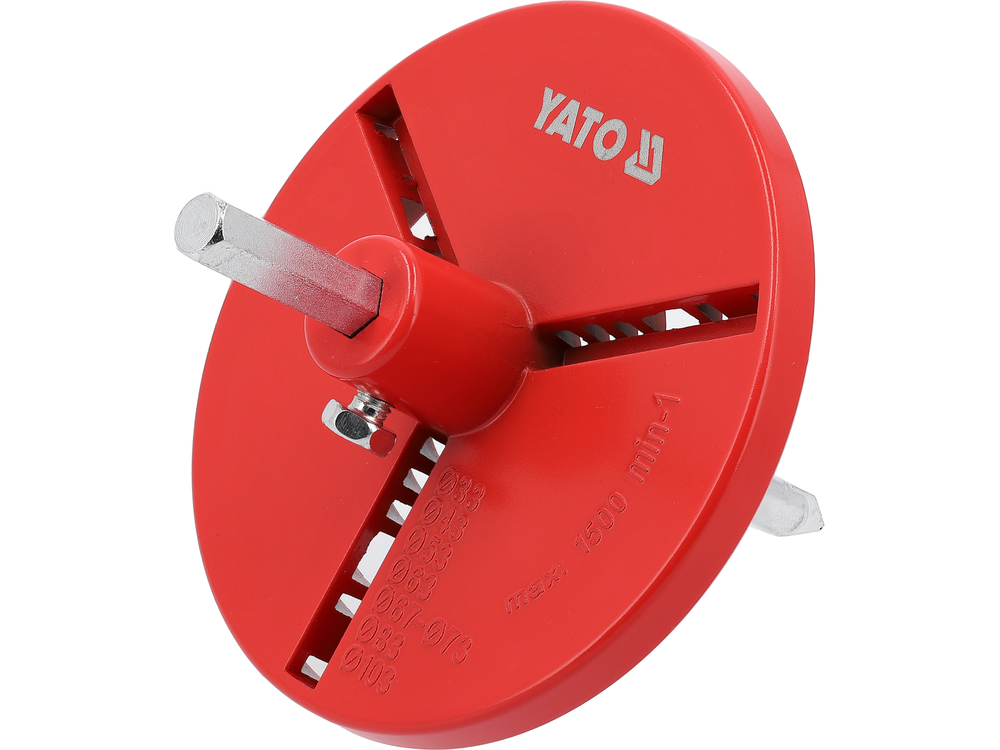

Mounting plate with centering drill is a complementary element for tungsten carbide core drills, designed with precise and safe drilling in mind for mineral materials. It ensures stable seating of the core drill and accurate start of the hole in hard and brittle substrates. The solid construction and carefully selected materials guarantee reliability and long life during intensive use in installation and assembly work.
Application:
ceramics
silicate
autoclaved aerated concrete
brick
Technical parameters:
material: powder-coated carbon steel
blade material: YG8 steel - increased resistance to corrosion and mechanical damage
mounting plate diameter: 110 mm
working range: 33-103 mm
centering drill diameter: 9.5 mm
total length: 139 mm

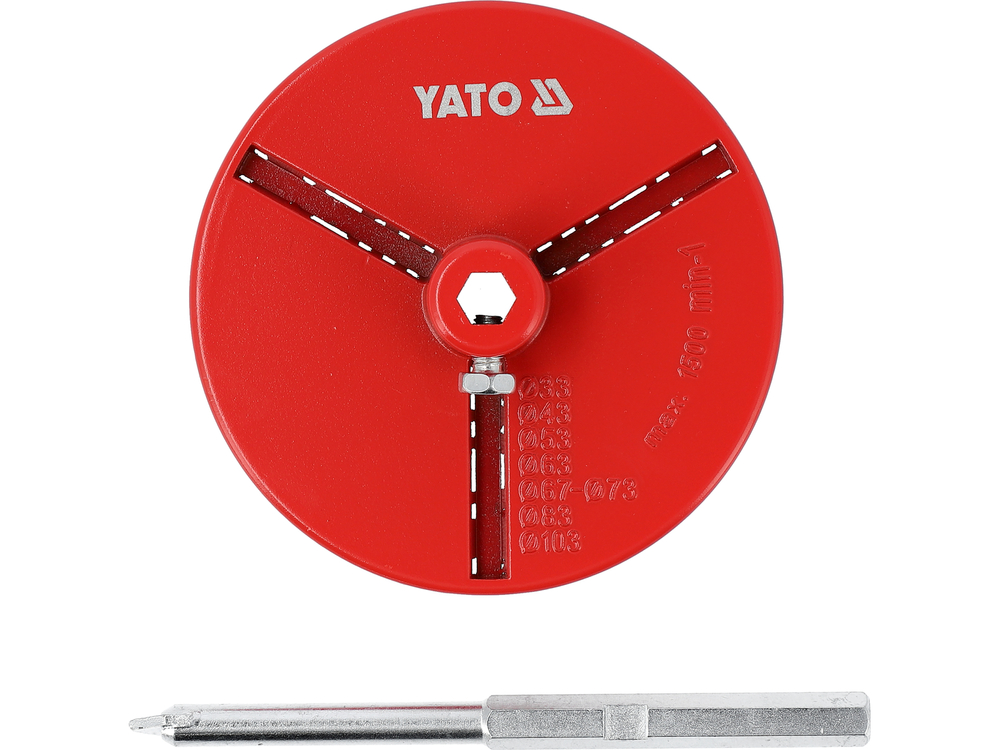

Set contents:
mounting plate
centering drill
