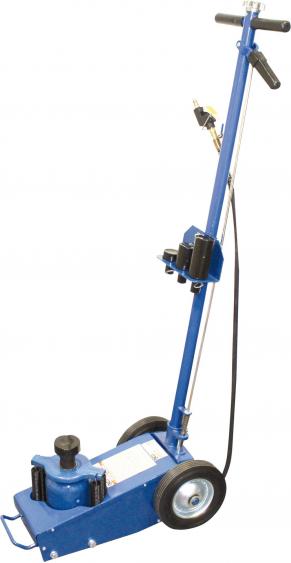

Jack | пневматические | мобильные | 22 т (2888)

(1)

Описание:

Description
piston stroke: 120 mm

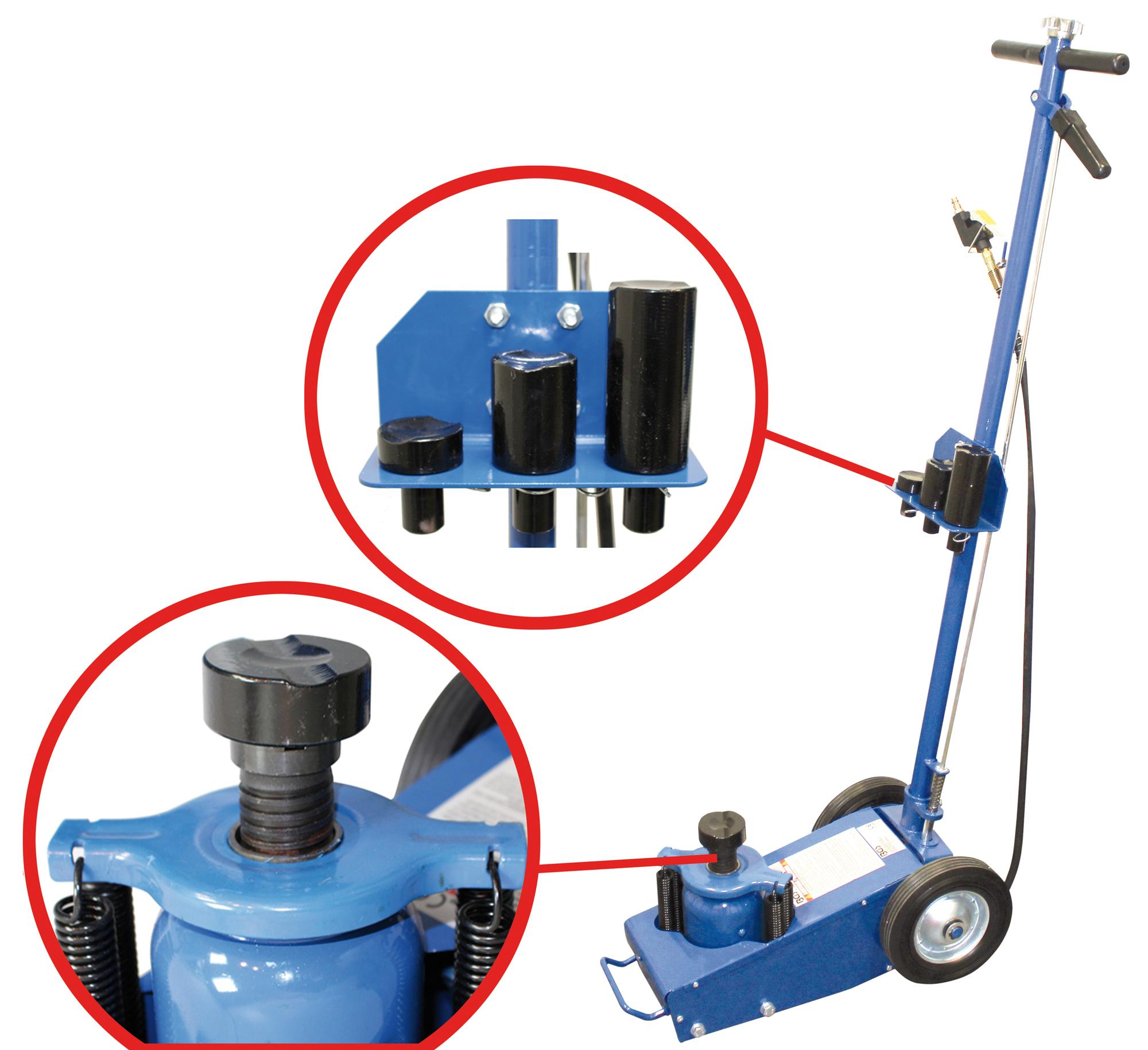

4 attachments for different min. and max. heights:
Ø 48 mm, length 20, 60 and 100 mm
Ø 68 mm, length 25 mm
80 mm lifting spindle, adjustable
air inlet: 6.3 mm (1/4") NPT
wheel diameter: 72 mm
air hose: 10 mm outer diameter, length 1.2 m
working pressure: 6.9 – 8.3 bar (120 – 200 PSI)
Technical data
Lifting height max. 435 mm
Rated load capacity 22 t
Free height 260 mm
Operating pressure 6,9 - 8,3 bar
Gross weight 37800 g
