YT-85486
5000W INVERTER GENERATOR
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Maximum power
5500 (S2 5 min) W
Power
5000 W
Voltage
230 V a.c.
Frequency
50 Hz
Engine capacity
224 cm³
Fuel tank capacity
19 l
Fuel type
unleaded petrol
Oil tank capacity
0.8 l
Oil type
SAE 15W-40
Direct current
21.7 A
Alternating current
8.3 A
Wheels
yes
Number of wheels
2
Carrying handle
yes
Number of handles
2
Dimensions
746x634x605 mm
Starting type
manual, electric
Cooling
air
Engine type
R290-S
Spark plug type
F7RTC
Max engine power
6.9 kW
Max engine speed
3600 min⁻¹
Number of cylinders in the engine
1
Number of cycles in the engine
4
Degree compression
8.7:1
Power factor
1
Operating temperature range
0~40 ˚C
Max. operating altitude
1000 m above sea level
Quality class
B
Efficiency class
G2
Electrical insulation class
I
Protection class
IP23M
Acoustic pressure
73.7 ± 1.88 dB(A)
Acoustic power
94.4 ± 1.89 dB(A)
Weight
65 kg
Symbol
YT-85486
The combustion generator is a reliable source of energy on recreational plots, campsites, in summer cottages and wherever there is no access to electricity or it is necessary to use an emergency source of electricity. The inverter power supply system allows safe connection of even sensitive devices and electronic equipment.
Generator:
power: 5000 W
maximum power: 5500 W (S2 5 min)
voltage: 230 V, 5, 12 V d.c.
frequency: 50 Hz
power factor: 1
direct current: 21.7 A
alternating current: 8.3 A
protection class: IP23M
quality class: B
efficiency class: G2
electric insulation class: I
Engine:
engine type: R290-S
single-cylinder, four-stroke engine
fuel type: unleaded petrol
oil type: SAE 15W-40
starting: manual and electric
engine capacity: 224 cm3
max. engine power: 6.9 kW
max. engine speed: 3600 rpm
air cooling
compression ratio: 8.7:1
fuel tank capacity: 19 l
oil tank capacity: 0.8 l
spark plug type: F7RTC
Device:
operating temperature: 0-40˚C
max. operating altitude: 1000 m above sea level

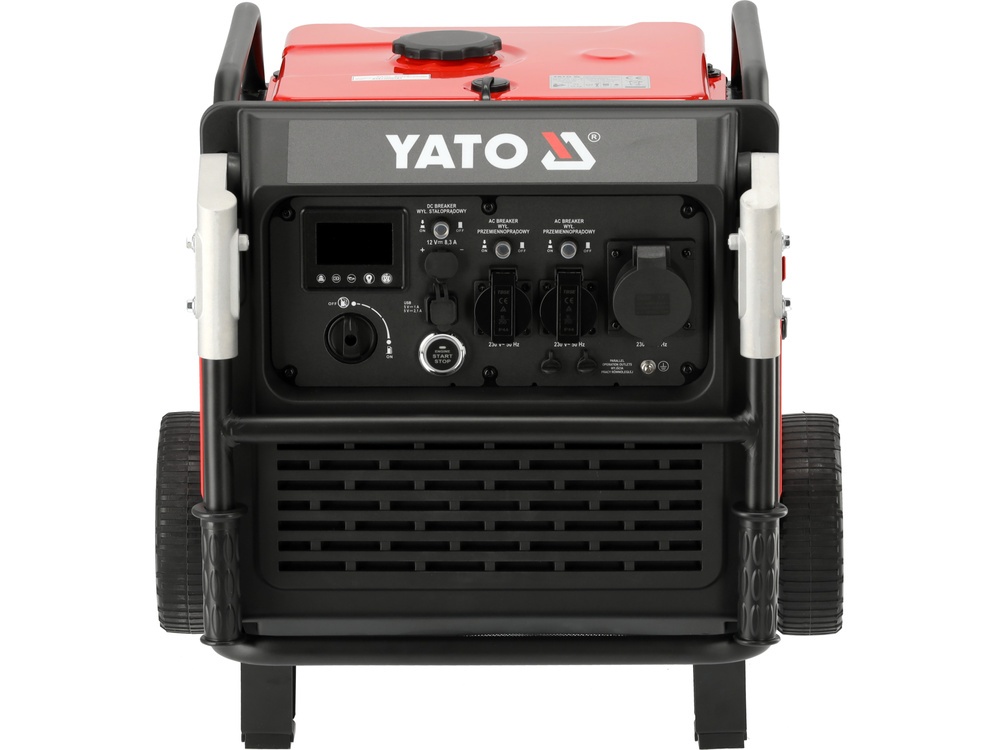

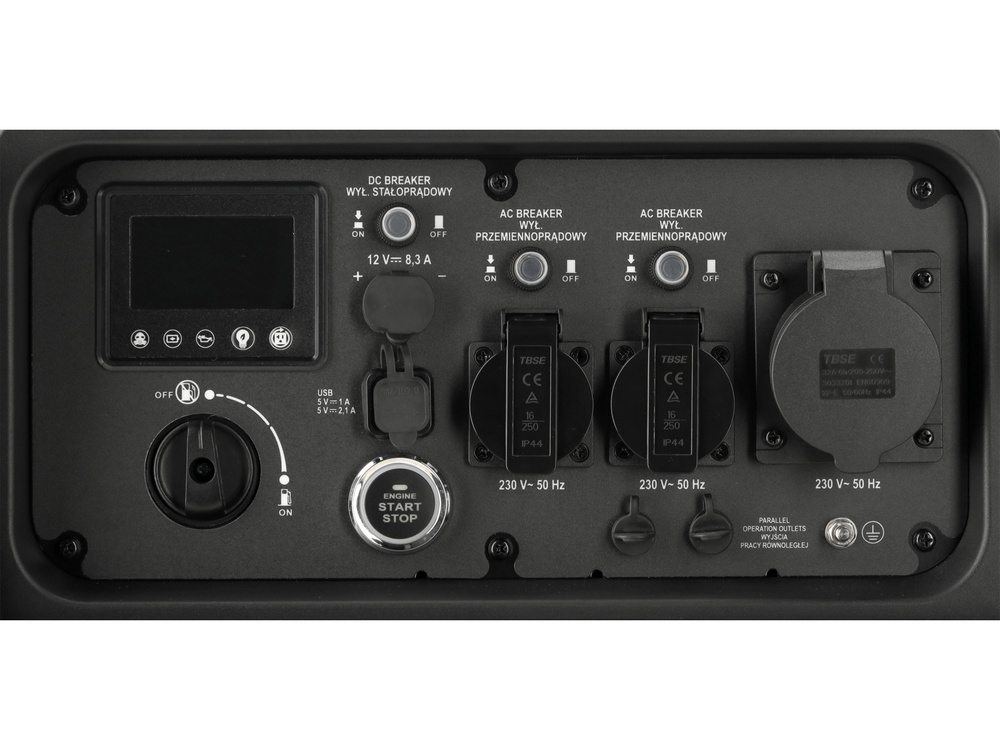

clear control panel with indicator lights
AC and DC protection
ECO mode

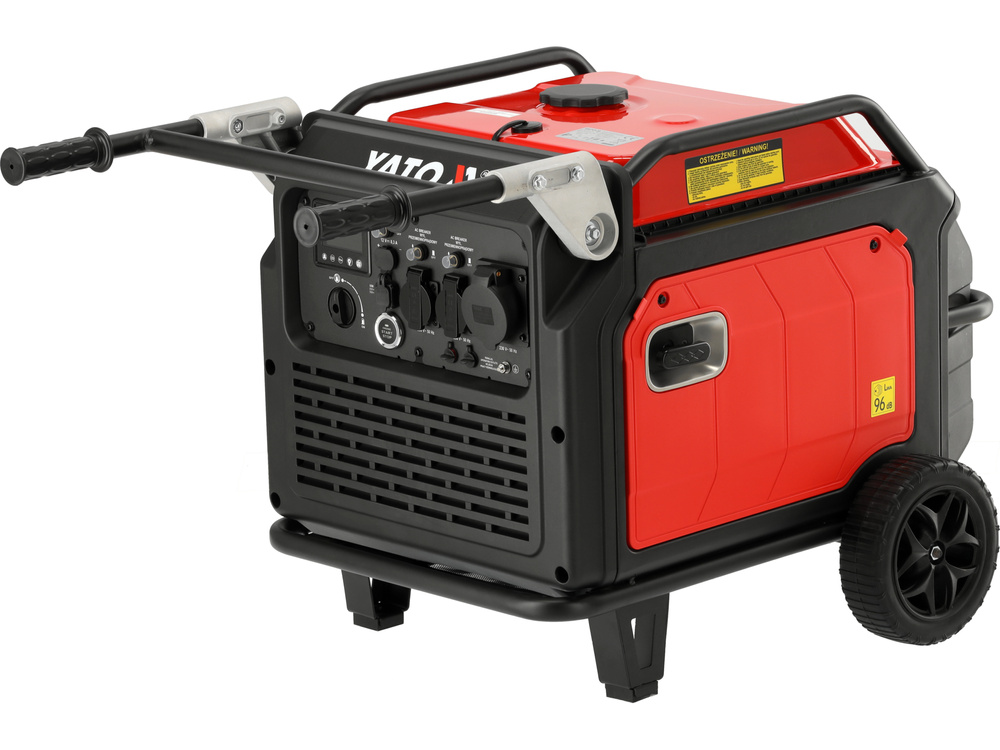

2 carrying handles
2 wheels for easy transport
2 230 V power sockets
noise level: 96 dB
dimensions: 746 x 634 x 605 mm
weight: 65 kg
Usage warnings:
Warning 1. Read the operating instructions and labels before starting work. 2. Caution! Exhaust fumes are toxic. Do not operate the generator in rooms without adequate ventilation. 3. Do not allow children near the generator. 4. Do not refill fuel and oil while the generator is running. 5. If the generator is placed in a closed room, take measures to prevent fire and explosion. 6. Do not connect the generator to the home electrical network. 7. Do not use the generator in high humidity conditions. 8. Keep flammable products away from the generator. 9. When refueling: - stop the engine, - do not smoke, - do not spill fuel.
