YT-854837
2000W INVERTER GENERATOR
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Maximum power
2000 (S2 5 min) W
Power
1900 W
Voltage
230 V a.c.
Frequency
50 Hz
Engine capacity
80 cm³
Fuel tank capacity
4 l
Fuel type
unleaded petrol
Oil tank capacity
0.45 l
Oil type
SAE 15W-40
Direct current
8.3 A
Alternating current
8.3 A
Wheels
no
Carrying handle
yes
Number of handles
1
Dimensions
440x290x440 mm
Cooling
air
Engine type
R80-i
Spark plug type
TORCH A5RTC
Max engine power
2.4 kW
Max engine speed
5200 min⁻¹
Engine idle speed
3300 ± 100 min⁻¹
Number of engine cylinders
1
Number of engine strokes
4
Degree compression
10.5:1
Power factor
1
Operating temperature range
0~40 ˚C
Max. operating altitude
1000 m above sea level
Quality class
B
Efficiency class
G2
Electrical insulation class
I
Protection class
IP23M
Acoustic pressure
72.0 ± 2.0 dB(A)
Acoustic power
92.0 ± 2.0 dB(A)
Weight
17 kg
Symbol
YT-854837
The combustion generator is a reliable source of energy on recreational plots, campsites, in summer cottages and wherever there is no access to electricity or it is necessary to use an emergency source of electricity. The inverter power supply system allows safe connection of even sensitive devices and electronic equipment.
Generator:
power: 1900 W
maximum power: 2000 W (S2 5 min)
voltage: 230 V, 5, 12 V d.c.
frequency: 50 Hz
power factor: 1
direct current: 8.3 A
alternating current: 8.3 A
protection class: IP23M
quality class: B
efficiency class: G2
electrical insulation class: I
Engine:
engine type: R80-i
single-cylinder, four-stroke engine
fuel type: unleaded petrol
oil type: SAE 15W-40
starting: manual
engine capacity: 80 cm3
max. engine power: 2.4 kW
max. engine speed: 5200 rpm
air cooling
compression ratio: 10.5:1
fuel tank capacity: 4 l
oil tank capacity: 0.45 l
spark plug type: TORCH A5RTC
Device:
operating temperature: 0-40˚C
max. operating altitude: 1000 m above sea level

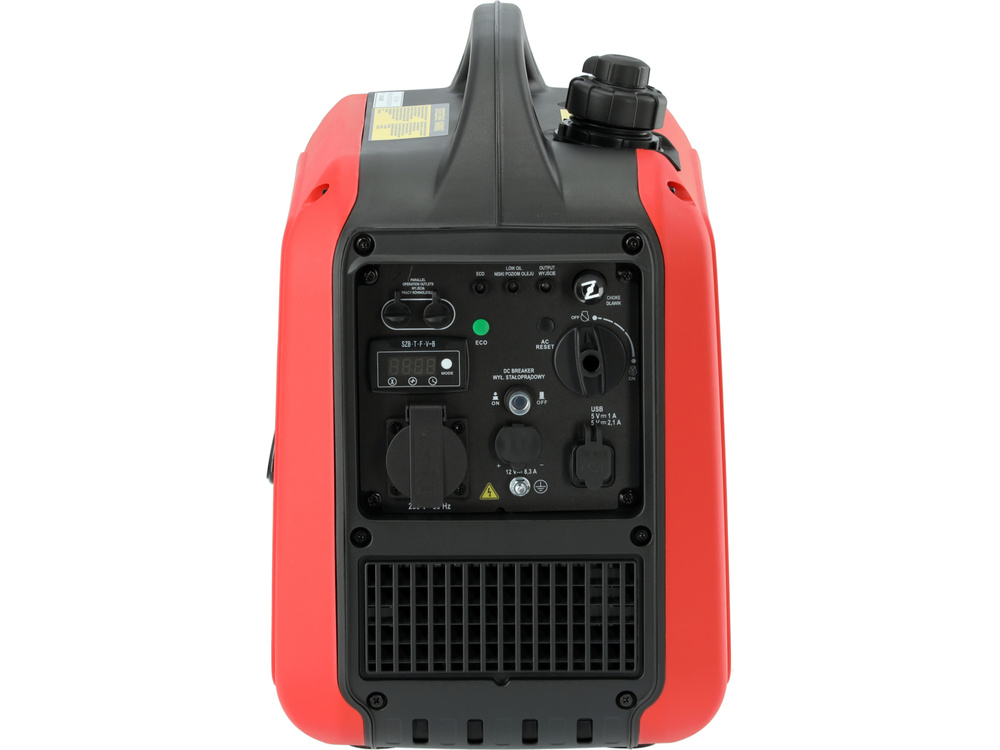

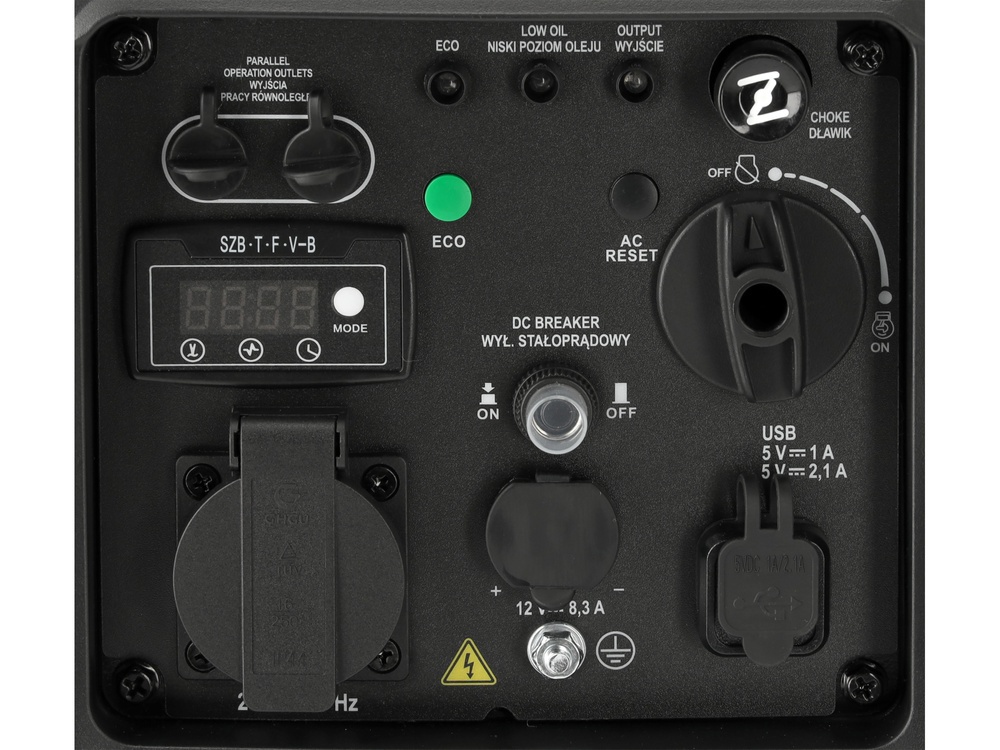

clear control panel with indicator lights
overload and DC protection
ECO mode

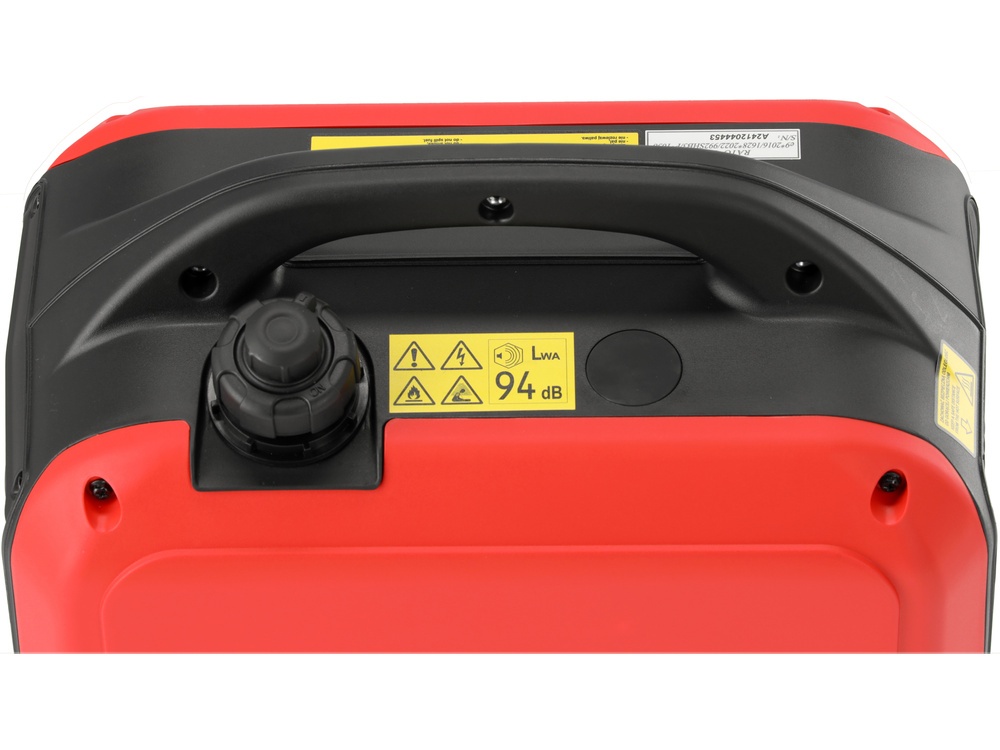

carrying handle
2 230 V power sockets
noise level: 94 dB
dimensions: 440 x 290 x 440 mm
weight: 17 kg
Usage warnings:
Warning 1. Read the operating instructions and labels before starting work. 2. Caution! Exhaust fumes are toxic. Do not operate the generator in rooms without adequate ventilation. 3. Do not allow children near the generator. 4. Do not refill fuel and oil while the generator is running. 5. If the generator is placed in a closed room, take measures to prevent fire and explosion. 6. Do not connect the generator to the home electrical network. 7. Do not use the generator in high humidity conditions. 8. Keep flammable products away from the generator. 9. When refueling: - stop the engine, - do not smoke, - do not spill fuel.
