Описание:
Марка:
YT-65066
DRILLING VICE 100 MM
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Type of attachment
permanent
Jaw width
100 mm
Jaw spacing
100 mm
Pressure force
75 kg
Material
cast iron
Surface finish
hammer painted
Jaw material
steel
Jaw finish
hardened, knurled
Weight
2 kg
Application
drilling, for stable material fixing during machine processing
Symbol
YT-65066

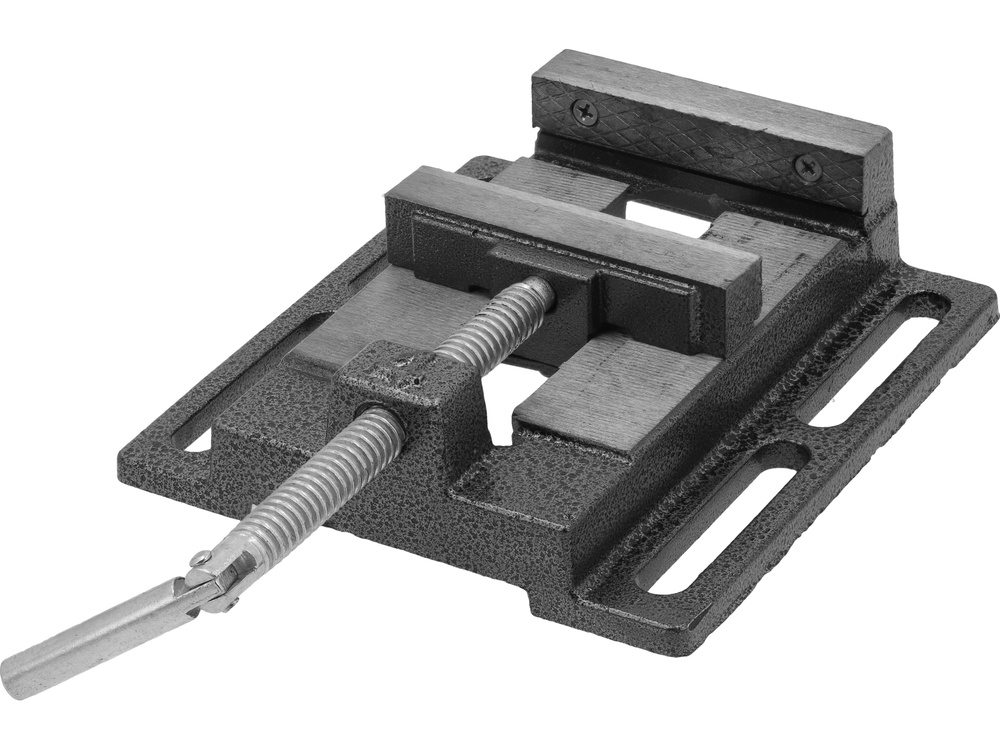

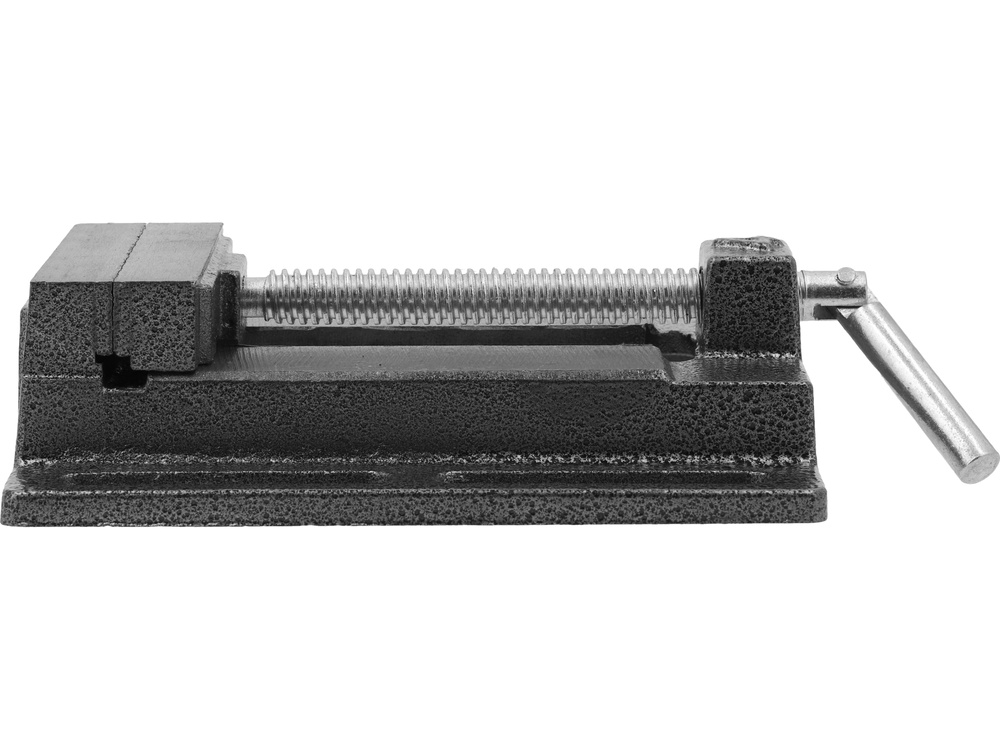

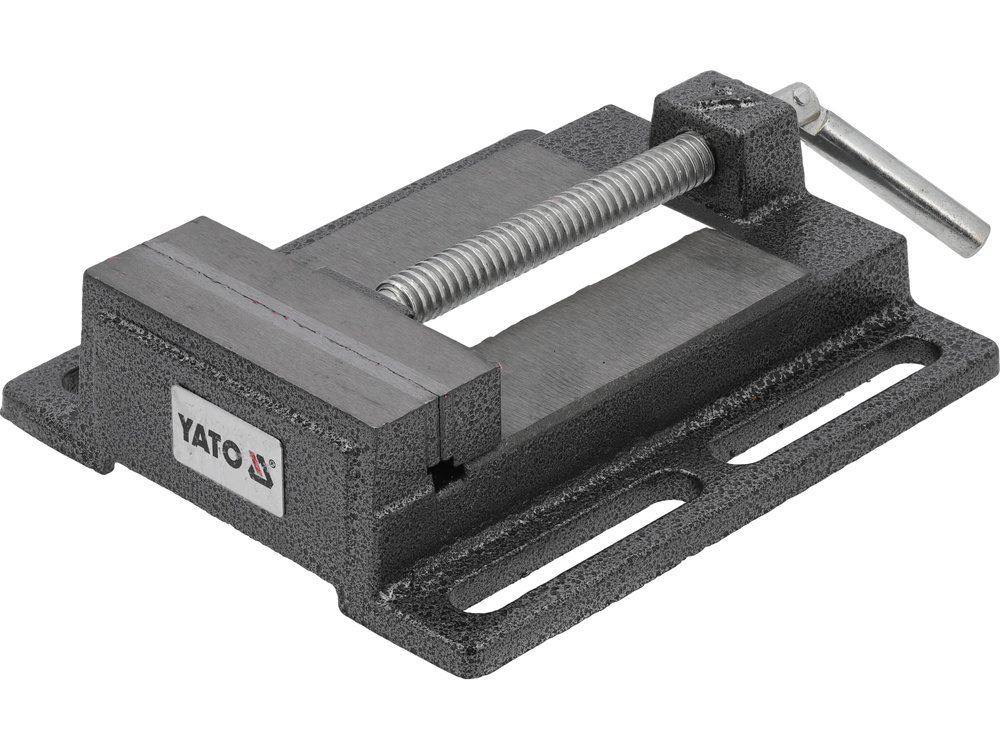

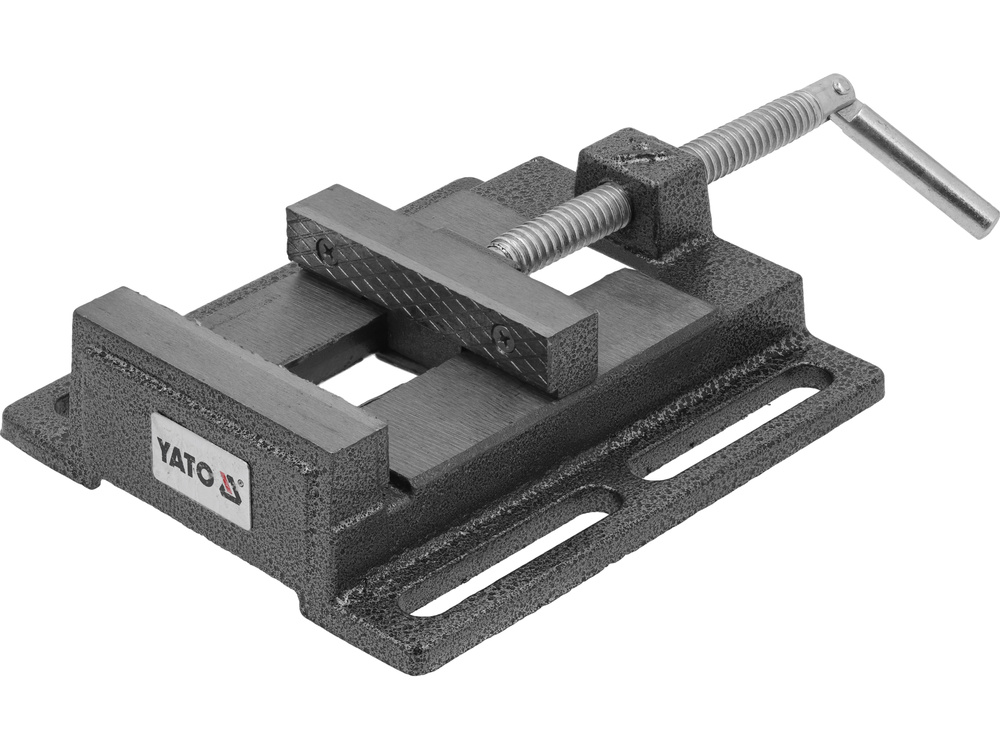

Drilling vice permanently attached to the worktop. It holds the material stably during machine processing, e.g. drilling, grinding. Also recommended for model makers and DIY enthusiasts for processing small elements.
jaw width: 100 mm
max. jaw opening: 100 mm
pressure force: 75 kg
material: cast iron, surface finished with hammer varnish

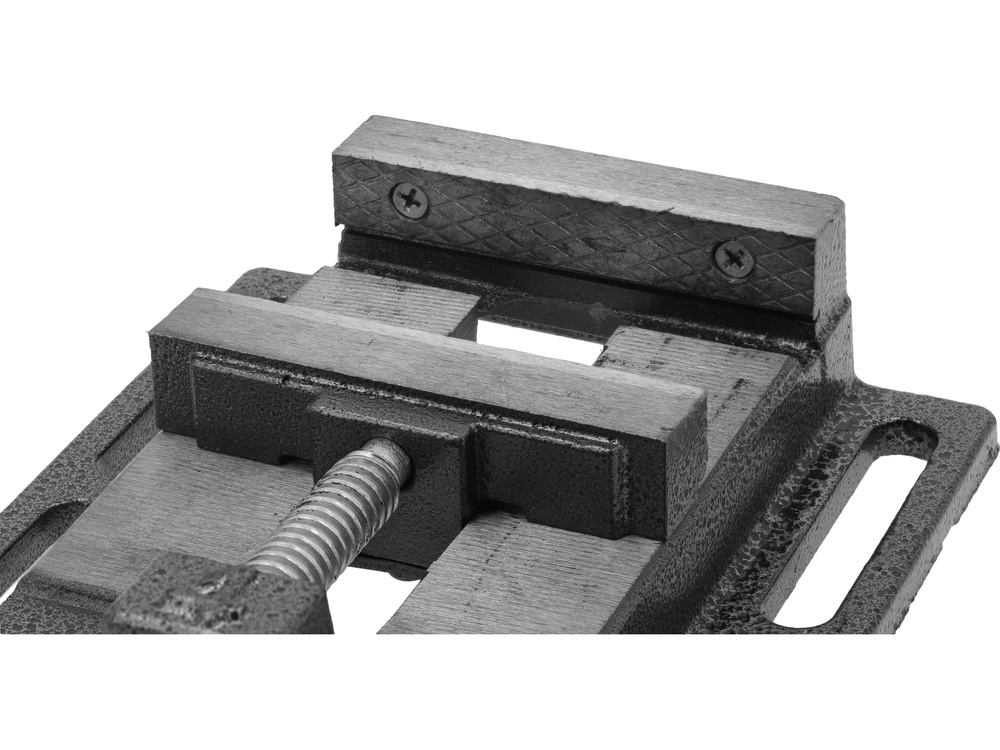

interchangeable jaws made of hardened steel
trapezoidal screw ensures smooth movement and high load resistance
permanent attachment to the worktop with screws
width of mounting holes on the worktop: 15 mm
base dimensions: 65 x 85 mm
weight: 2 kg
The vice is compatible with interchangeable magnetic jaw pads of different hardness, e.g. YT-65001, YT-65006.
