Index
YT-99730
Barcode
5906083100321
Unit of measure
PCE
Volume
25.311
Weight
4.5
Attributes
Heating capacity
15 kW
Supply gas pressure
70 MPa
Airflow
320 m³/h
Max. heating area
150 m²
Voltage
220-240 V a.c.
Frequency
50 Hz
Engine (motor) power
30 W
Fuel consumption
1.09 kg/h
Gas type
G30 / G31
Piezo ignition
yes
Overheat protection
90˚C
Dimensions
360x190x320 mm
Nozzle diameter
0.86 mm
Hose length
1.5 m
Wire length
1.2 m
Hot air outlet diameter
185 mm
Type of gas appliance
A3
Gas appliance category
I3B/P / I3P
Protection grade
IPX4
Electric insulation class
I
Weight
2.9 kg
Application
for heating public spaces

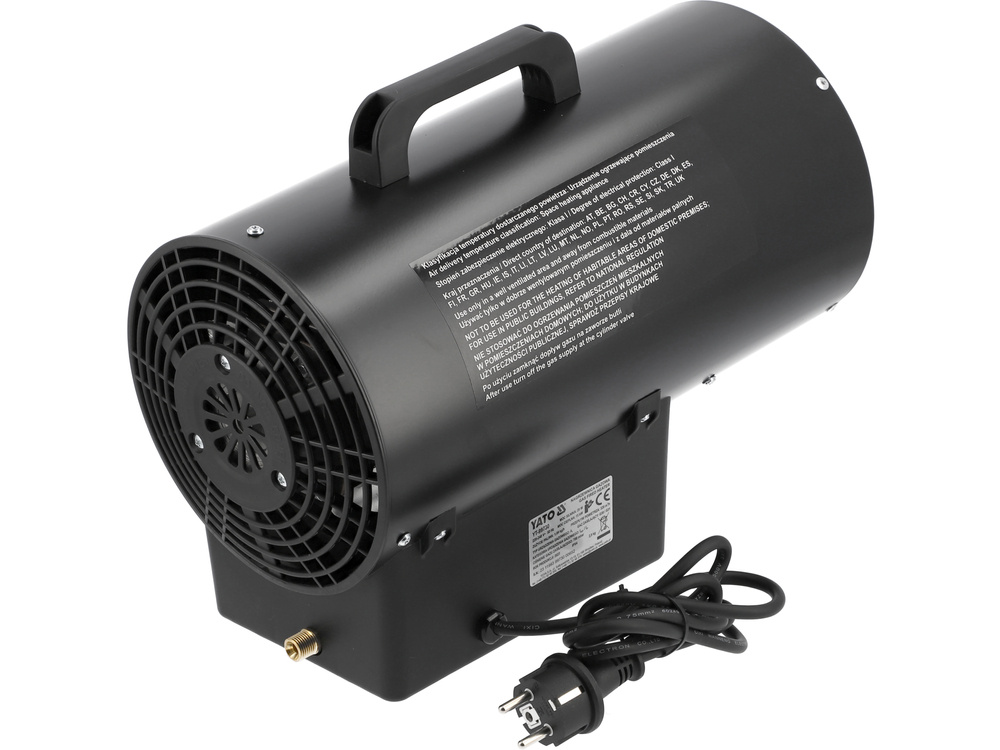

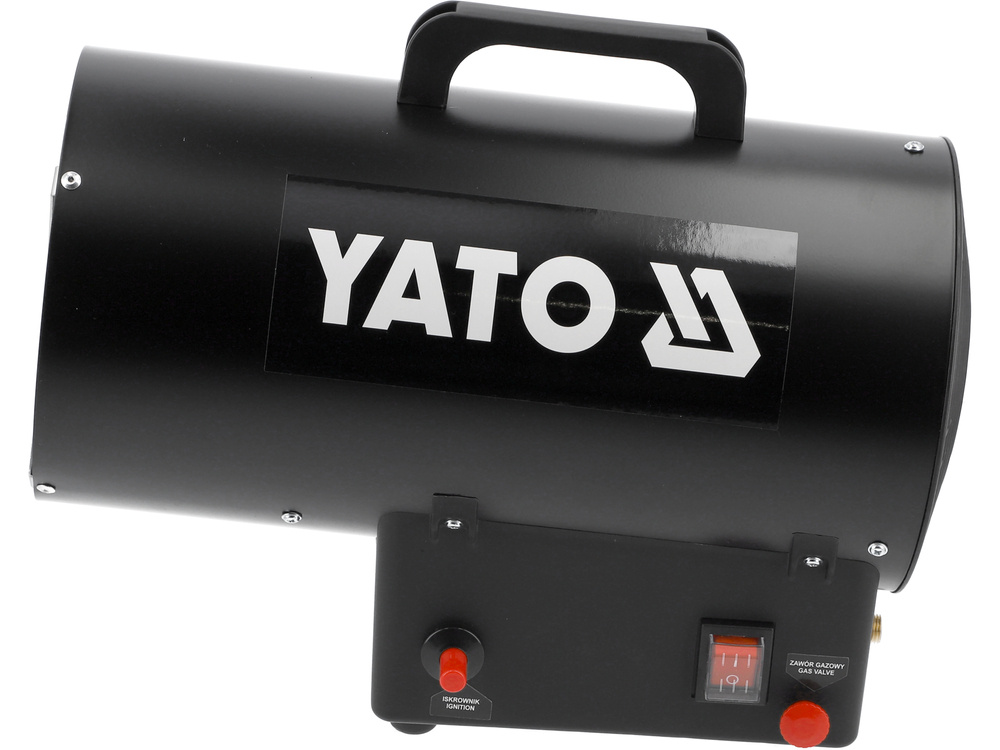

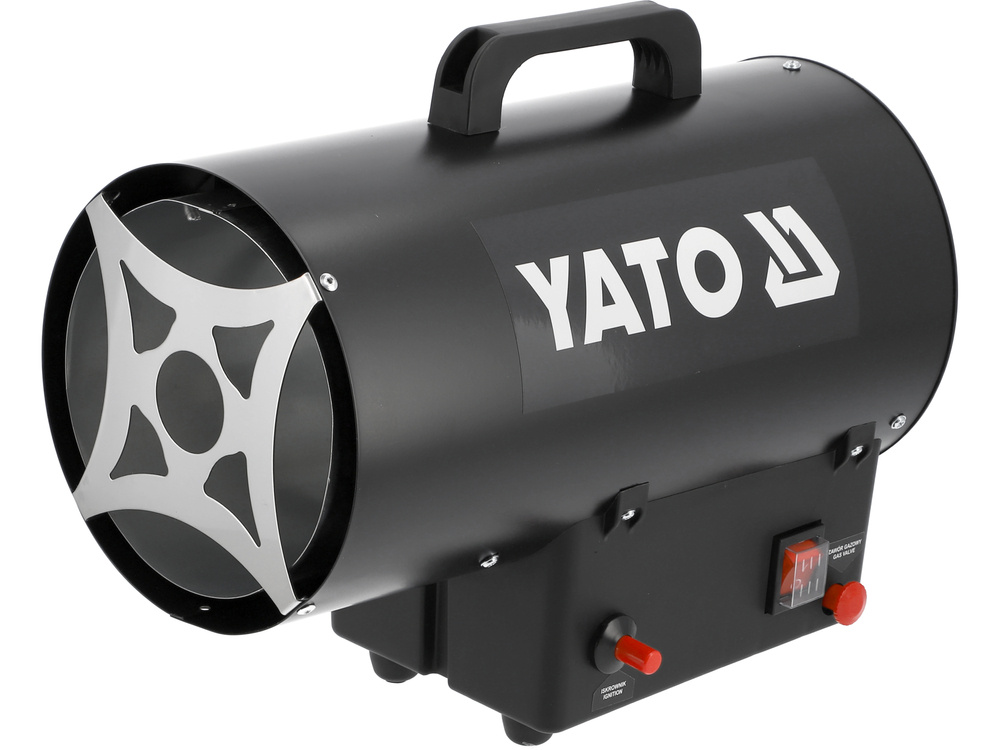

Portable gas heater with metal casing. It is used for heating public spaces - workshops, halls and for drying during repair and construction work. The casing is powder-coated, which protects the heater from rusting. The heater has double overheating protection. The device cuts off the fuel supply at the disappearance of the flame or when the temperature exceeds 90 ℃.
heat output: 15 kW
supply gas: propane-butane G30 / G31
airflow: 320 m³/h
fuel consumption: 1.09 kg/h
air pressure: 0.7 bar
weight: 2.9 kg
Ingress protection rating: IPX4
Motor power: 25 W
ignition: piezo
degree of insulation: class I
gas appliance category: I3B/P/I3P
gas appliance type: A3
connection diameter: Φ 0.86 mm
dimensions: 360x190x320 mm
cable length: 1.2 m
voltage: 220-240V/50Hz

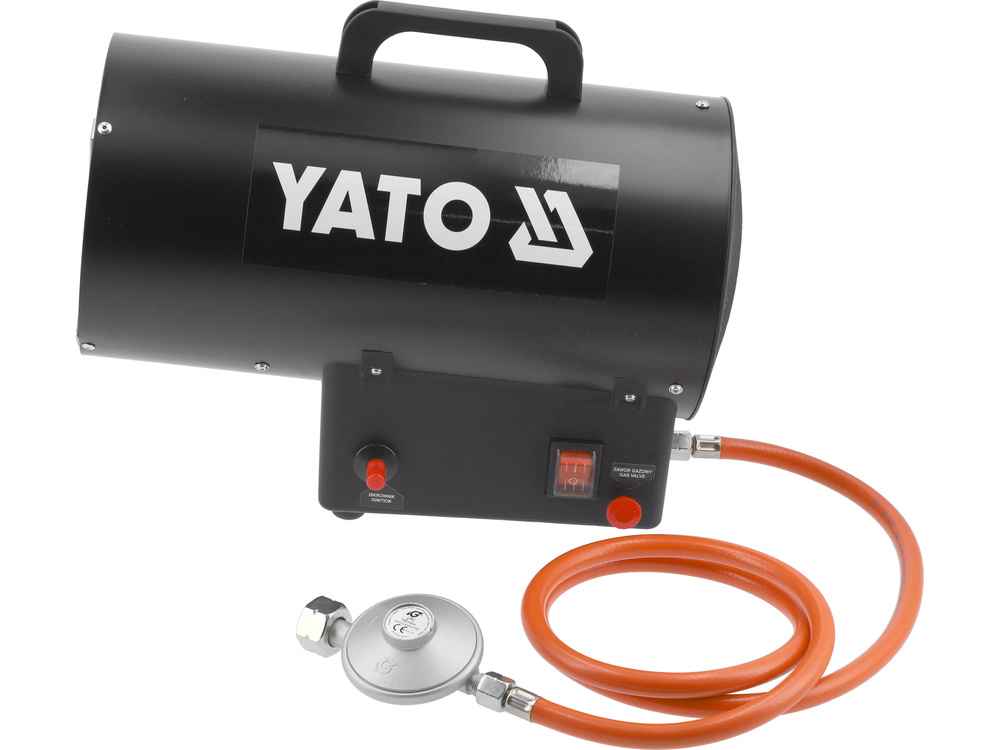

pressure regulator and 1.5 m hose included
