Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Series
GRE
Measuring range
0-300 mm
Measurement accuracy
±0.03 mm, ±0.001"
Material
ABS, stainless steel
Metric scale
yes
Inch scale
yes
Reading type
electronic
Display type
liquid crystal LCD
Reading resolution
0.01mm, 0.0005"
Power supply
battery
cell type
1.55V; SR44
Battery capacity
180 mAh
Working temperature range
5~40 ˚C
Storage temperature
-20 ~ +60 ˚C
Application
measuring the depth of holes, grooves, slots, steps or other hard-to-reach recesses [eng]
Symbol
YT-72253

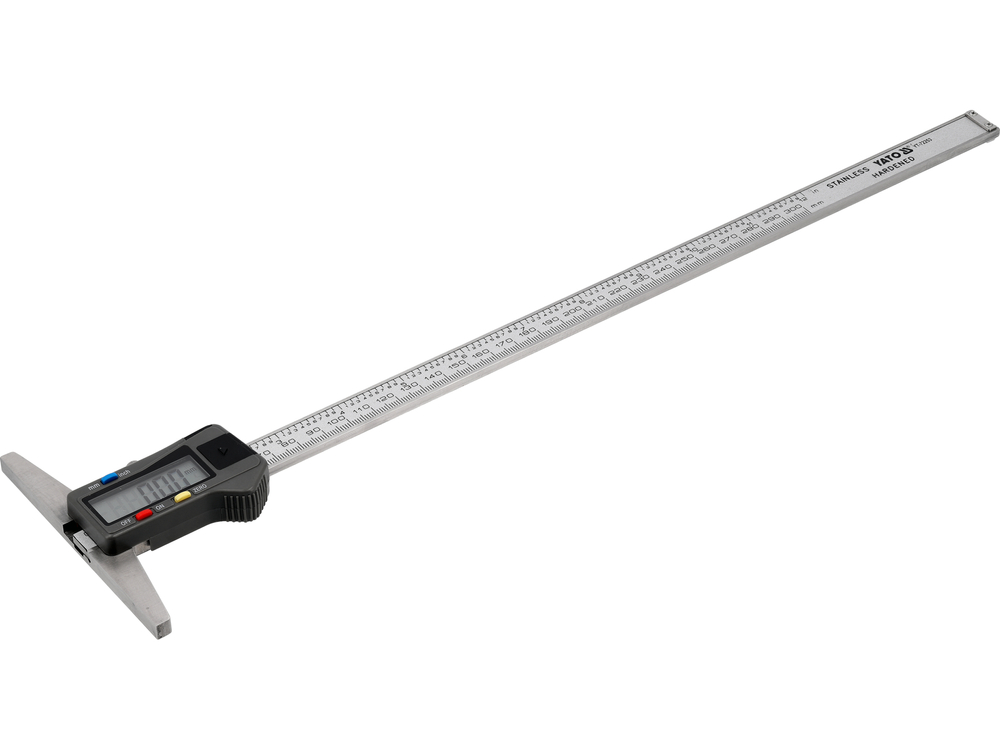

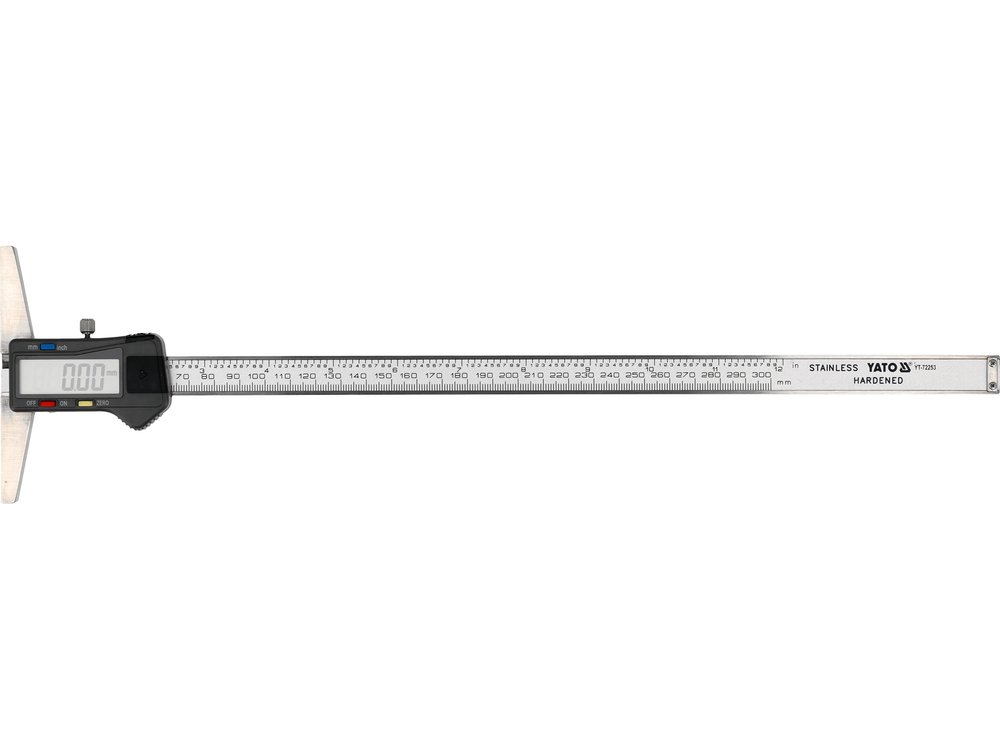

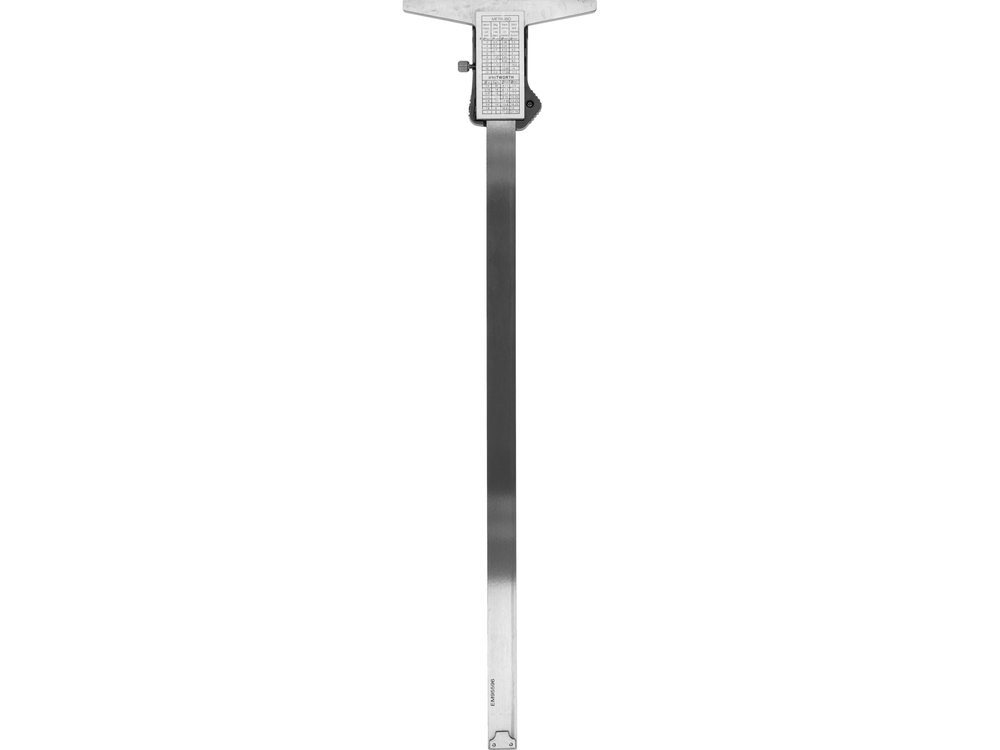

An electronic depth gauge is an accurate and reliable tool designed for measuring the depth of holes, recesses, grooves, slots, steps, and other hard-to-reach indentations. Thanks to its solid construction and high precision, it works perfectly in mechanical workshops, tool shops, and hobby applications. This practical solution is ideal for users who expect durability, ease of use, and consistent measurement results.
measuring range - depending on the model - from 0-150 mm up to 0-400 mm allows you to choose the appropriate variant for the type of work being performed
measuring accuracy ±0.03 mm|±0.001" and reading resolution 0.01 mm|0.0005" guarantee reliable results even for measurements requiring high precision
convenient electronic reading on a liquid crystal LCD display in metric and imperial scale
body made of high-quality stainless steel and ABS, resistant to deformation and wear, ensures tool stability and result repeatability
operating temperature range 5-40°C allows for use in standard workshop and production conditions
storage temperature: -20 ~ +60°C
powered by a 1.55 V battery (SR44 type) with a capacity of 180 mAh ensures long and stable device operation

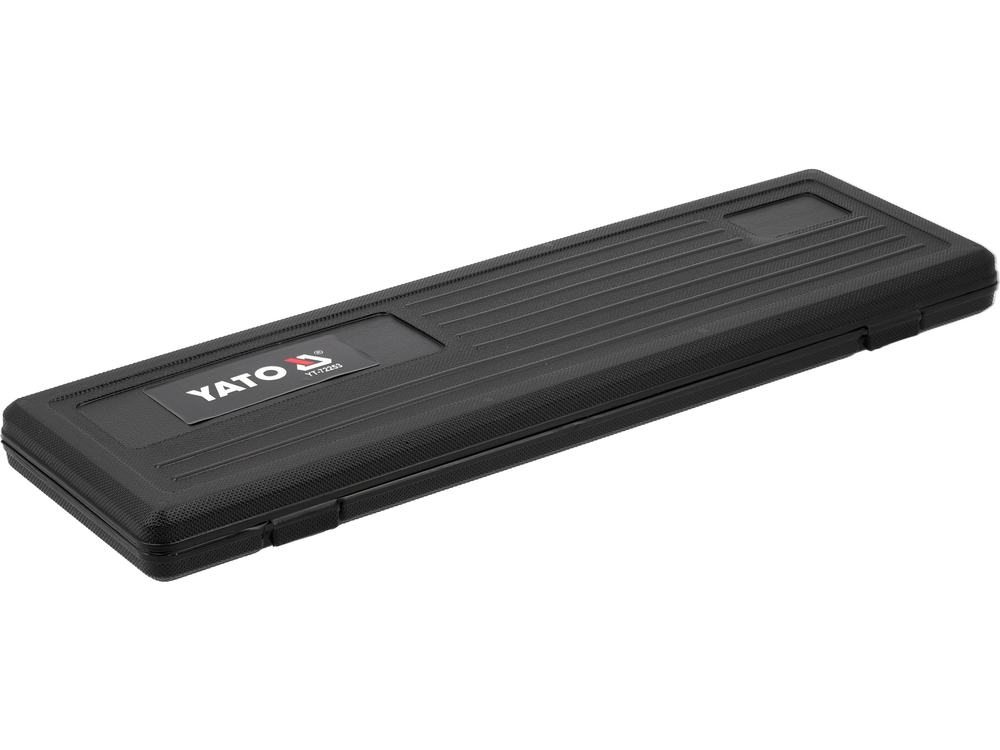

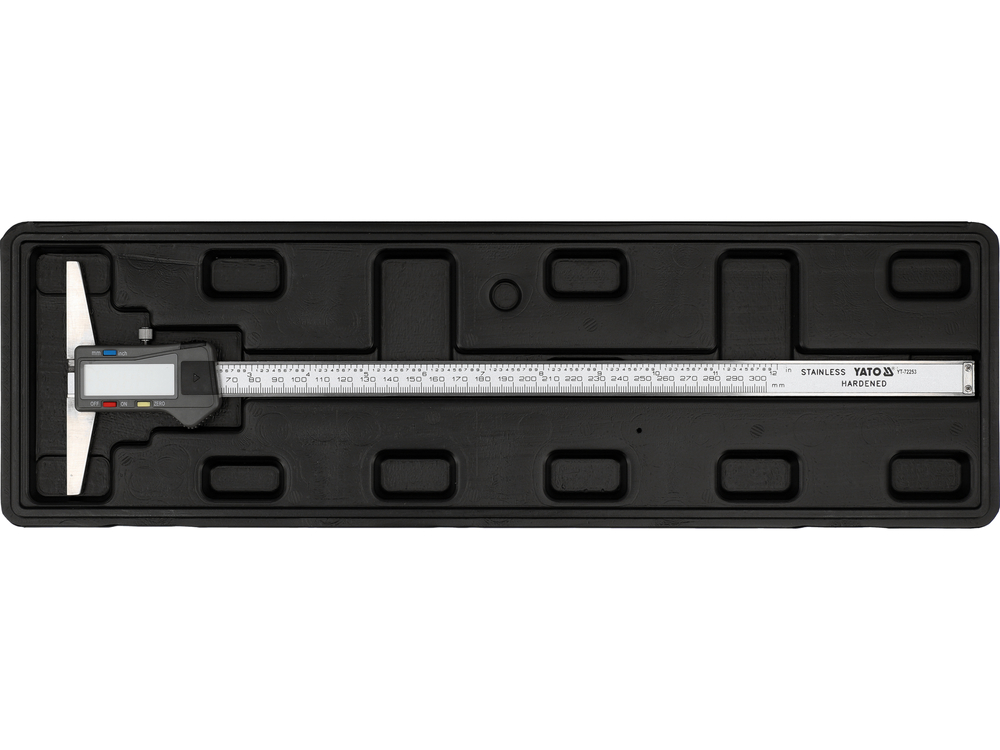

packed in a convenient packaging
