for the safe and easy removal of diesel injectors
installed in the following vehicle manufacturers and engines:
Renault, Nissan and Opel/Vauxhall 2.0L (M9R)
suitable for following vehicle models:
Renault: Espace IV (2006-2015), Espace V (2015-2018), Koleos (2008-2016), Laguna II (2005-2007), Laguna III (2007-2015), Megane III (2009-2017), Megan II (2006-2010), Megane III (2009-2017), Scenic II (2006-2009), Scenic III (2009-2016), Trafic II (2006-2015), Trafic III (2014-) Vel Satis (2005-2010)
Opel/Vauxhall: Vivaro A (2006-2014), Vivaro B (2014-2019)
Nissan: Primastar (2006-2015), Qashqai (2007-2014), X-Trail II (2007-2014), X-Trail III (2014-2022)
engine codes: M9R 780 / 782 / 784 / 630 / 692 / 786 / 788
to be used as OEM:
Renault MOT1966, Nissan 7711381966, Opel/Vauxhall EN-50143

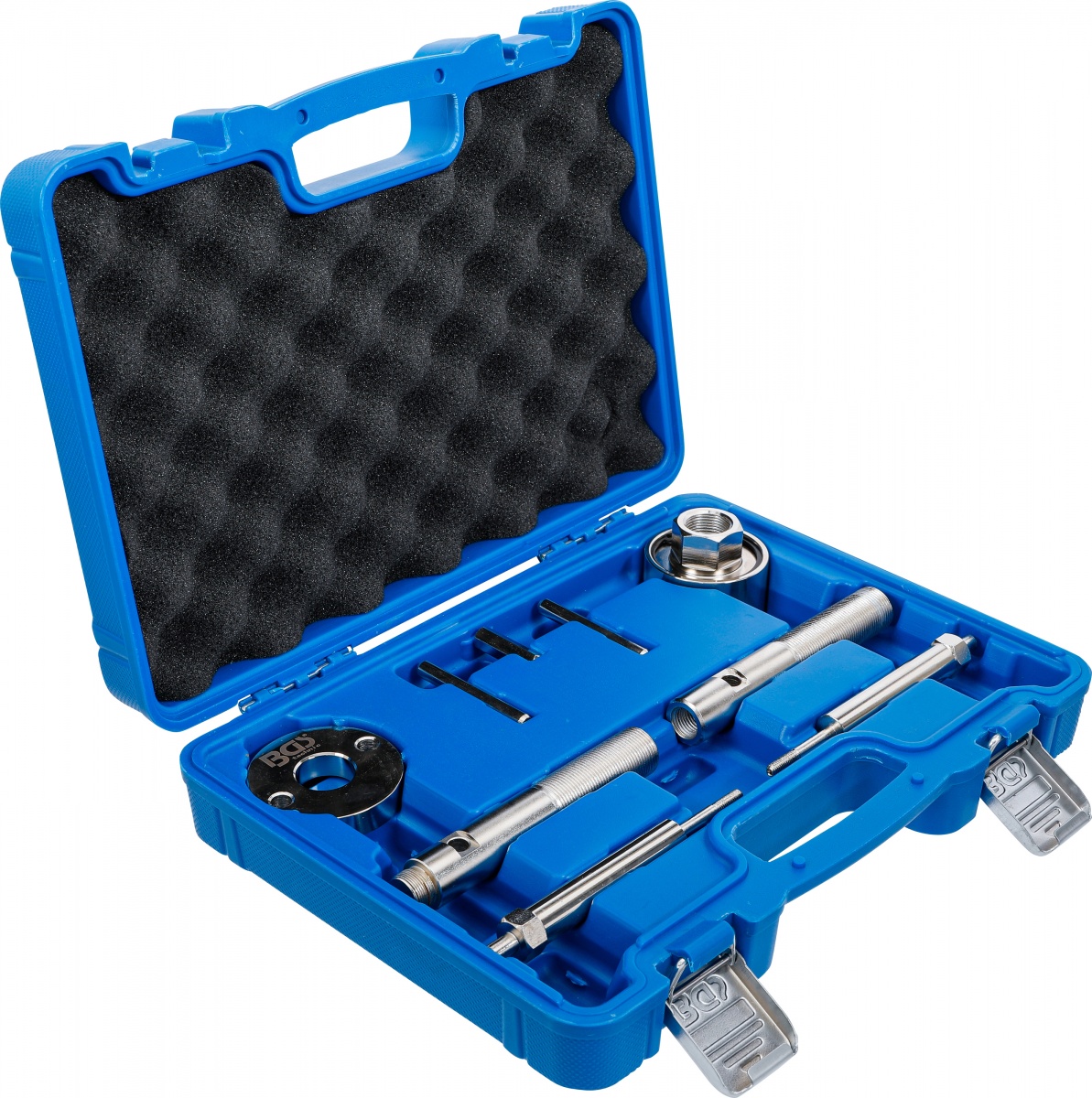

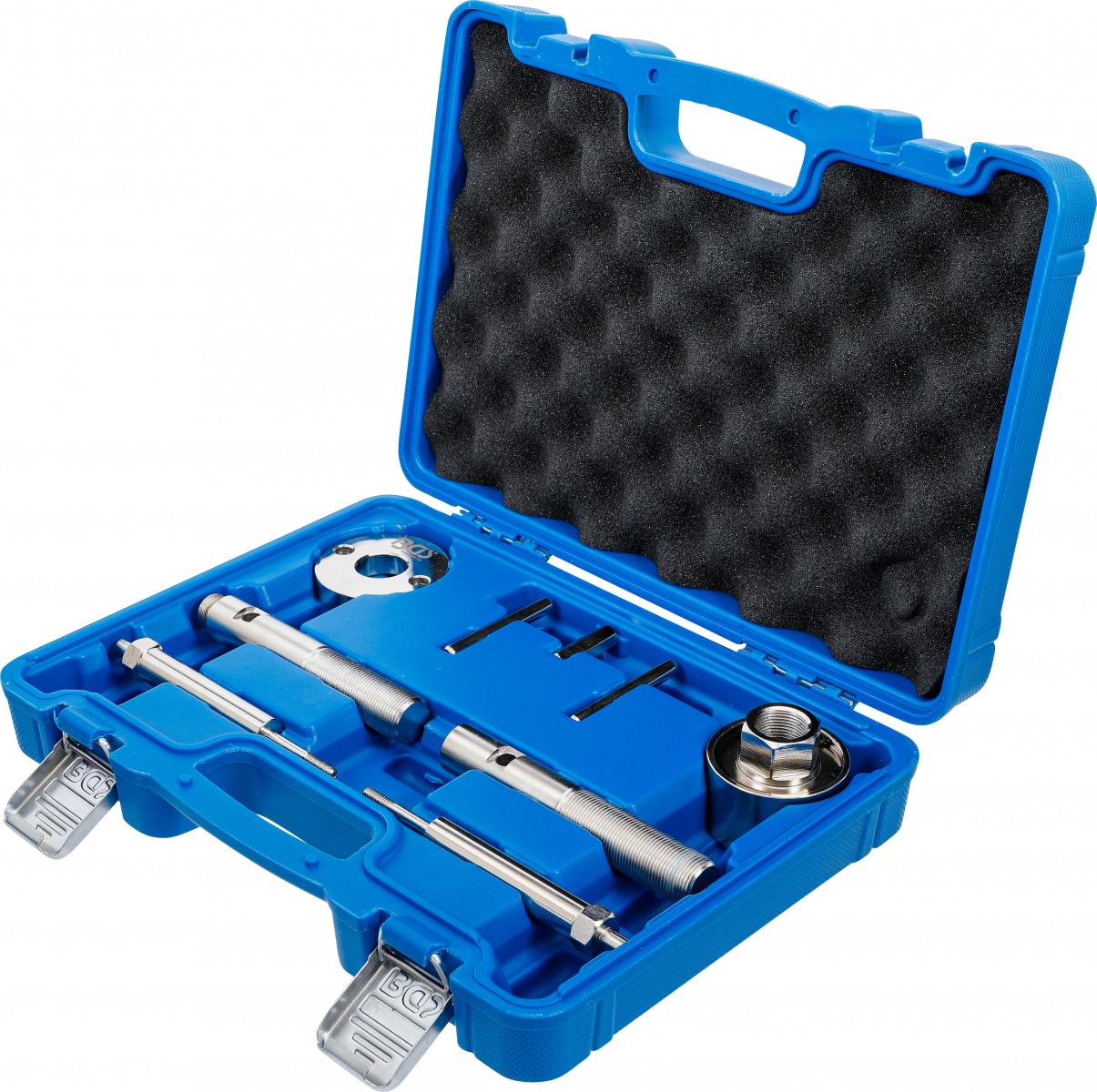

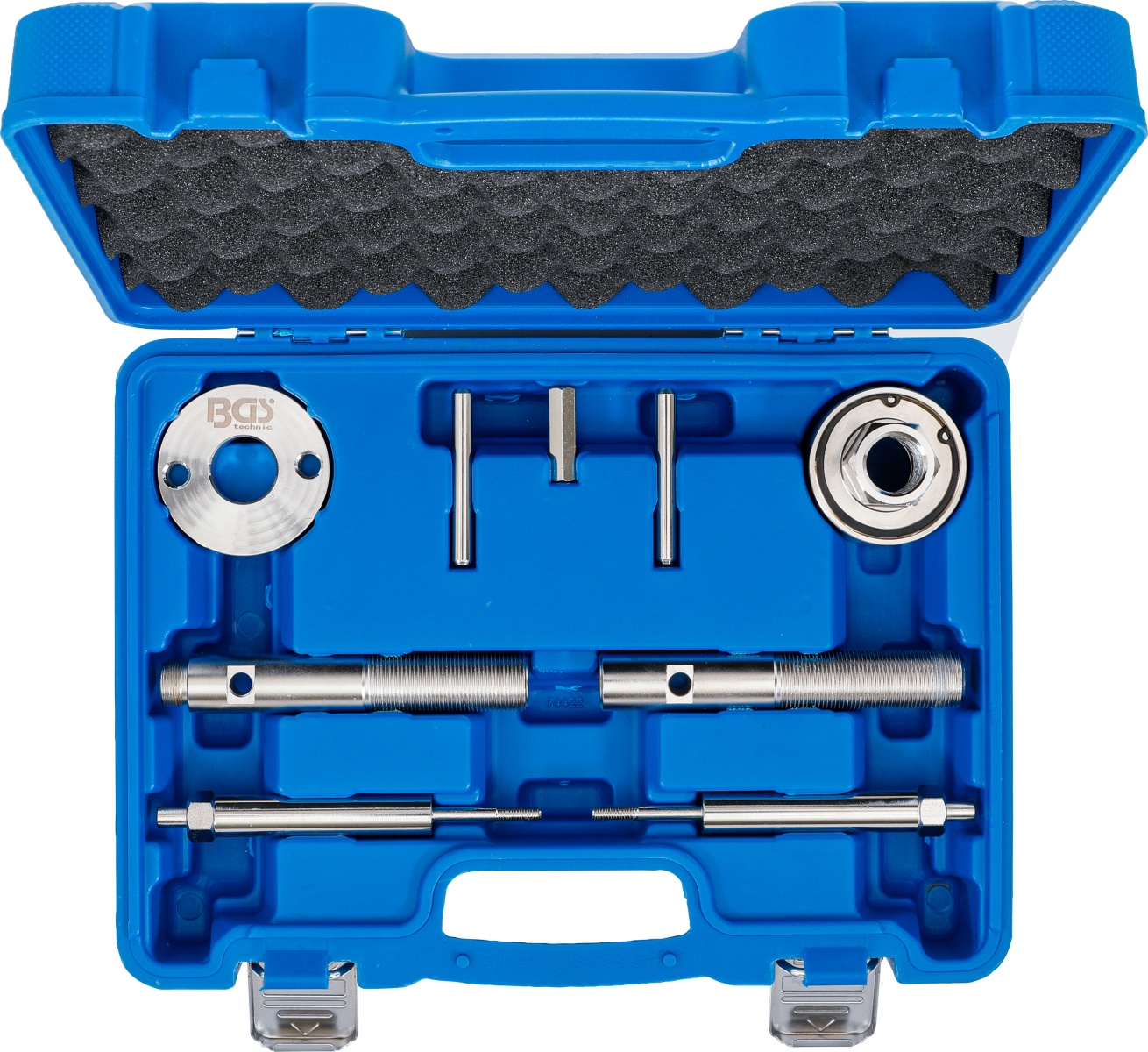

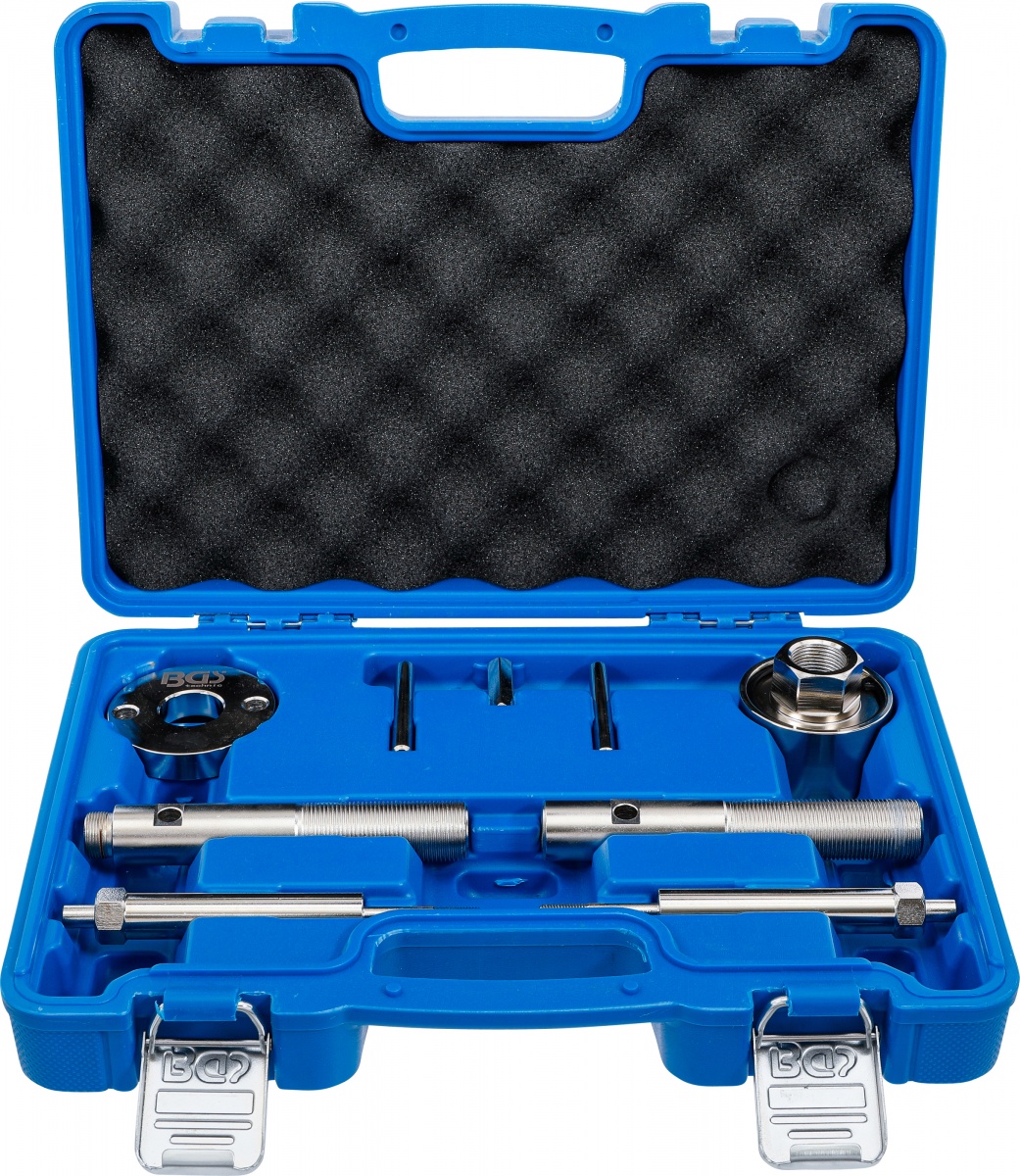

scope of delivery:
1 spindle nut M30 with bearing unit
1 pulling spindle with M17 x 1 internal thread for piezo injectors
1 pulling spindle with M14 x 1.5 external thread for solenoid injectors
2 support bolts
1 support plate
2 locking pins
1 bit, internal hexagon for dismantling the inner ring nut on solenoid injectors
