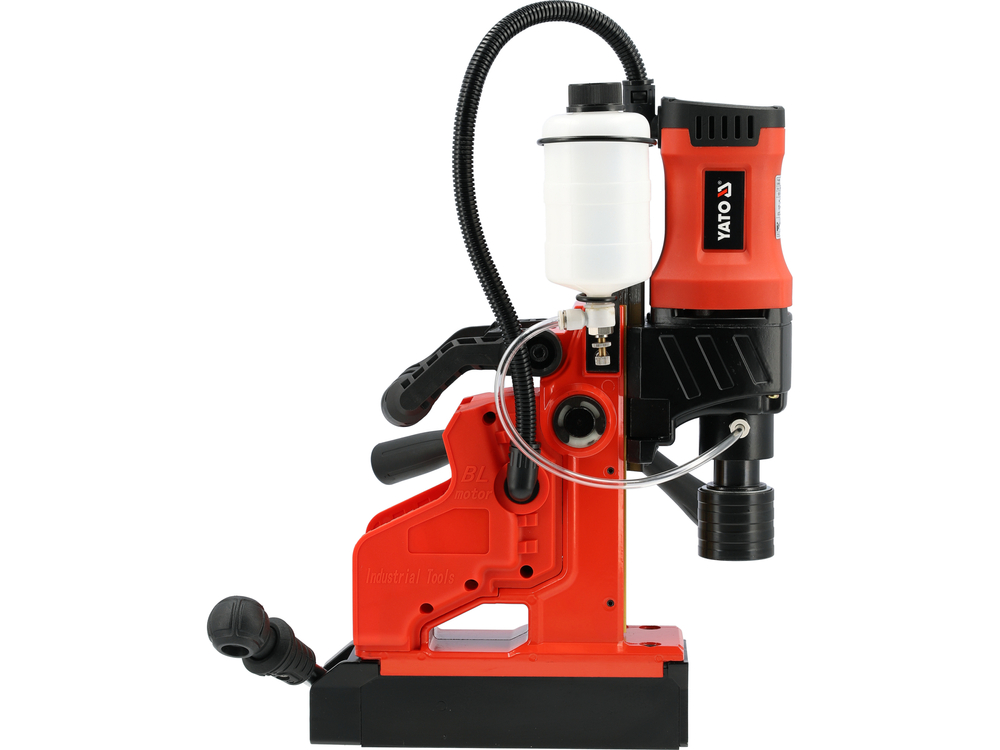

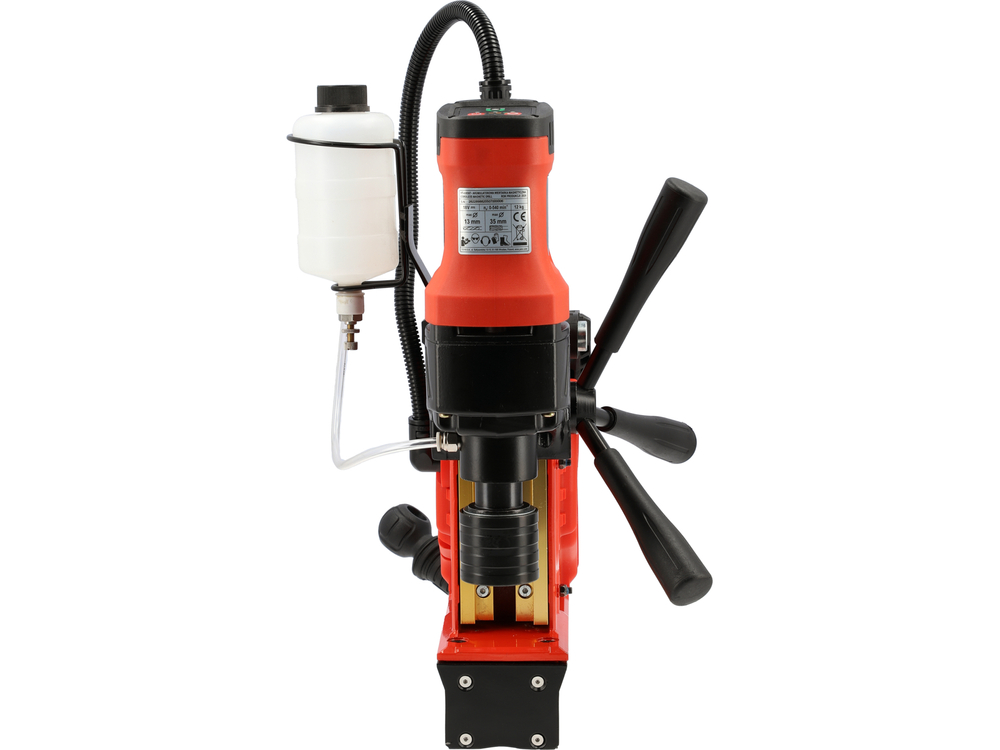

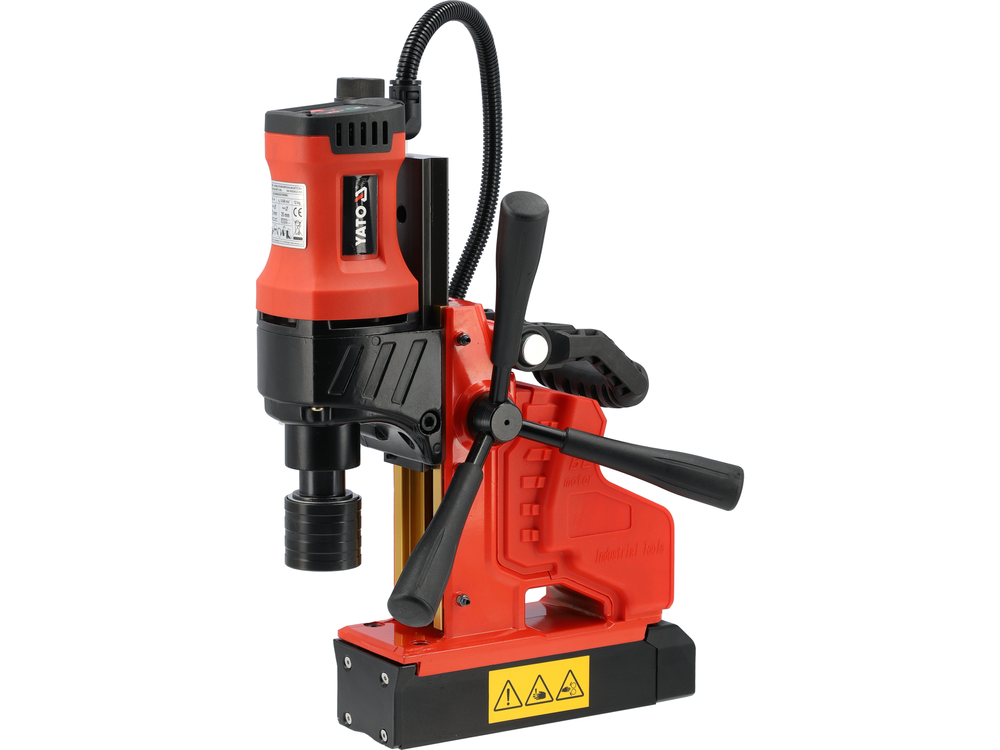

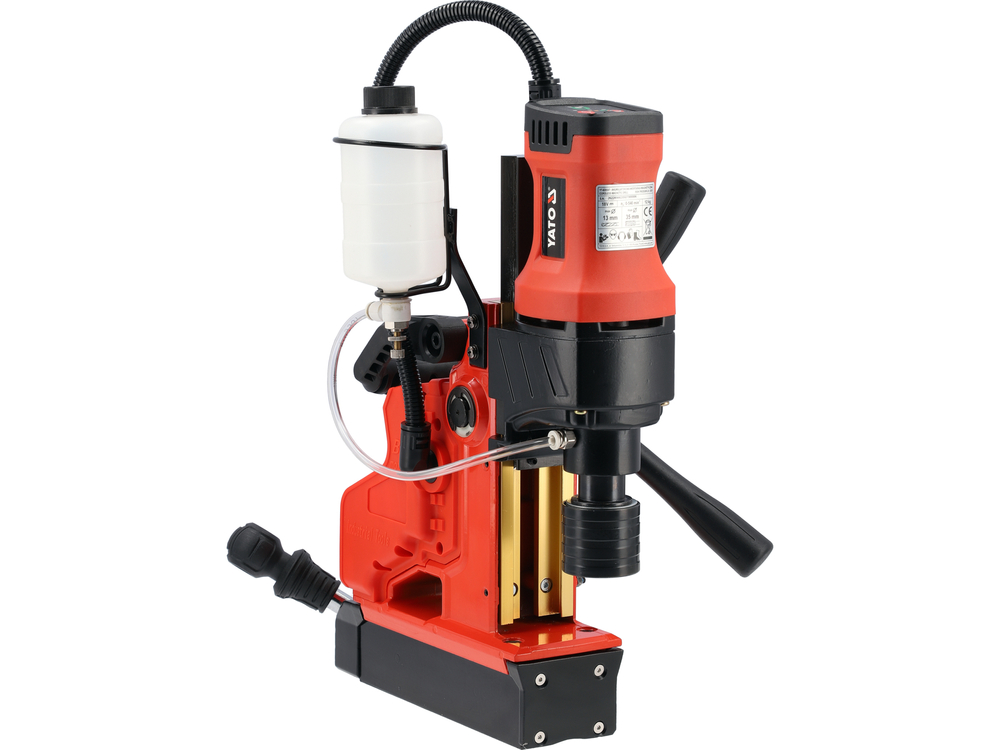

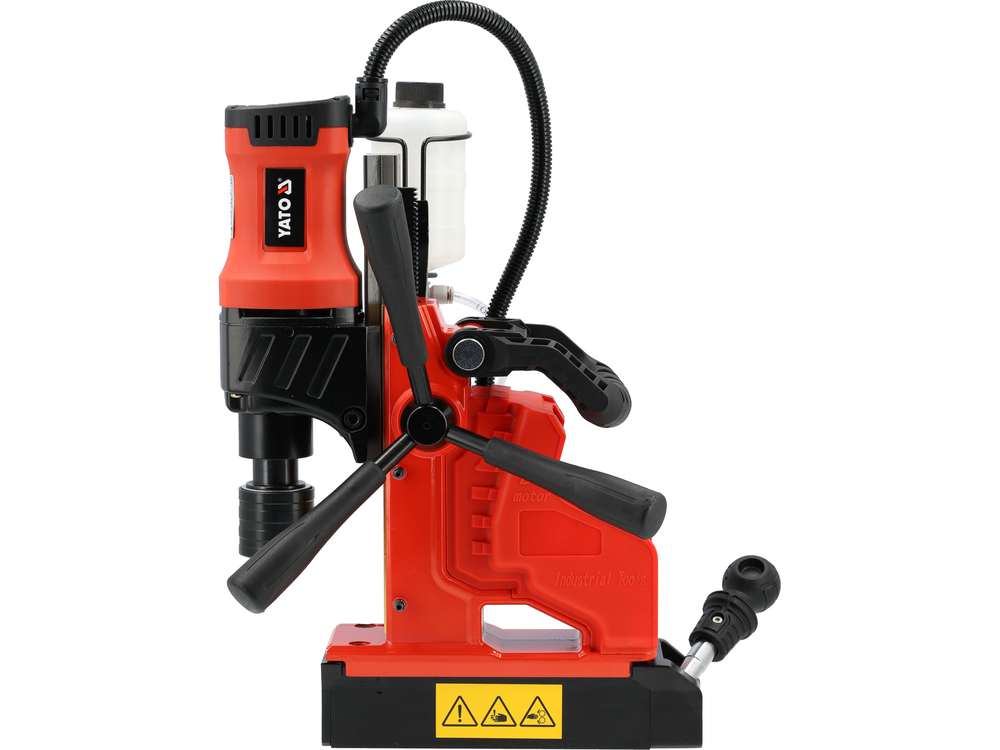

The cordless magnetic drill YT-820507 is designed for making precise holes in steel components during assembly, construction, and service work. With an 18 V battery power supply, it allows operation in areas without access to electrical outlets, making it ideal for construction sites, steel structure assembly, and outdoor work.
The device is equipped with a magnetic base with a holding force of 11000 N, ensuring stable attachment to ferromagnetic surfaces and allowing safe drilling in horizontal, vertical, and angled positions. The precise guide with manual feed, Weldon 3/4" chuck, and the ability to use core drills enable high machining accuracy and repeatable results.
Key features:
cordless drive 18 V Li-Ion providing mobility and operation without access to mains power*
magnetic base with a holding force of 11000 N, guaranteeing stable attachment to steel components
smooth speed regulation in the range of 0-540 rpm

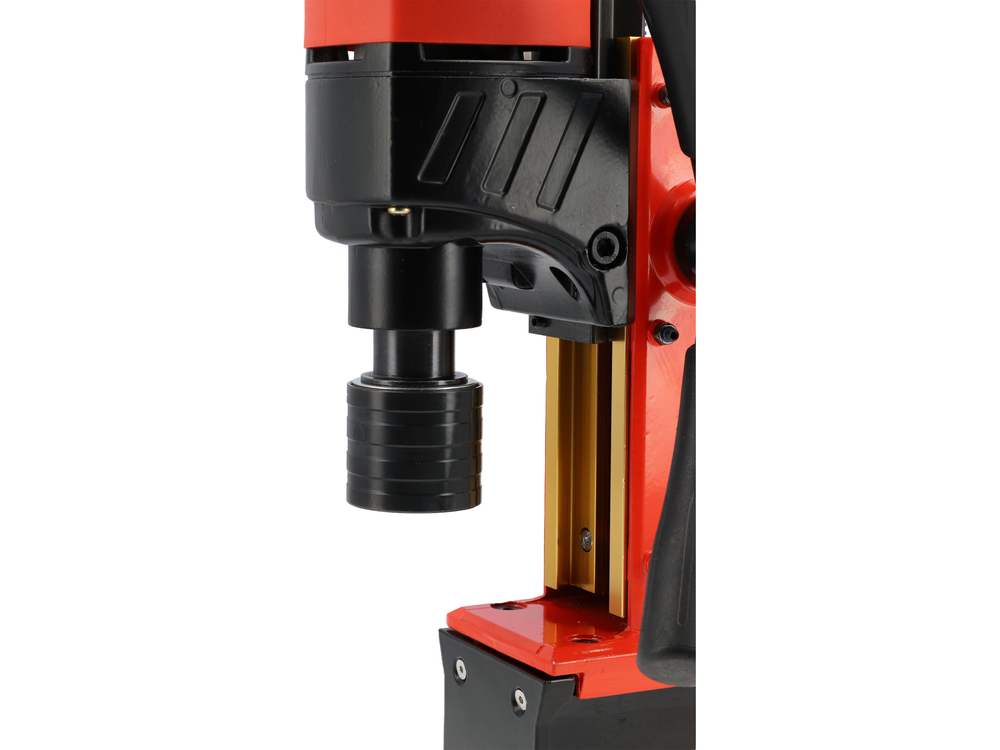

Weldon 3/4" (19 mm) tool holder for use with core drills
maximum diameter of core drills: 35 mm
maximum diameter of twist drill: 13 mm
maximum drilling depth: 50 mm
spindle working stroke: 120 mm
precise vertical guide with manual feed ensuring accurate tool guidance
capability of drilling on horizontal, vertical, and inclined surfaces

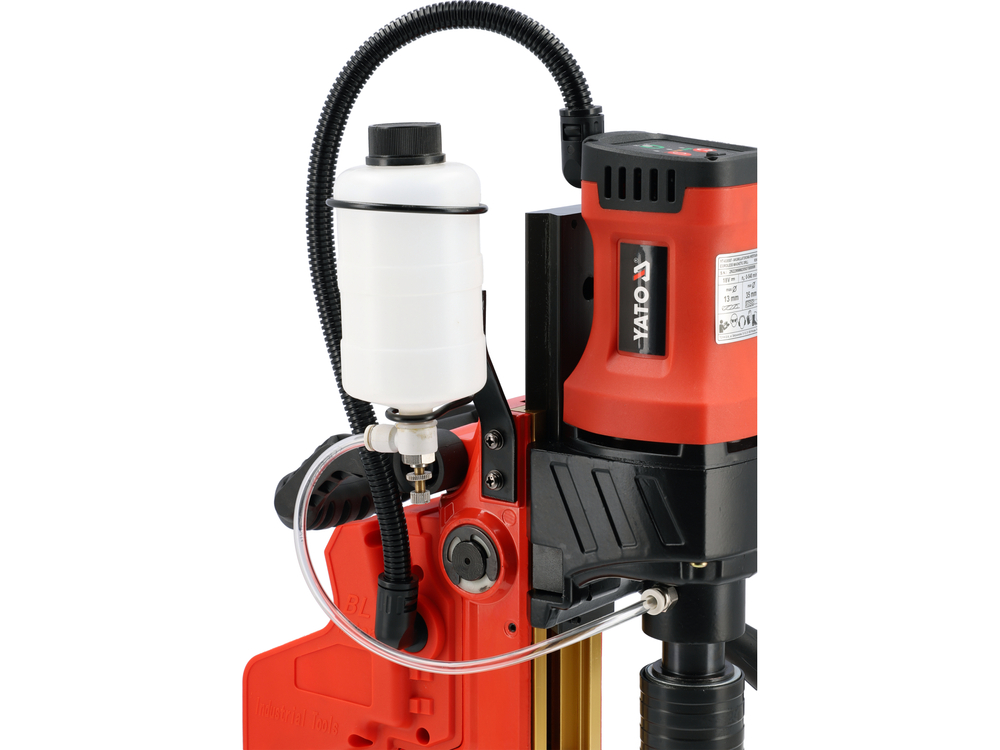

integrated coolant tank allowing tool cooling during machining

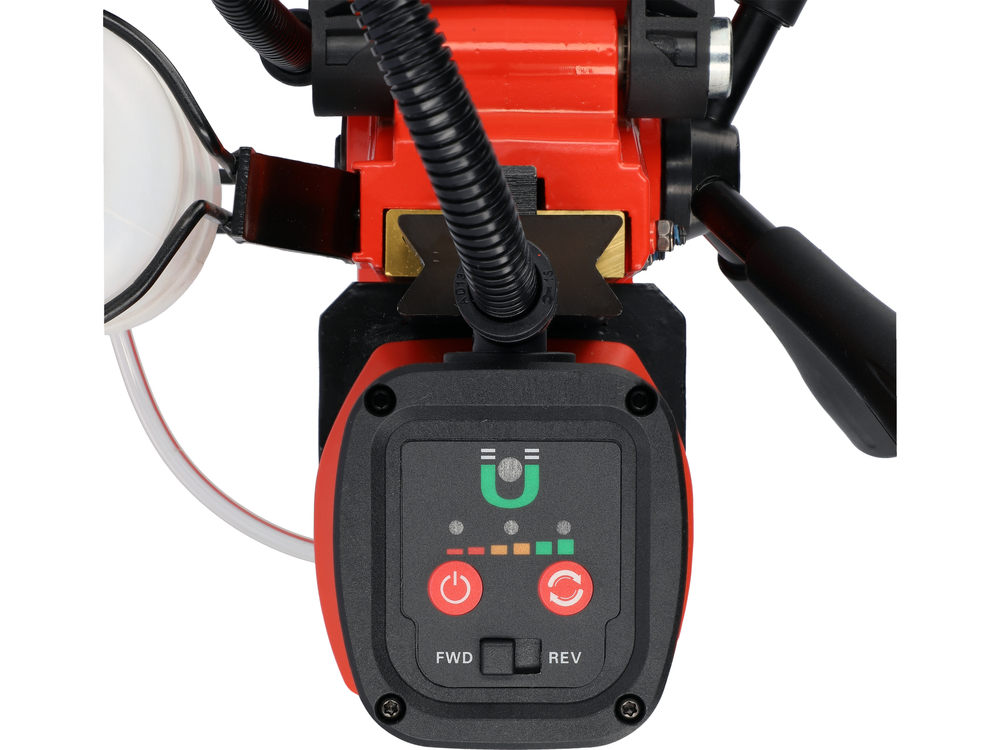

control panel with magnet switch, direction switch, and speed adjustment
battery charge indicator facilitating work time monitoring
device weight: 12 kg
*The drill can be powered by YATO 18 V batteries of various capacities: YT-828461 (2 Ah), YT-828462 (3 Ah), YT-828463 (4 Ah), YT-828464 (6 Ah), YT-828465 (9 Ah).
Application:
The drill is intended for making holes in steel structures, beams, profiles, sheets, and other ferromagnetic components. It performs excellently during the assembly of halls, bridge structures, industrial installations, locksmithing, and service work, wherever mobility and precise metal machining are required. When drilling with core drills, the device allows the use of coolant, and when working in vertical or inverted positions, it is recommended to use cutting paste or spray, which increases the durability of cutting tools and improves machining quality.
Accessories compatible with the drill:
HSS core drill set YT-43400
HSS core drill set YT-43405
TCT core drill set YT-43410
TCT core drill set YT-43413
