Index
YT-90604
Barcode
5906083136443
Unit of measure
PCE
Volume
316.316
Weight
69

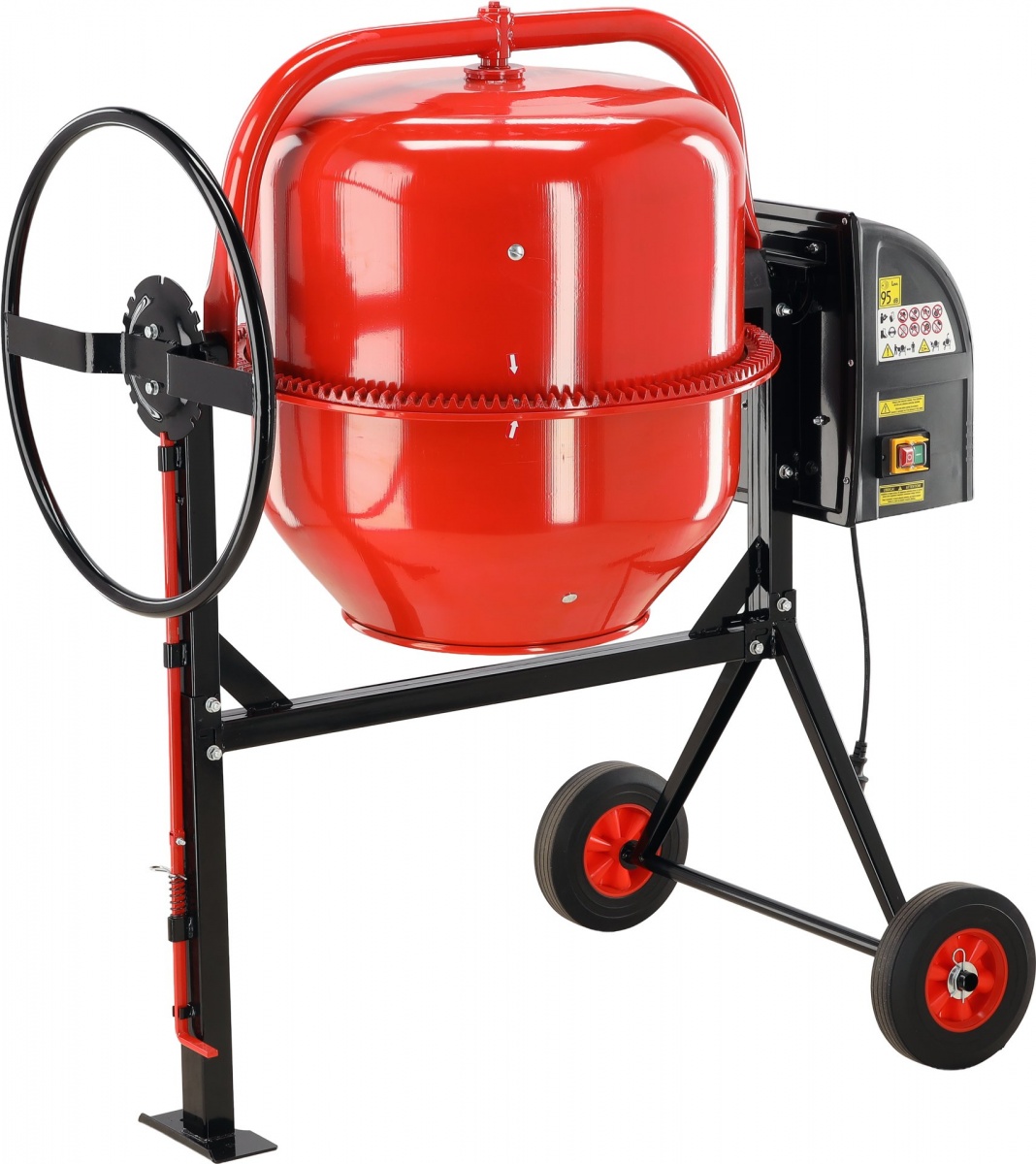

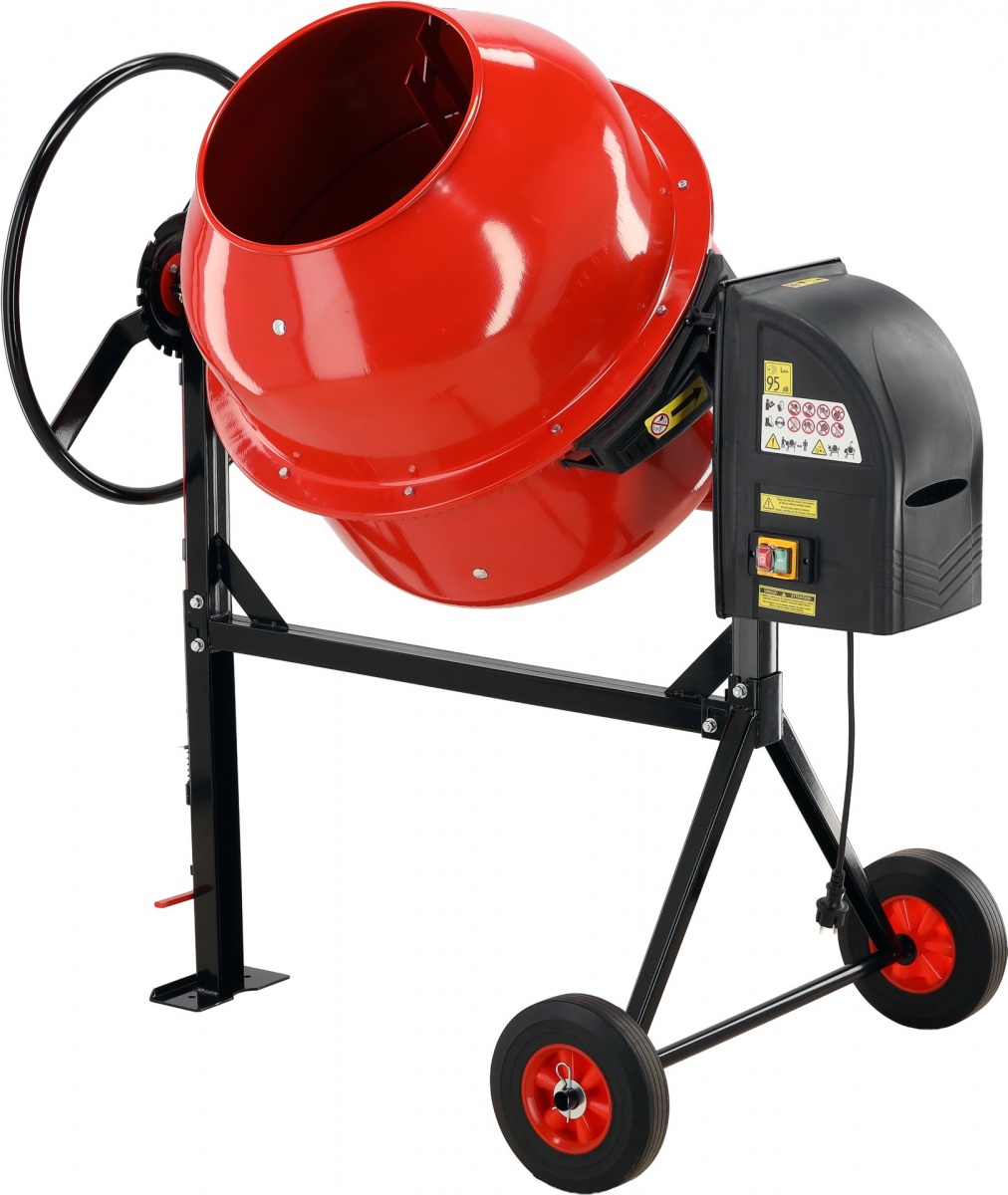

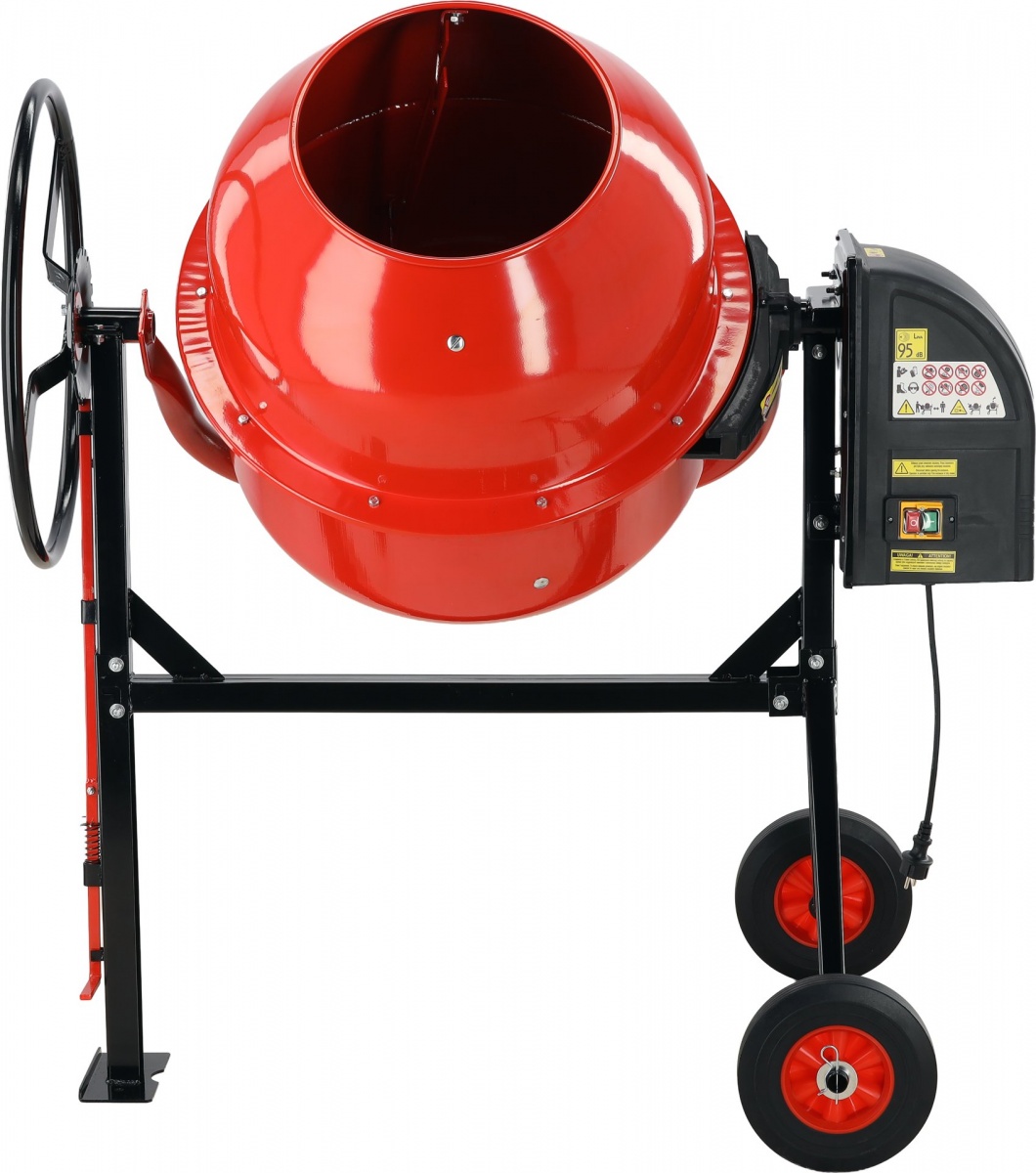

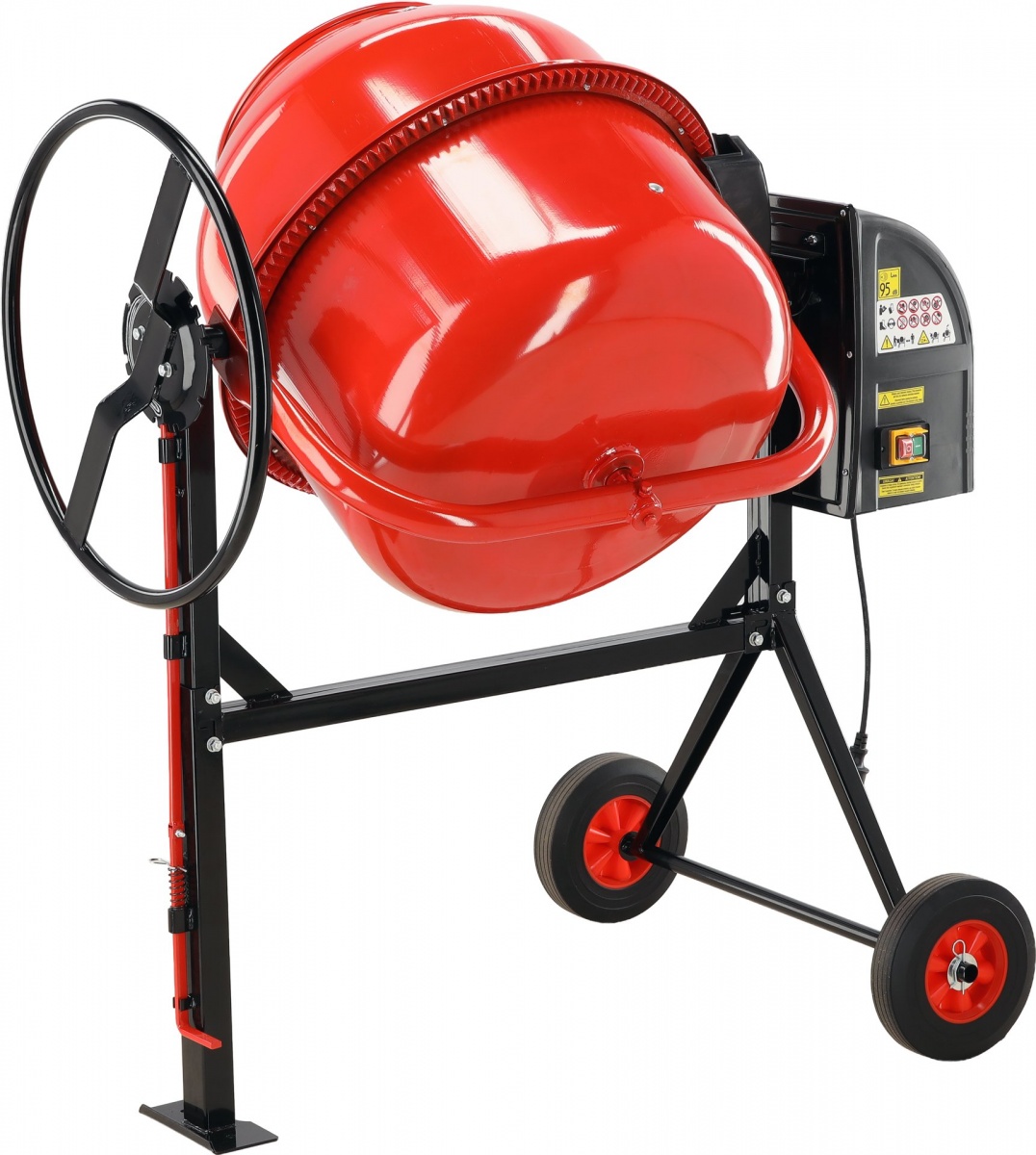

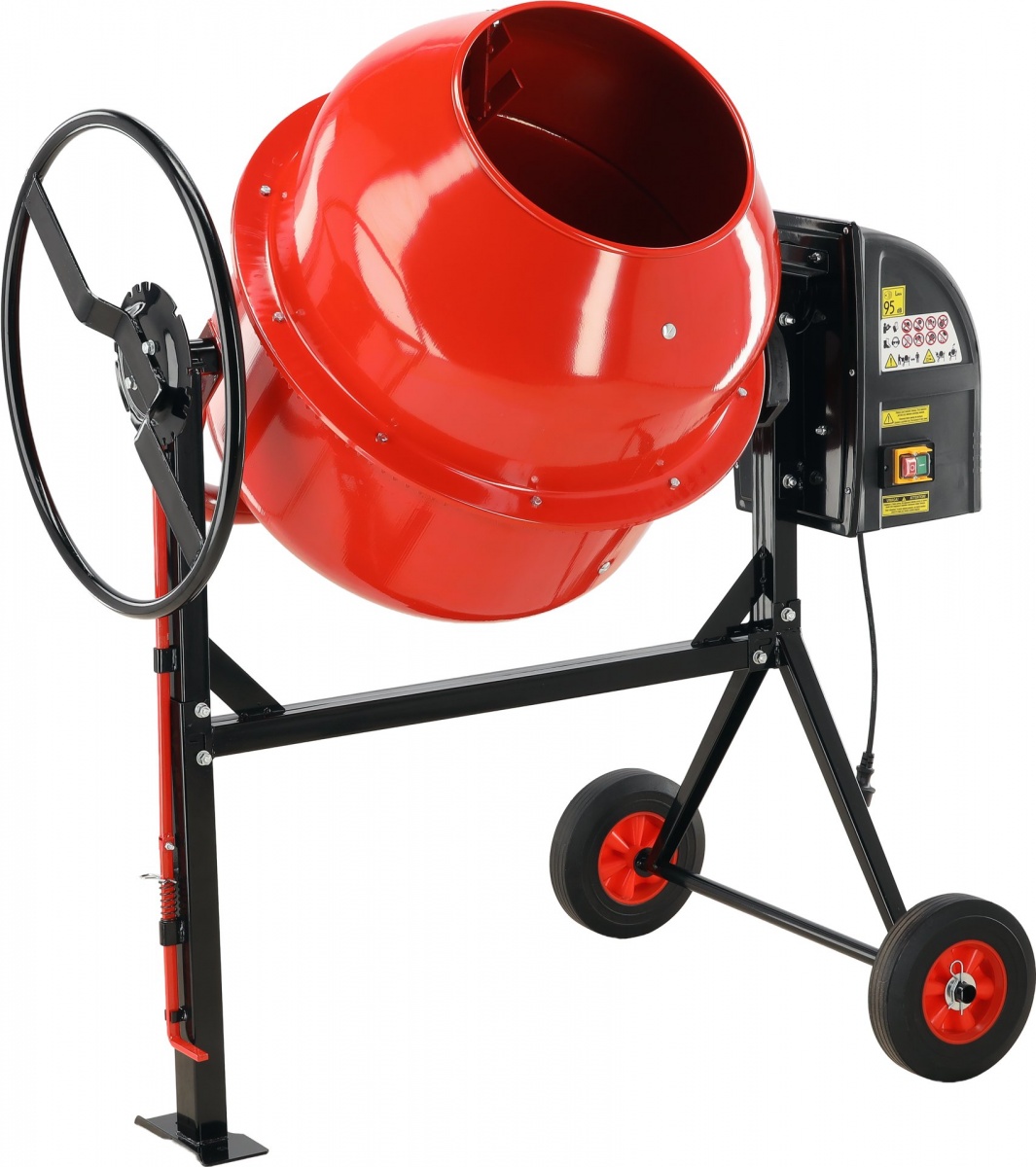

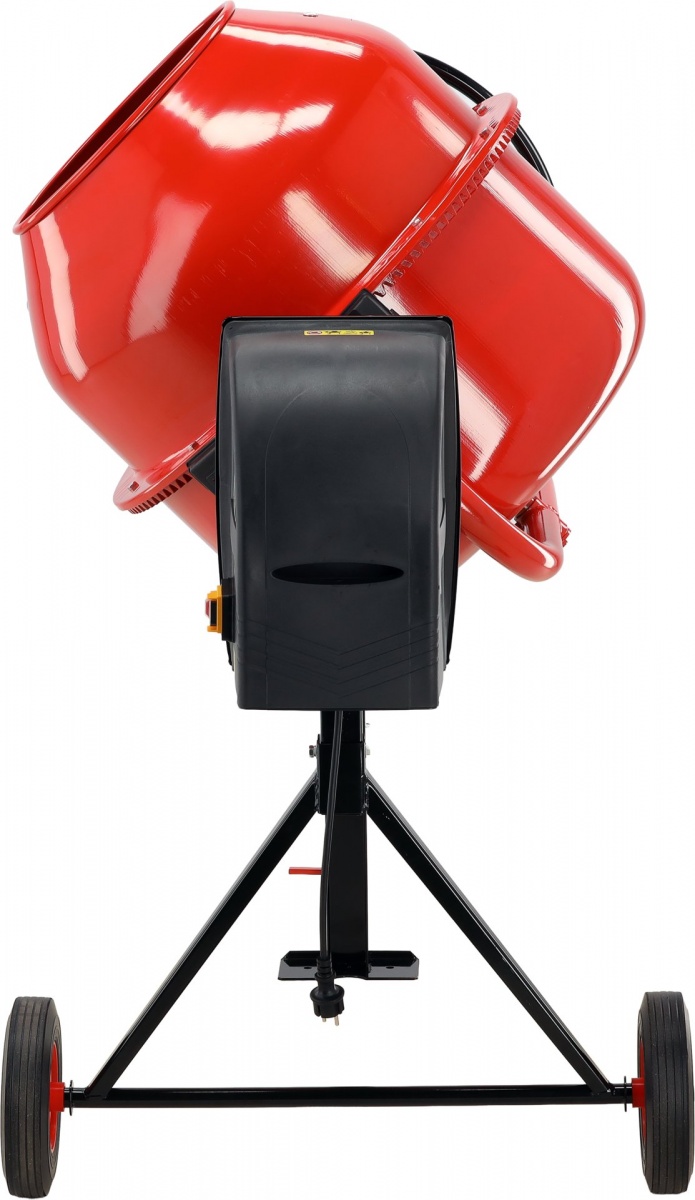

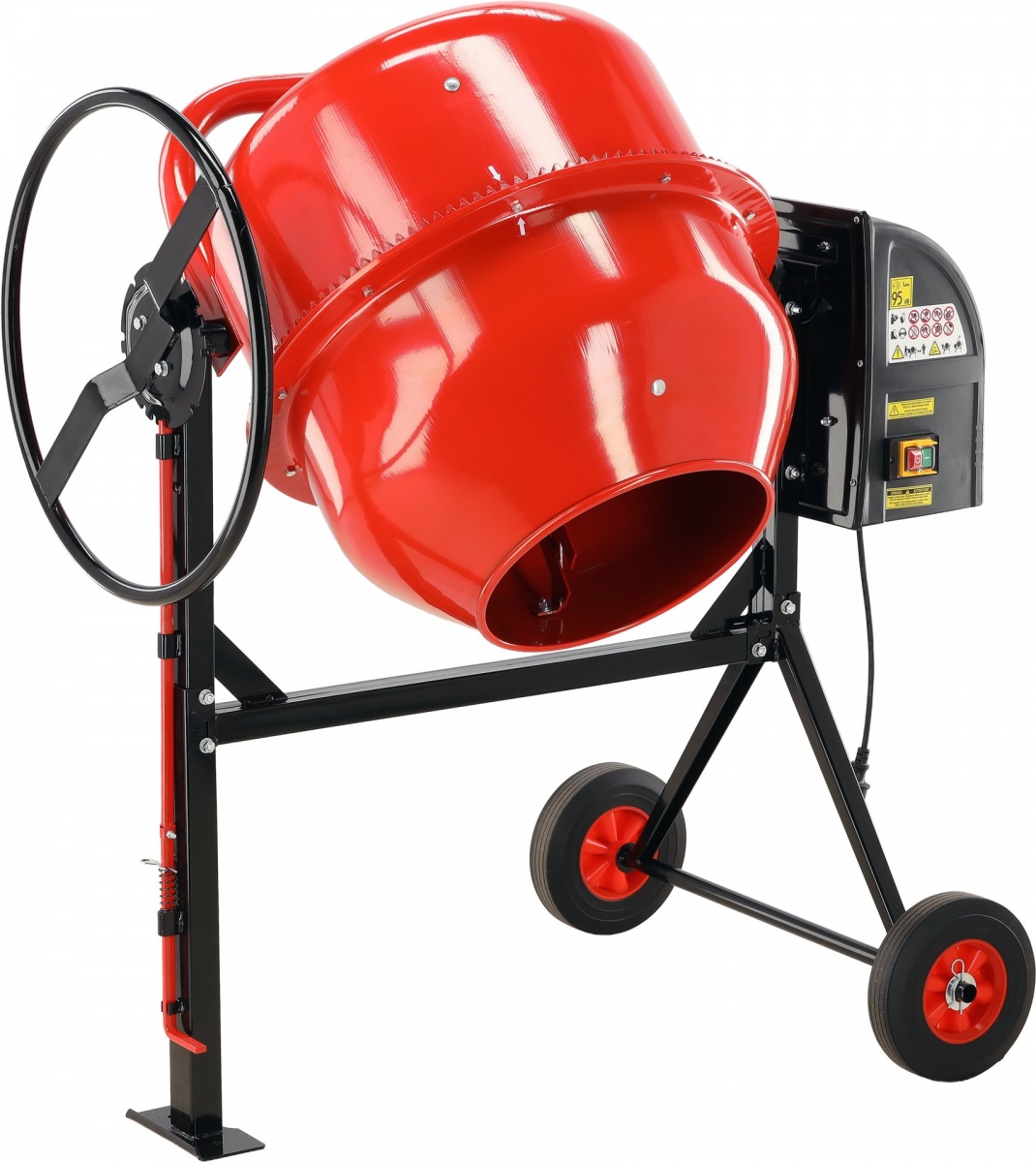

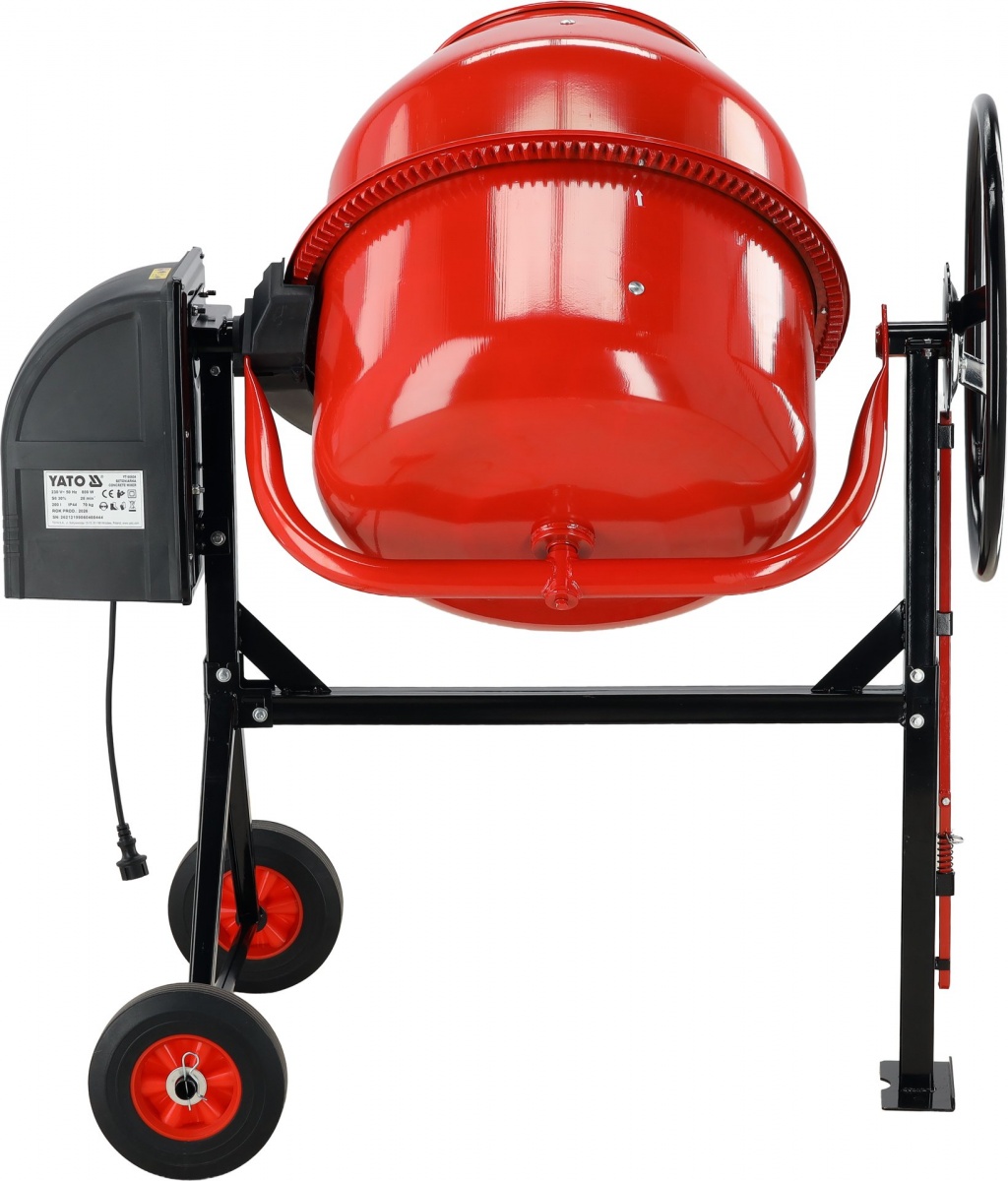

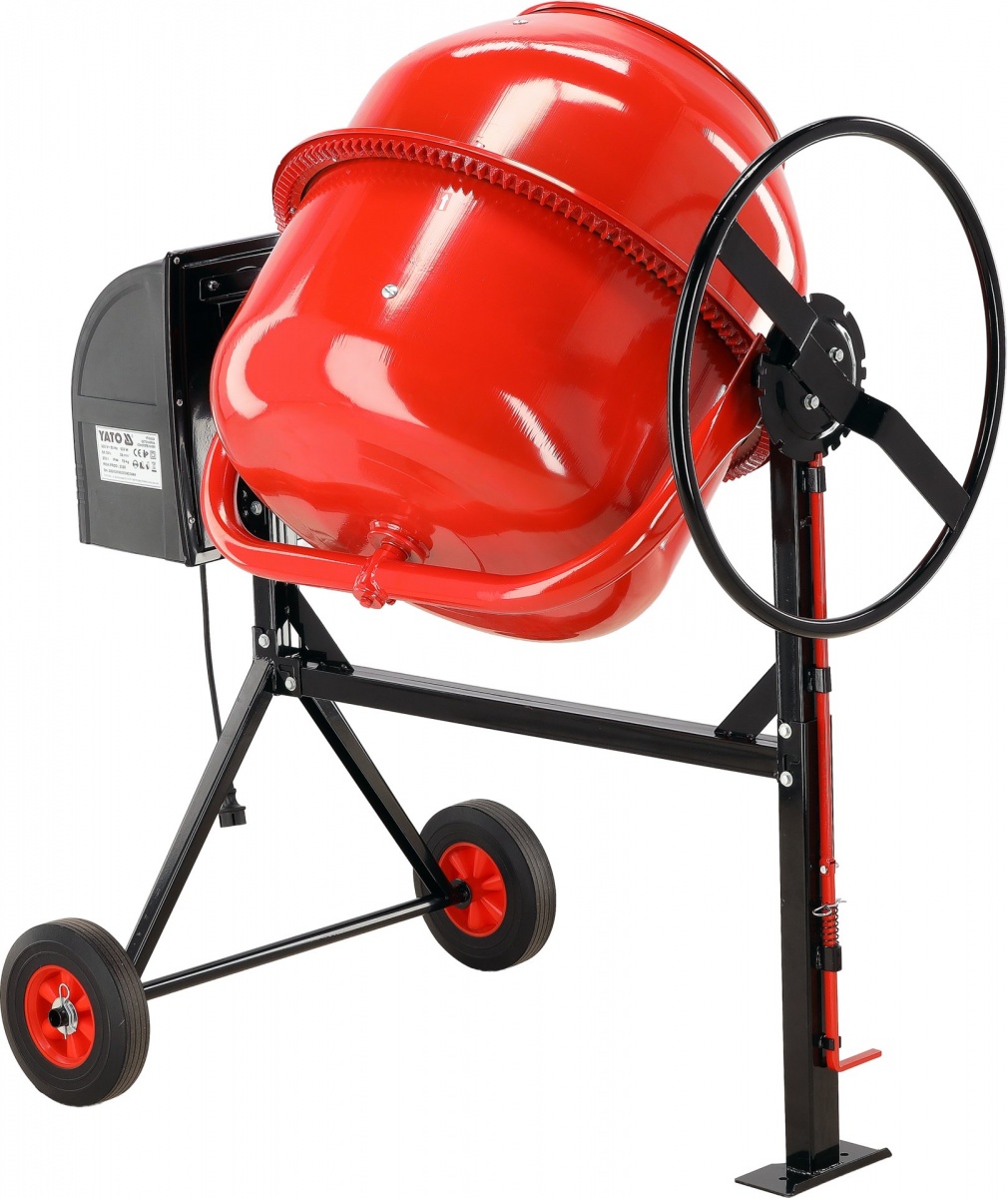

The YATO YT-90604 electric concrete mixer is designed for preparing concrete, cement mortar, masonry mortar, plaster, and other construction mixtures during construction, renovation, and finishing work. Equipped with an 800 W motor with copper windings, it ensures stable operation, high durability, and efficiency during intensive use.
The 200-liter drum capacity allows for the preparation of larger quantities of mix at a time, increasing work efficiency on the construction site. The reinforced construction with increased drum wall thickness, a cast iron gear ring, and a steel frame ensure high resistance to mechanical stress and long-lasting use. A tilting mechanism with a locking mechanism facilitates controlled emptying of the drum, and large transport wheels facilitate easy movement between work stations.
Technical specifications:

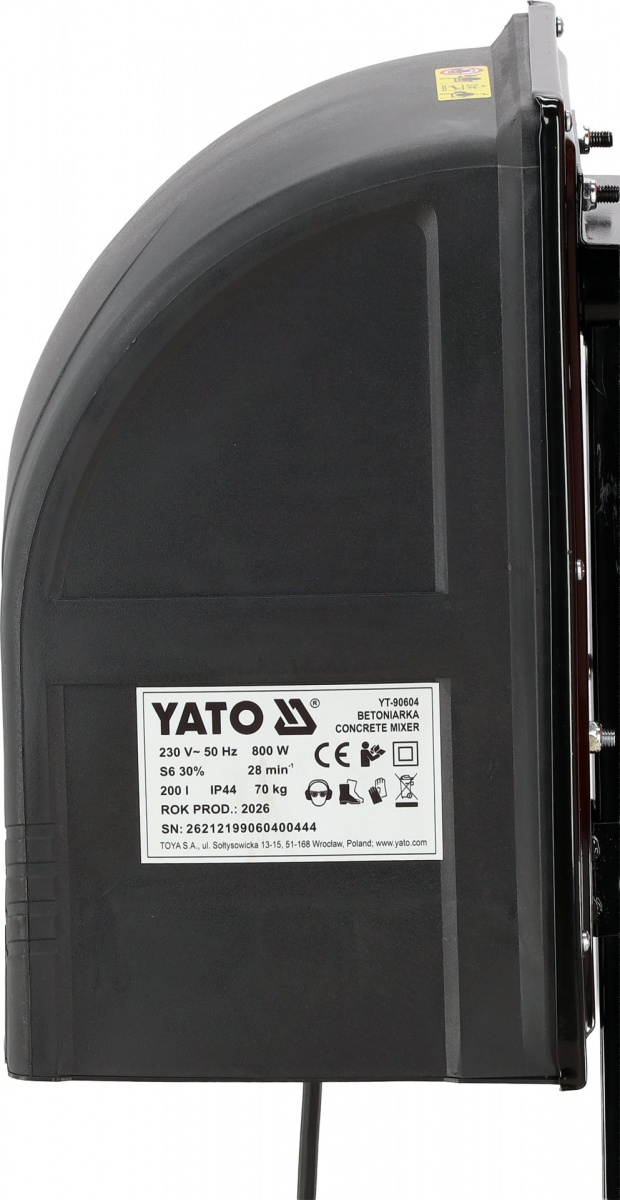

Type: Electric concrete mixer
Power supply: 220–240 V / 50 Hz
Motor power: 800 W
Drum capacity: 200 l
Motor winding: 100% copper
Drum speed: 29 rpm
Gear ring: Cast iron
Drum diameter: 630 mm
Feed opening diameter: 390 mm
Drum height: 720 mm
Drum wall thickness: 1.5 / 1.9 mm
Dimensions: 1260 x 850 x 1420 mm
Net weight: 63.5 kg
Gross weight: 67.5 kg
Design and materials:

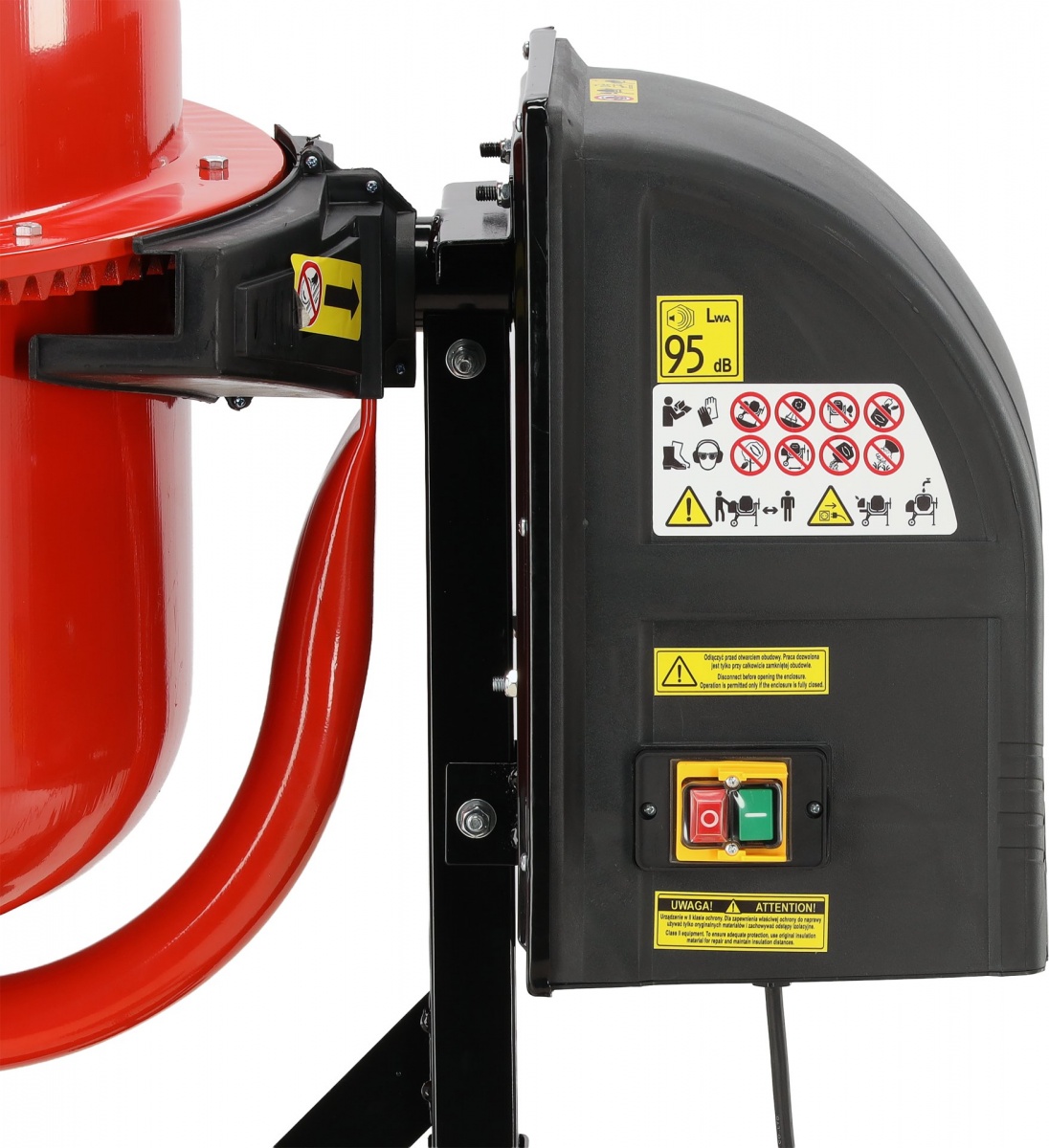

Electric motor with 100% copper windings, ensuring high efficiency, durability, and efficient heat dissipation

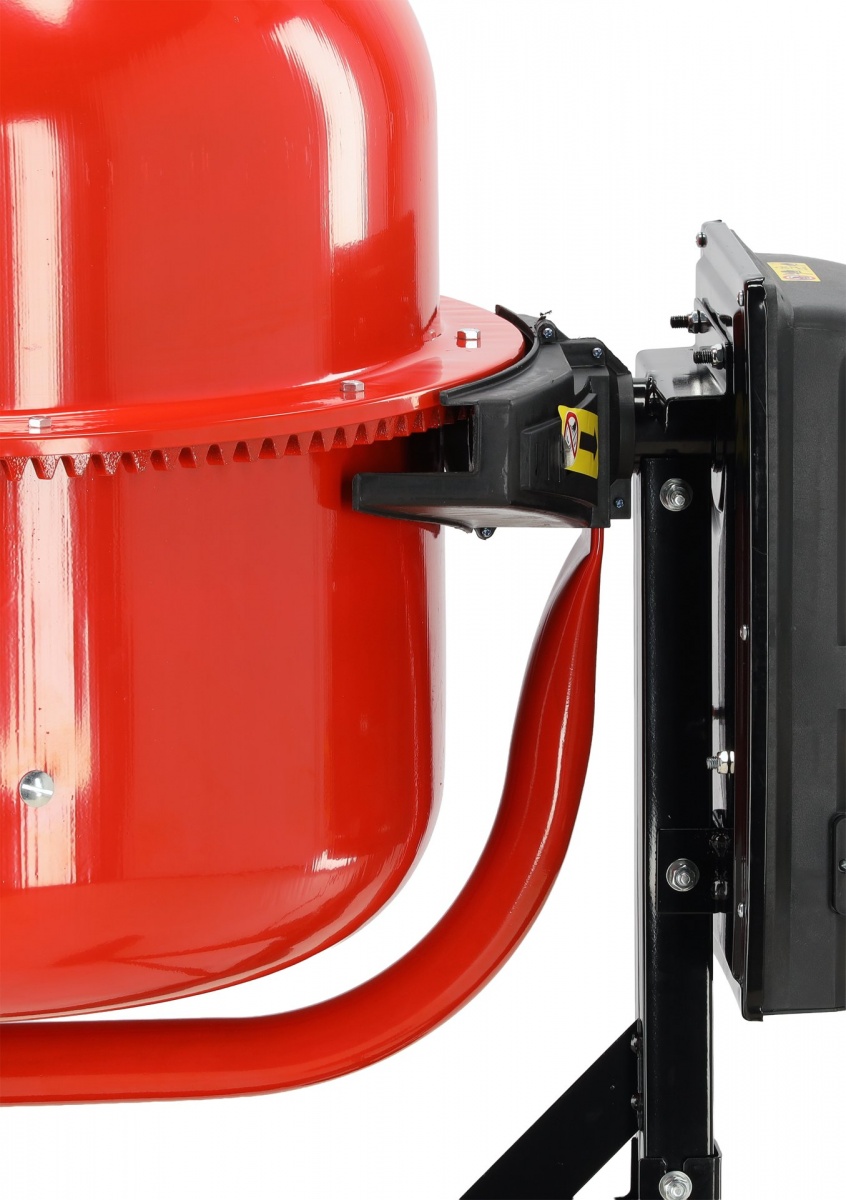

Cast iron gear ring with high resistance to corrosion Abrasion and heavy-duty use
Reinforced steel drum with 1.5/1.9 mm wall thickness, resistant to deformation and mechanical damage

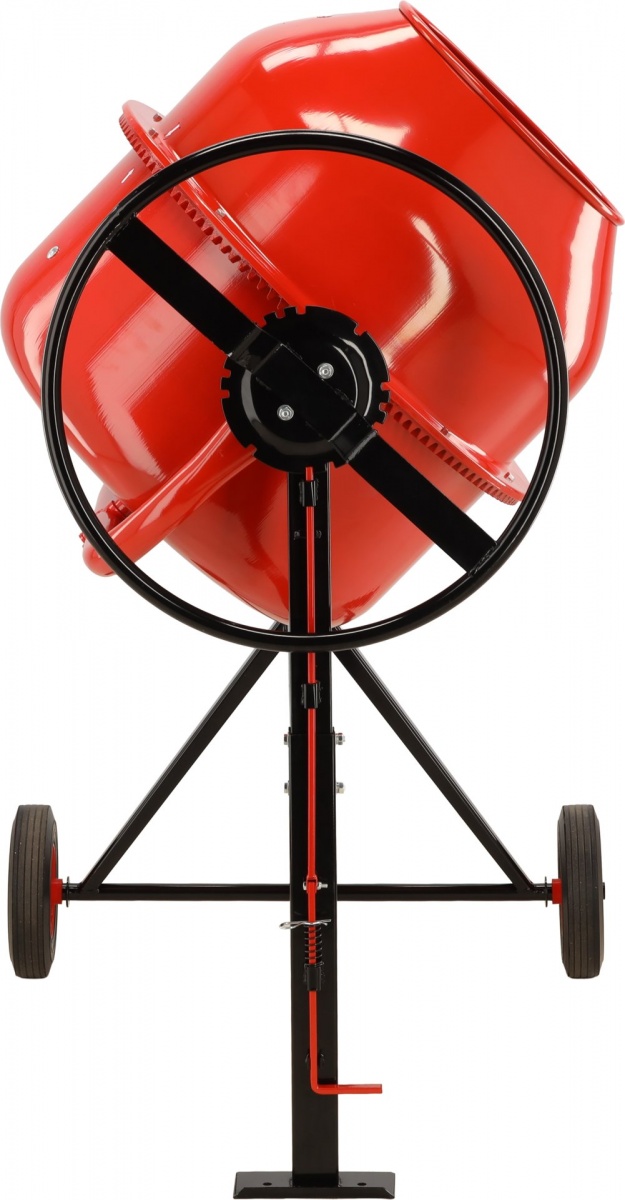

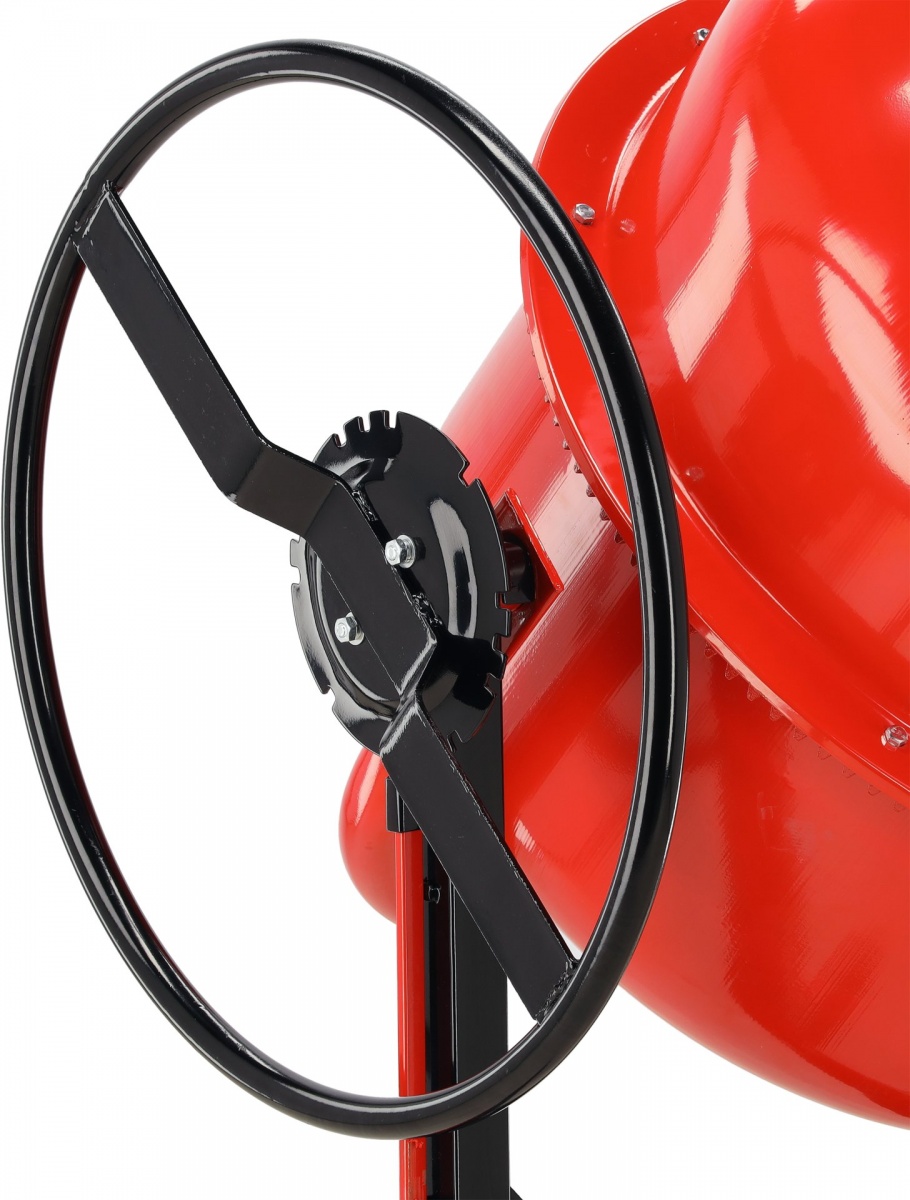

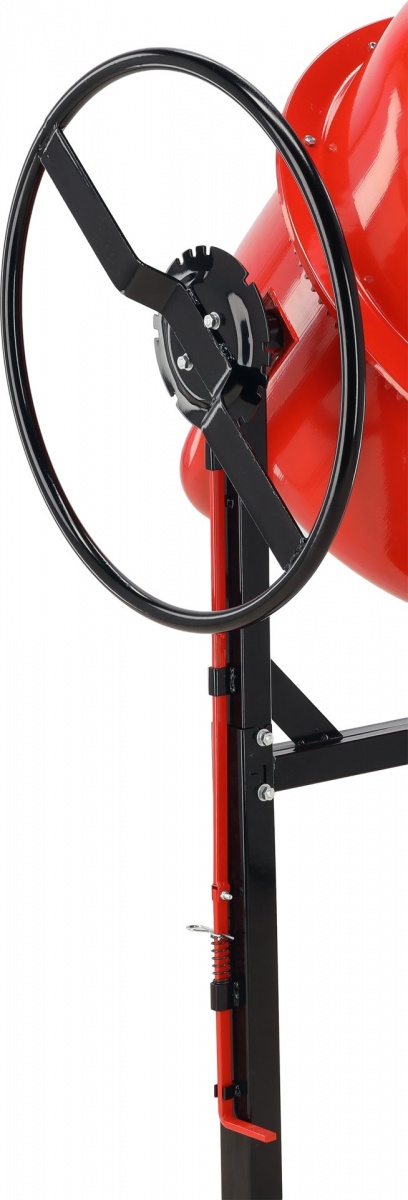

Tilting mechanism with locking mechanism allows for smooth and controlled emptying of the drum
Powder-coated steel frame with increased resistance to corrosion and operation in demanding conditions

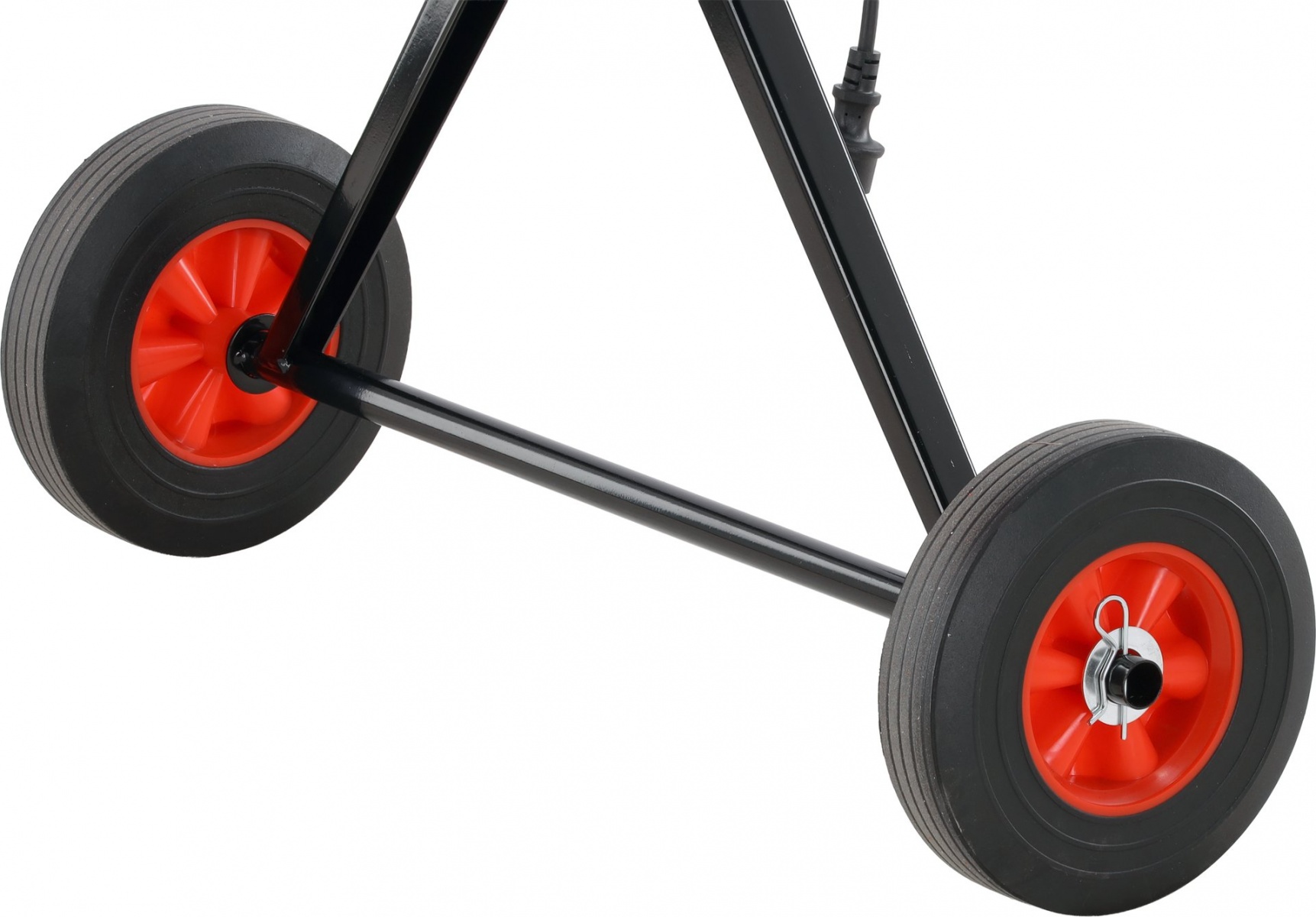

Large transport wheels facilitate movement of the unit on the construction site
Applicable for preparing:
Concrete
Cement mortars
Masonry mortars
Plaster mortars
Other construction mixtures
The unit is used in the construction of single-family homes, garages, outbuildings, and for laying foundations, floors, sidewalks, driveways, and fences. The large drum capacity and durable design make this concrete mixer suitable for both professional construction work and demanding renovation projects.
