Index
YT-90603
Barcode
5906083136436
Unit of measure
PCE
Volume
300.2
Weight
66

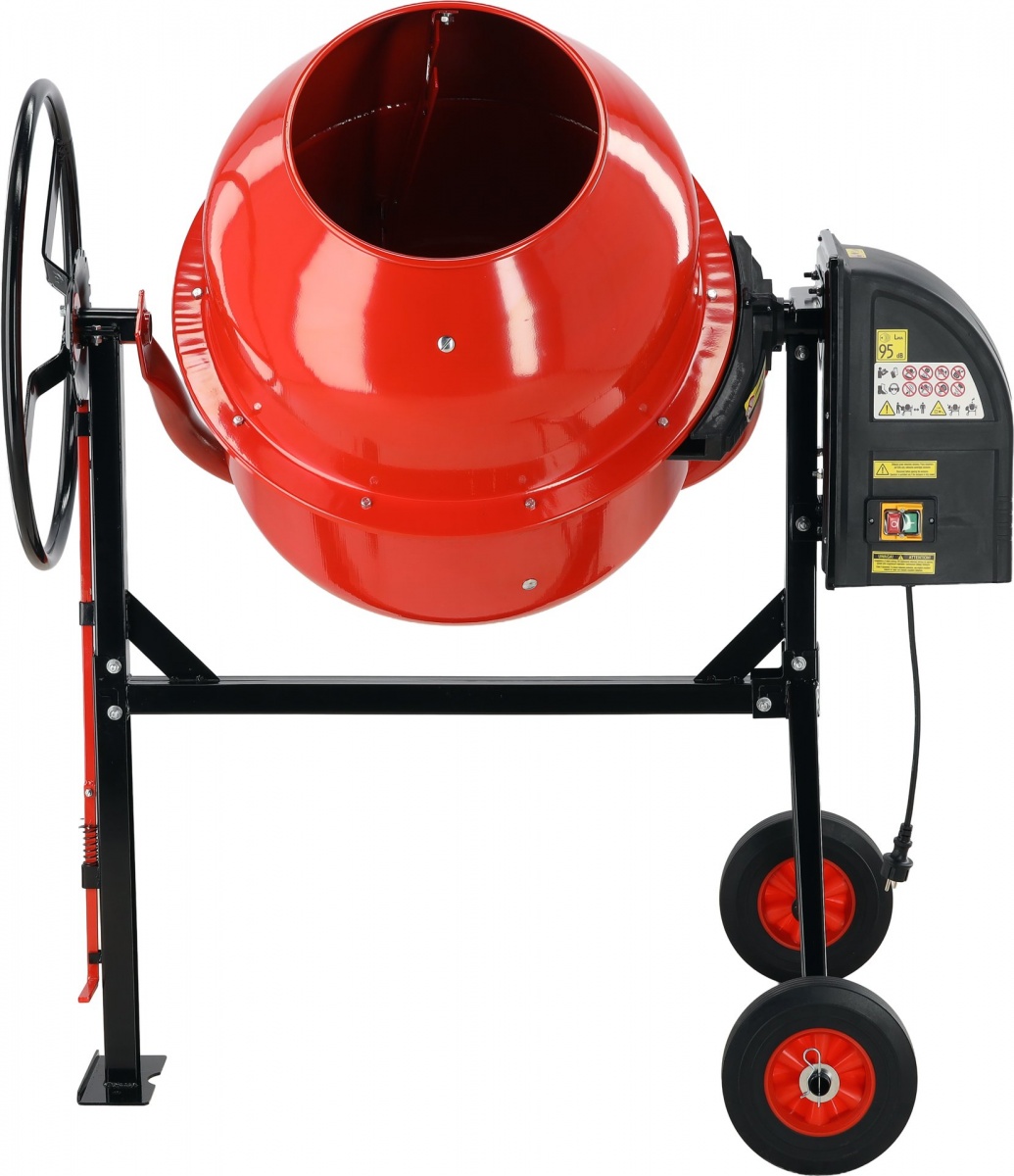

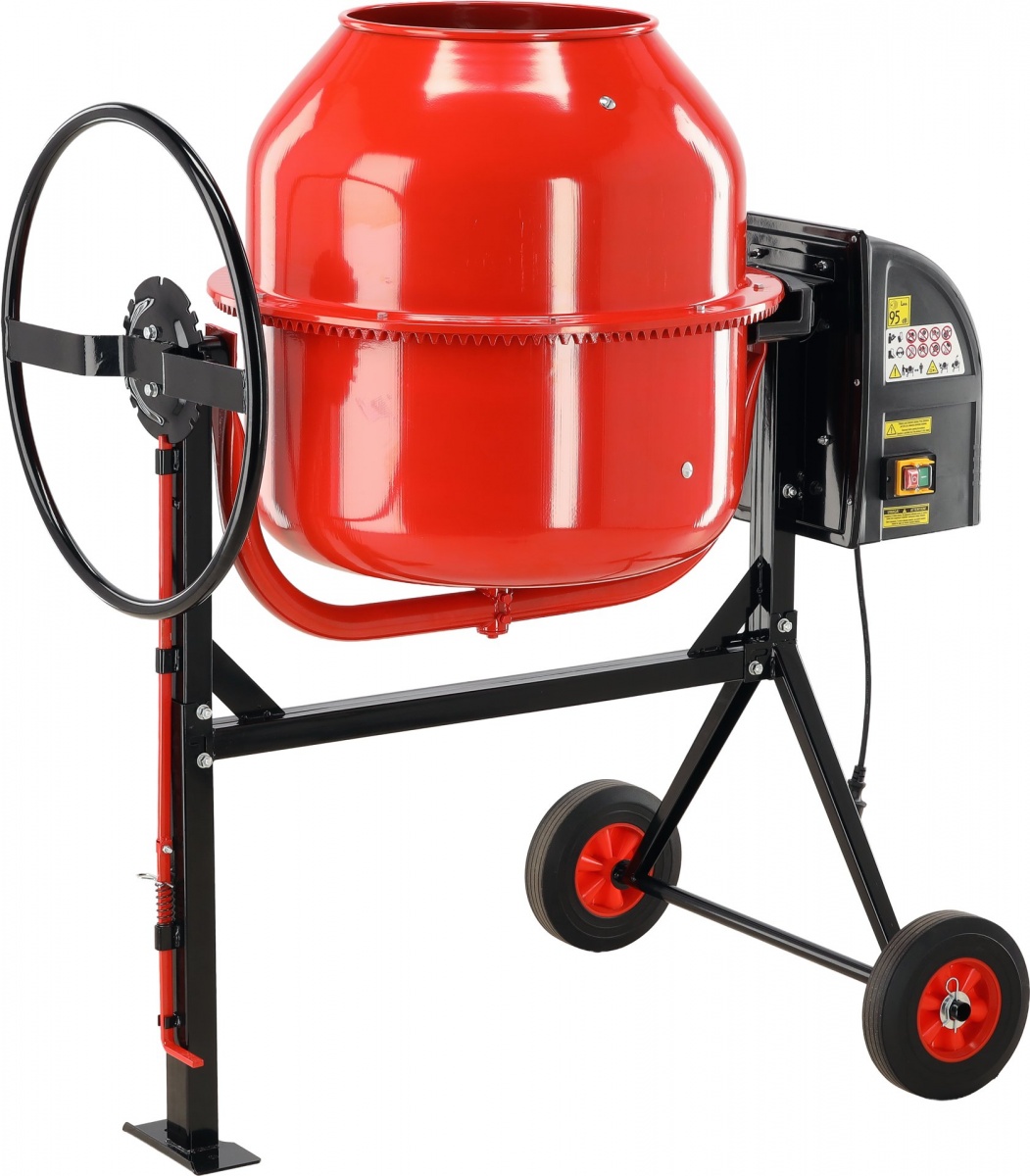

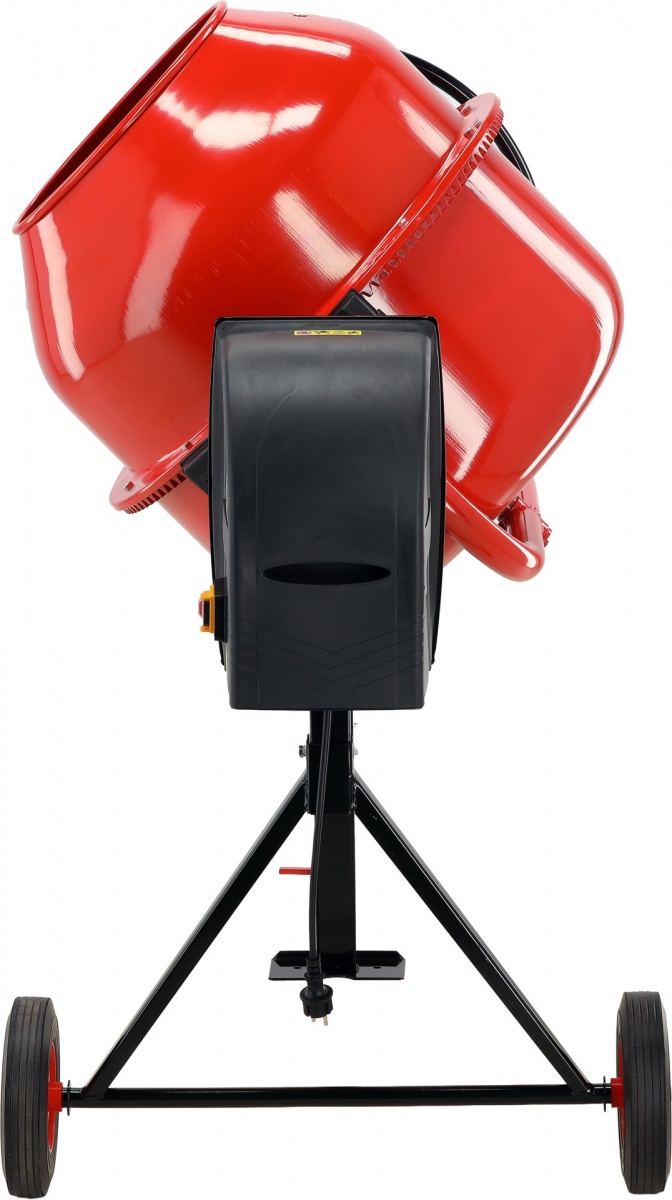

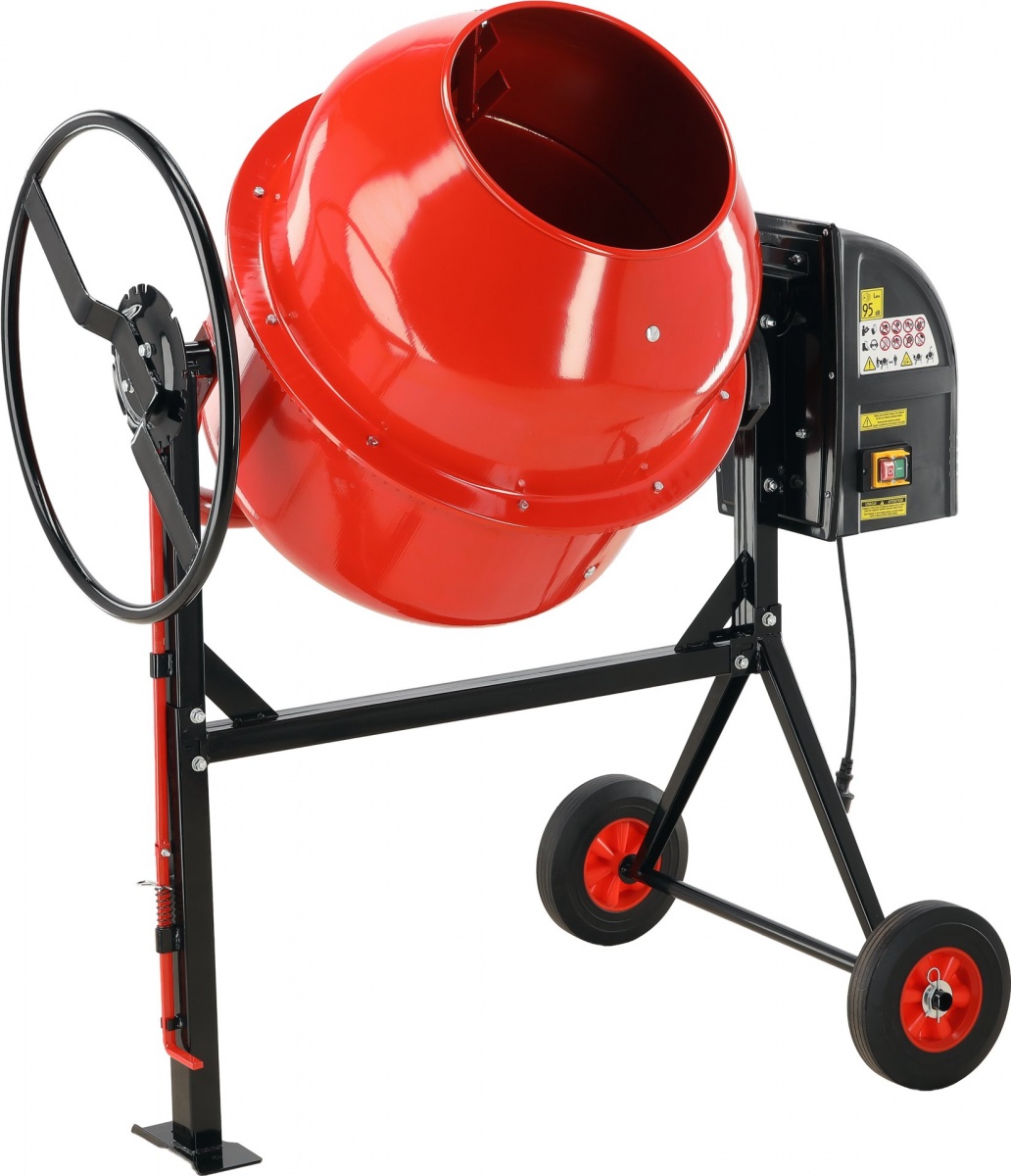

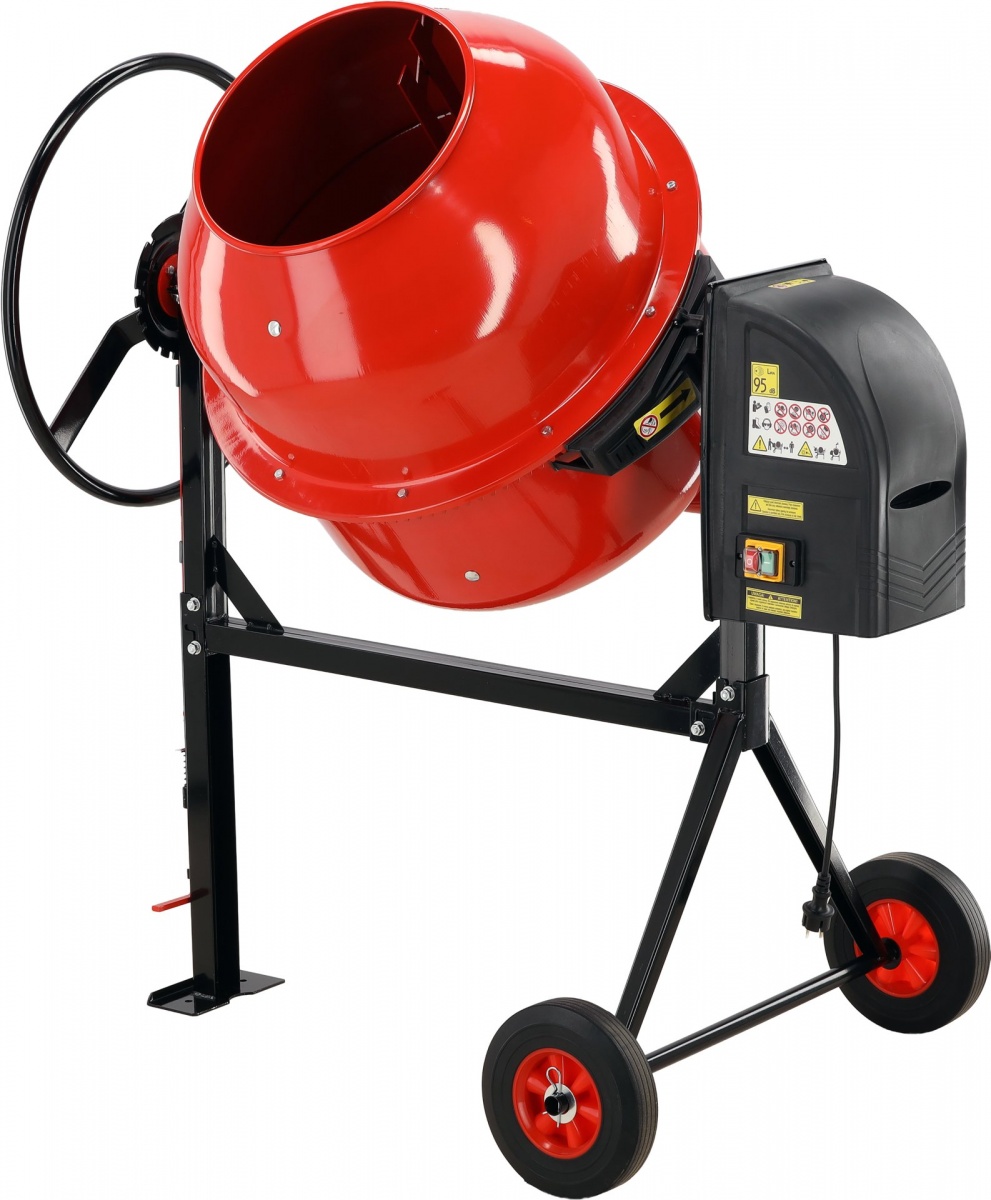

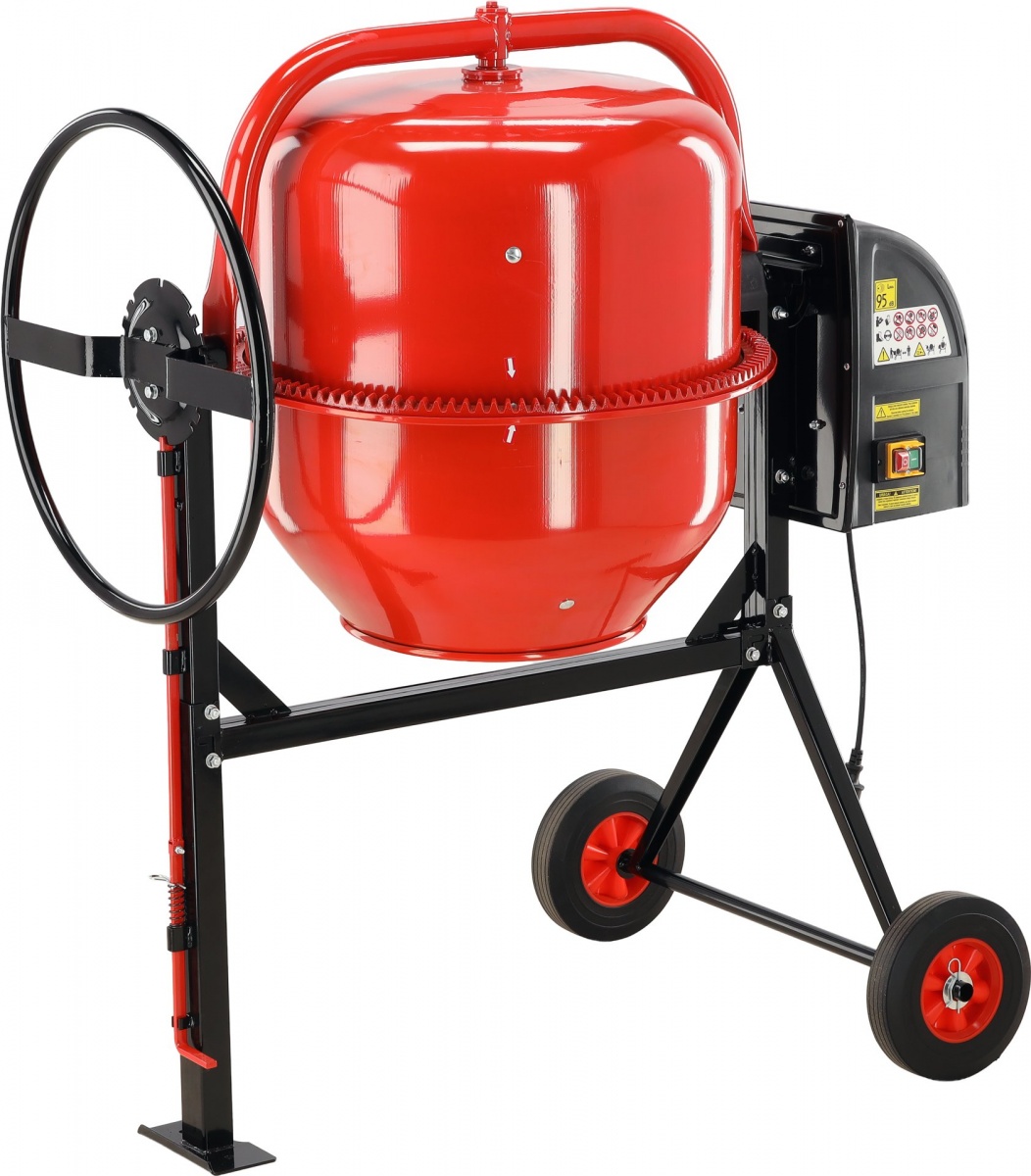

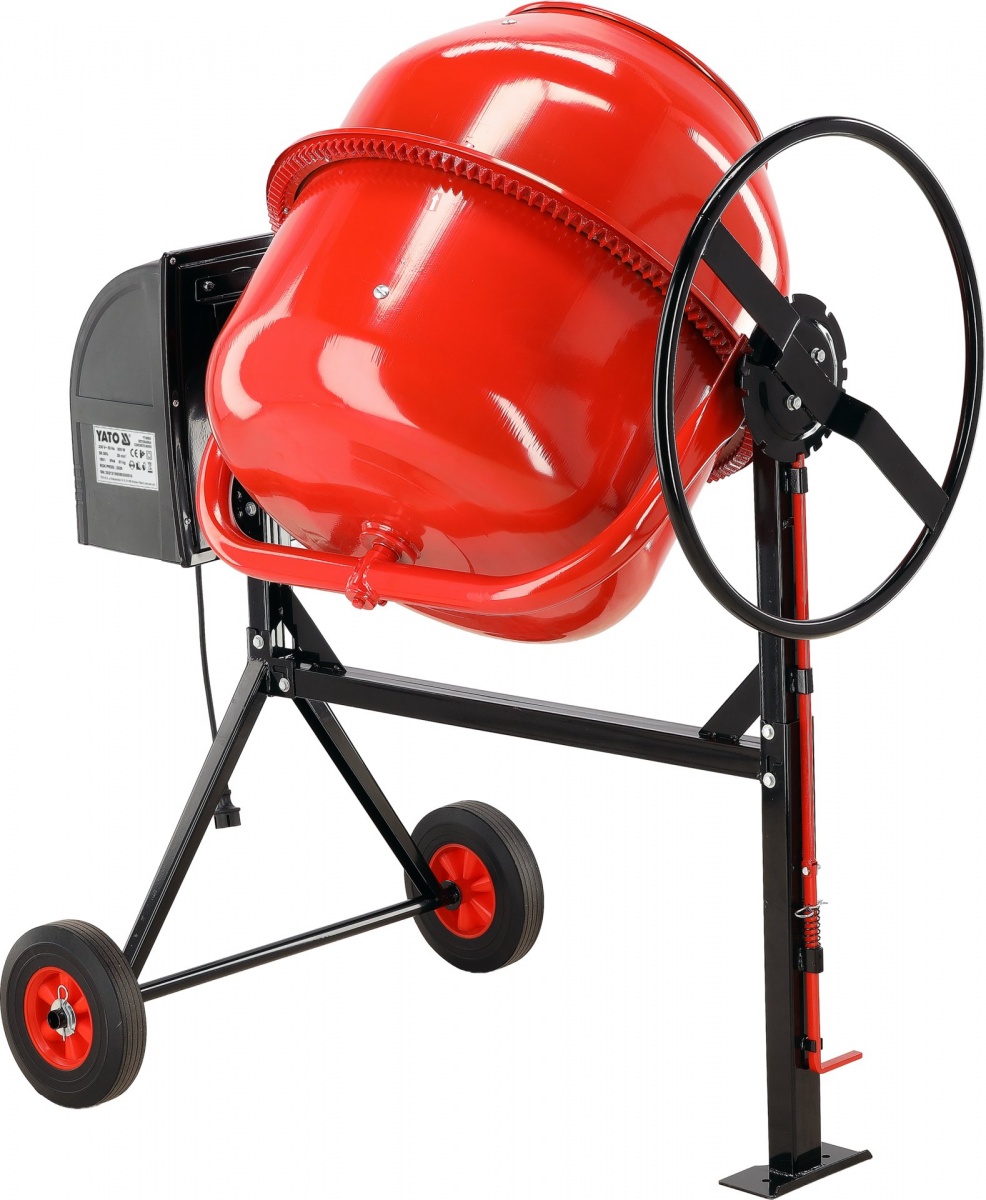

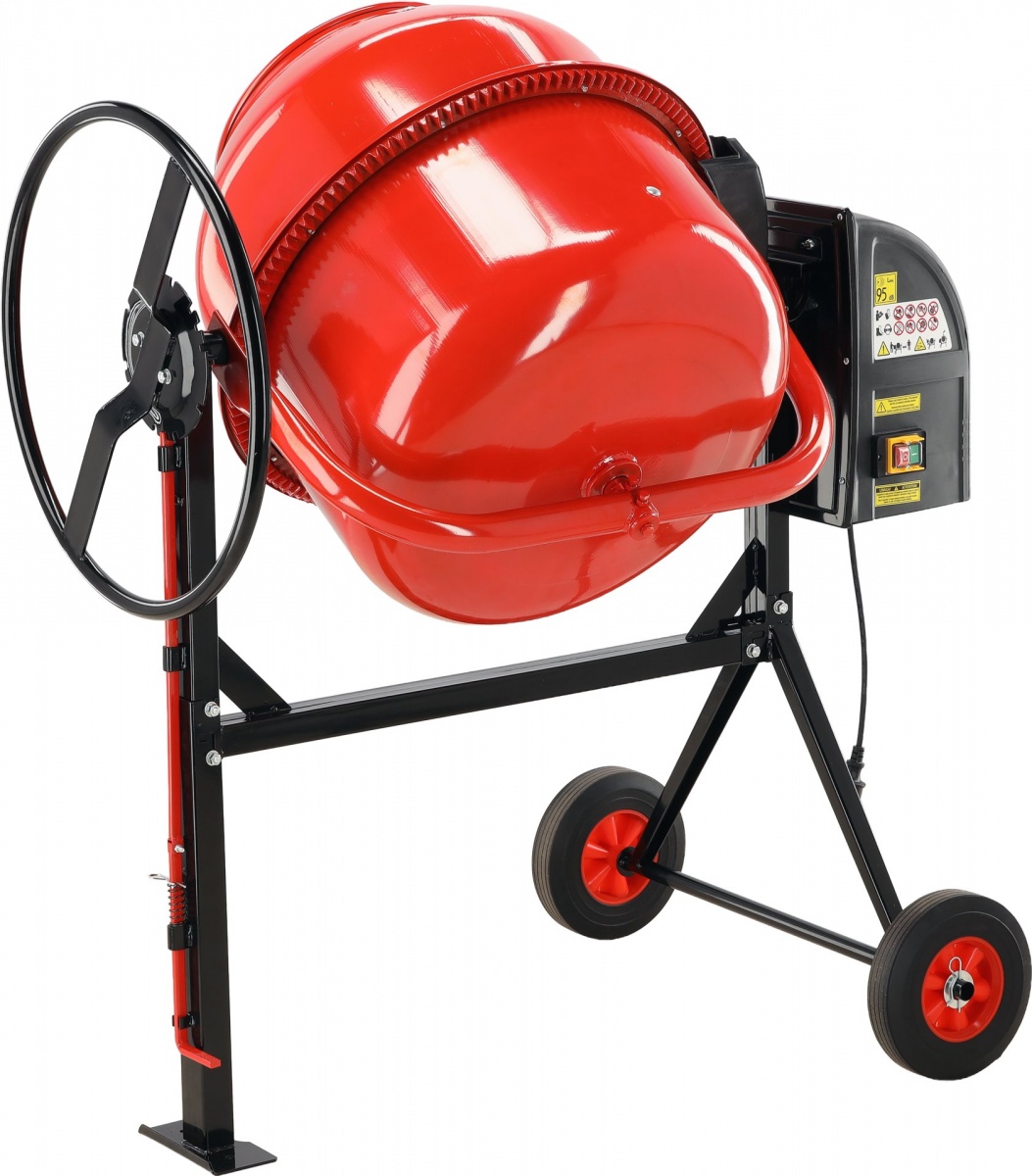

The YATO YT-90603 electric concrete mixer is designed for preparing concrete, cement mortar, masonry mortar, plaster, and other construction mixtures during construction, renovation, and finishing work. Equipped with an 800 W motor with 100% copper windings, it ensures stable operation, high durability, and efficiency during intensive use.
The 180-liter drum allows for the preparation of large quantities of mix at a time, increasing work efficiency on the construction site. The reinforced drum structure with 1.2/1.8 mm wall thickness, cast iron gear ring, and sturdy steel frame ensure high resistance to mechanical stress and long service life. A tilting mechanism with a locking mechanism facilitates controlled emptying of the drum, and large transport wheels facilitate easy movement between work stations.
Technical specifications:

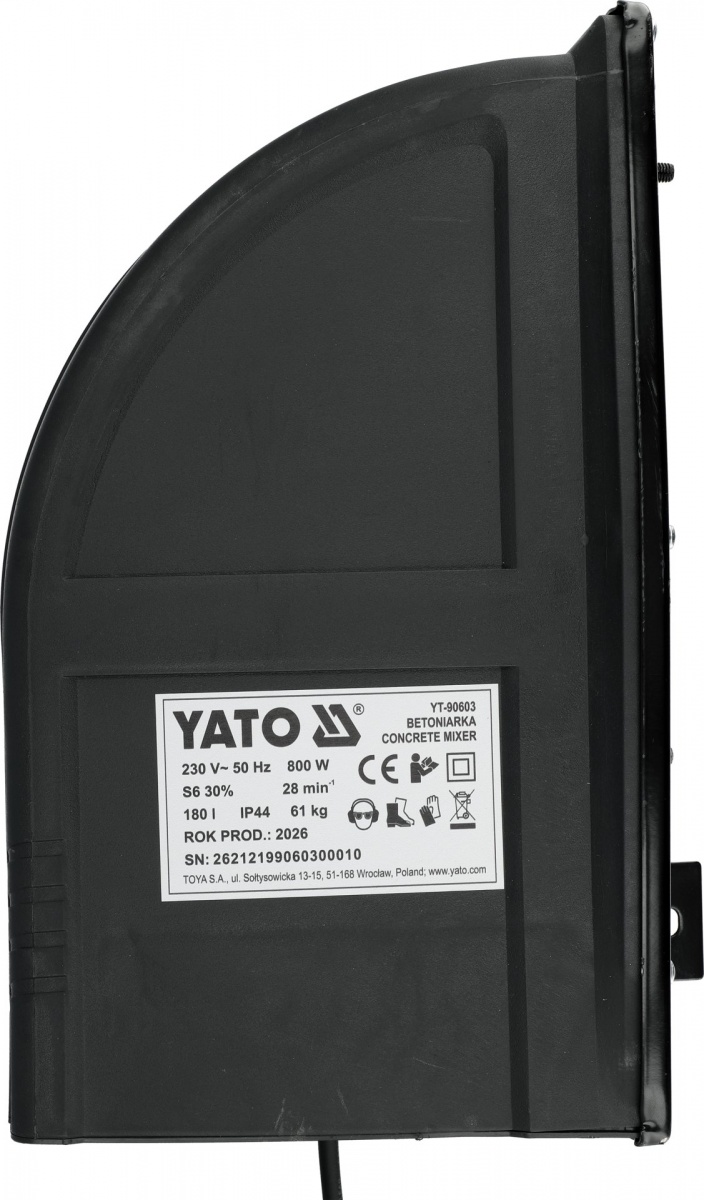

Type: Electric concrete mixer
Power supply: 220–240 V / 50 Hz
Motor power: 800 W
Drum capacity: 180 l
Motor winding: 100% copper
Drum speed: 29 rpm
Gear ring: Cast iron
Drum diameter: 630 mm

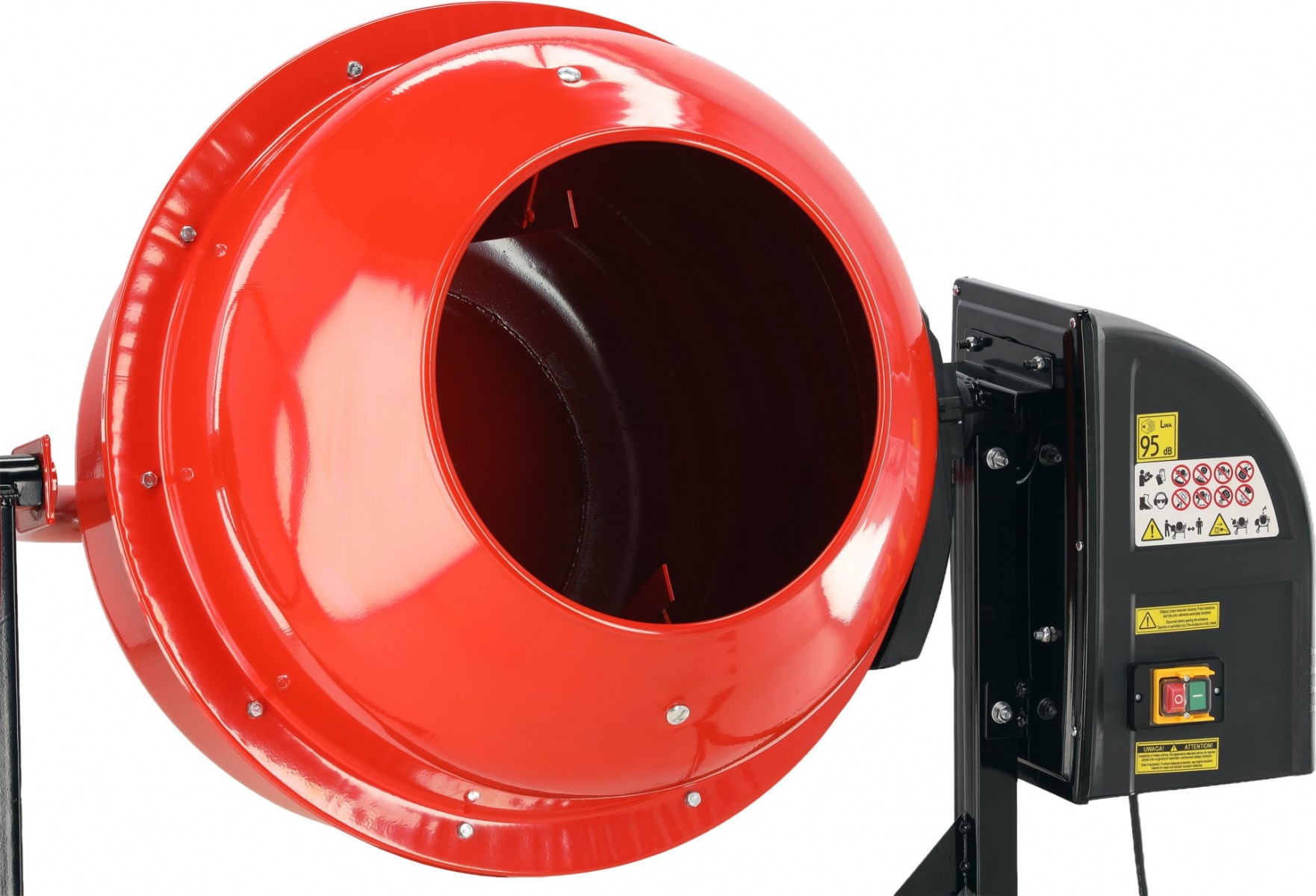

Feed opening diameter: 390 mm
Drum height: 680 mm
Drum wall thickness: 1.2 / 1.8 mm
Dimensions: 1260 × 850 × 1400 mm
Net weight: 61.5 kg
Gross weight: 65.5 kg
Design and materials:

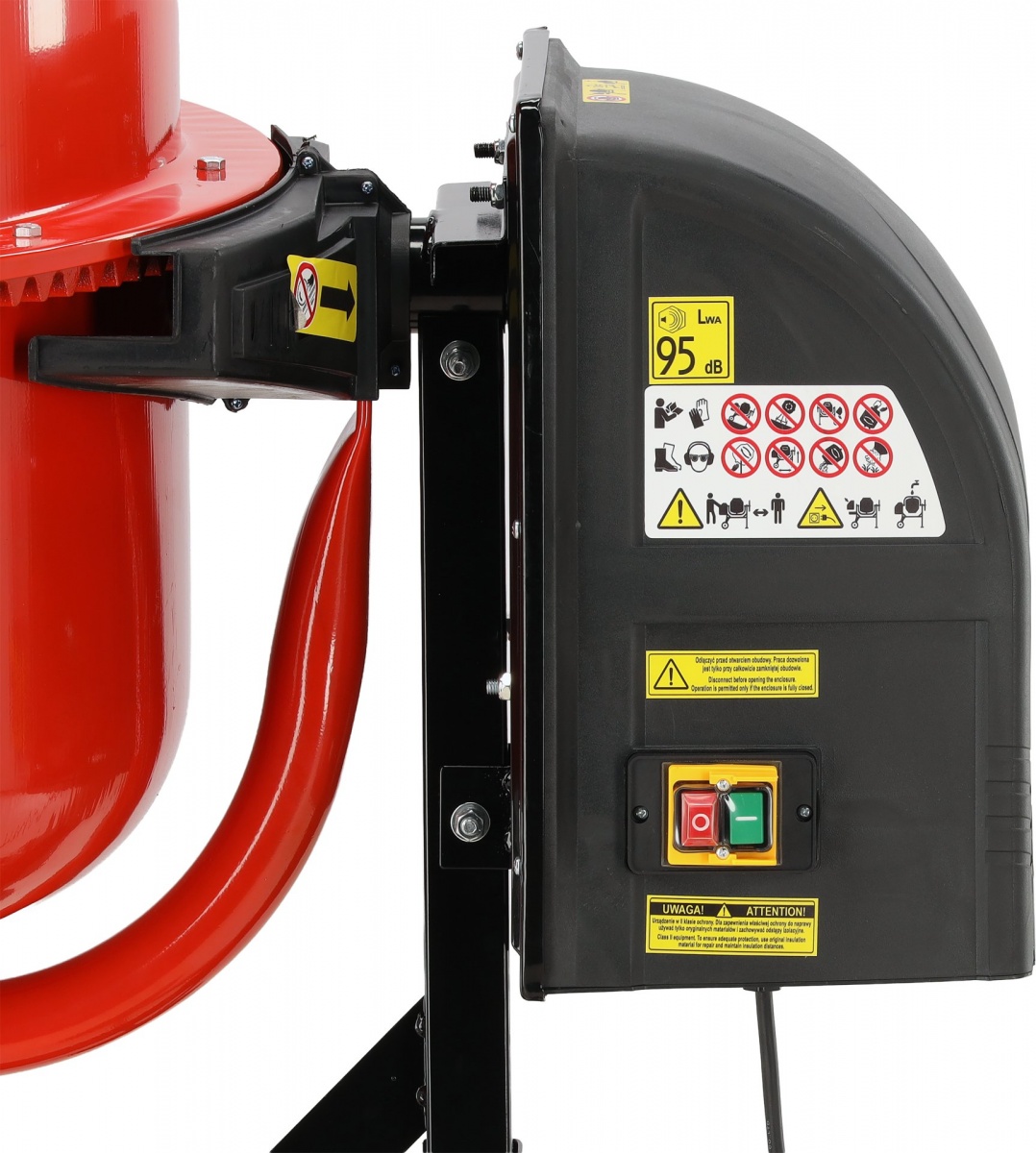

Electric motor with 100% copper windings, ensuring high efficiency, durability, and efficient heat dissipation

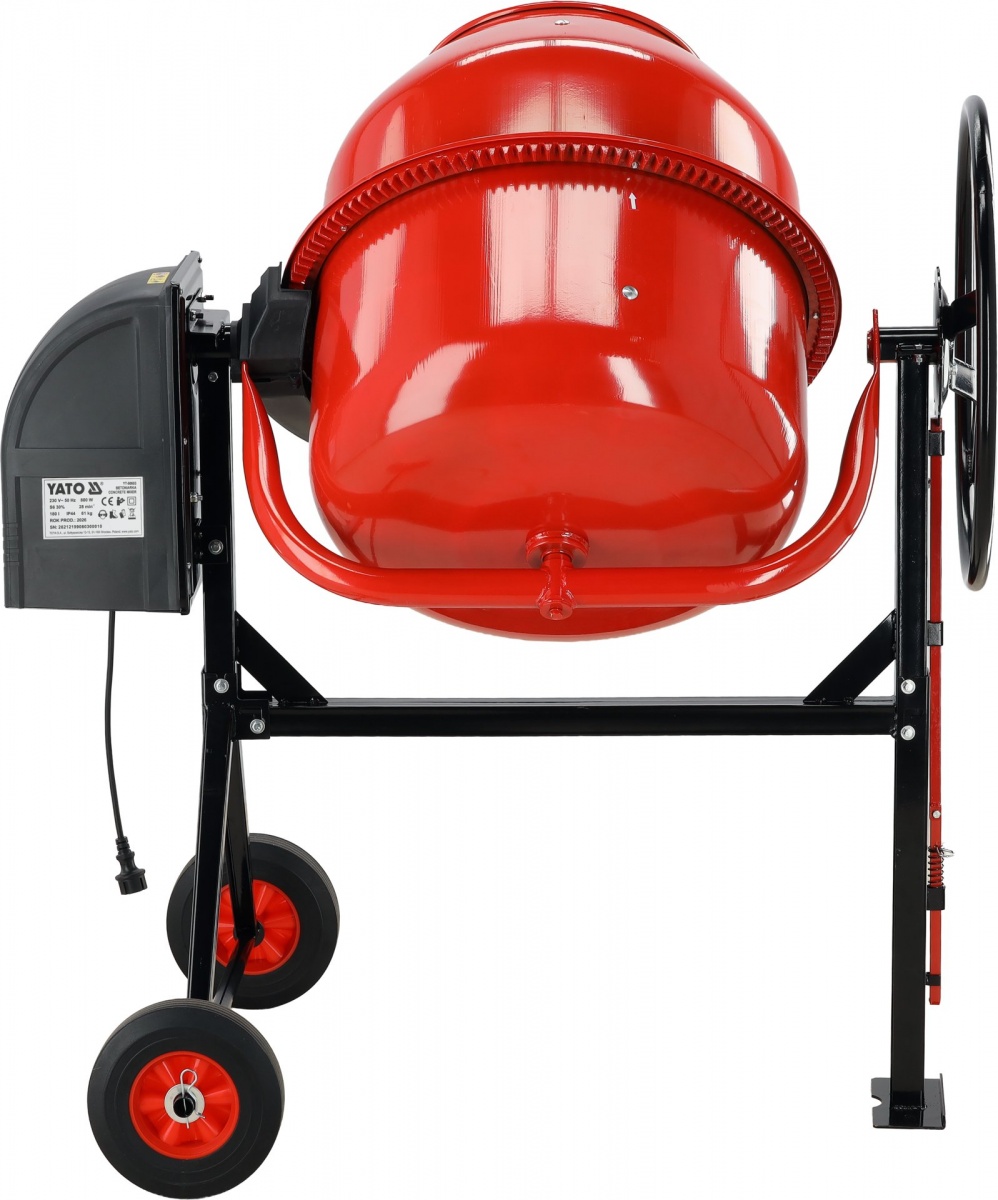

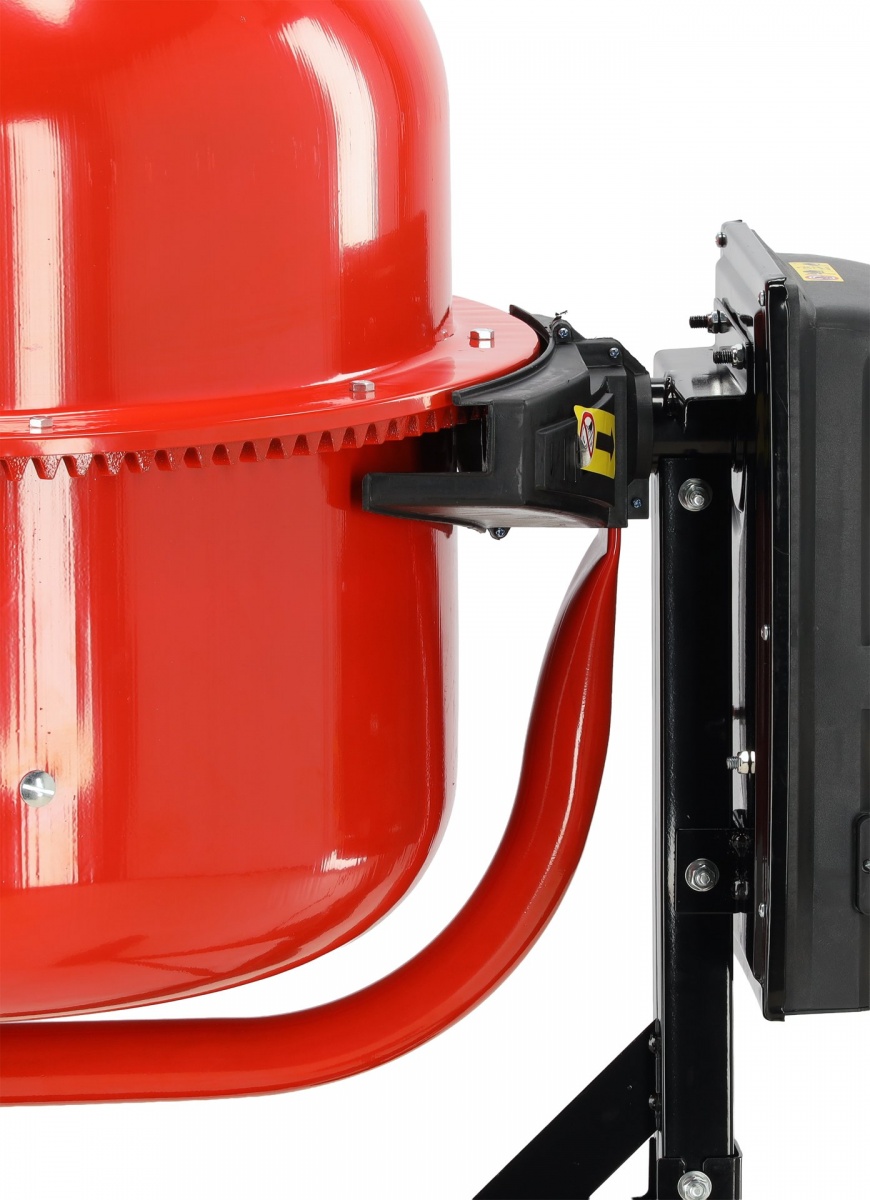

Cast iron gear ring Highly resistant to abrasion and intensive use
Reinforced steel drum with 1.2/1.8 mm wall thickness, resistant to deformation and mechanical damage

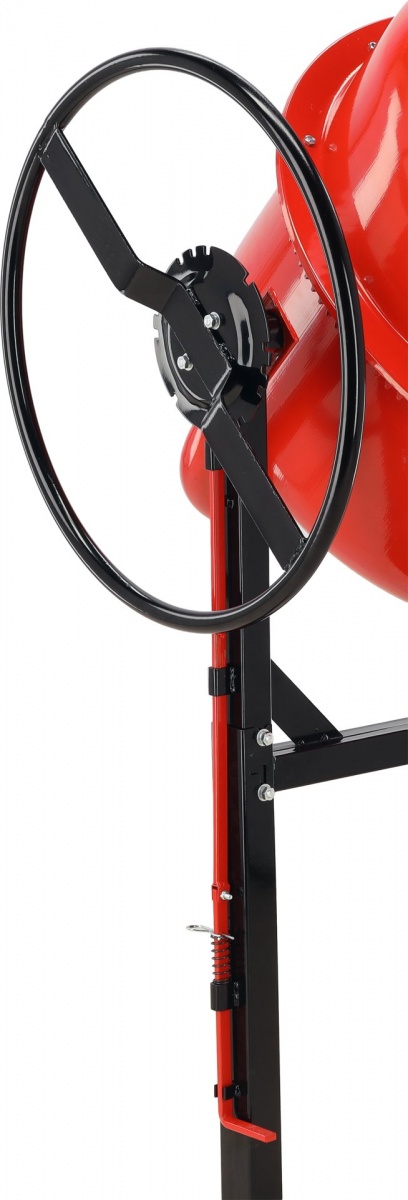

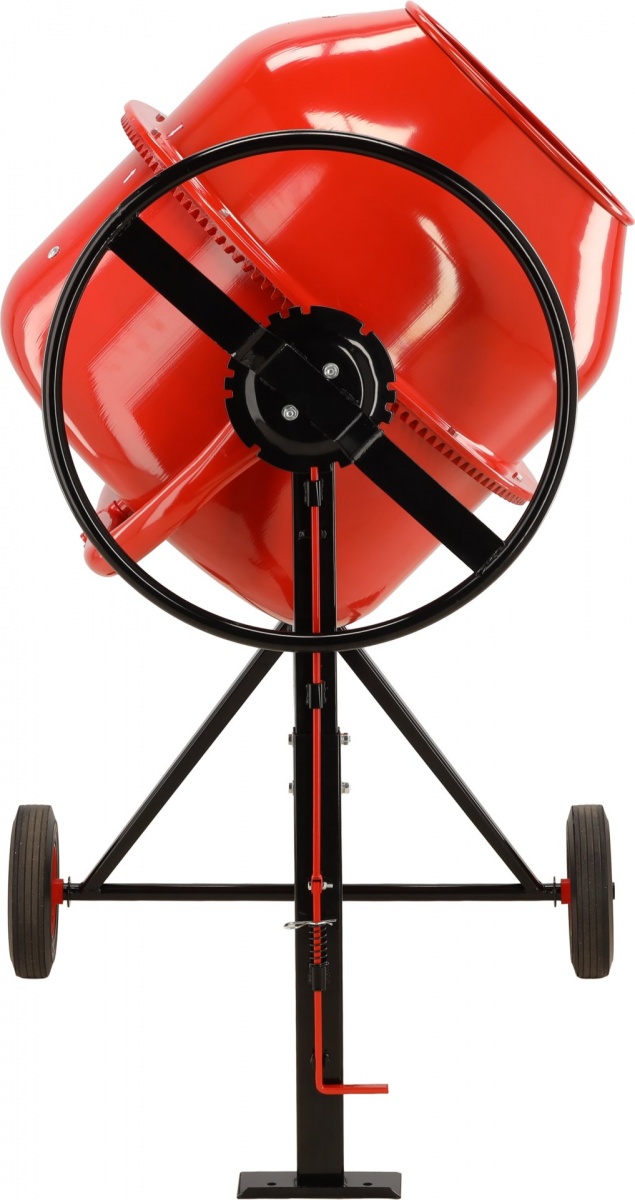

Tilting mechanism with locking mechanism allows for smooth and controlled emptying of the drum
Powder-coated steel frame with increased resistance to corrosion and operation in demanding conditions

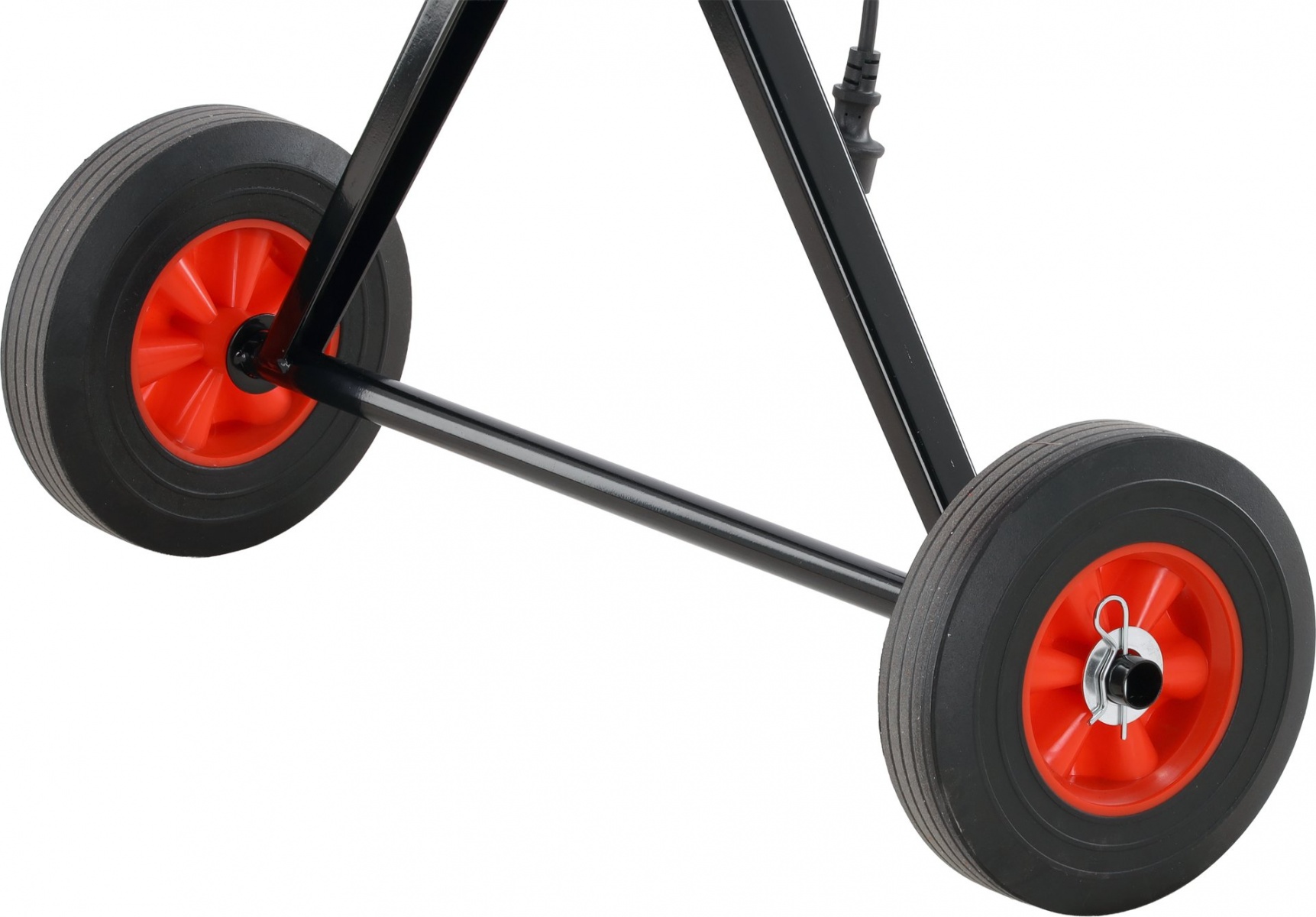

Large transport wheels facilitate movement of the unit on the construction site
Applicable for:
Concrete
Cement mortars
Masonry mortars
Plaster mortars
Other construction mixtures
The unit is used in the construction of single-family homes, garages, outbuildings, and for the construction of foundations, floors, sidewalks, driveways, and fences. The 180-liter drum capacity, durable construction, and components resistant to intensive use ensure high performance and comfortable operation during a variety of construction and renovation projects.
