Description
universal application for vehicles with a hub diameter of Ø 15.0 - 26.0 mm
for mounting single and double disc dry clutches
for centering of clutch discs on cars with and without pilot bearings
suitable for cars, SUV and small trucks with front, rear and 4-wheel drive

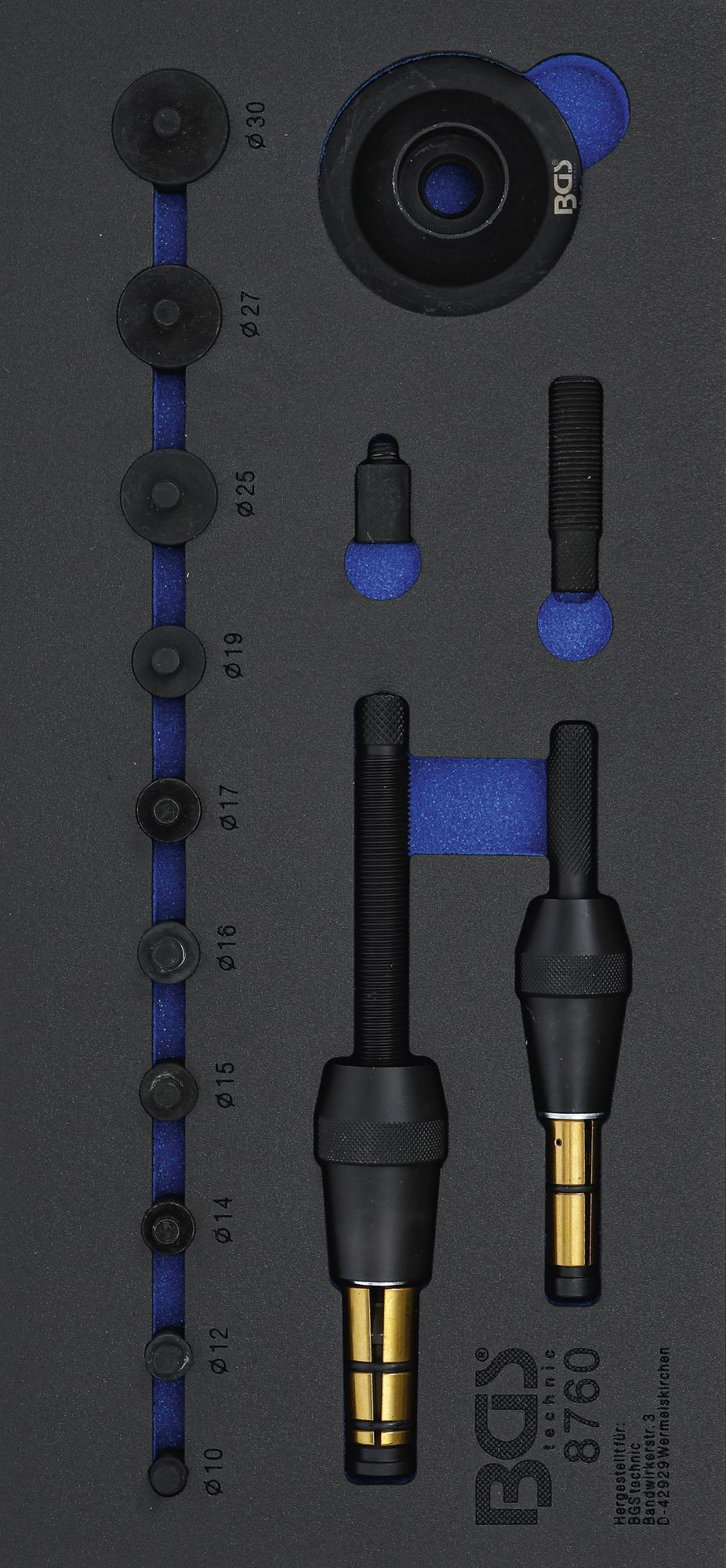

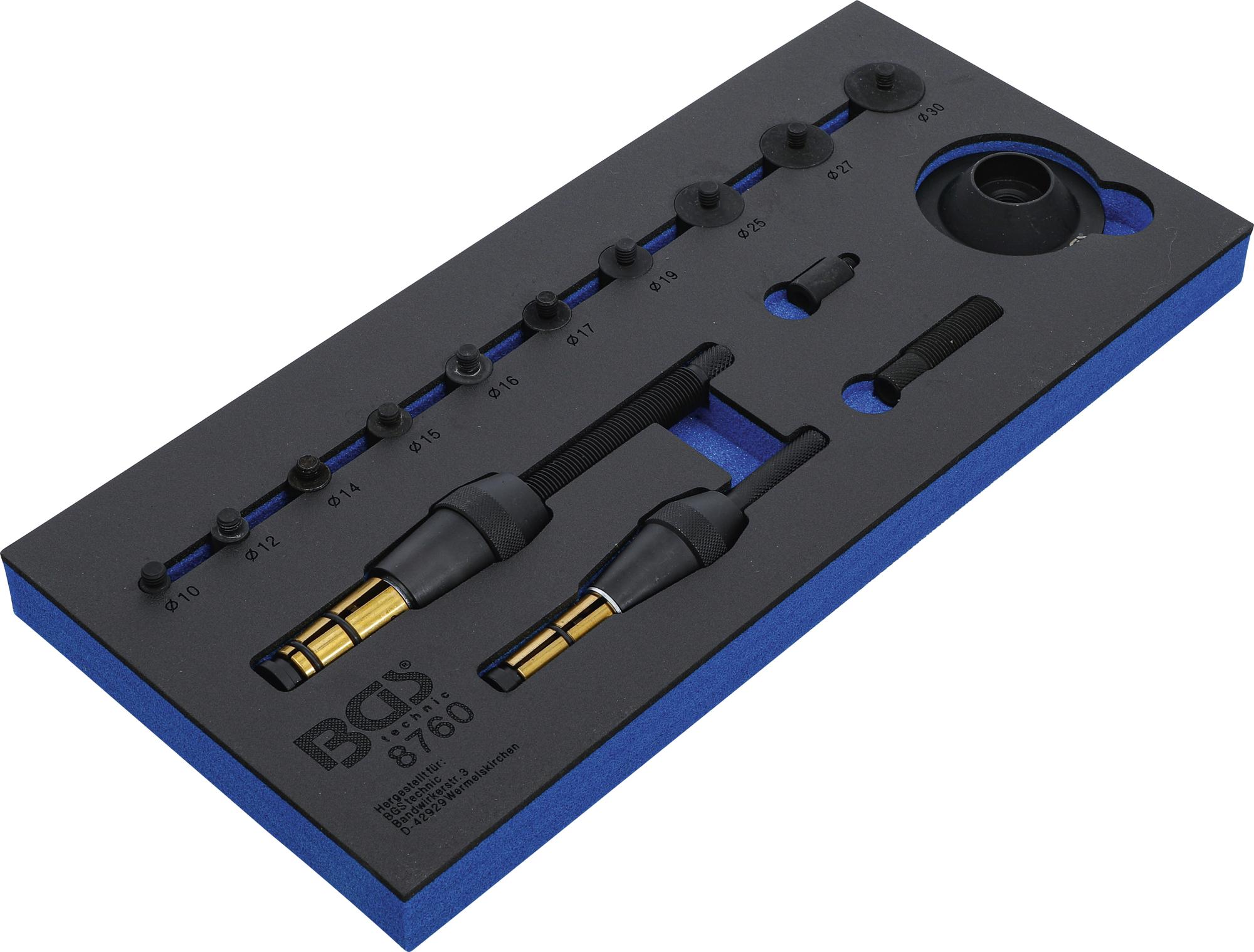

scope of delivery:
spindle guide: 55 mm long, M15 x 1.5, mandrel range: 15 mm to 19 mm
spindle guide: 100 mm long, M15 x 1.5, mandrel range: 19.5 mm to 26 mm
spindle guide: 150 mm long, M15 x 1.5 thread for small and large cones
small cone adaptor, spindle inner thread: M15 x 1.5, range: 19 - 30 mm, inner diameter: 20 mm, suitable for 55 mm spindle guide
large cone adaptor, spindle inner thread: M15 x 1.5, range: 26 - 35 mm, inner diameter: 27 mm, suitable for 100 mm spindle guide
dual disc adaptor height: 30 mm, cone side: 29 - 49 mm, plate side: 49 - 69 mm, for clutches without pilot bearing
pilot adaptor Ø 10 - 12 - 14 - 15 - 16 - 17 - 19 - 25 - 27 mm, for clutches with pilot bearing
Technical data
Gross weight 2000 g
