Description
for alignment of chain housing cover and for removing of high pressure pump sprocket
during works on high pressure pump chain, for example
tools are complementary for engine timing tool set BGS 8156
suitable for the following models:
Focus 1.8 TDCi (2004 - 2011)
engine codes: KKDA, KKDB
C-Max 1.8 TDCi (2003 - 2007)
engine codes: KKDA , BHPA, HCPA
Tourneo Connect 1.8 TDCi (2002 - 2013)
engine codes: HCPA, HCPB (2002 - 2006), RWPA, R2PA, P7PA, P9PA, R3PA (2006-2013), P9PB, RWPC (2009 - 2013)
Tourneo Connect 1.8 TDdi (2002 - 2006)
engine code: BHPA
Mondeo 1.8 TDCi (2007 - 2010)
engine codes: FFBA, QYBA, KHBA
Mondeo 1.8 TDCi ECOnetic (2008 - 2010)
engine code: KHBA
Transit Connect 1.8 TDCi (2002 - 2013)
engine codes: HCPA, HCPB (2002 - 2006), RWPA, P7PA, R2PA, P9PA, R3PA (2006 - 2013), P9PB, RWPC (2009 - 2013)
Transit Connect 1.8 TDdi (2002 - 2006)
engine code: BHPA

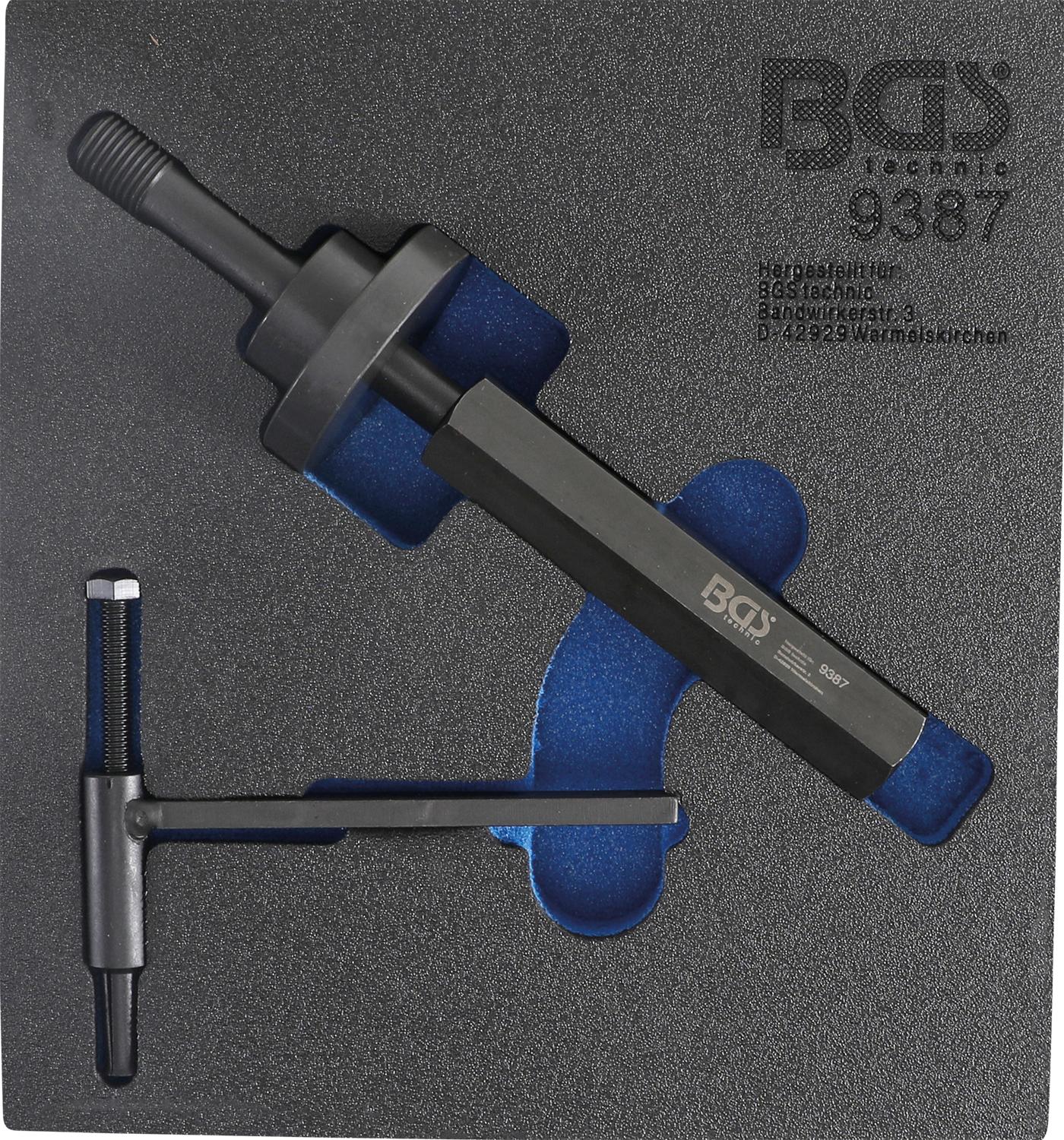

scope of delivery
chain housing cover alignment tool, to be used as OEM 303-652 (21-230)
high pressure pump sprocket disassembly tool, to be used as OEM 303-095 (23-067)
Technical data
Gross weight 730 g
To be used as OEM1 303-652 | 21-230 | 303-095 | 23-067 Ford
