Описание:
Марка:
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Series
GRE
Operating voltage
6, 12 V d.c.
Voltage range
0-16 V d.c.
CCA range
200-1000 A
Load measurement current
135 A
Load test time mode
10 s / 5 min
Tested accumulators type
lead-acid
Voltage indicator type
analog
Working temperature range
0~40 ˚C
Storage temperature
0~55 ˚C
Weight
1.1 kg
Application
checking the battery charge and wear status
Symbol
YT-83111

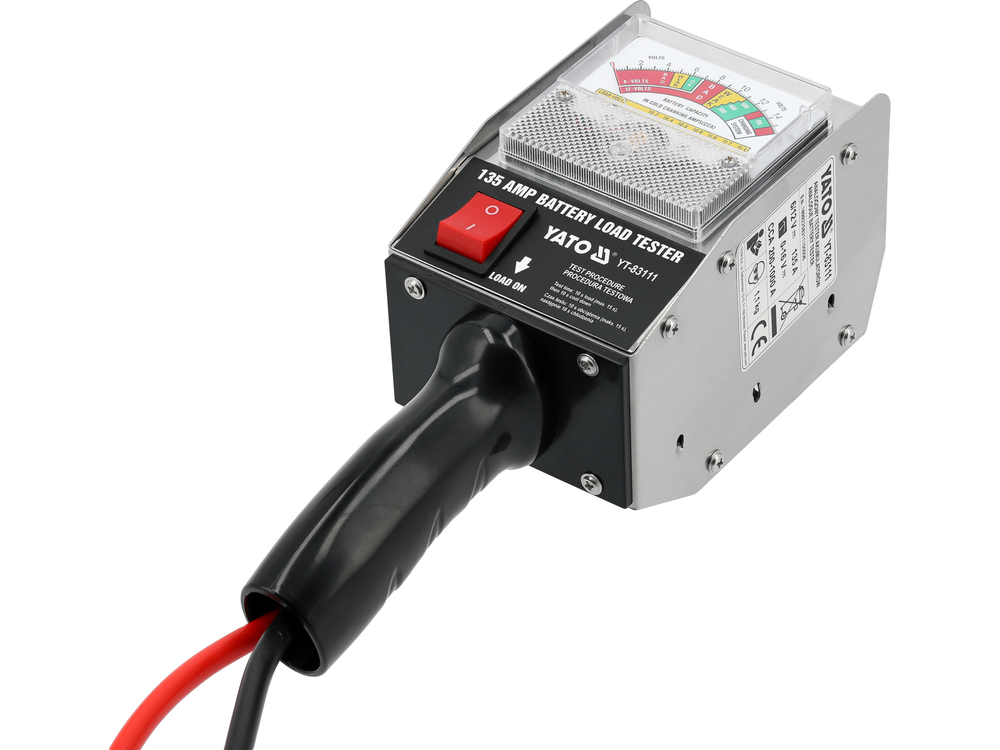

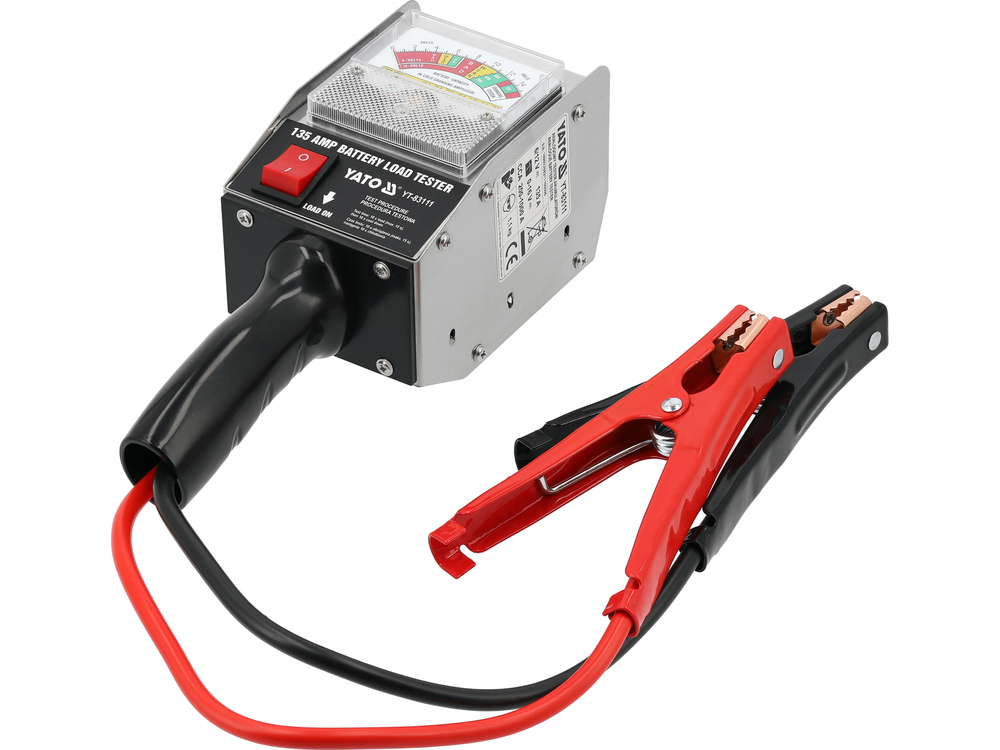

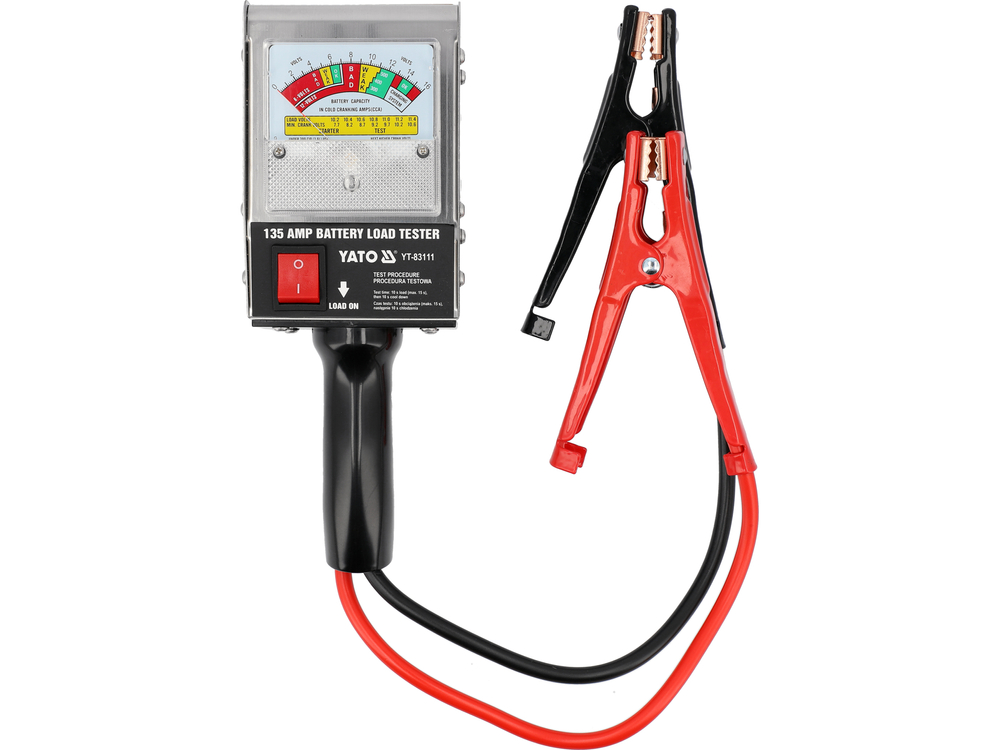

Analog battery tester designed for quick and reliable diagnosis of the state of charge and level of battery exploitation. Allows for evaluation of their actual performance through a test under real load, especially useful in workshops and technical services.

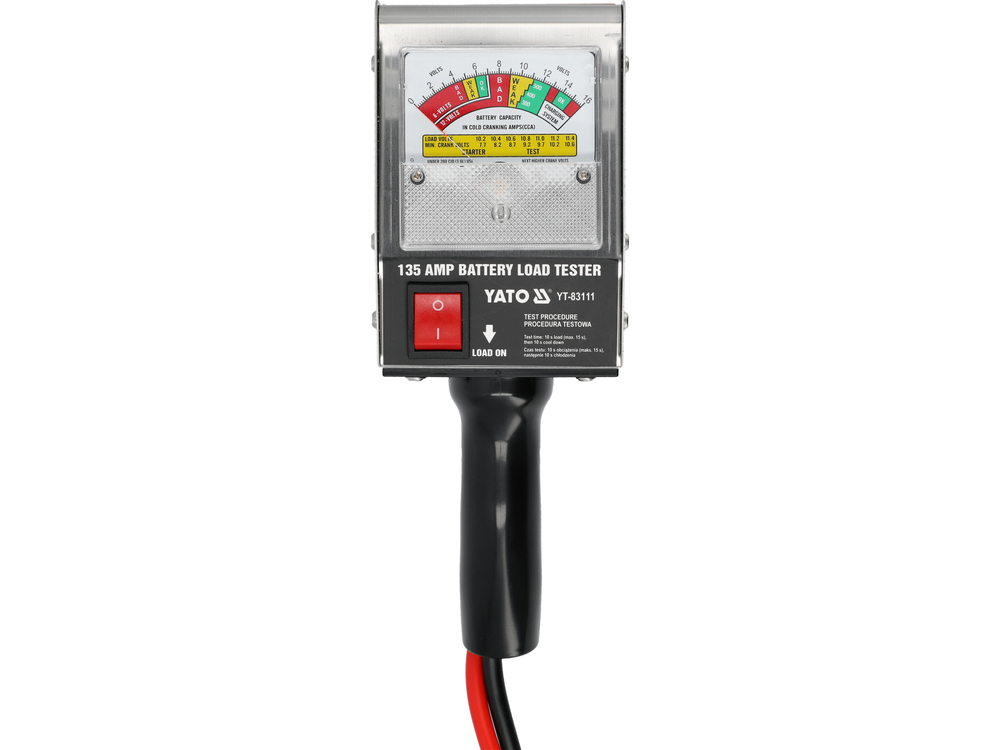

It supports 6 V and 12 V DC installations, enabling control of lead-acid batteries with a capacity of 30-135 Ah, as well as 12-volt lithium batteries. The applied analog voltage indicator ensures an immediate reading without delays.
Features and functions:
enables diagnostics of 6 V and 12 V lead-acid batteries with a capacity of 30-135 Ah and 12 V lithium batteries
load current at 135 A ensures a reliable test of cell condition
the applied temperature compensation mechanism corrects voltage by ±0.1 V for each ±10°C relative to the base temperature of 70°C, increasing measurement reliability in variable working conditions
test under real load allows for evaluating the battery's ability to deliver starting current
the device offers two time modes for load testing:
10 seconds - quick diagnosis of current state
5 minutes - in-depth test, useful for evaluating used or problematic batteries

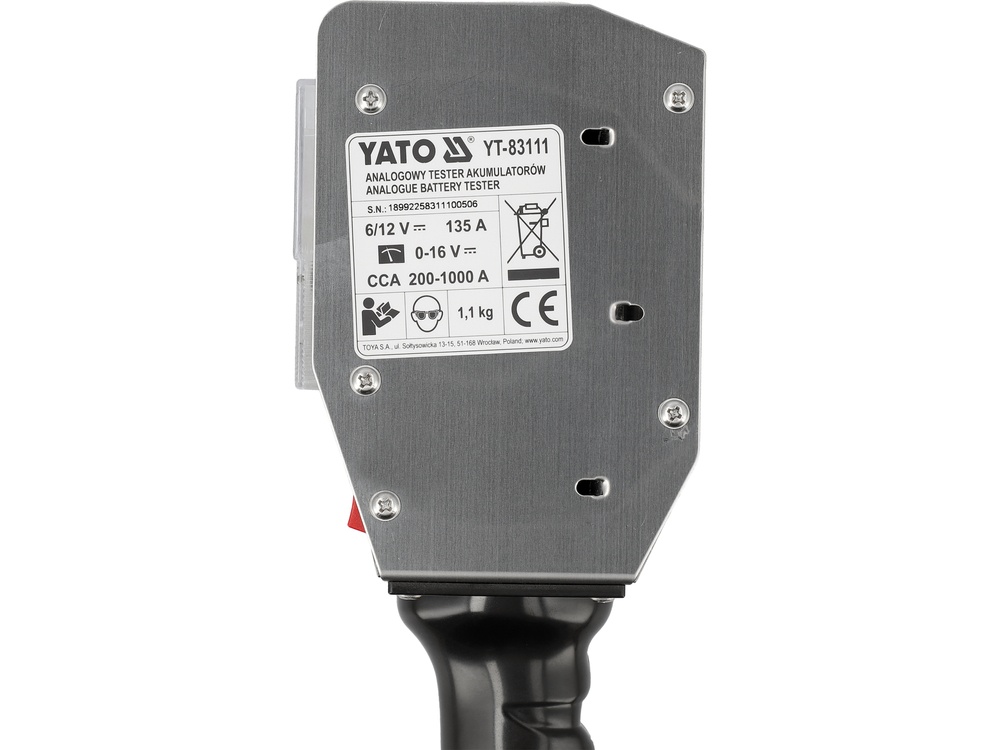

the stainless steel metal housing increases mechanical resistance and device durability
high-temperature resistant microporous plate insulation improves safety during load tests
ventilation hole in the lower part of the housing effectively dissipates heat

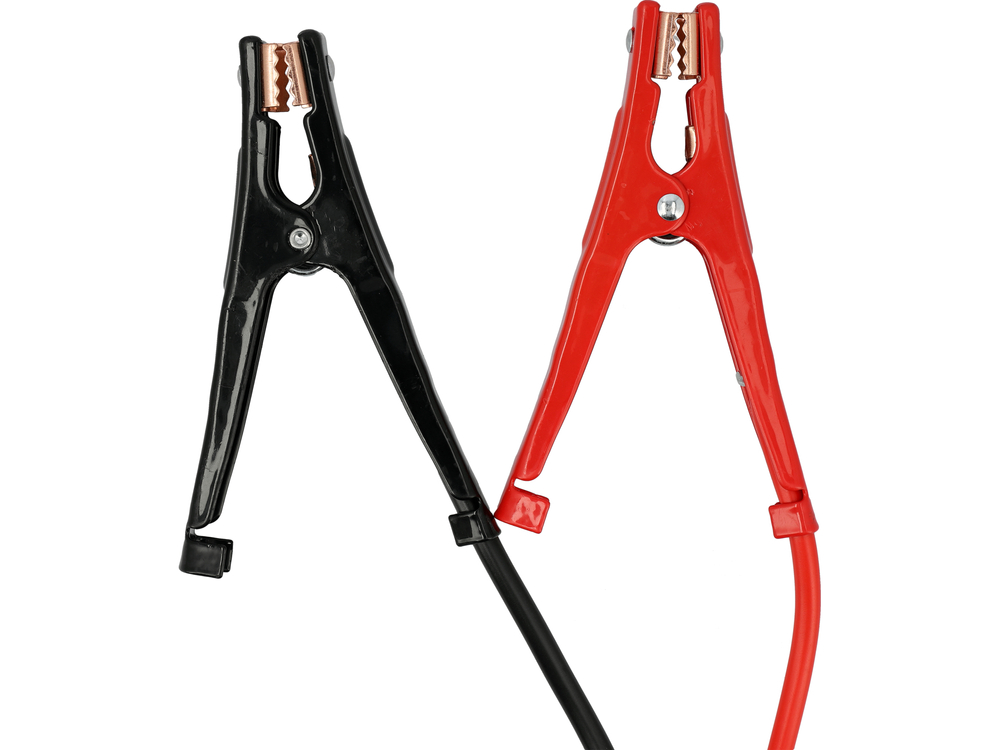

measurement cables with an effective length of 330 mm and a cross-section of 8 mm² limit voltage drops and stabilize measurements
CCA measurement range from 200 to 1000 A allows evaluation of both standard and high-power sources
Technical data:
operating voltage: 6 / 12 V DC
voltage range: 0-16 V DC
CCA measurement range: 200-1000 A
load measurement current: 135 A
load test time mode: 10 s / 5 min
type of tested batteries: lead-acid
voltage indicator: analog
operating temperature: 0-40˚C
storage temperature: 0-55˚C
weight: 1.1 kg
