Replės jungčių užspaudimui su keičiamais antgaliais | 5 poros antgalių (1410)

(1)

Aprašymas:

Description

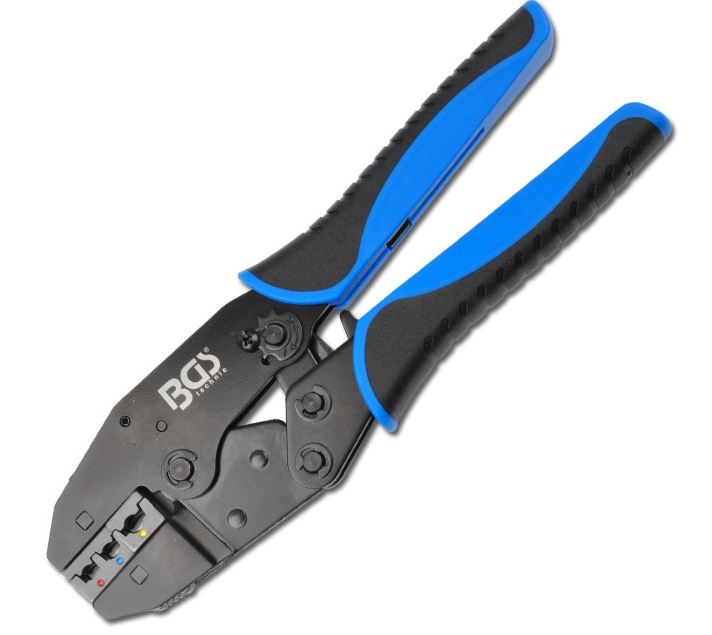

crimping tool set with ratcheting function, adjustable jaws an pressure point unlocking

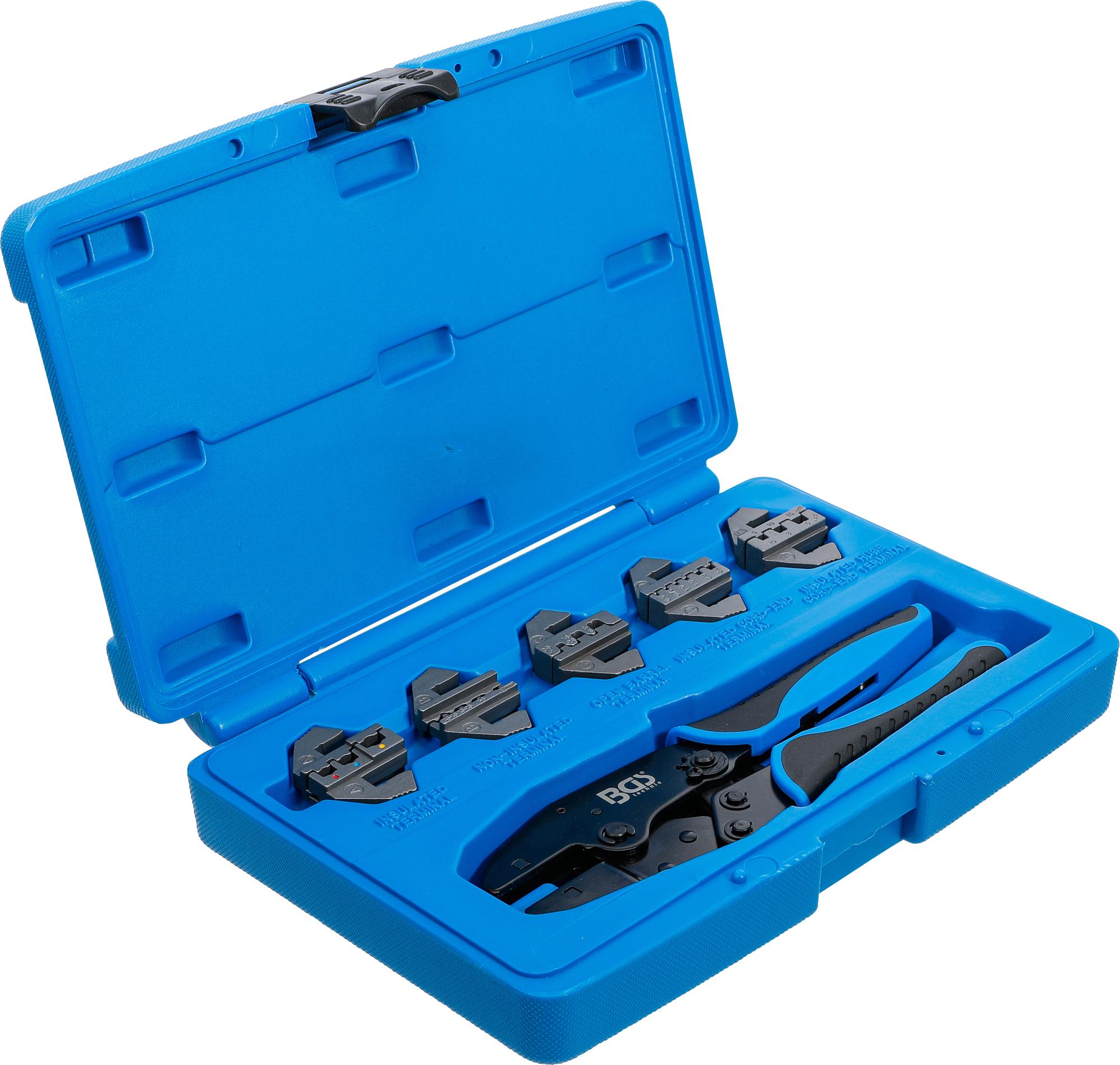

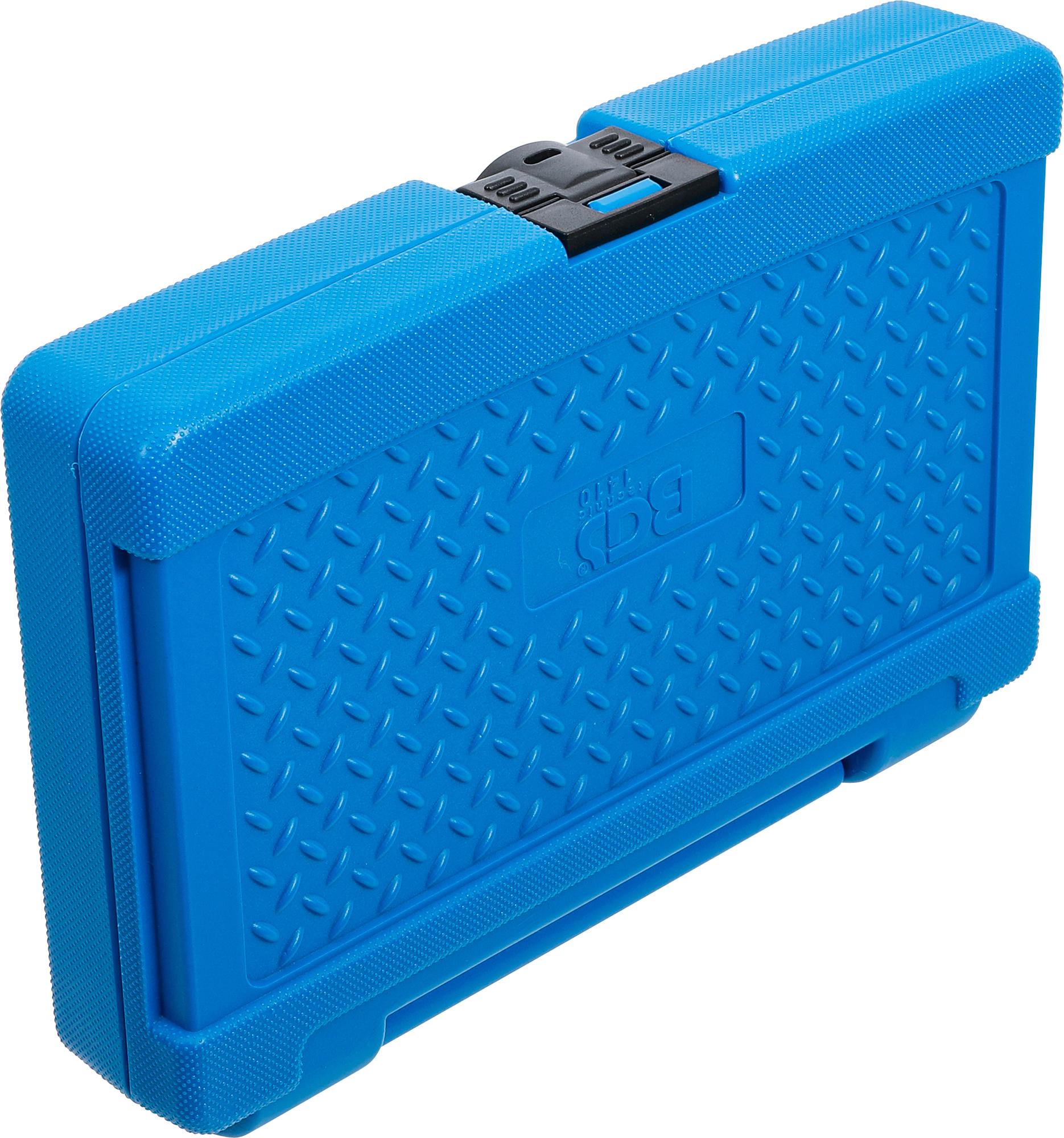

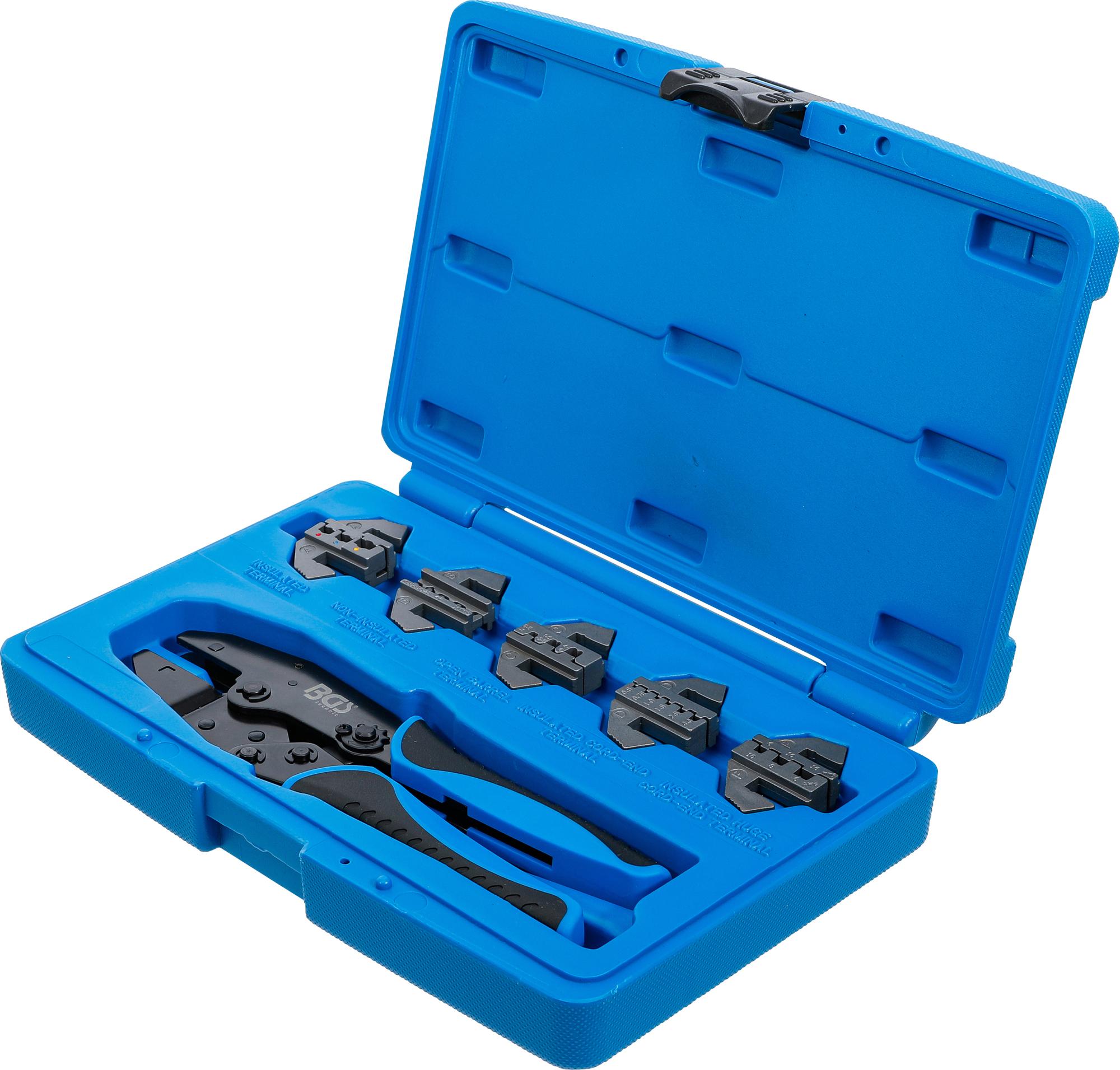

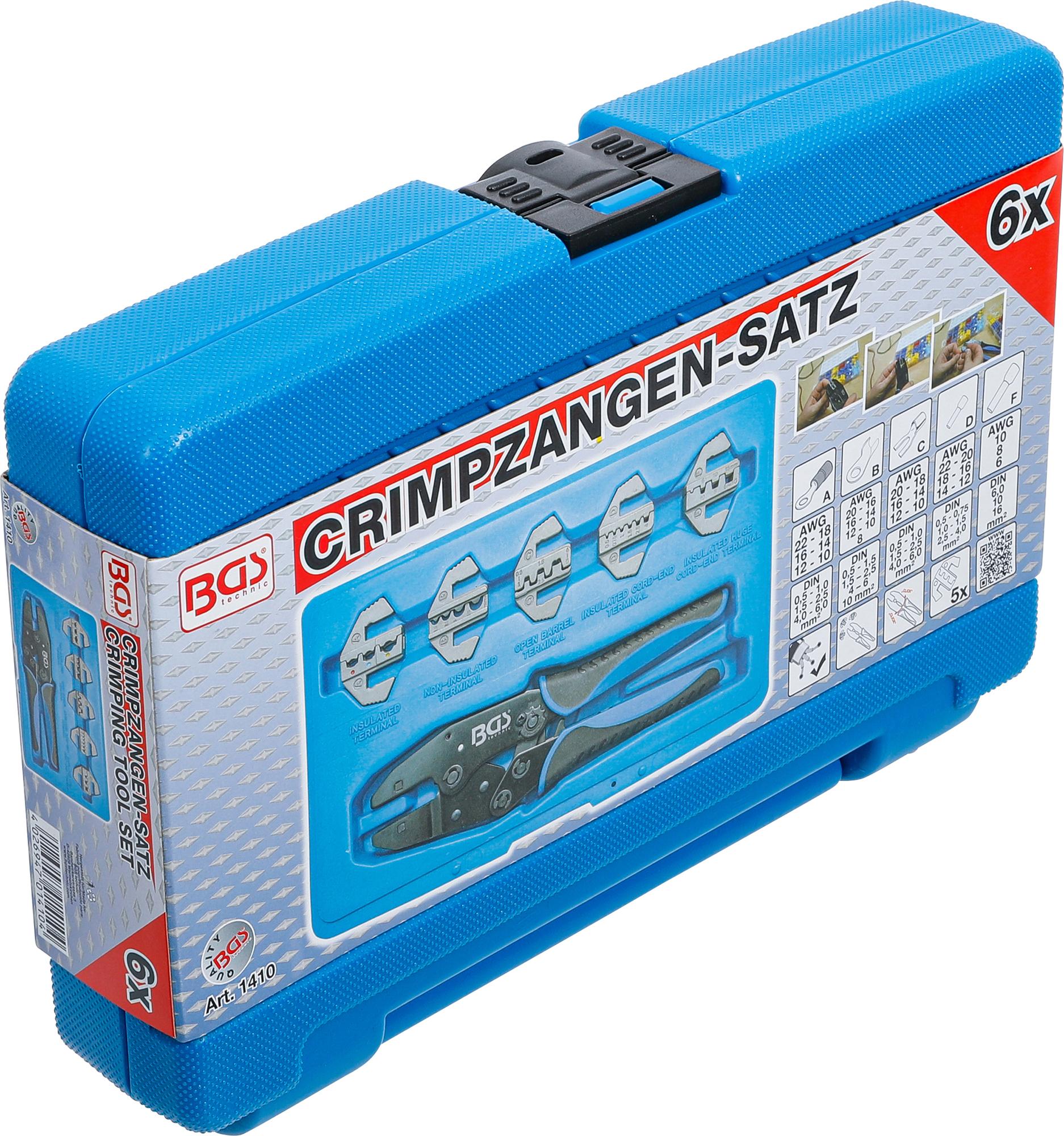

supplied in an acid-proof blow mould case

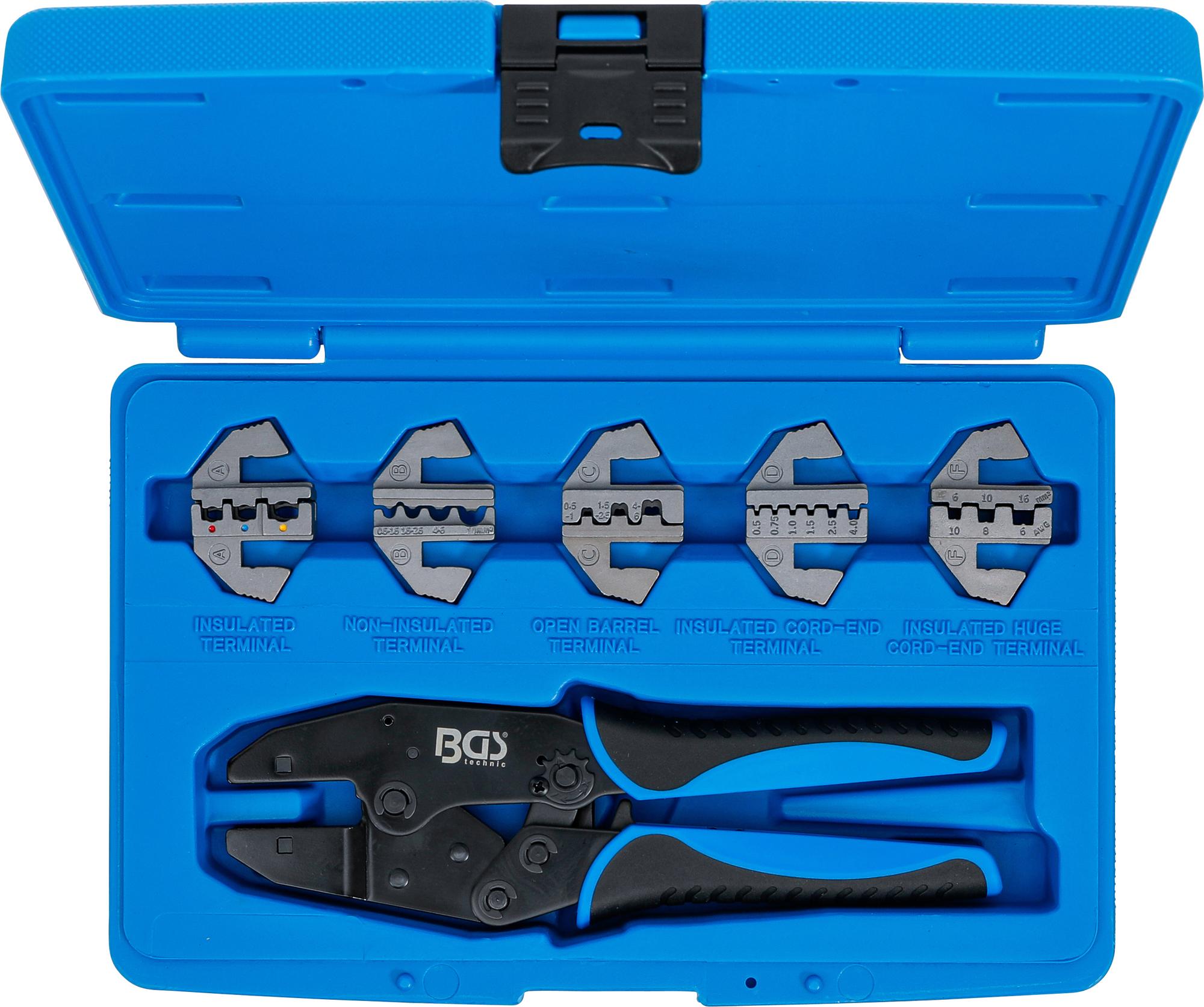

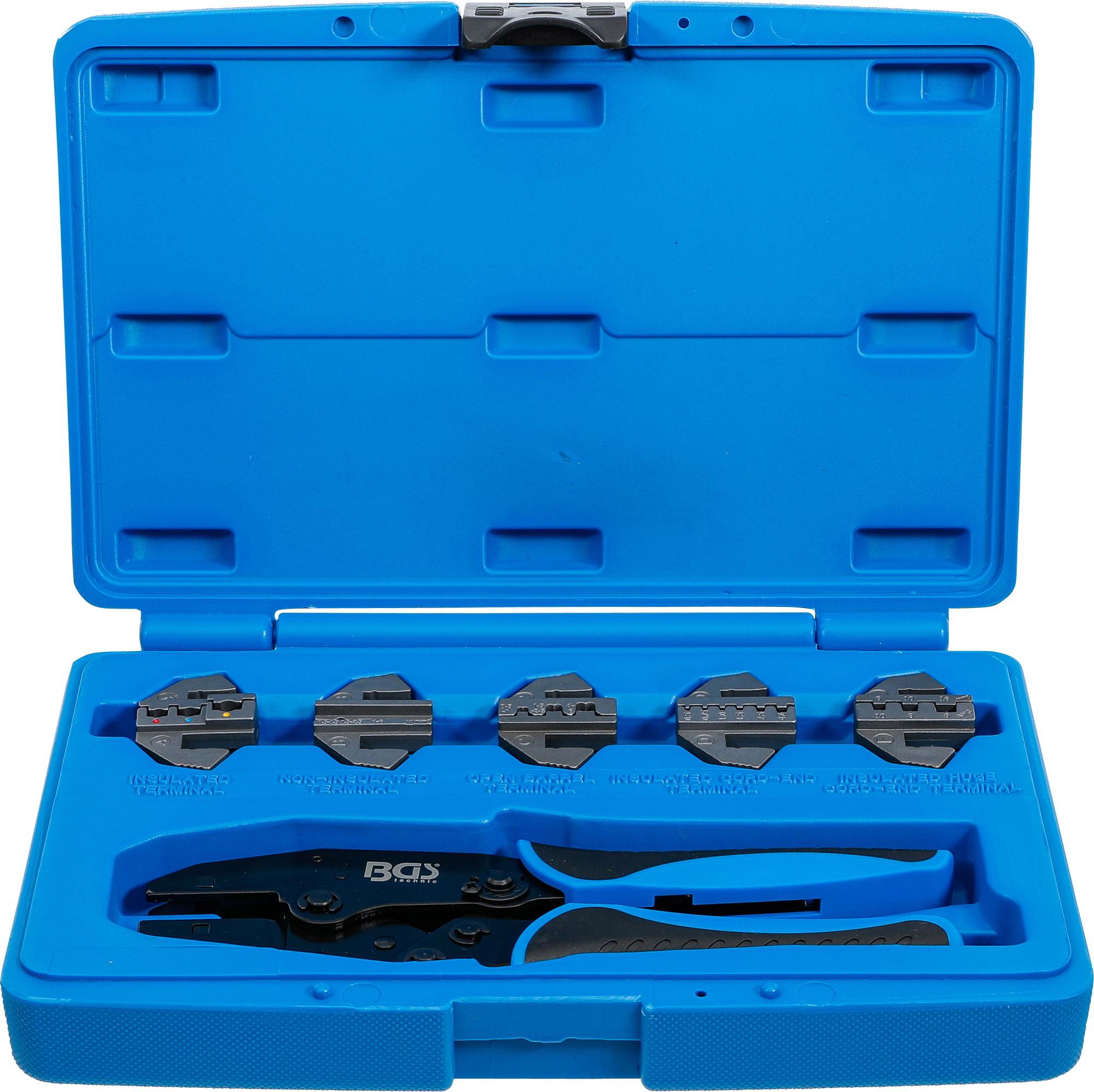

includes 5 exchangeable pairs of crimping jaws for:

non-insulated terminal ends:
AWG 20 - 18 / 16 - 14 / 12 - 10 / 8
DIN 1.5 / 2.5 / 6 - 10 mm²
non-insulated terminal ends:
AWG 22 - 18 / 16 - 14 / 12 - 10
DIN 0.5 - 1.0 / 1.5 - 2.5 / 4 - 6 mm²
open, non-insulated terminal ends:
AWG 22 - 18 / 16 - 14 / 12 - 10
DIN 0.5 - 1.0 / 1.5 - 2.5 / 4 - 6 mm²
small, insulated terminal ends:
AWG 22 - 18 / 16 - 14 / 12 - 10
DIN 0.5 - 1.0 / 1.5 - 2.5 / 4 - 6 mm²
big, insulated terminal ends:
AWG 10 / 8 / 6
DIN 6 / 10 / 16 mm²
Technical data
Gross weight 1170 g
