perfect for checking of car electricity
compact, light and handy

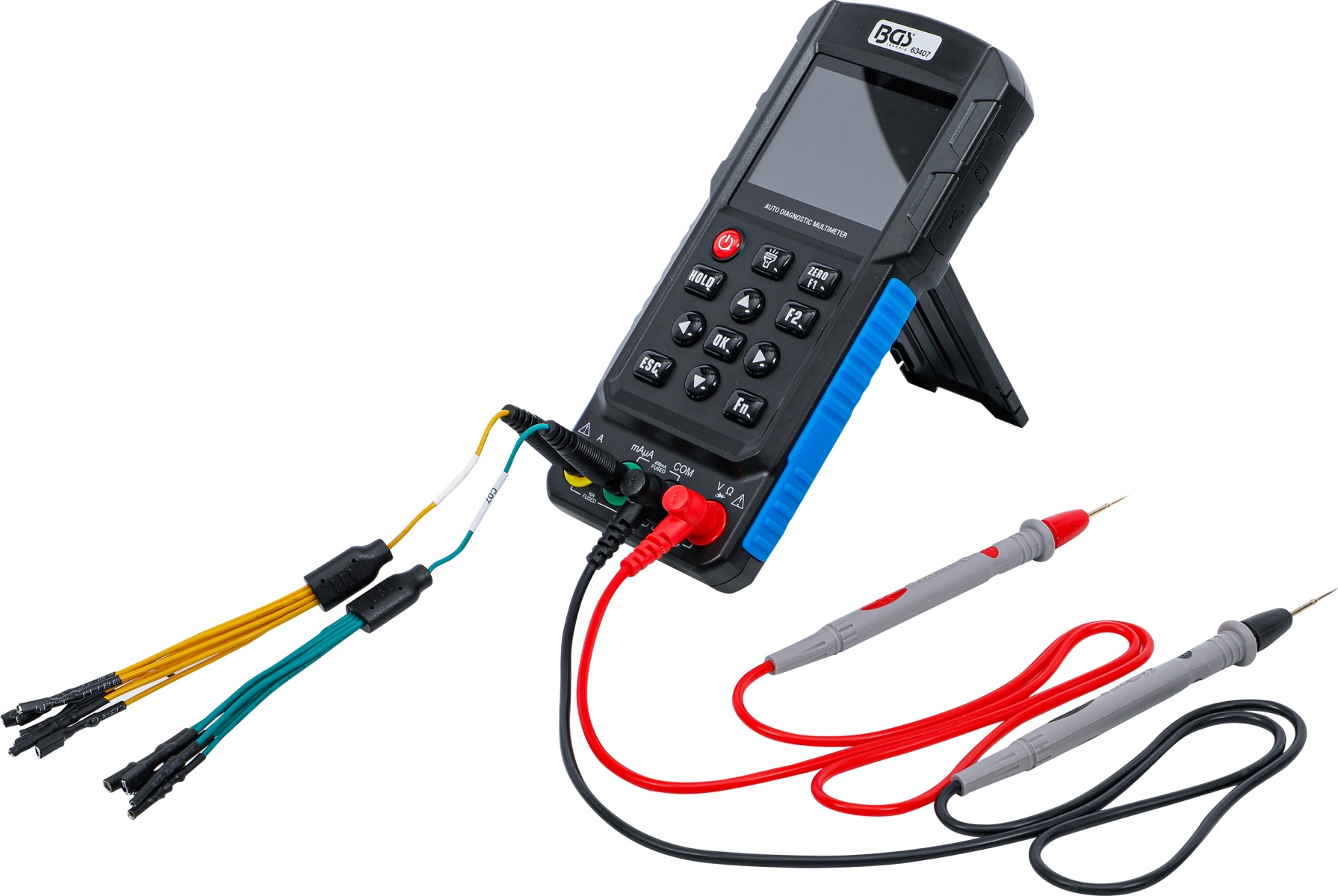

digital multimeter, oscilloscope and signal generator
Voltage measurements, for DC and AC voltage
input impedance: 2 to 3 MΩ below 160 V, 10 MΩ above 160 V
Maximum input voltage: 1000 Vpp, bandwidth: 500 kHz
current measurements, for direct and alternating current
Measuring range 0 mA to 200 mA, fused with 0.5 A (self-resetting)
Measuring range 200 mA – 20 A, fused at 15 A (self-resetting) for 10 A continuous measurements, 20 A short-term measurements
Resistance measurements for evaluating resistors and Temperature Sensors
Frequency measurements display pulsating voltage in Hz
Starter system test for checking the starter and charging systems
Injection nozzle test for controlling the injection nozzle and capturing the real-time signal
Relay test for relay control
K-line signal, outputs a 5V square-wave signal, baud rates: 1200, 2400, 4800, 9600, 10400, 19200, 38400, 57600, 115200
sinusoidal signal
5V signal, outputs a sine wave with a peak-to-peak value of 0 V to 4.5 V
Signal frequency from 1 Hz to 10 kHz, duty cycle: 10% to 90%
Oscilloscope for displaying ignition pulse signals, camshaft signals, crankshaft signals, wheel speed sensor signals, oxygen sensor signals, CAN bus data and K-line data
large illuminated LCD display
display resolution: 240 x 320 pixel
updateable

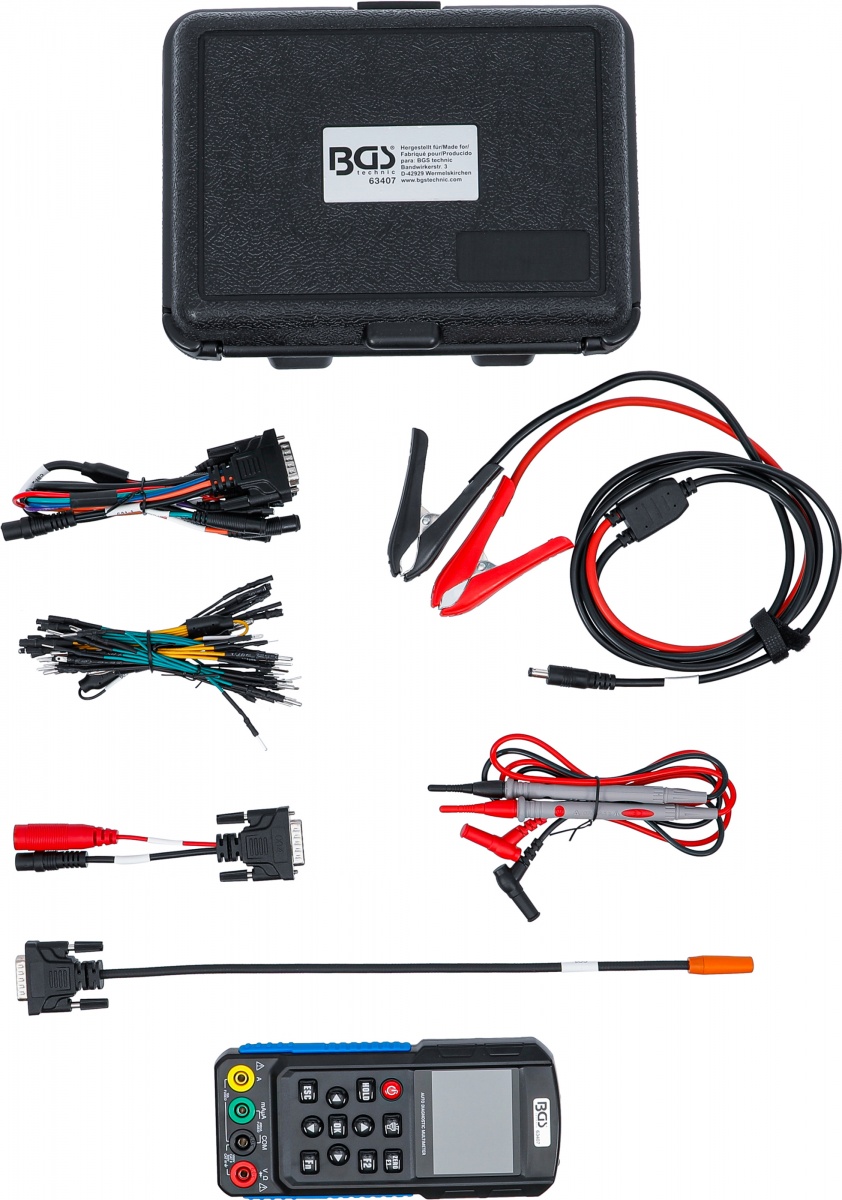

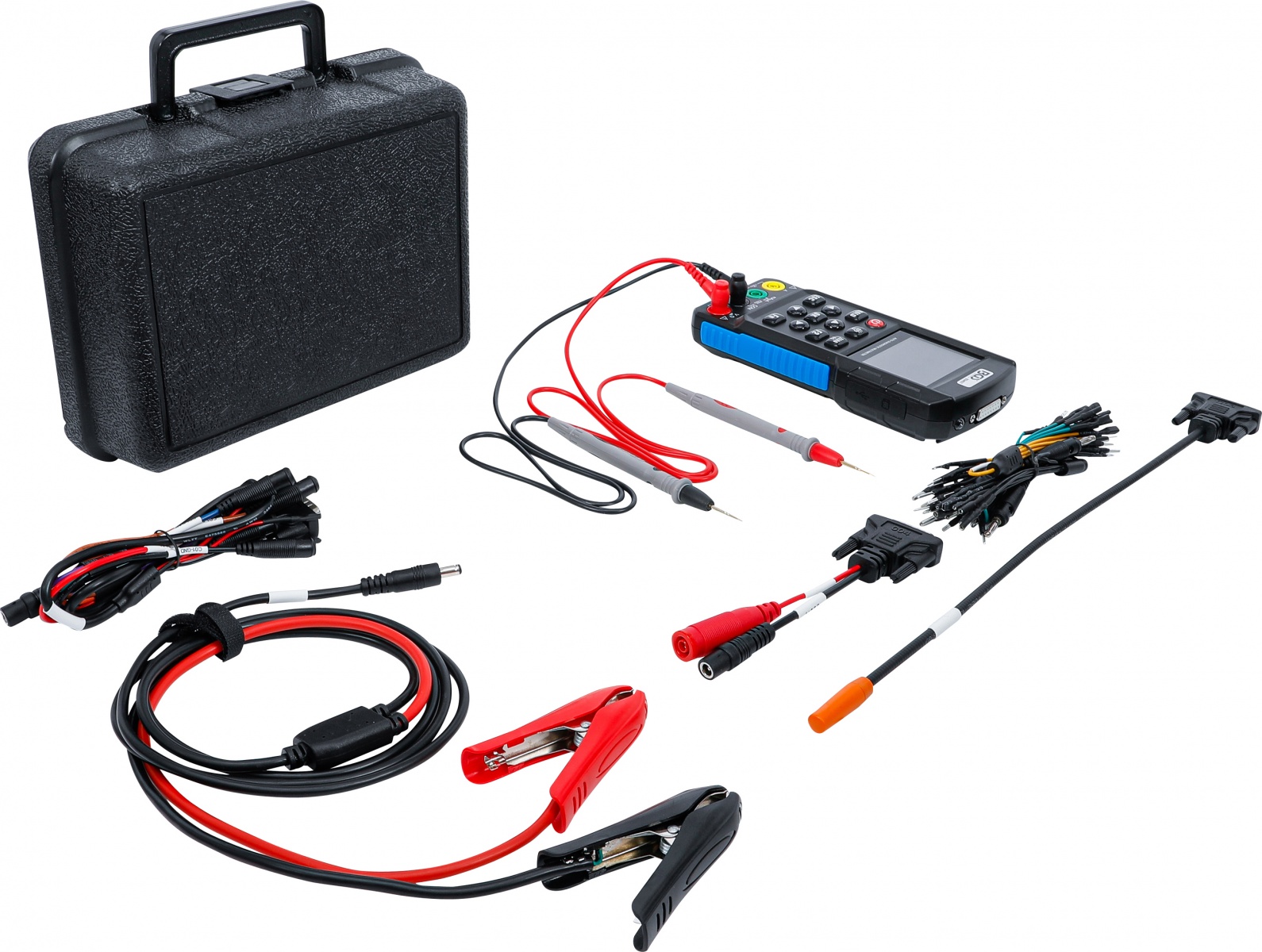

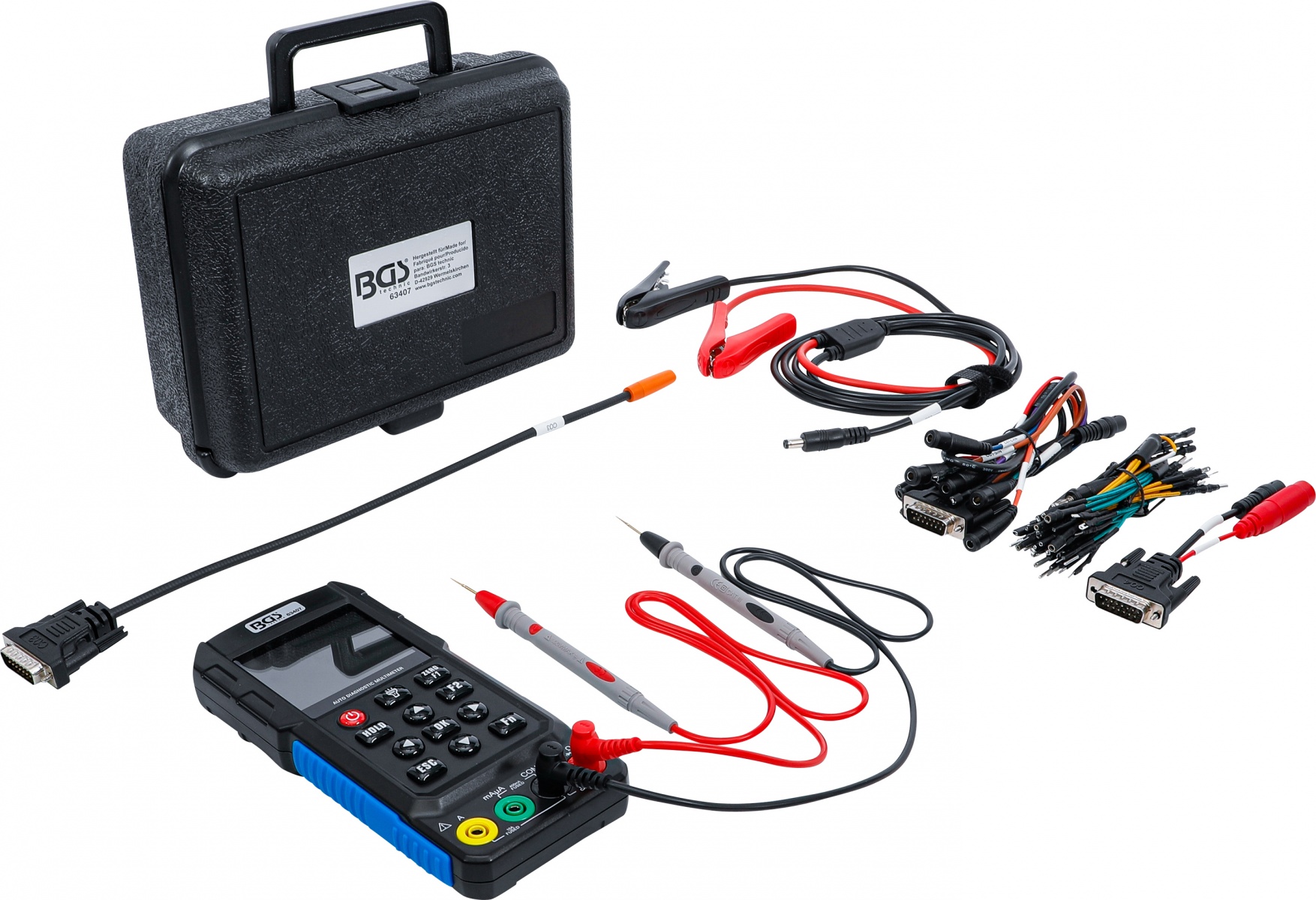

Scope of delivery:
includes the following adapter cables:
C01 adapter:
DC connector for connection to vehicle battery
Output for injector and relay testing
K signal line and CAN+/CAN- signal line
Sine wave output signal, 5V output
Rectangle-wave output signal
C03 adapter cable:
Detection of line signals at higher voltages
C04 adapter cable:
DC connection, connected to the battery terminal lead

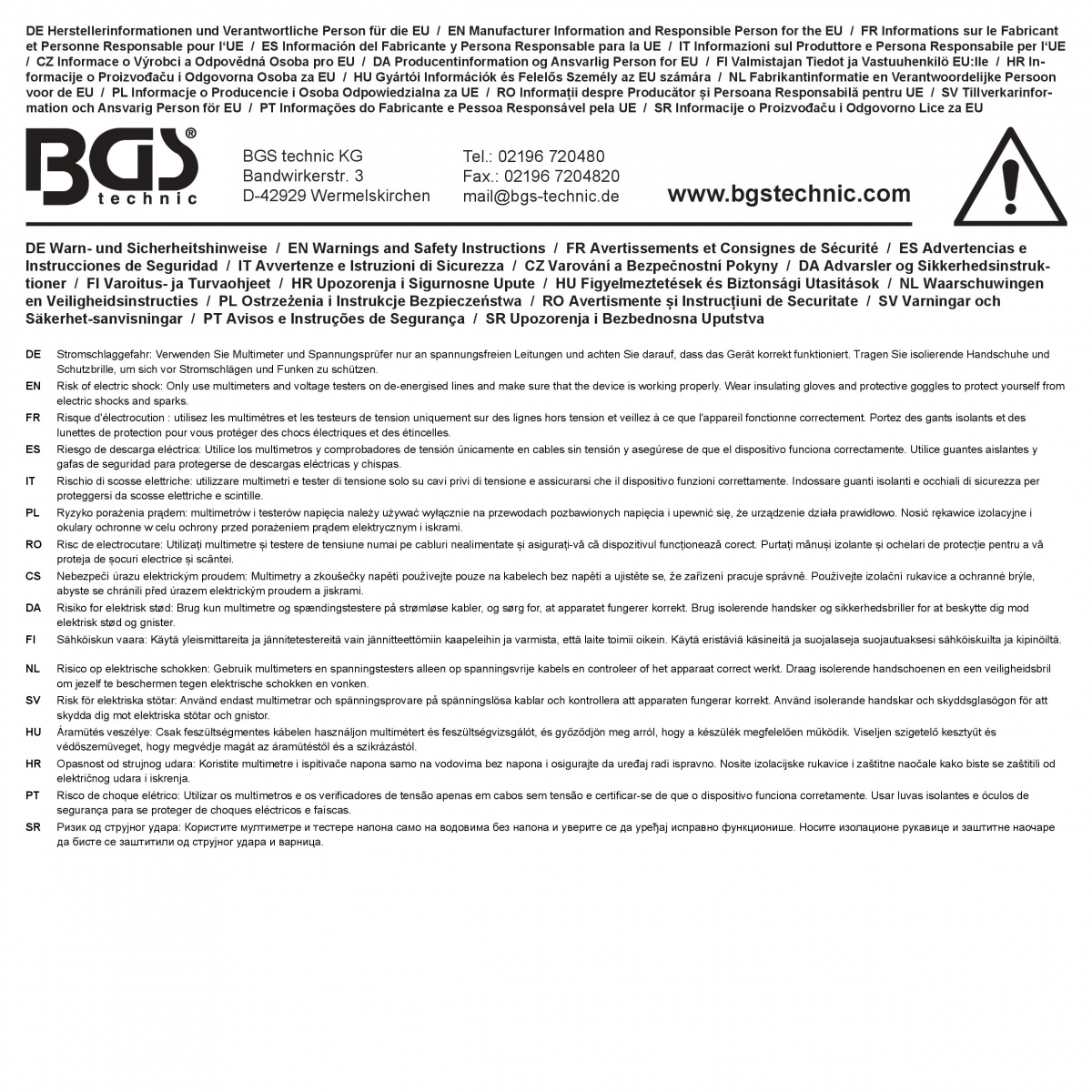

Warnings and Safety Instructions
Risk of electric shock: Only use multimeters and voltage testers on de-energised lines and make sure that the device is working properly. Wear insulating gloves and protective goggles to protect yourself from electric shocks and sparks.
Working temperature max.:
40 °C
Package dimensions (LxwxH) :
267 x 220 x 100 mm
Gross weight: 1.58 kg
