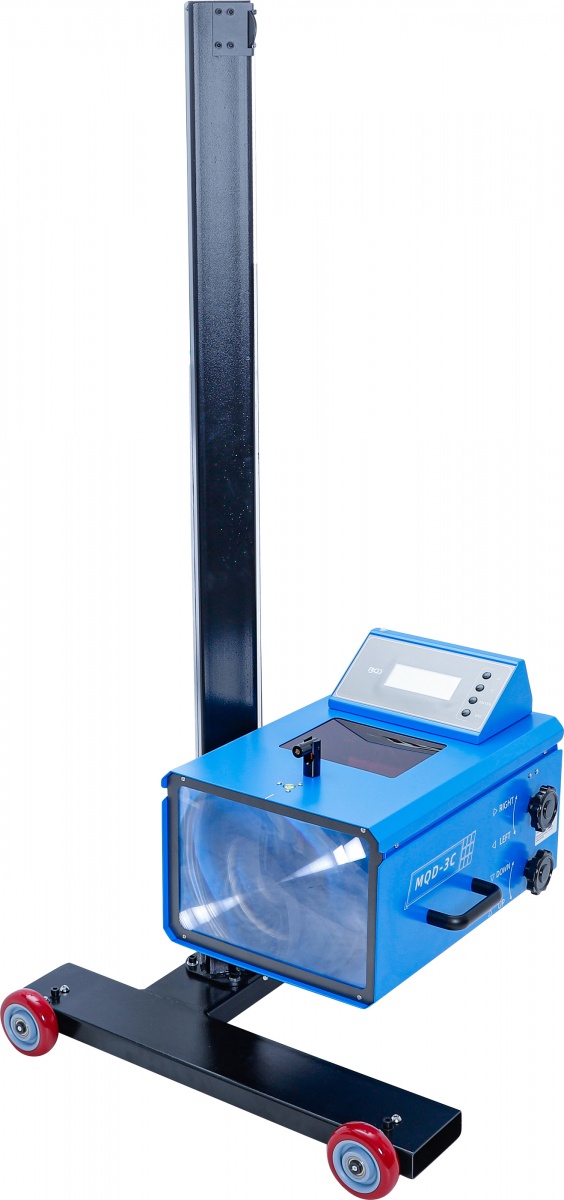

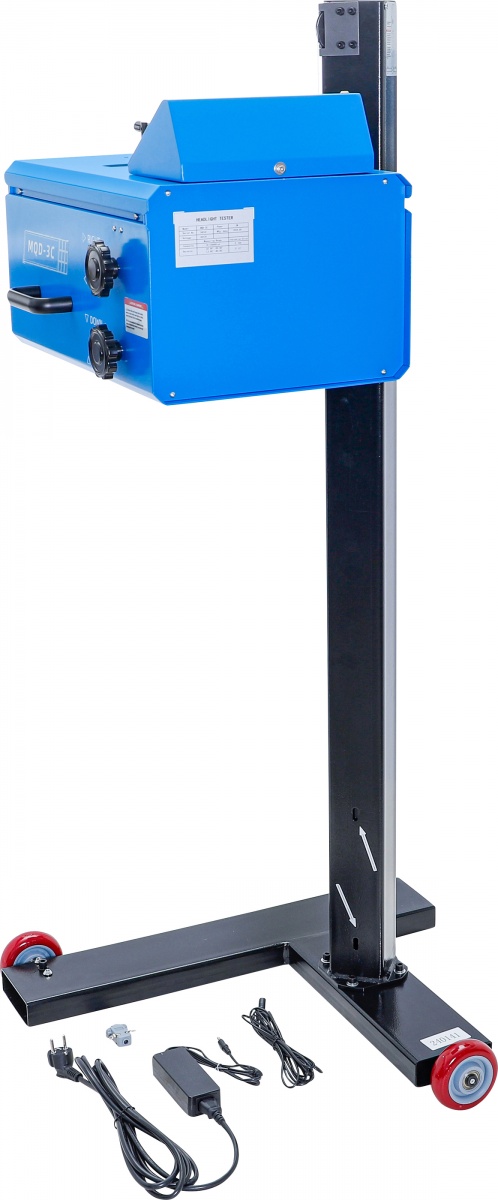

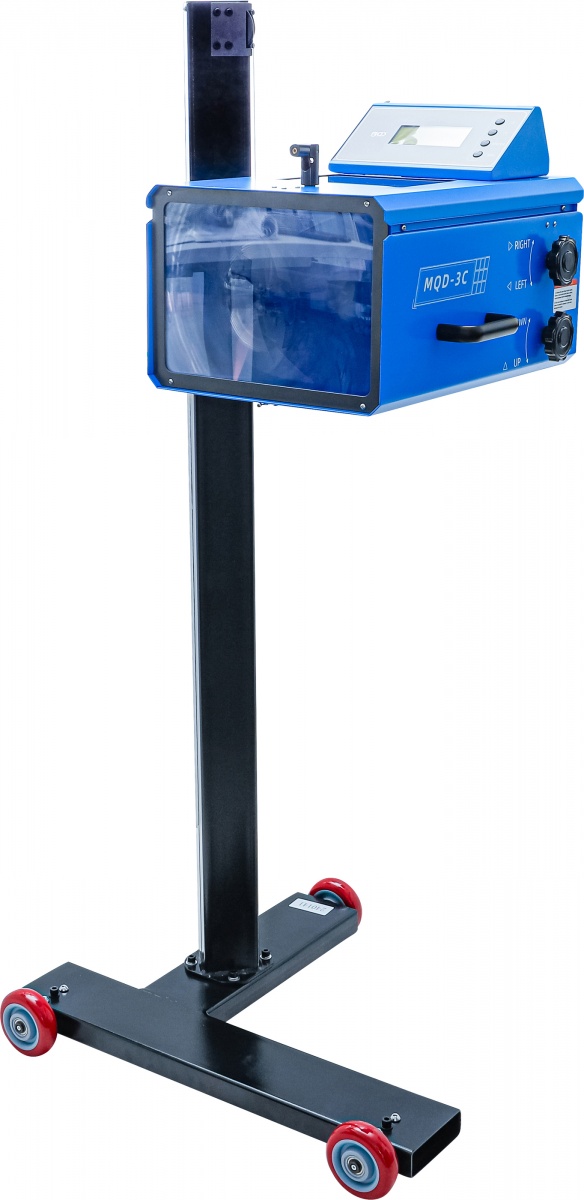

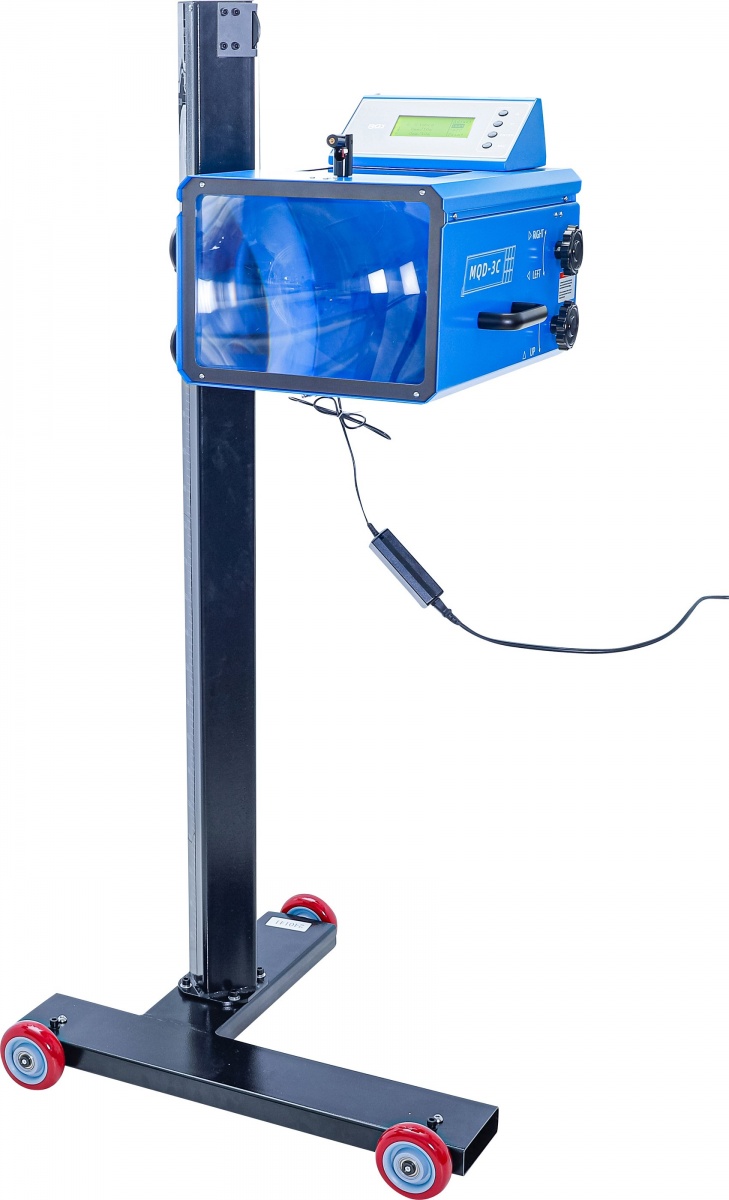

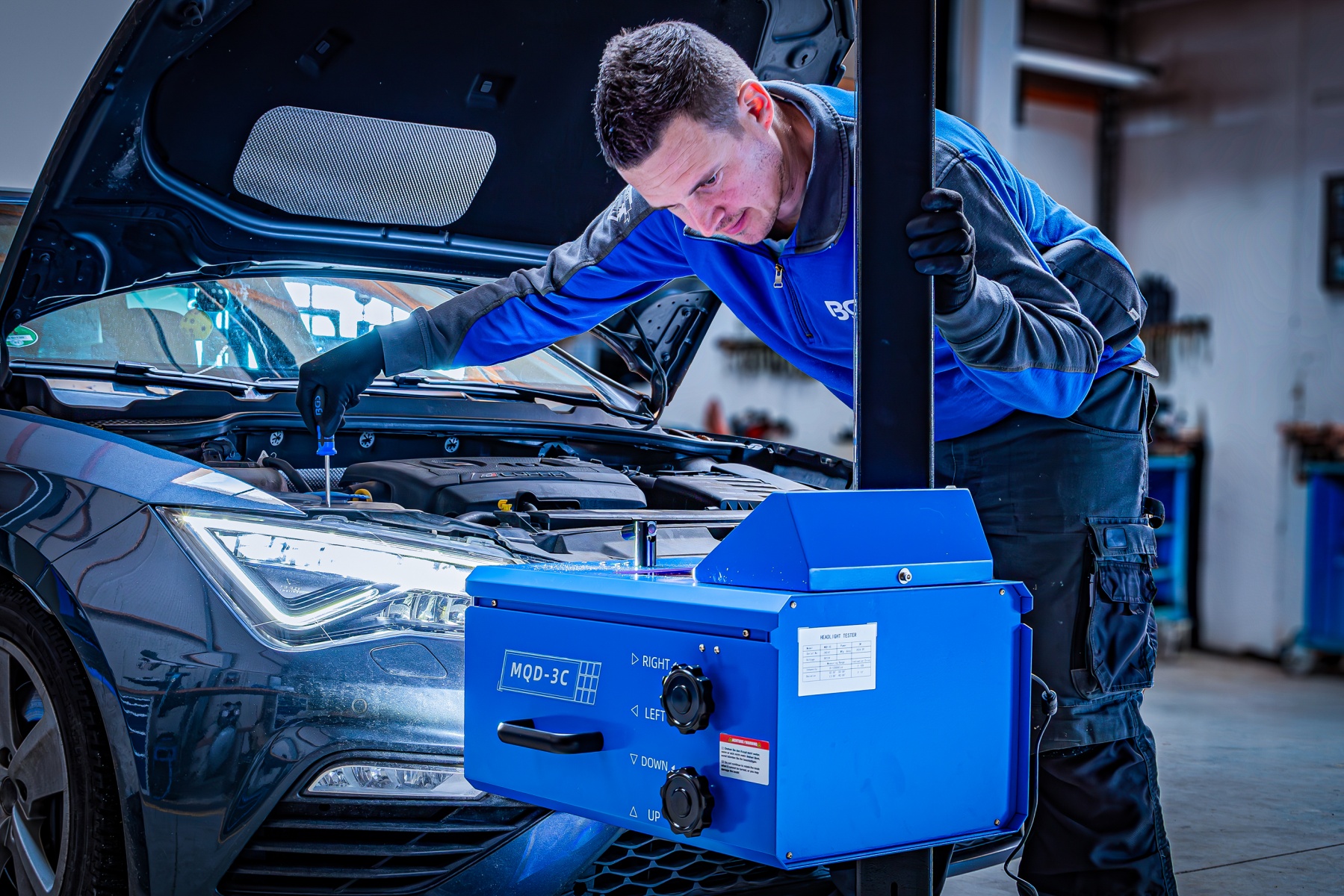

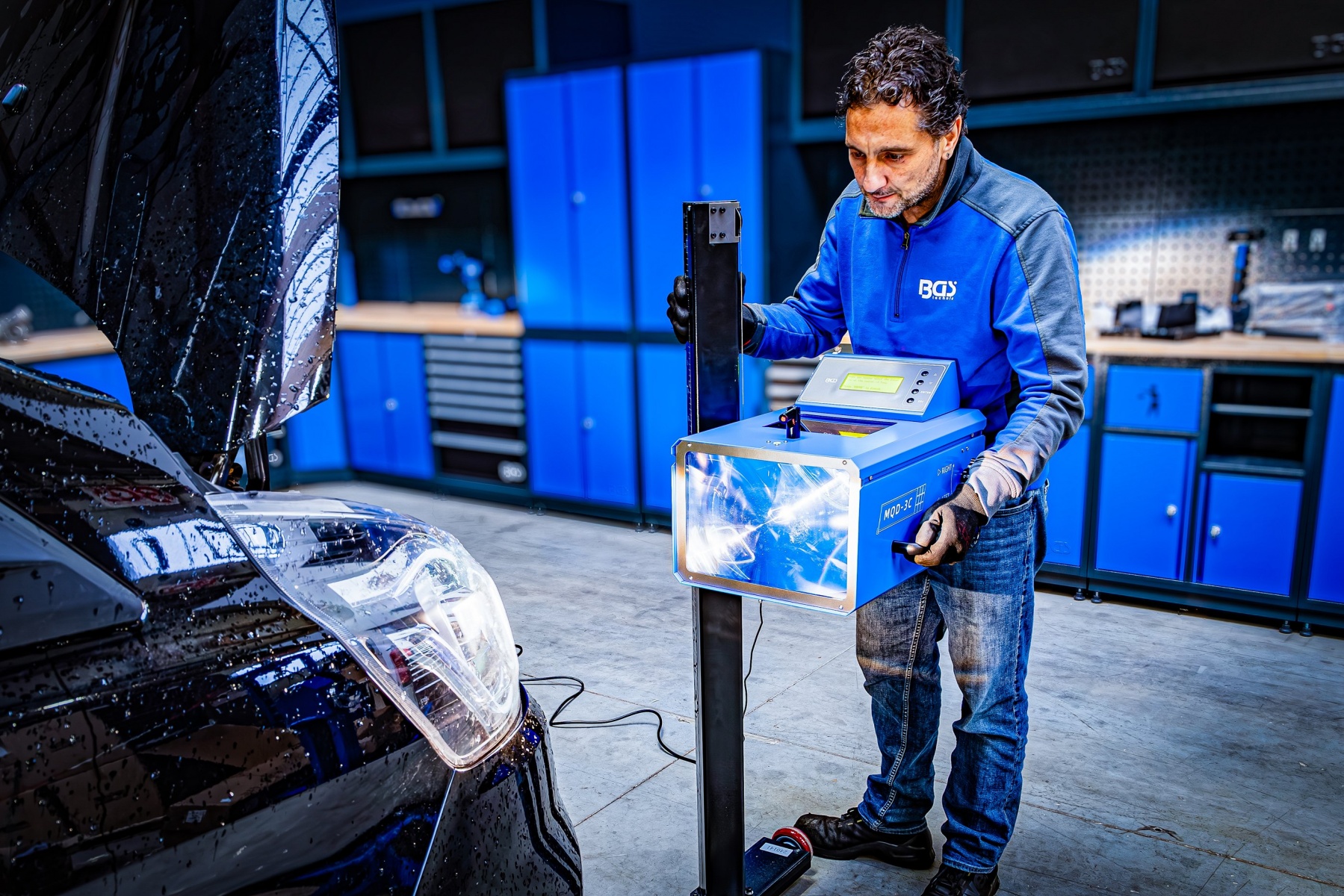

for adjusting the low beam and high beam of vehicle headlights
horizontal + vertical adjustment scale
easy handling and modularity
applicable range: halogen lamp, HID lamp, incandescent lamp, high beam, low beam
vertical deviation: top 350 mm at 10 m (2°) / bottom 525 mm at 10 m (3°)
horizontal deviation: left 525 mm at 10 m (3°) / right 525 mm at 10 m (3°)
measuring distance: 500 mm +/- 5 mm or 1000 mm +/- 5 mm
measuring height: 400 - 1300 mm
intensity: up to 120000 candela
deviation: +/- 12' at 500 mm / +/- 15' at 1000 mm
ambient temperature: -5 - 40 °C
relative humidity:
power supply: 12 V DC power supply
Width: 570 mm
Gross weight: 43000 g
Height: 1400 mm
Length: 680 mm
Plug: C (CEE 7/16)
