Aprašymas:
Gamintojas:
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Series
GRF
Type of fasteners
nails
Connecting elements length
50-100 mm
Connecting elements dimensions
50-100x2.9-3.3x7 mm
Max. working pressure
0.8 MPa
Recommended working pressure
0.4-0.8 MPa
Air connection diameter (PT)
standard
Air supply hose inside diameter
3/8" (9.5 mm)
Dispenser capacity
40 x2 szt.
Dimensions
475x366x163 mm
Body material
aluminium
Handle material
rubber
Functions
sequential operating mode, side loading system, adjustable penetration depth
Dust cover
yes
Fuse
yes
Acoustic pressure
95.9 ± 2.5 dB(A)
Acoustic power
108.9 ± 2.5 dB(A)
Vibrations
5.17 ± 0.59 m/s²
Weight
4.25 kg
Symbol
YT-09240

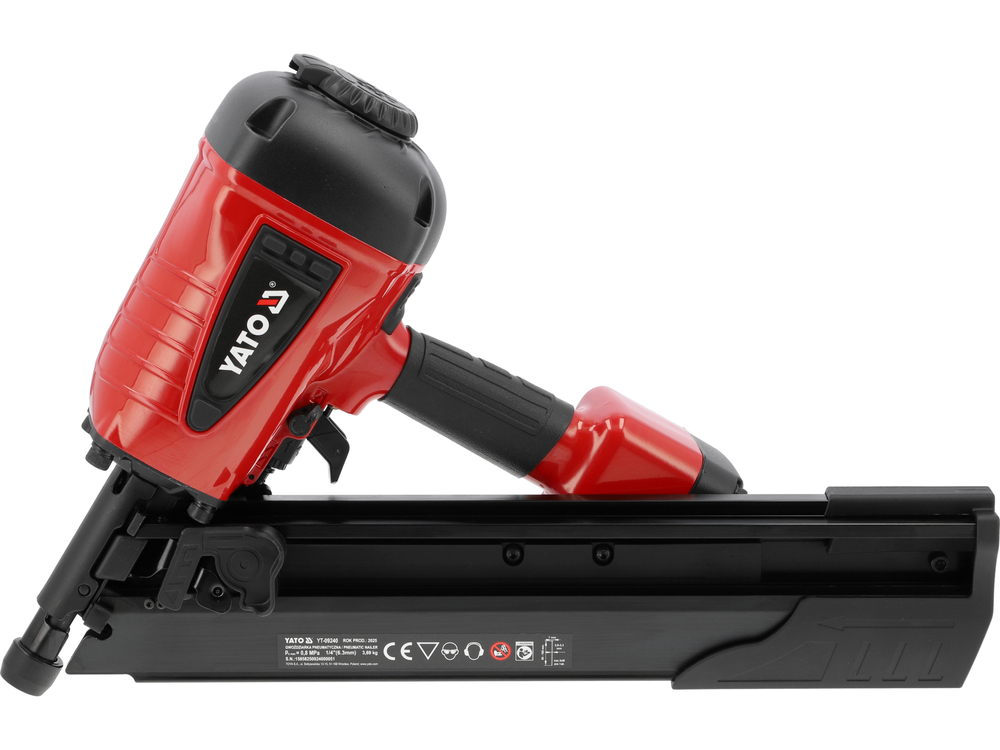

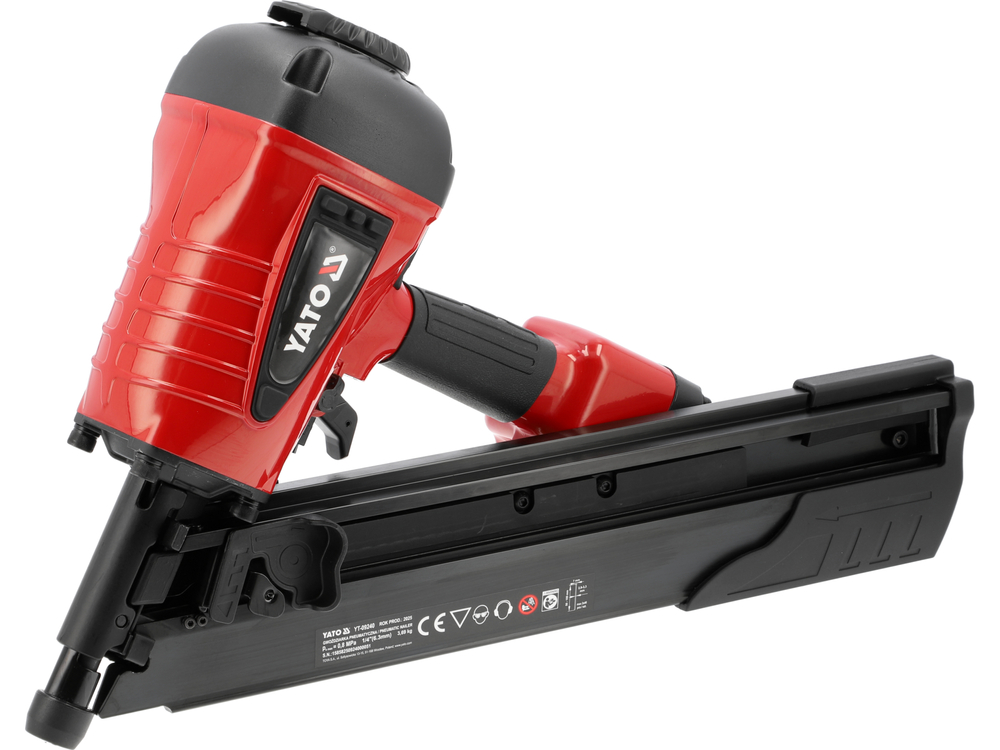

A professional drum nailer ensures precise, fast, and durable fastening of materials using nails. Created for demanding and intensive carpentry, assembly, and upholstery work, it also works well for light finishing tasks.
It has protection against accidental application, a side loading system, and a dust cover. The sequential mode streamlines work, increasing assembly efficiency.
fastener length: 50-100 mm
nail wire joining angle: 34°
fastener dimensions: 50-100 x 2.9-3.3 x 7 mm
max. operating pressure: 0.8 MPa

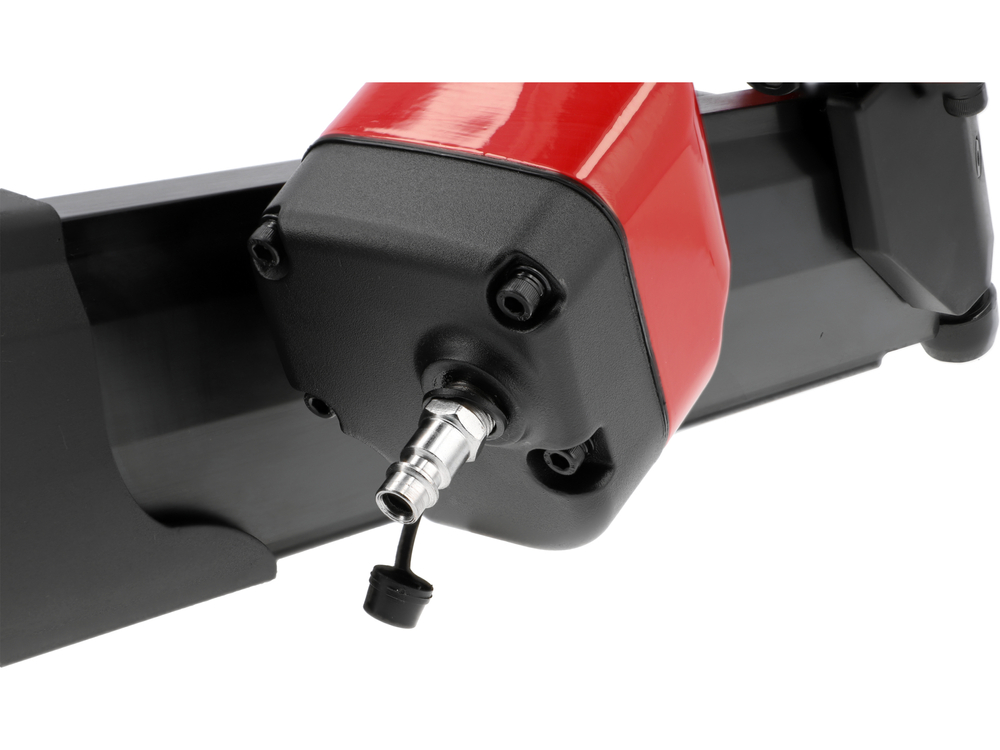

air inlet diameter: standard
internal air hose diameter: 3/8" (9.5 mm)
magazine capacity of 40 x 2 nails allows for longer uninterrupted work
sequential mode function allows for controlled, rhythmic driving of fasteners, improving accuracy and increasing user safety
safety fuse minimizes the risk of accidental tool activation
dust cover increases tool lifespan and protects the mechanism inside under intensive use conditions
side loading system facilitates and speeds up magazine refilling, especially important for serial work
depth adjustment allows for precise adaptation to the material being worked on
aluminum body ensures high resistance to mechanical damage while maintaining a low device weight, particularly appreciated during prolonged work
anti-slip rubber handle provides a secure grip and reduces vibration transfer to the hand
dimensions: 475 x 366 x 163 mm
weight: 4.25 kg
