Aprašymas:
Gamintojas:
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Series
GRF
Holder size
3/4" (19.0 mm)
Toolholder type
Driver
Stroke mechanism type
TWIN HAMMER
Max. working pressure
0.63 MPa
Required air flow
580 l/min
Rotations
4600 min⁻¹
Max. torque
2800 Nm
Quick coupler size
standard
Air connection diameter (PT)
standard
Air supply hose inside diameter
1/2" (12.7 mm)
Length
253 mm
Casing material
aluminum
Rotation switch
yes
Acoustic pressure
90.0 ± 3.0 dB(A)
Acoustic power
101.0 ± 3.0 dB(A)
Vibrations
11.11 ± 1.43 m/s²
Weight
7 kg
Set includes
pneumatic wrench, hose connector
Application
industry, mechanical workshops, car services
Symbol
YT-09580

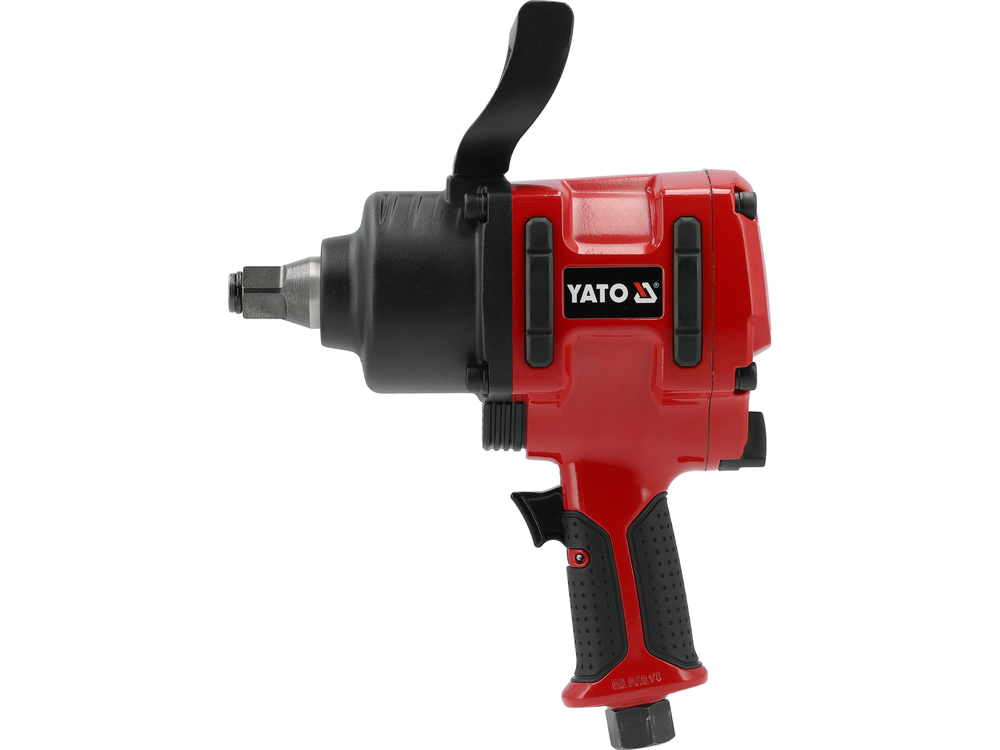

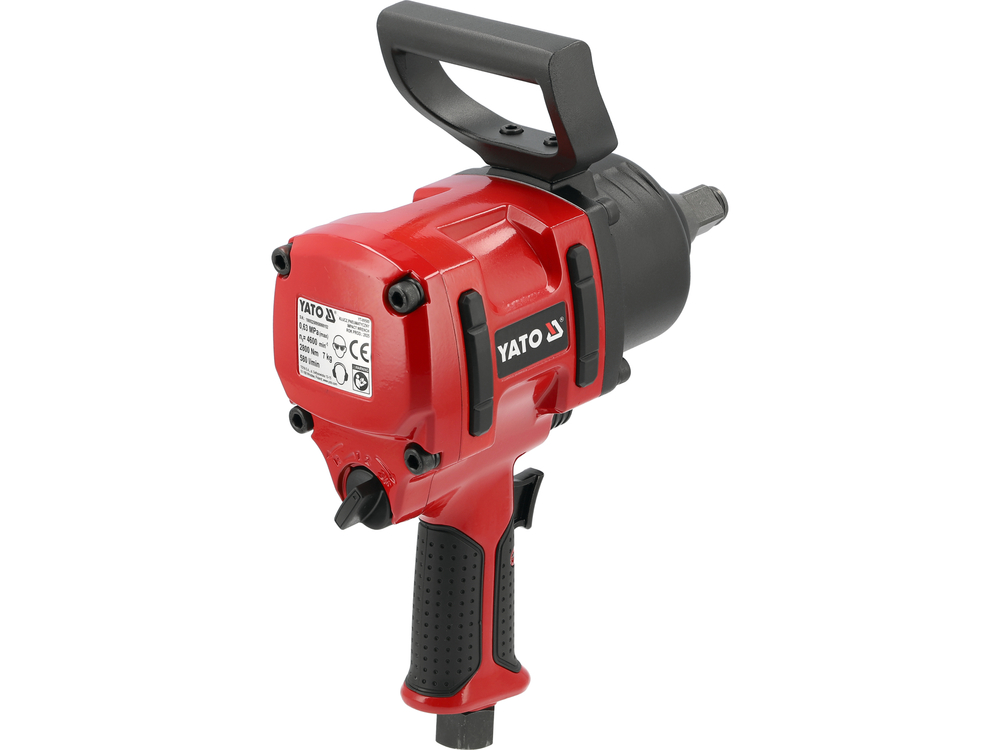

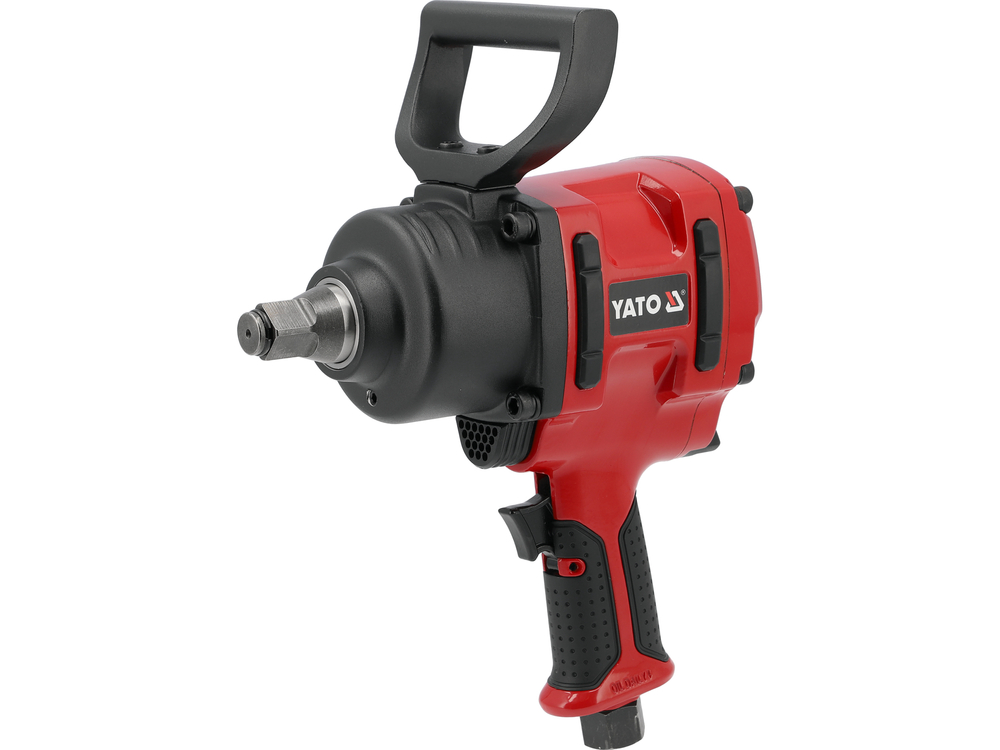

Pneumatic wrench designed for intensive use in industrial conditions, mechanical workshops, and car services. The Twin Hammer impact mechanism provides optimal balance between impact force and tool durability, allowing for quick loosening and tightening of high torque screws.
The aluminum housing combines lightness with durability, and the compact size and 7 kg weight facilitate precise handling even in hard-to-reach places. The wrench is equipped with a direction switch for quick change of operating mode, as well as standard quick coupler and air inlet for universal use with pneumatic installations.
The set also includes an air hose connector, allowing for immediate connection of the tool to a pneumatic installation. The wrench ensures reliability and efficiency, precise control of torque, and comfortable work in the most demanding applications.
Technical parameters:

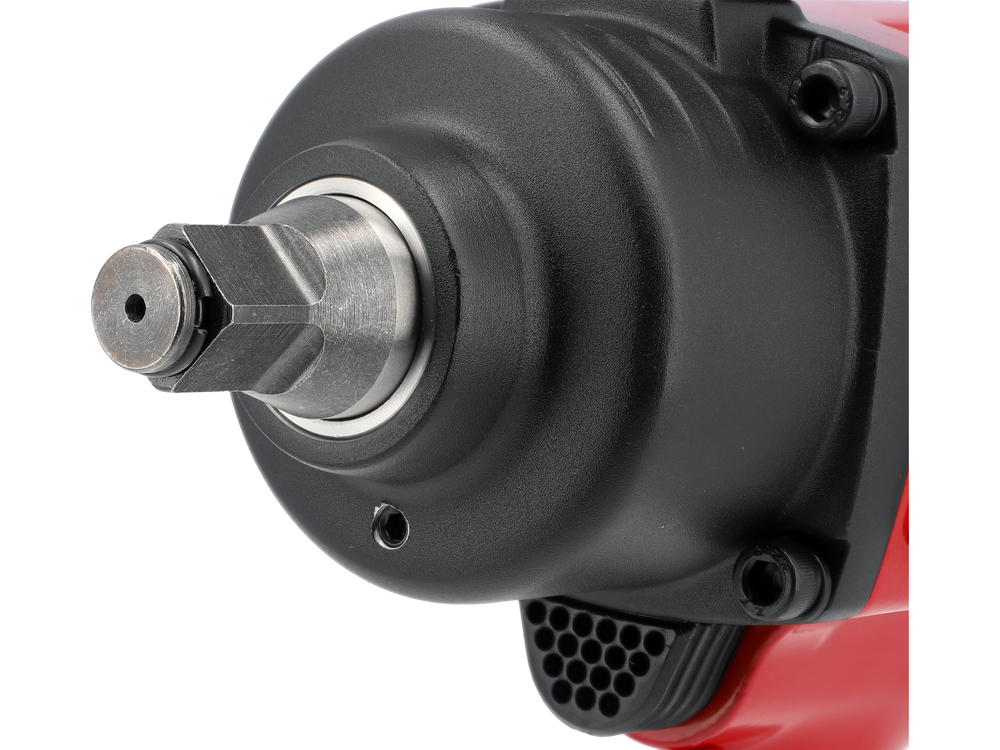

tool holder: 3/4" (19 mm)
type of tool holder: chuck

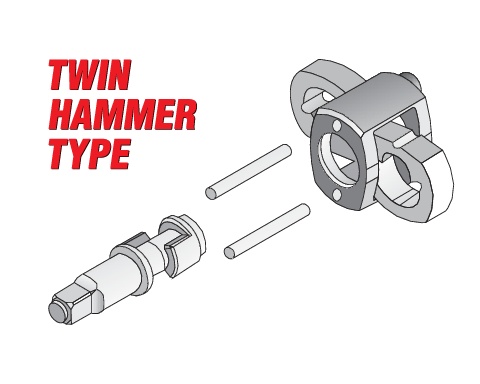

impact mechanism: Twin Hammer
rotational speed: 4600 min⁻¹
max. torque: 2300 Nm
max. loosening torque: 2800 Nm
recommended continuous torque: 1800 Nm
max. operating pressure: 0.63 MPa
average air consumption: 580 l/min
air hose diameter: 1/2" (12.7 mm)
quick coupler and air inlet: standard
air inlet: 3/8"
durable aluminum housing

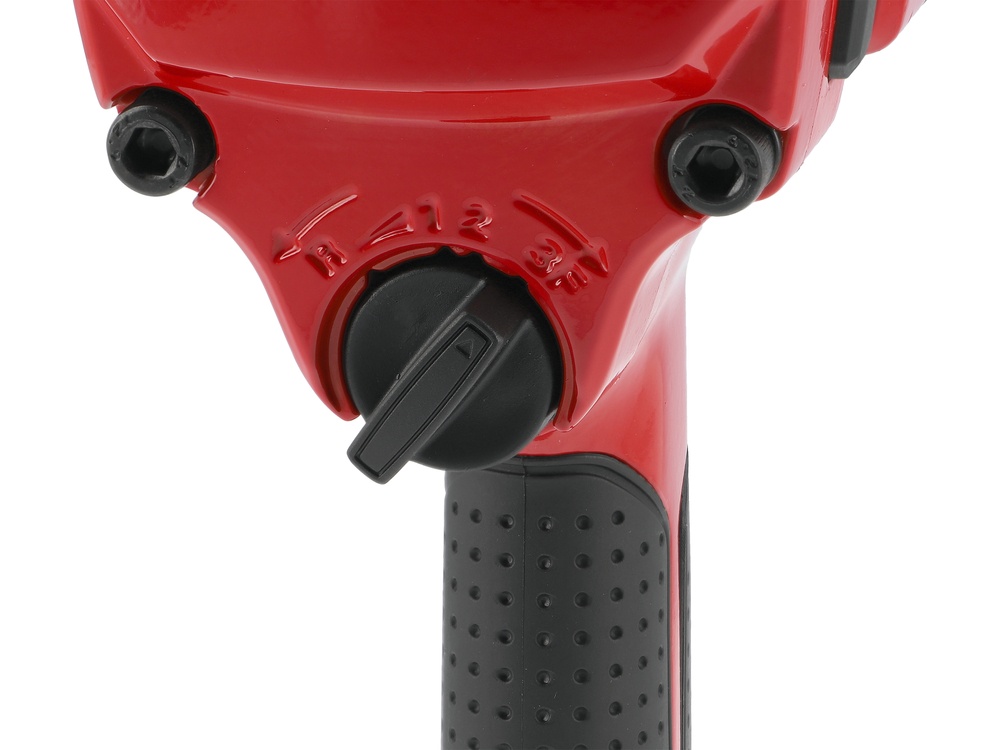

direction switch
total length: 253 mm
weight: 7 kg
includes air hose connector
