Aprašymas:
Gamintojas:
Index
YT-05336
Barcode
5906083137563
Unit of measure
KPL
Volume
19.734
Weight
8.5
The YT-05336 pneumatic injector removal kit is designed for the professional servicing of fuel injection systems in passenger cars and commercial vehicles. The pneumatic hammer utilizes compressed air at 0.8 MPa to generate controlled impacts, helping to gradually loosen a heavily seized injector and facilitate its removal from the socket. Combining pneumatic impact action with a suitably matched adapter minimizes the need for excessive force during removal.
The kit comprises 27 components, including a pneumatic hammer, valve, hose, holders, and a wide range of adapters and mounting tips. The adapters are designed for use with popular Common Rail injectors from brands such as Bosch, Delphi, Denso, and Siemens, allowing the tool to be adapted to various injector types found in diesel engines.
Key features and functions:
pneumatic impact mechanism – uses compressed air to generate impacts transmitted to the injector, helping to overcome the resistance caused by the injector being seized in its socket;
removal of seized injectors – the kit was developed for service tasks where standard injector removal methods might prove insufficient; pneumatic impact action allows for the gradual loosening of the component without the need for sudden, harsh force
wide compatibility – the set includes adapters enabling work with various types of Bosch, Delphi, Denso, and Siemens Common Rail injectors—compatible with both solenoid valves and threaded connections
27 pieces – the comprehensive kit allows for selecting the right threaded connection for the specific injector and its mounting method
supply pressure up to 0.8 MPa – the tool's pneumatic mechanism is designed to operate with compressed air at a maximum pressure of 8 bar
three extraction adapters – tips with dimensions M14 x 1.5 / 12 mm, M14 x 1.5 / 13.5 mm, and M14 x 1.5 / 16 mm allow the mounting method to be matched to the specific injector
standard pneumatic connection – allows the kit to be connected to a compressed air system equipped with a compatible fitting
Technical data:
maximum working pressure: 0.8 MPa
number of pieces: 27
pneumatic hose diameter: 12 mm
hose length: 243 mm
kit weight: 7 kg
application: passenger cars and delivery vans

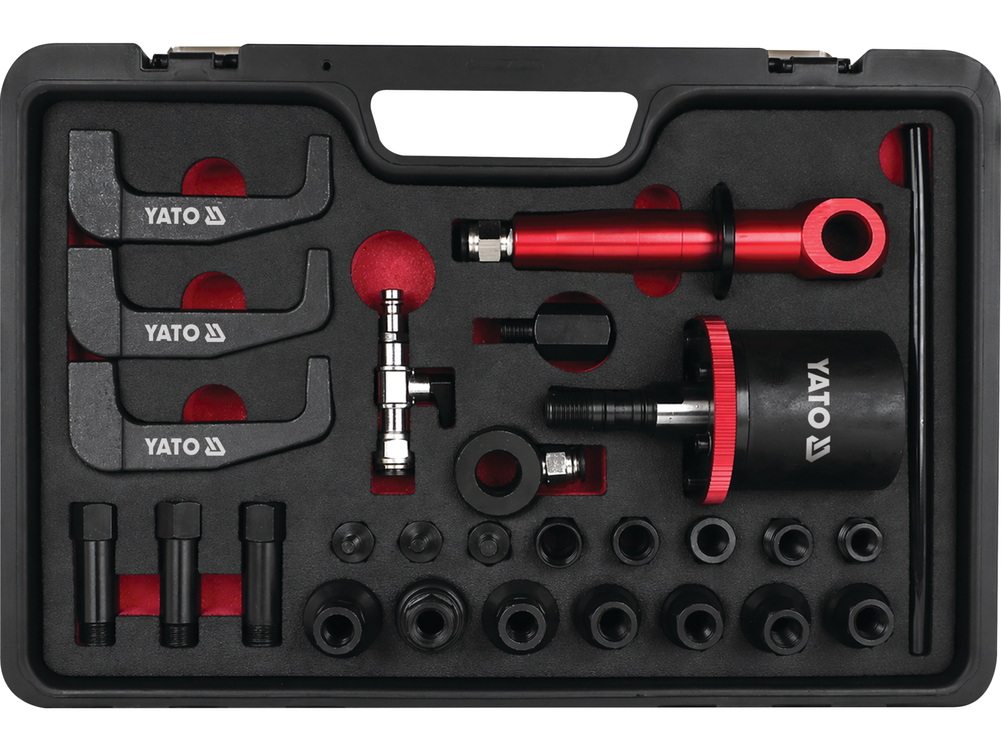

Kit contents:
pneumatic hammer
valve
pneumatic hose Ø12 × 243 mm
cap
holder
adapter M18 / M14
3 extraction adapters: M14 x 1.5 / 12 mm, M14 x 1.5 / 13.5 mm, and M14 x 1.5 / 16 mm
adapters for various injector types: Bosch, Delphi, Denso, and Siemens:
M25 x 0.5 9 mm / M14 x 1.5 9 mm
M25 x 1.0 10 mm / M14 x 1.5 9 mm
M27 x 1.0 10 mm / M14 x 1.5 9 mm
M27 x 0.75 10 mm / M14 x 1.5 9 mm
M29 x 1.0 11 mm / M14 x 1.5 9 mm
M26 x 0.75 15 mm / M14 x 1.5 8 mm
M31 x 0.75 15 mm / M14 x 1.5 9 mm
M14 x 1.5 20 mm / M17 x 1.0 10 mm
M14 x 1.5 20 mm / M18 x 0.75 10 mm
M14 x 1.5 20 mm / M20 x 1.0 10 mm
M14 x 1.5 15 mm / M20 x 1.5 15 mm; M12 x 1.5 18mm
M14 x 1.5 33 mm / M22 x 1.5 15 mm
M14 x 1.5 33 mm / M14 x 1.5 33 mm
M14 x 1.5 15 mm / M16 x 1.5 18 mm
M14 x 1.5 15 mm / M18 x 1.5 18 mm
M14 x 1.5 14mm / M8 x 1.0 14mm
M14 x 1.5 14 mm / M8 x 1.25 14 mm
M14 x 1.5 14 mm / M10 x 1.5 14 mm
