Aprašymas:
Gamintojas:
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Series
GRF
Power
1340 W
Moc maksymalna
1800 W
Cooling performance
12000/3500 BTU/W
Airflow
680 m³/h
Max suction pressure
1 MPa
Max. pumping pressure
2.5 MPa
Voltage
220-240 V a.c.
Frequency
50 Hz
Max. current
8.7 A
Nominal current
6 A
Dimensions
430x430x858 mm
Functions
cooling, continuous cooling, drainage, ventilation
Temperature control
yes
Time setting (timer)
yes, every 0.5h (1-10h), every 1h (11-24h)
Display type
LED
Digital control panel
yes
Wheels
yes
Wheel quantity
4
Wheel with brake quantity
4
Ambient temperature
18-45 ˚C
Working temperature range
16-32 ˚C
Overheat protection
yes
Wire length
1.5 m
Coolant type
R290
Coolant weight
230 g
Energy efficiency class
A
Electric insulation class
I
Acoustic pressure
<70 dB(A)
Acoustic power
<80 dB(A)
Weight
38 kg
Application
for cooling, dehumidifying, and ventilating rooms
Symbol
YT-99451
Collapse parameters

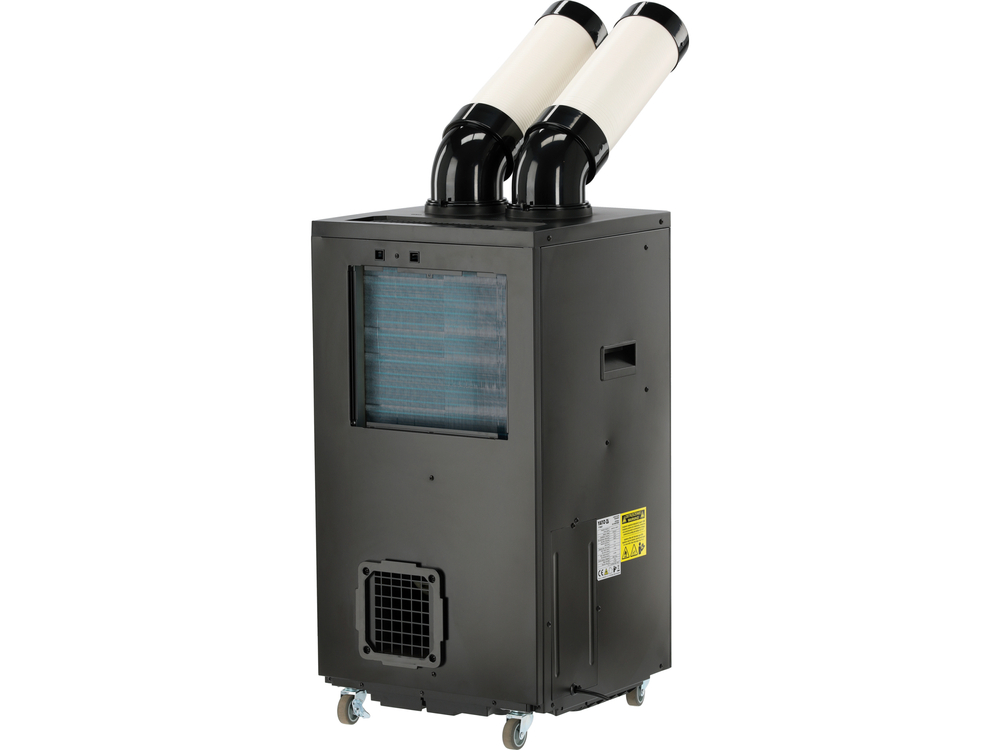

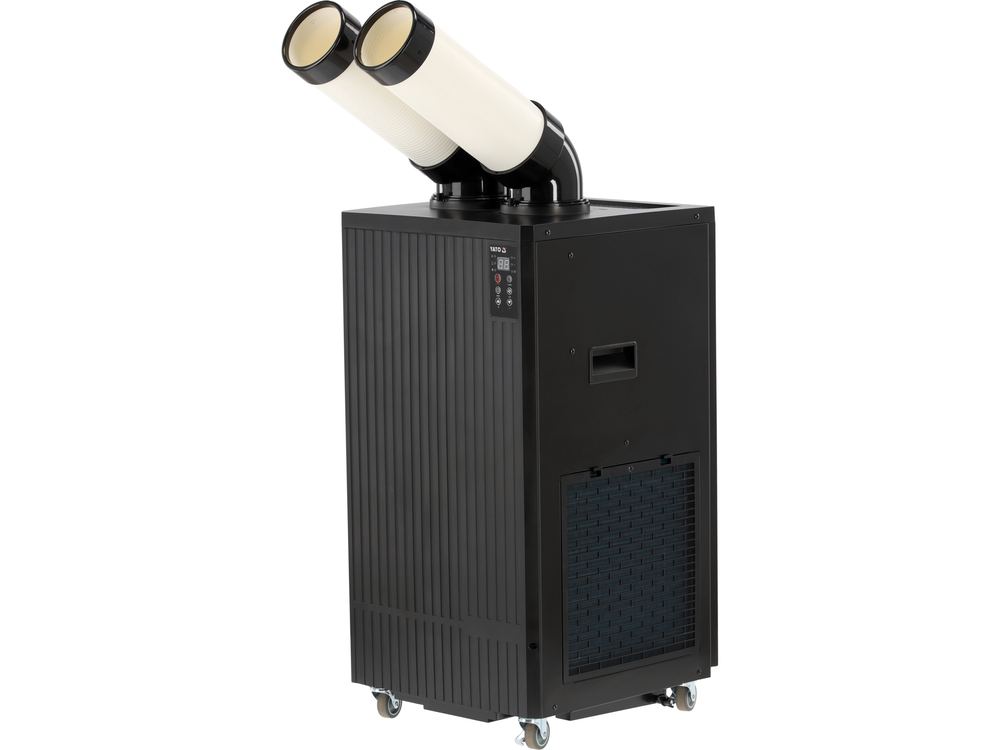

The portable air conditioner YT-99451 is an efficient solution for maintaining stable thermal conditions in medium-sized rooms. The monoblock design integrates all components of the cooling system into a single housing, simplifying the setup process and eliminating the need for permanent installation. As a result, the unit can be easily moved and activated exactly where effective cooling or improved air quality is required.
The device is designed for more intensive use, offering higher cooling efficiency and increased airflow. Cooling, dehumidifying, and ventilation functions allow you to adjust the operating mode to current conditions, and control is managed via a clear panel with an LED display. The compressor safeguards ensure safe operation, while the mobile design with adjustable airflow and an efficient air exhaust system provides even distribution of cool air throughout the room.
Key features and technical specifications:
Operating modes:
modes: cooling, dehumidifying, ventilation
continuous cooling mode
temperature adjustment and unit change
timer programming 1-24 h (every 0.5 h in the range of 1-10 h, every 1 h in the range of 11-24 h)
Performance and power:
cooling power: 3500 W
rated power: 1340 W (max. 1800 W)
power supply: 220-240 V / 50 Hz
rated current: 6 A (max. 8.7 A)
airflow: 680 m³/h
recommended area: 12-25 m²
Temperature ranges:
ambient temperature: 18-45°C
AC temperature settings range: 16-32°C
Cooling system:
refrigerant: R290 (230 g)
max. suction pressure: 1.0 MPa
max. discharge pressure: 2.5 MPa
compressor protection against overheating and overload

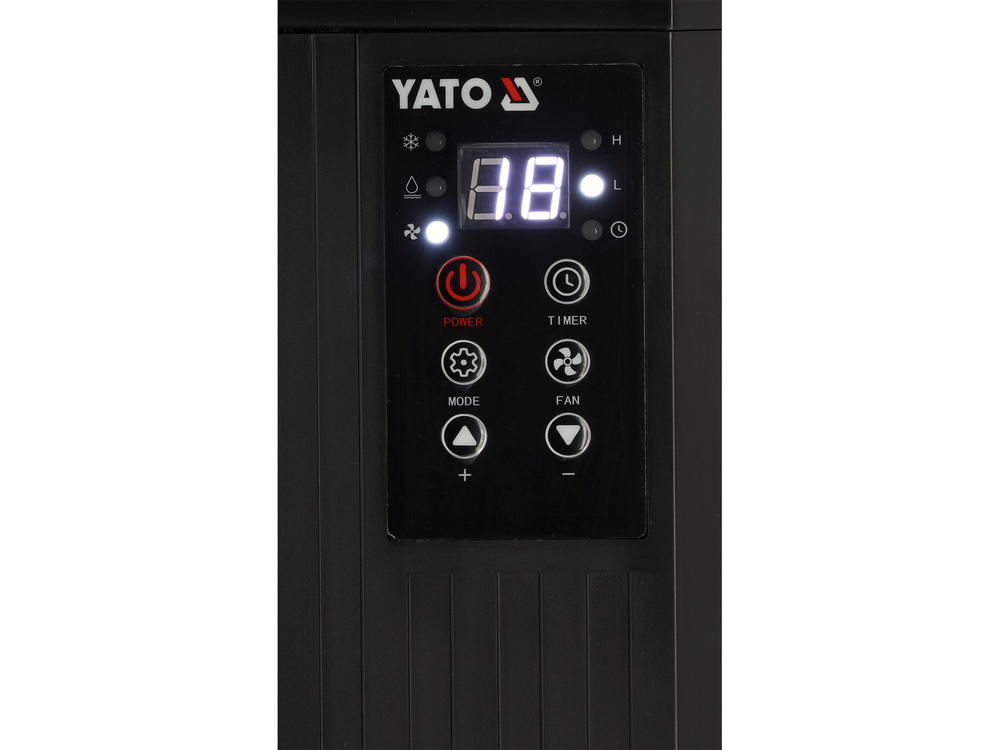

Control and operation:

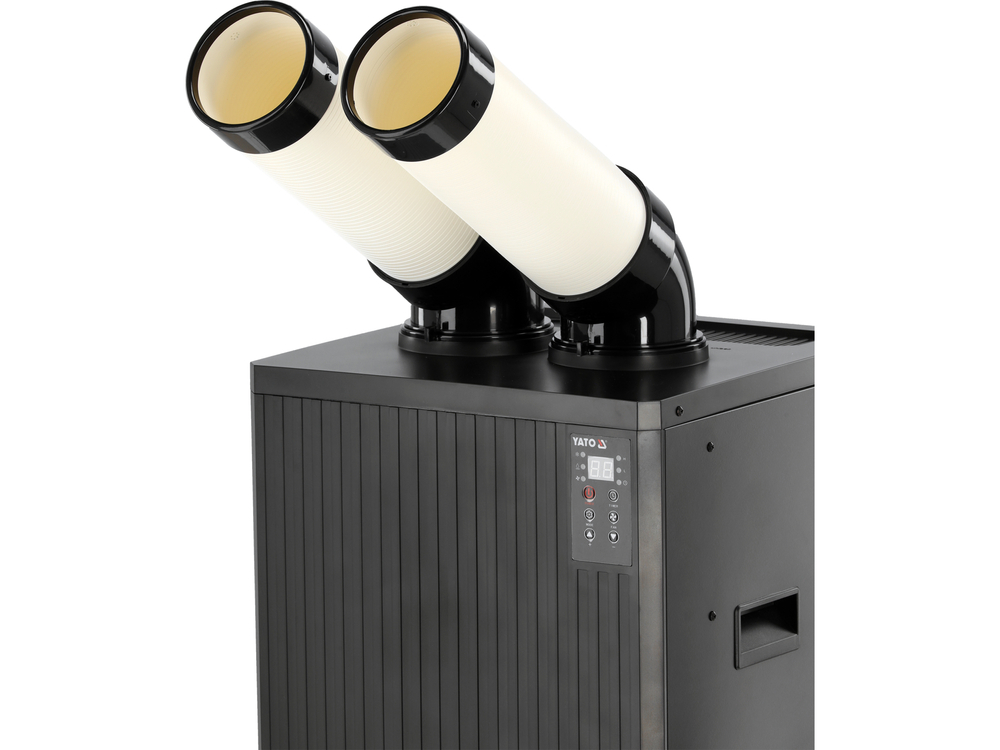

control panel with LED display
selection of operating modes and device parameters (MODE)
temperature and time adjustment (+ / -)
two-speed airflow (L / H)
indication of current settings and modes
Construction and mobility:
compact monoblock housing

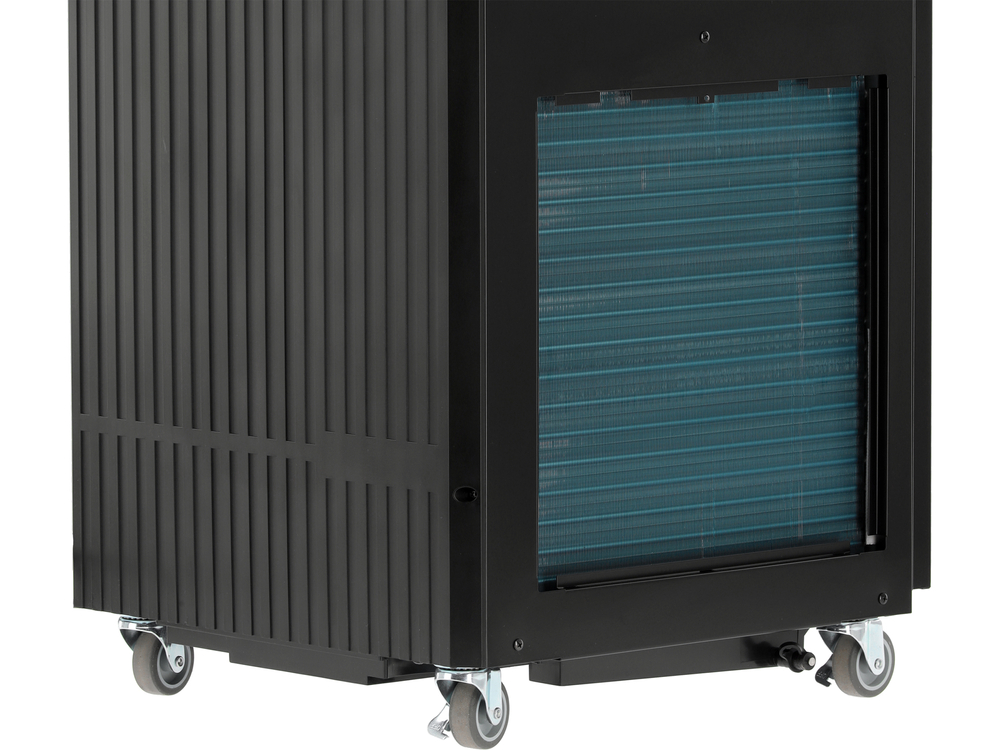

360° wheels with brake
power cord: 1.5 m
dimensions: 430 x 430 x 858 mm
net weight: 38 kg
Air exhaust system:
cold air duct: Ø 120 mm x 350 mm (length up to 3 m)
hot air duct: Ø 150 mm x 350 mm (length up to 3 m)
drain pipe: Ø 11 mm x 1 m
adjustable airflow direction
Condensate drainage:
drainless system reducing the need for emptying
no traditional water tank
condensate drainage via Ø11 mm pipe
emptying frequency depends on humidity: every 3-4 hours at 80% relative humidity, every 7-8 hours at 60% relative humidity
Additional information:
energy class: A
PP plastic air filter
application: residential and office spaces
not suitable for use in dusty, chemical, or explosion-prone environments
