Aprašymas:
Gamintojas:
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Series
GRF
Power
950 W
Moc maksymalna
1200 W
Cooling performance
8500/2500 BTU/W
Airflow
330 m³/h
Max suction pressure
1 MPa
Max. pumping pressure
2.5 MPa
Voltage
220-240 V a.c.
Frequency
50 Hz
Max. current
5.5 A
Nominal current
4.2 A
Dimensions
330x363x840 mm
Functions
cooling, continuous cooling, drainage, ventilation
Temperature control
yes
Time setting (timer)
yes, every 0.5h (1-10h), every 1h (11-24h)
Display type
LED
Digital control panel
yes
Wheels
yes
Wheel quantity
4
Wheel with brake quantity
4
Ambient temperature
18-45 ˚C
Working temperature range
16-32 ˚C
Overheat protection
yes
Wire length
1.5 m
Coolant type
R290
Coolant weight
180 g
Energy efficiency class
A
Electric insulation class
I
Acoustic pressure
<70 dB(A)
Acoustic power
<80 dB(A)
Weight
27.8 kg
Application
for cooling, dehumidifying, and ventilating rooms
Symbol
YT-99450
Collapse parameters

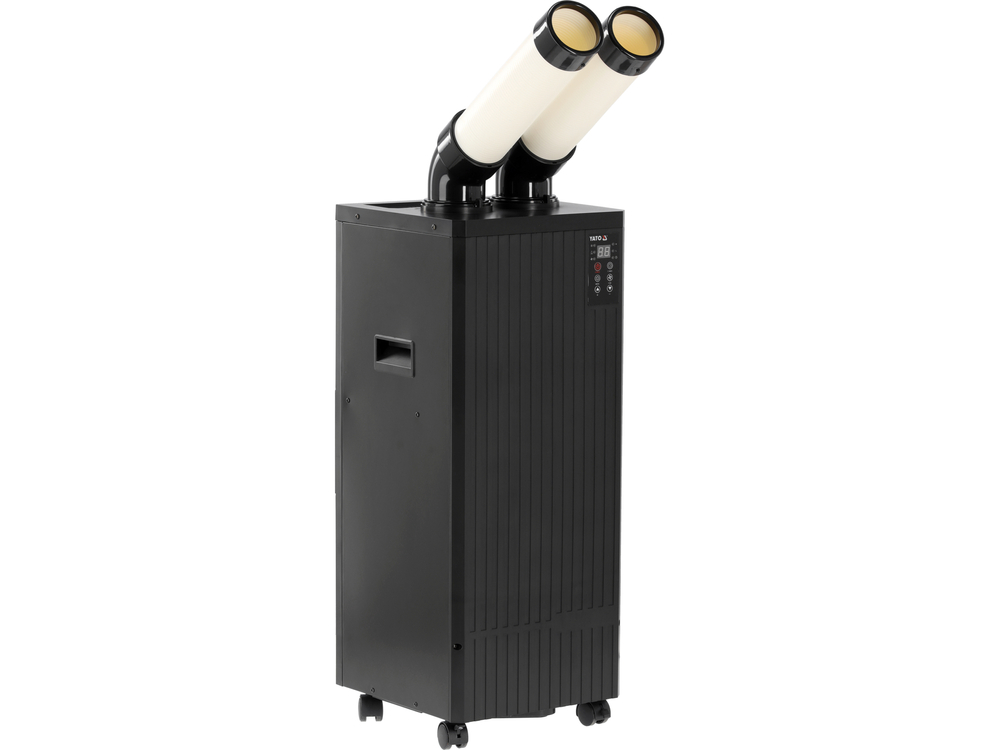

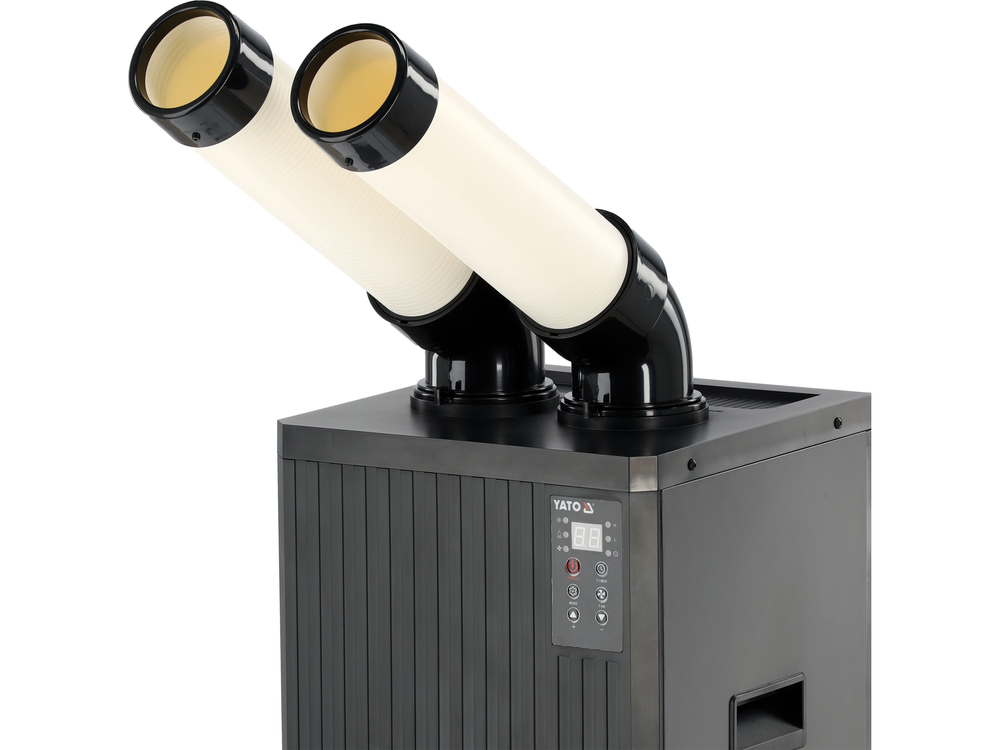

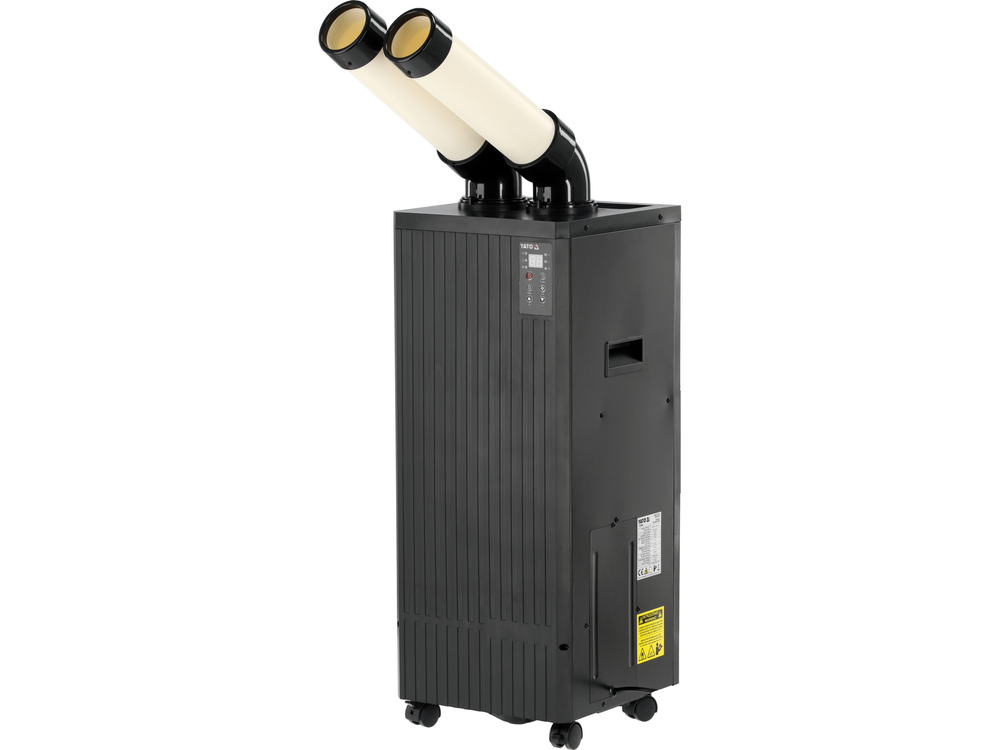

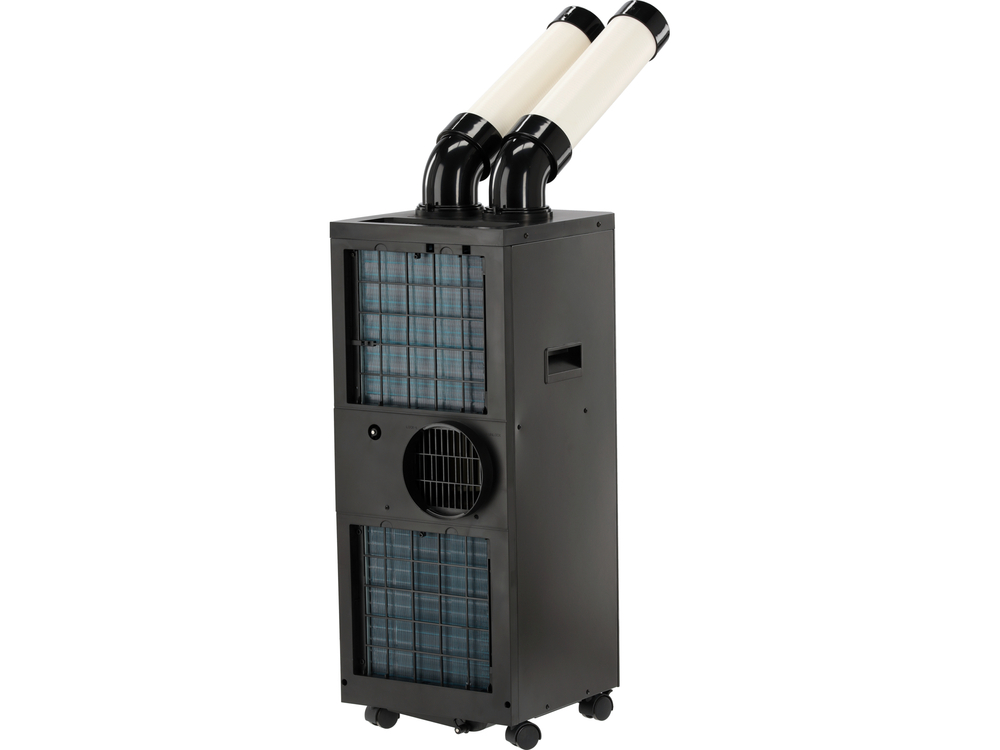

The portable air conditioner YT-99450 is a practical solution for maintaining comfortable thermal conditions in small to medium-sized rooms. The integrated design, which includes all key components of the cooling system – compressor, evaporator, condenser, and fan – is enclosed in a single housing. This means that the device does not require permanent installation or interference with the building's structure, and its startup is limited to basic installation tasks.
The model offers cooling, dehumidifying, and ventilation functions, providing flexible adjustment of the operating mode to current conditions. Operation is managed via a clear control panel with an LED display, allowing precise parameter settings. Built-in compressor protections safeguard the system against overload and overheating, supporting stable operation. The mobile design with rolling wheels facilitates movement, and the ability to adjust the airflow direction and the use of two cold air hoses allows for effective distribution of cooled air according to current needs.
Key features and technical specifications:
Operating functions:
operating modes: cooling, dehumidifying, ventilation
continuous cooling mode
temperature adjustment and unit change
timer programming 1-24 h (every 0.5 h in the range of 1-10 h, every 1 h in the range of 11-24 h)
Performance and power supply:
cooling power: 2500 W
rated power: 950 W (max. 1200 W)
power supply: 220-240 V / 50 Hz
rated current: 4.2 A (max. 5.5 A)
airflow: 330 m³/h
recommended area: 8-18 m²
Temperature ranges:
ambient temperature: 18-45°C
AC temperature setting range: 16-32°C
Cooling system:
refrigerant: R290 (180 g)
max. suction pressure: 1.0 MPa
max. discharge pressure: 2.5 MPa
compressor protection against overheating and overload

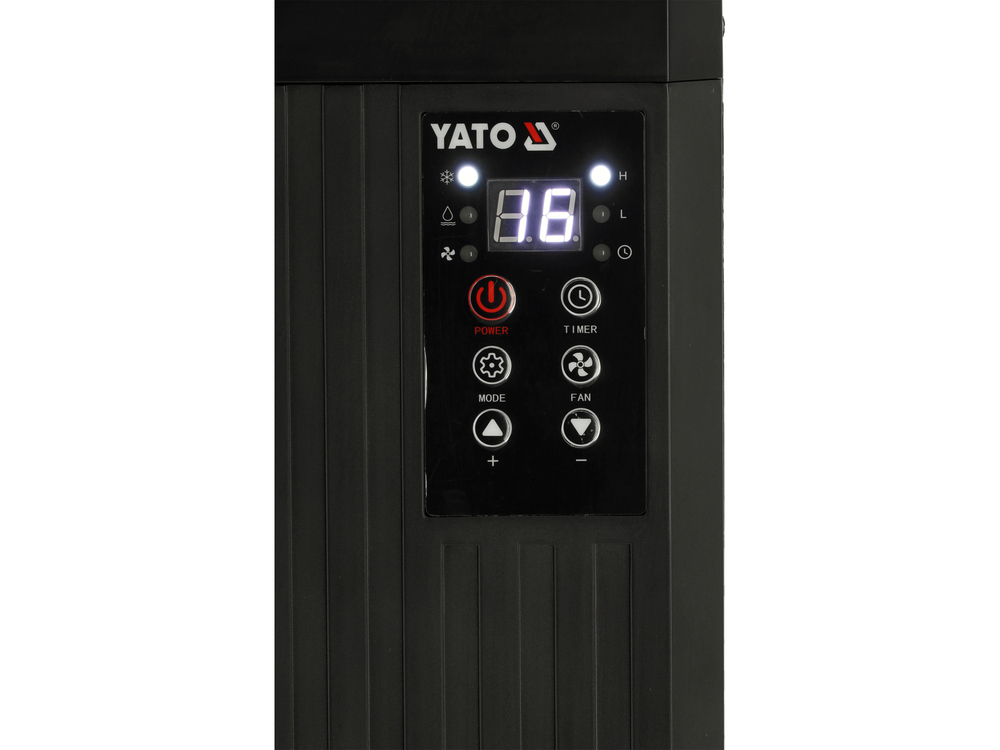

Control and operation:
control panel with LED display
selection of operating modes and device parameters (MODE)
temperature and time adjustment (+ / -)
two-speed airflow (L / H)
indication of current settings and modes
Construction and mobility:
compact monoblock housing
360° wheels with brake
power cord: 1.5 m
dimensions: 330 x 363 x 840 mm
net weight: 27.8 kg
Air intake system:
cold air hose: Ø 90 mm x 350 mm (length up to 3 m)
hot air hose: Ø 150 mm x 350 mm (length up to 3 m)
drain hose: Ø 11 mm x 1 m
airflow direction adjustment
Condensate drainage:
drainless system reducing the need for emptying
no traditional water tank
condensate drainage via Ø11 mm hose
emptying frequency depends on humidity: every 3-4 hours at 80% relative humidity, every 7-8 hours at 60% relative humidity
Additional information:
energy class: A
air filter made of PP material
application: residential and office spaces
not suitable for operation in dusty, chemical, or explosive environments
