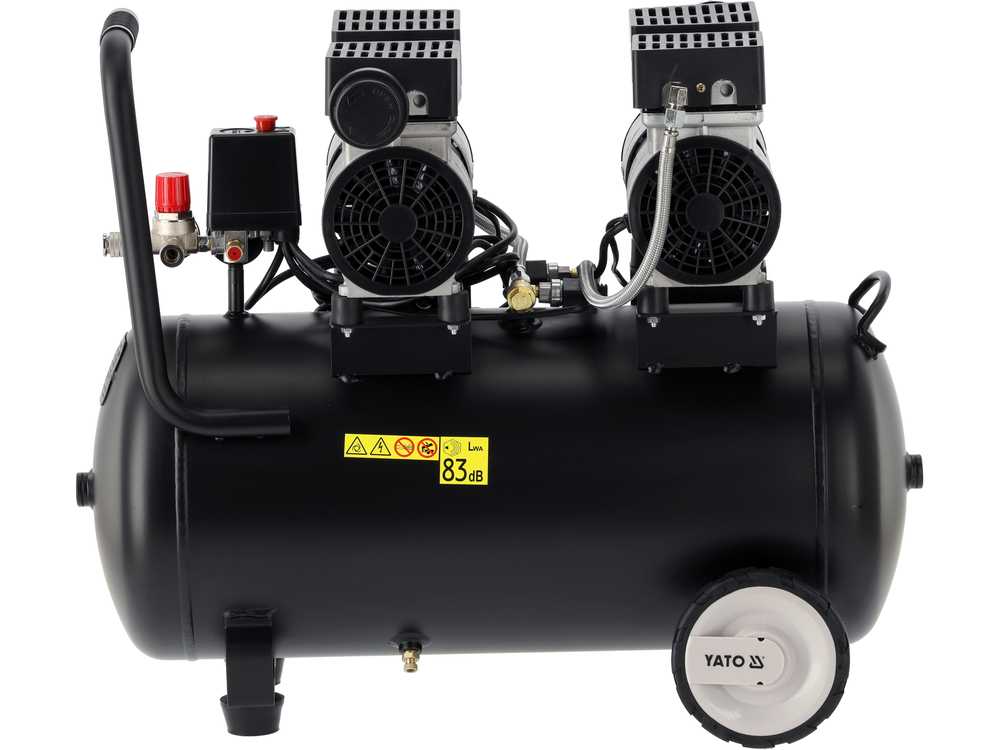

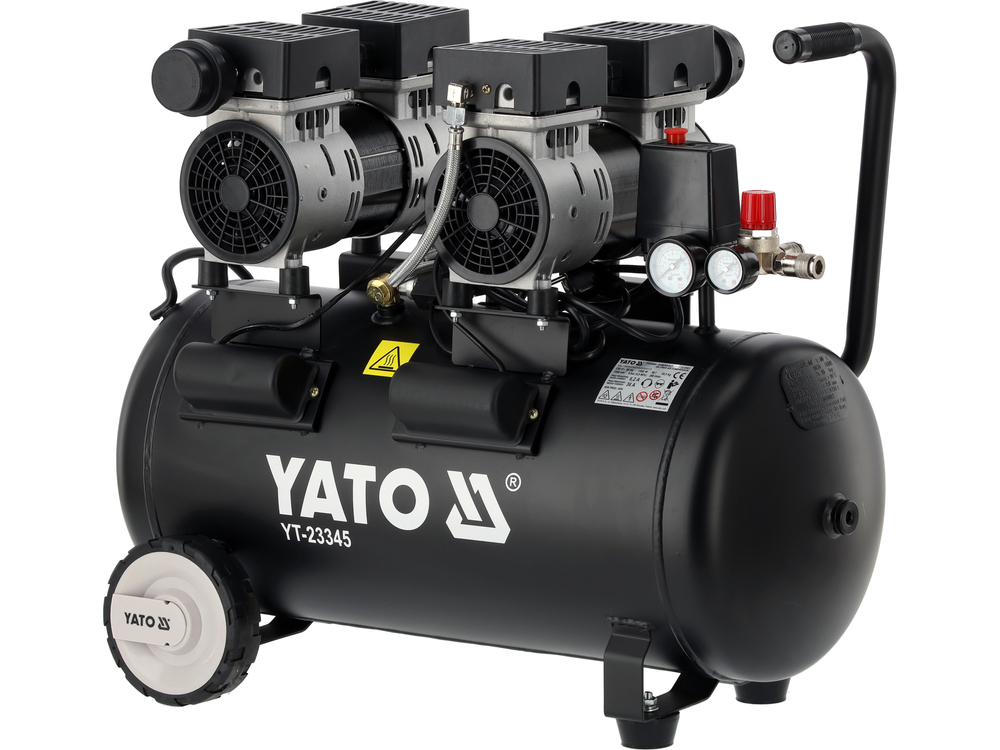

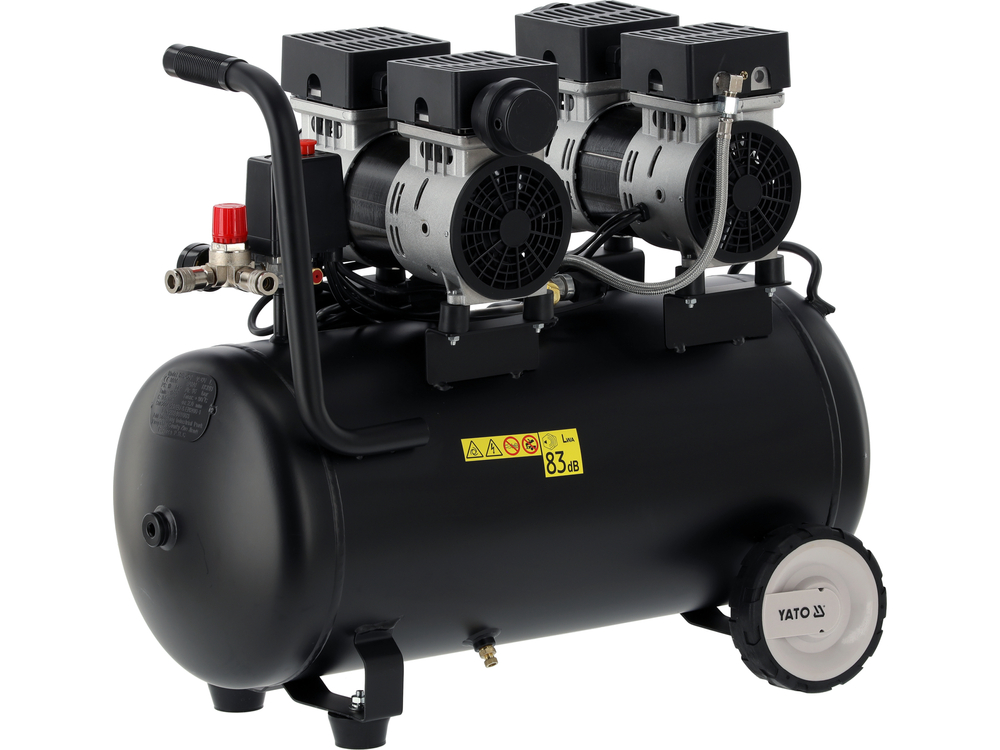

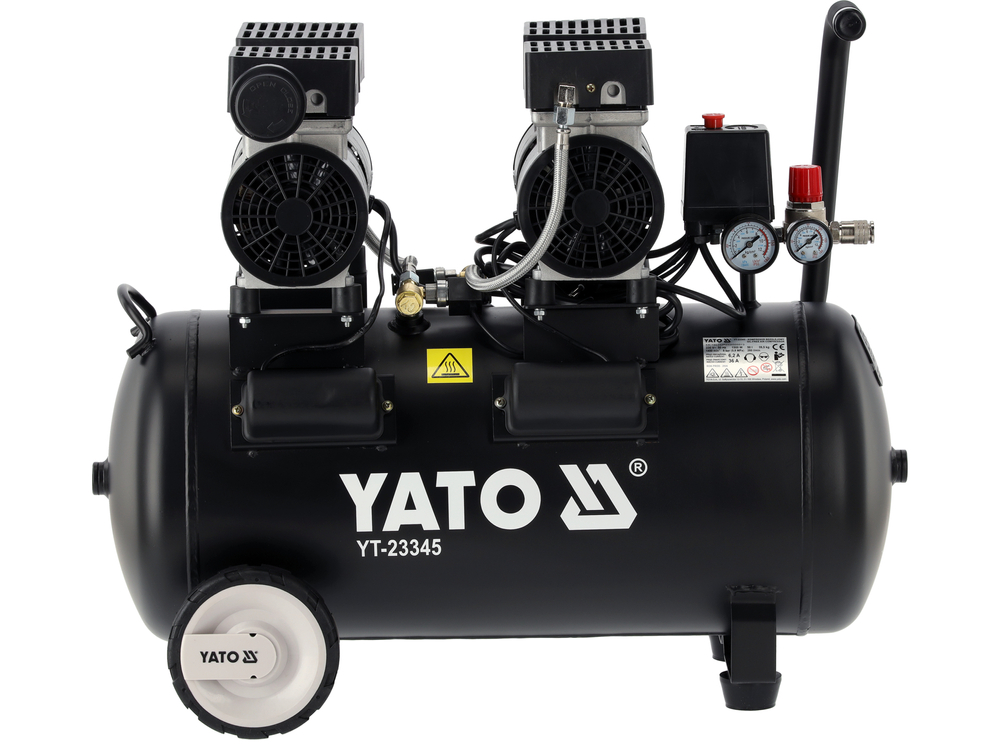

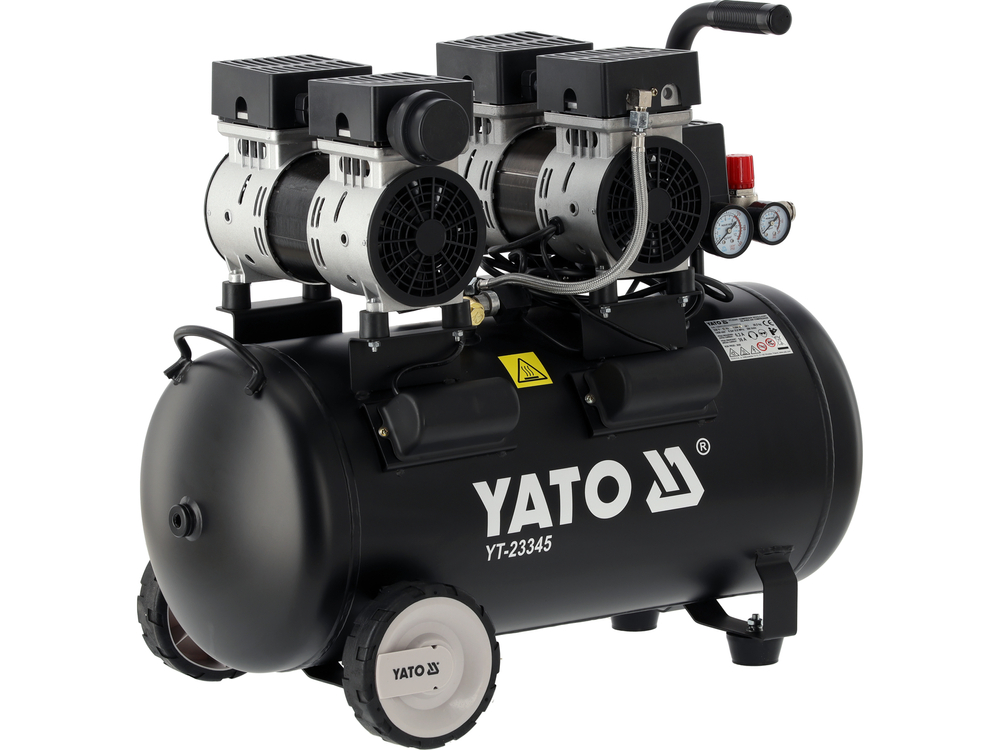

The YT-23345 oil-free compressor is designed for powering pneumatic tools and performing workshop, assembly, and service work. The oil-free compressor system eliminates the need for lubricants, reduces maintenance, and enables operation with clean, oil-free compressed air. With a 50-liter tank and a flow rate of 280 l/min, the unit is ideal for typical workshop and semi-professional applications.
The design is designed for stable operation and ease of use. The low-speed motor promotes system durability, while the integrated control and safety features enhance safety and comfort during everyday use.
Key features and technical parameters:
Oil-free compressor – no lubrication required for the compression system and simplified maintenance
Clean compressed air suitable for work requiring reduced oil contamination
Power supply: 230 V ~ 50 Hz
Motor power: 1500 W (1.5 kW / 2 HP)
Rotation speed: 1450 rpm
Maximum operating pressure: 8 bar / 115 PSI
Flow rate: 280 l/min
Tank capacity: 50 l
Tank filling time: 140 s
Pressure tank dimensions: Ø 300 x 700 x 2.5 mm

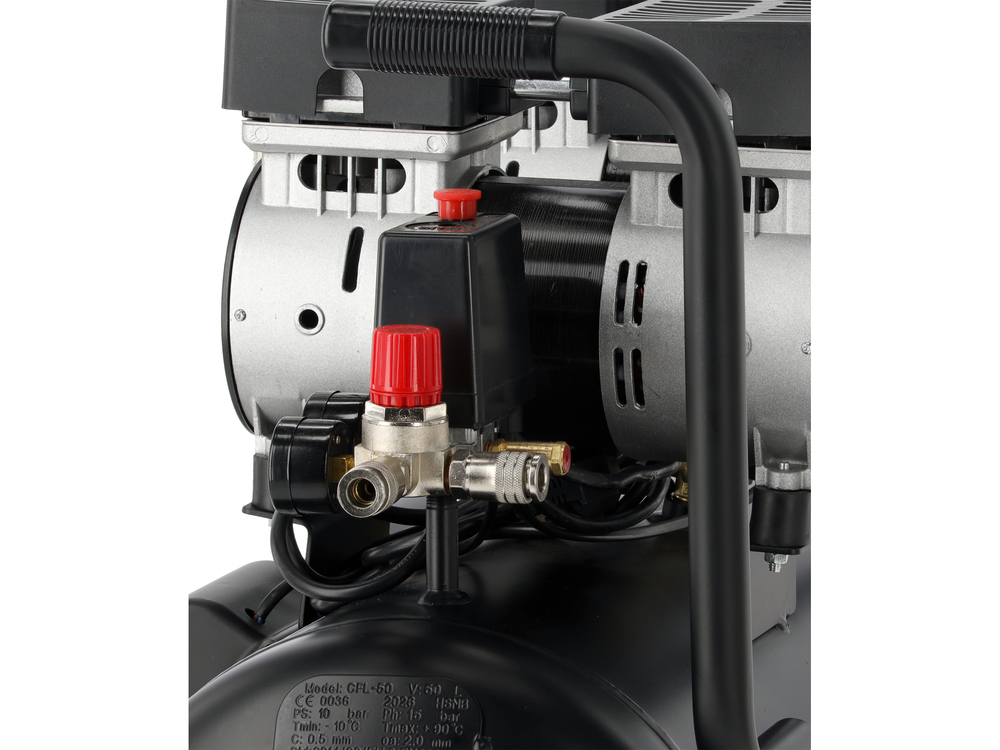

Pressure regulator for adjusting operating parameters to the powered device

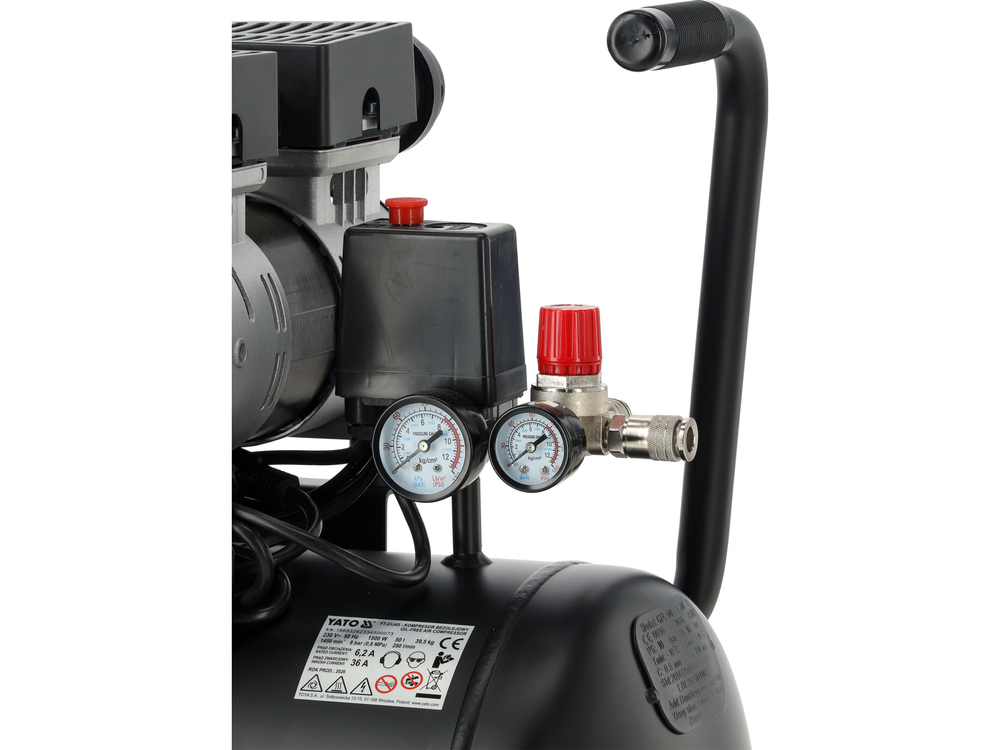

2 pressure gauges for continuous pressure monitoring
Pressure switch automatically controls compressor operation
Safety valve and check valve protect the system against overload
Quick coupler for easy connection of pneumatic tools
Air filter protects the system Compressor against contamination
Transport wheels and a stabilizing foot facilitate movement of the device and improve stability during operation
Practical use in workshops and service
This compressor is suitable for powering basic pneumatic tools, pumping, blowing, and assembly and service work. The increased tank capacity reduces the frequency of unit starts, resulting in more comfortable and stable operation.
Oil-free compression system
Oil-free technology reduces the need for maintenance and eliminates the risk of oil particles entering the compressed air. This solution is particularly effective where cleanliness of the working medium and ease of use are essential.
Mobile design
The compressor is equipped with transport wheels and a stable support, making it easy to move the device around the workshop or workplace. The compact design allows for convenient use even in smaller workspaces.
Index
YT-23345
Barcode
5906083124648
Unit of measure
PCE
Volume
166.075
Weight 41.5 kg
