Aprašymas:
Gamintojas:
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Series
GRF
Short-circuit current
6.17 A
Max. system voltage
500 V d.c.
Voltage for max. power
17.1 V d.c.
Open circuit voltage
20.4 V d.c.
Solar cell lamination
ETFE
Solar cell efficiency
23 %
Solar cable length
2 m
Moc maksymalna
100 W
Max. current
5.85 A
Unfolded dimensions
1196x588x35 mm
Folded dimensions
592x588x55 mm
Transportation holder
yes
Fold
yes
Working temperature
-20 ~ +60 ˚C
Protection grade
IP67
Weight
3.4 kg
Set includes
solar panel, MC4 adapter (DC7909, DC8020, XT60, Anderson)
Compatible with
YT-83090, YT-83091, YT-83092
Symbol
YT-98200

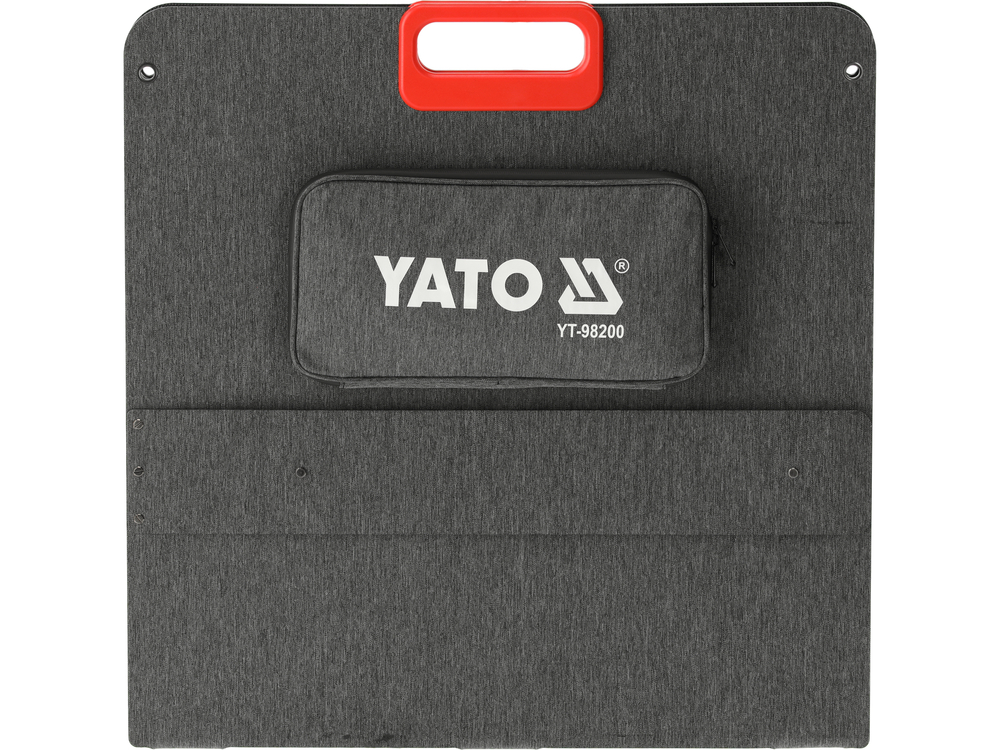

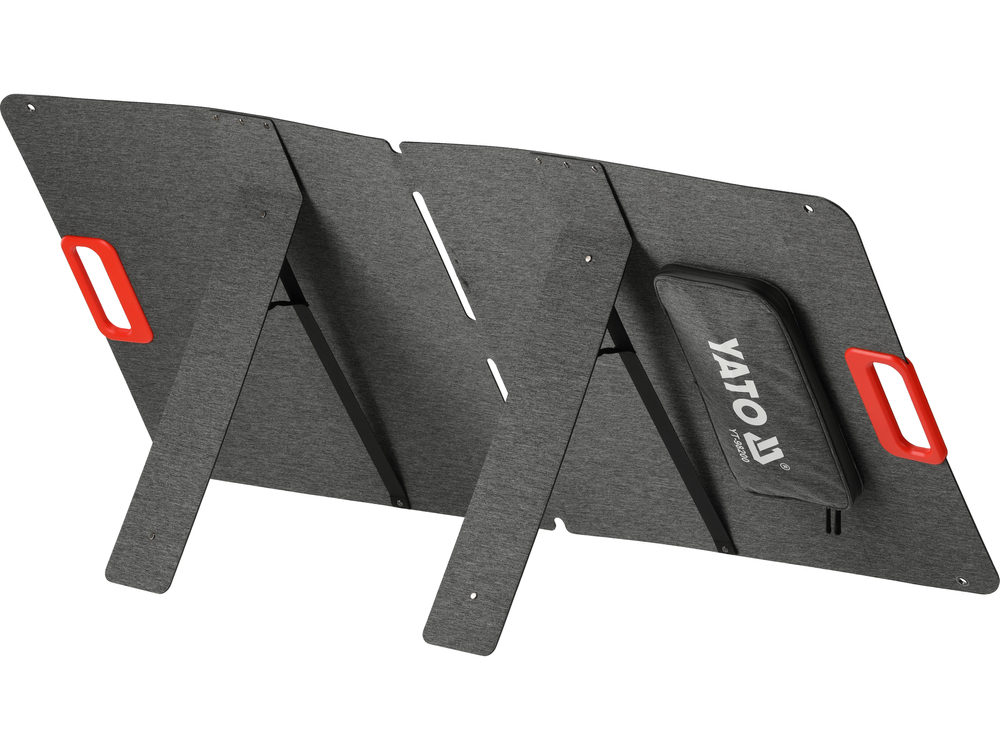

A folding solar panel with an output power of 100 watts is a portable source of energy. The ETFE solar cell lamination guarantees resistance to weather conditions. Adjustment of the brackets allows you to position the panel conveniently relative to the sunlight or hang it in a chosen location thanks to four mounting holes. The panel has compact dimensions when folded, which combined with built-in handles make it easy to carry.

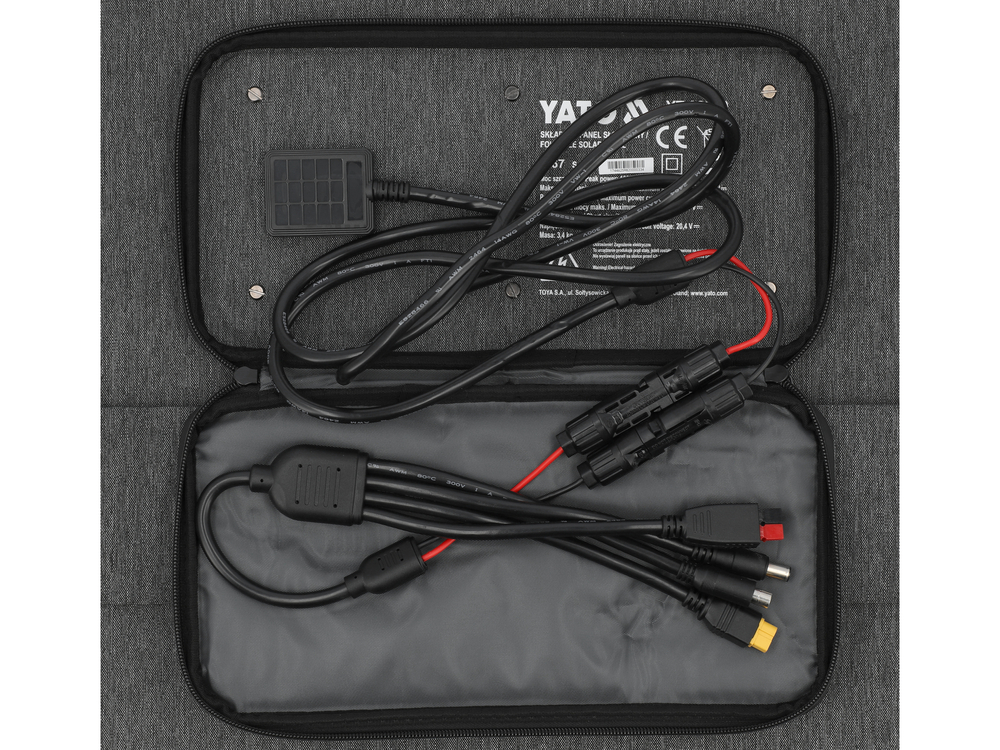

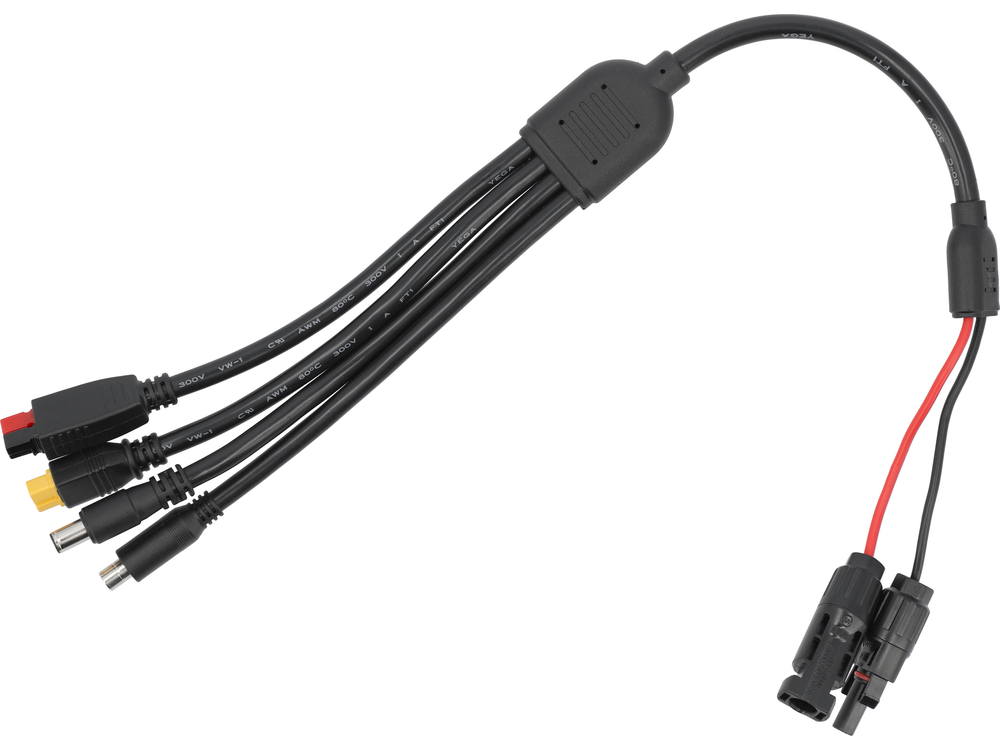

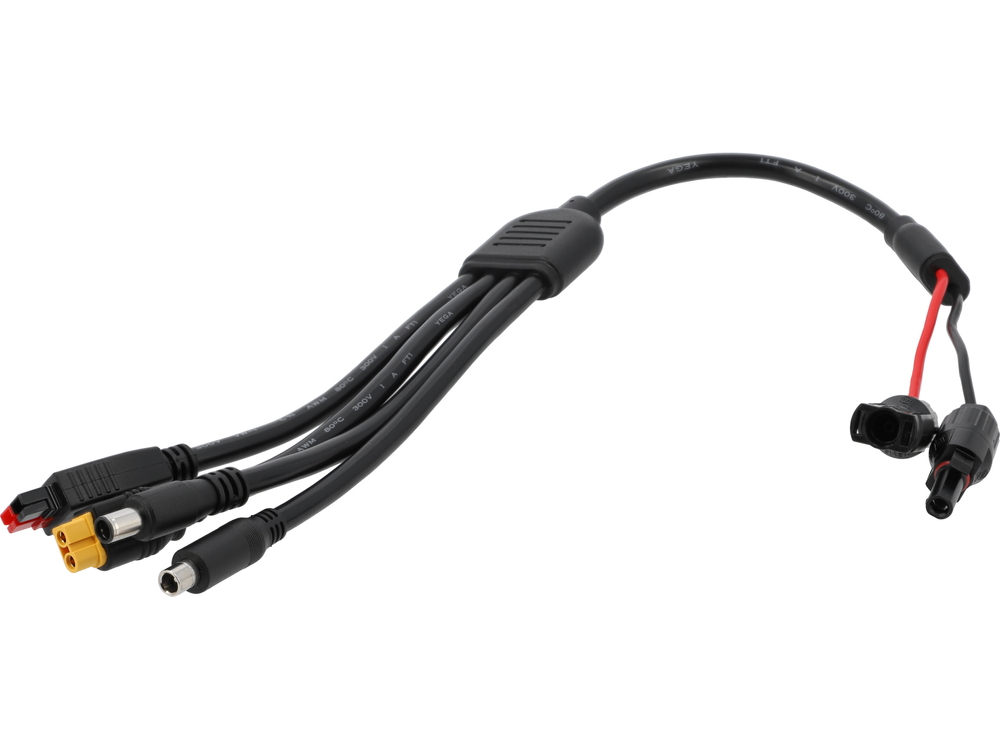

The set includes a 4-in-1 adapter, with which you can connect devices with DC7909, DC8020, XT60, and Anderson connectors. Compatible with portable power stations: YT-83090, YT-83091, YT-83092.
power: 100 W
efficiency of cells: 23%
cell lamination: ETFE
voltage and current: 17.1 V/5.85 A
protection level: IP67
dimension when folded: 592 x 588 x 55 mm
dimension when unfolded: 1196 x 588 x 35 mm
operating temperature: -20 ~ +60˚C
suspension eyelets
solar cable length: 2 m
weight: 3.4 kg
