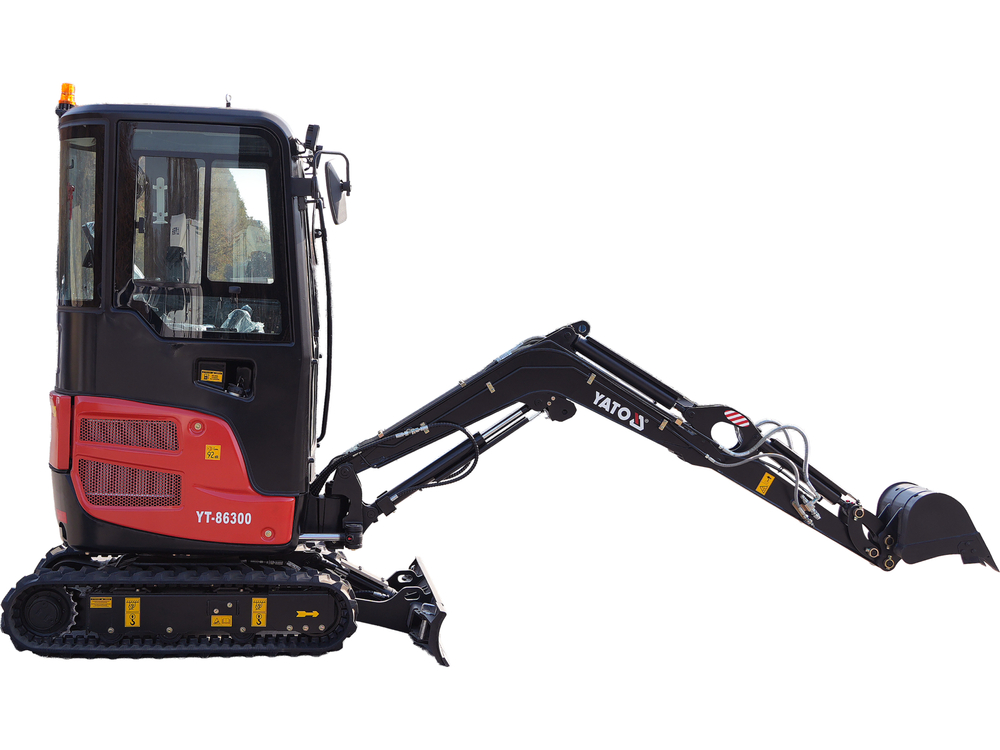

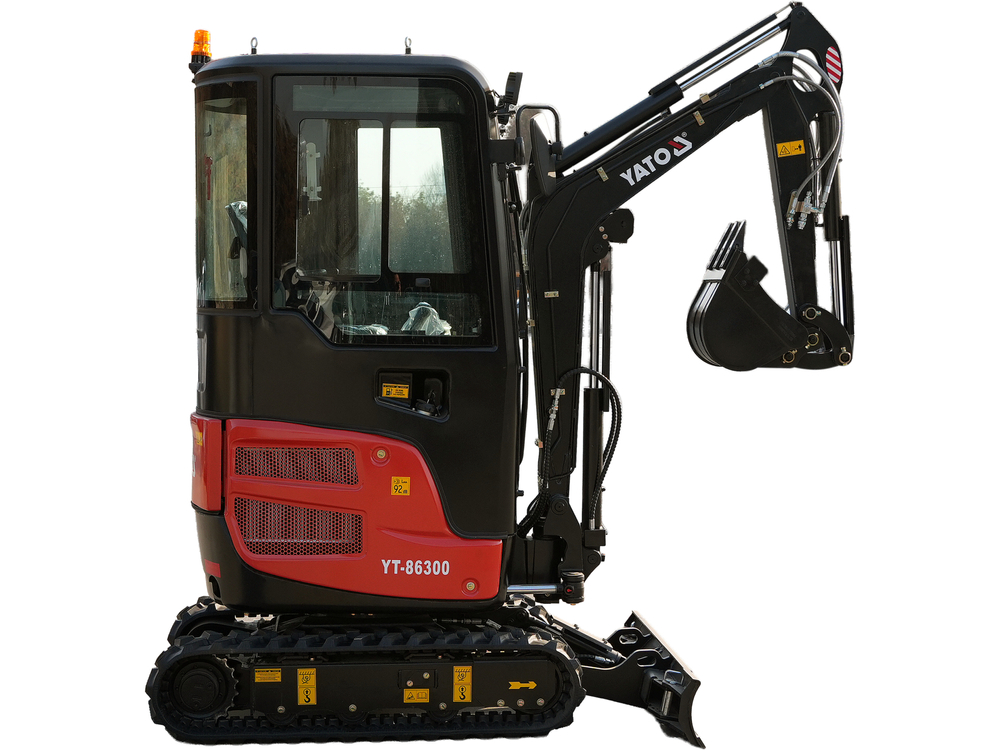

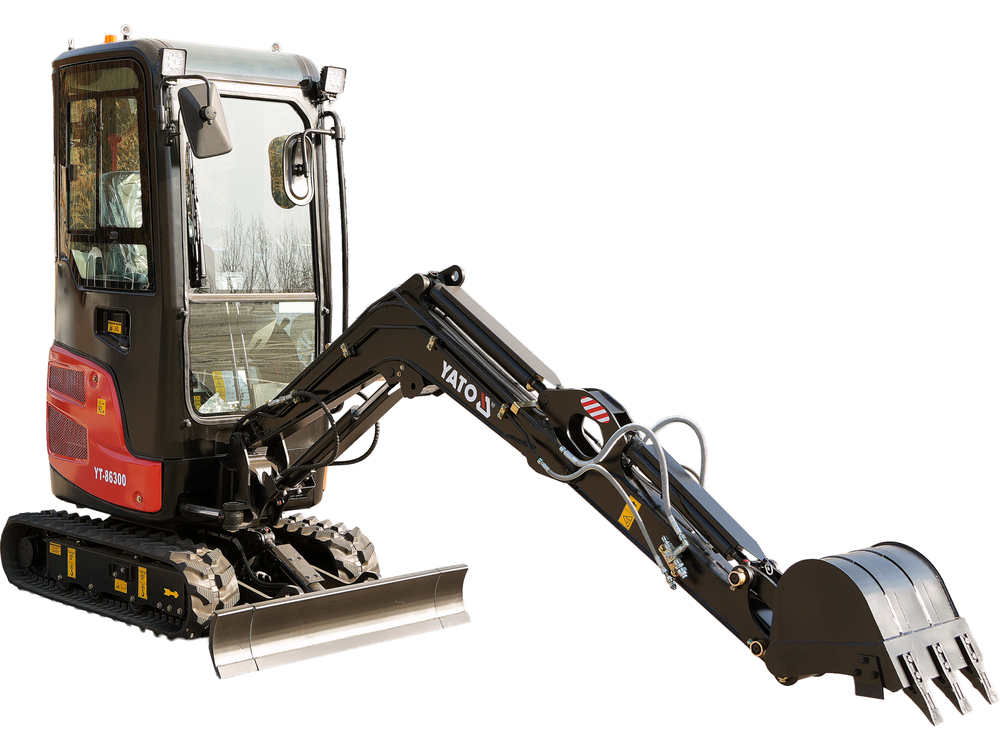

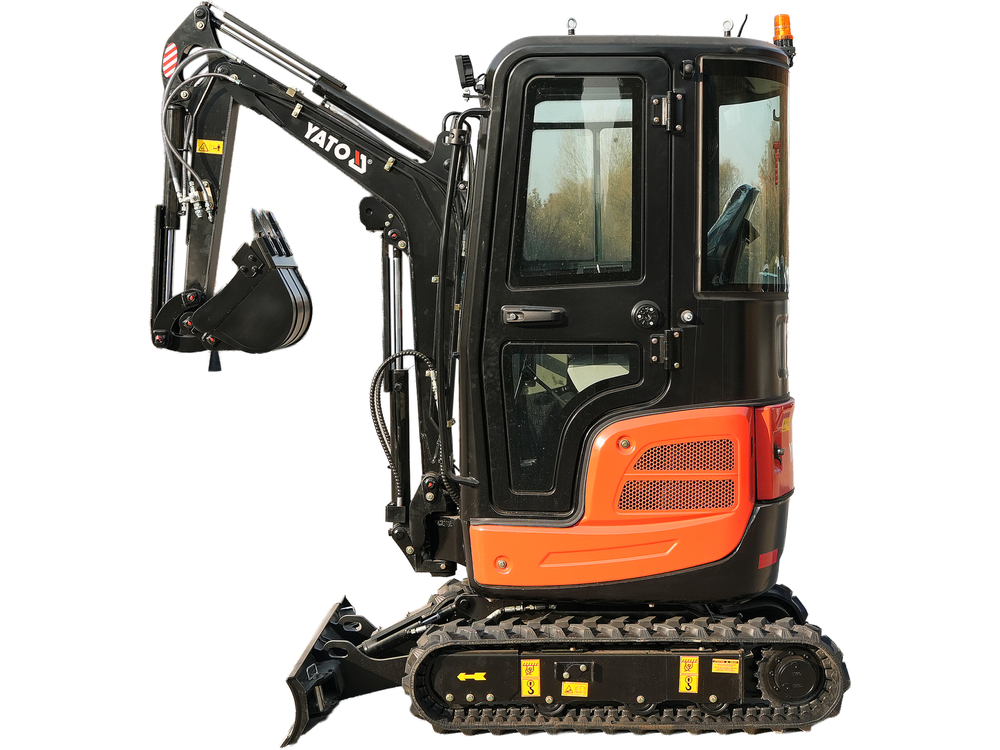

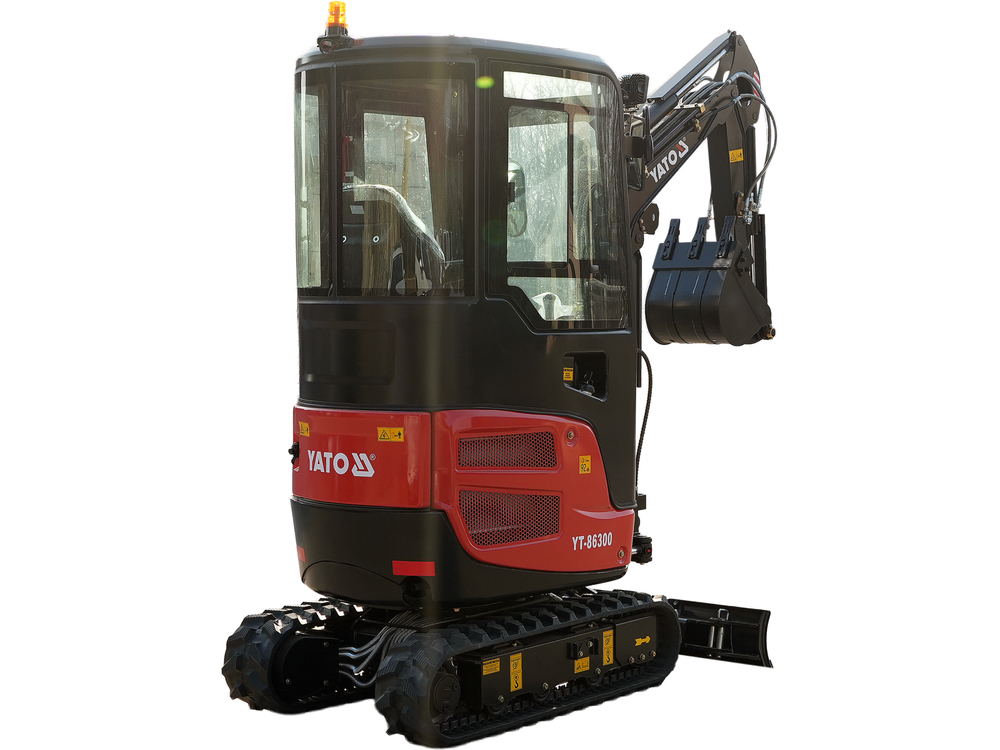

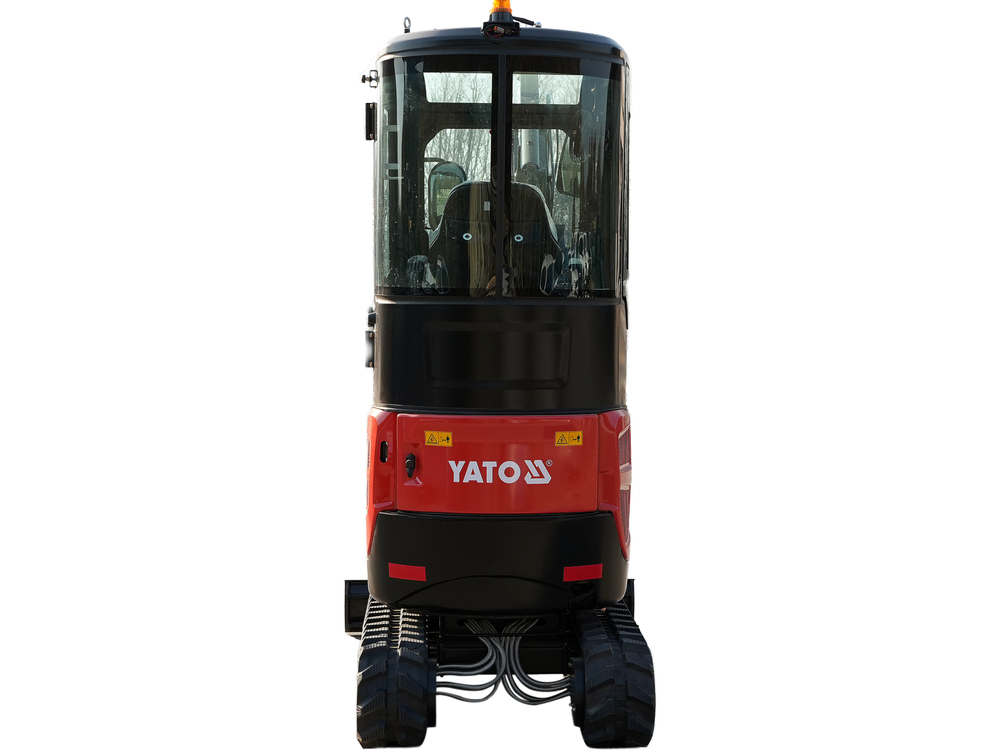

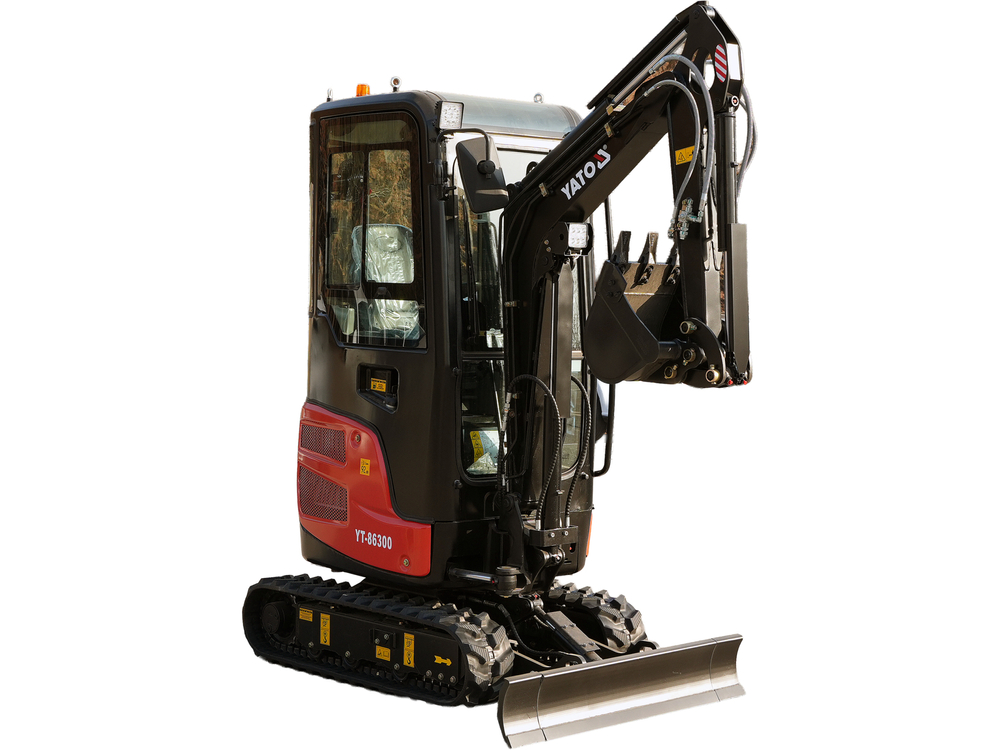

The YATO YT-86300 crawler mini excavator is a professional work machine up to 2 tons, designed for precision earthworks, installations, and construction. Its design, powered by the proven YANMAR engine, efficient hydraulic system, and compact working geometry, ensures high efficiency even in confined spaces.
The YT-86300 is equipped with an enclosed operator's cab with heating, ventilation, and basic equipment for year-round comfort. Thanks to its compact design, adjustable undercarriage track, and low operating weight, the machine is suitable for installation work, foundation work, drainage work, and landscaping.
Key design and operational advantages:
Professional 1.95-ton crawler mini-excavator designed for construction, installation, and municipal work
High-performance YANMAR engine ensures low fuel consumption and long service life
Precise industrial-grade hydraulic system enables smooth and precise operation of attachments
Compact design facilitates operation in narrow trenches and confined spaces
High digging force with relatively low ground pressure

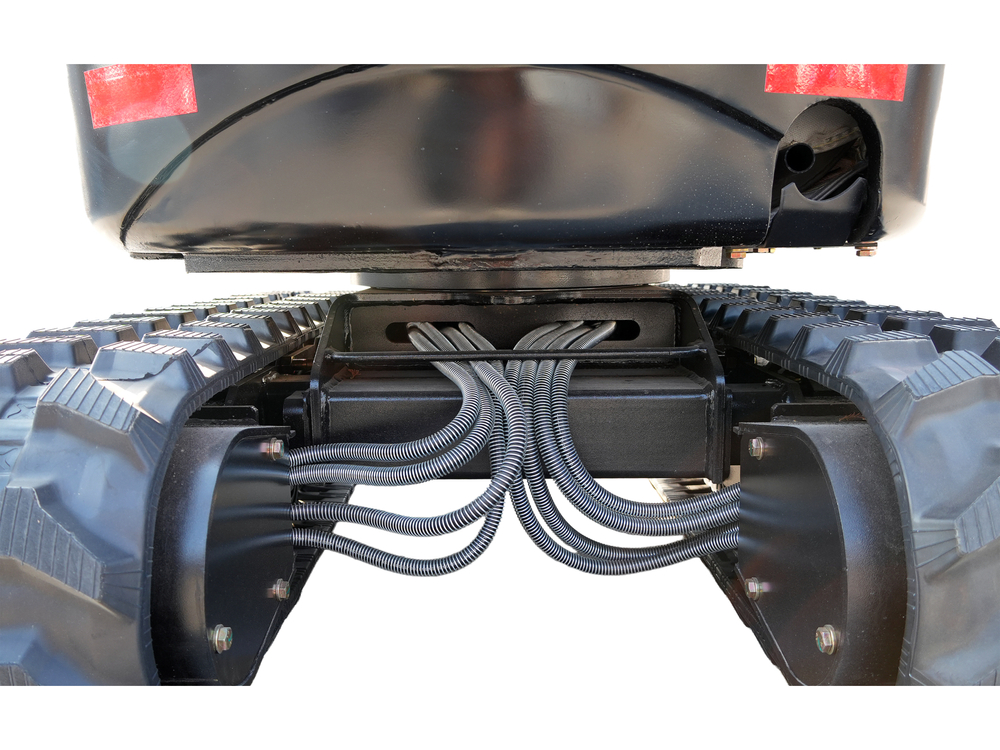

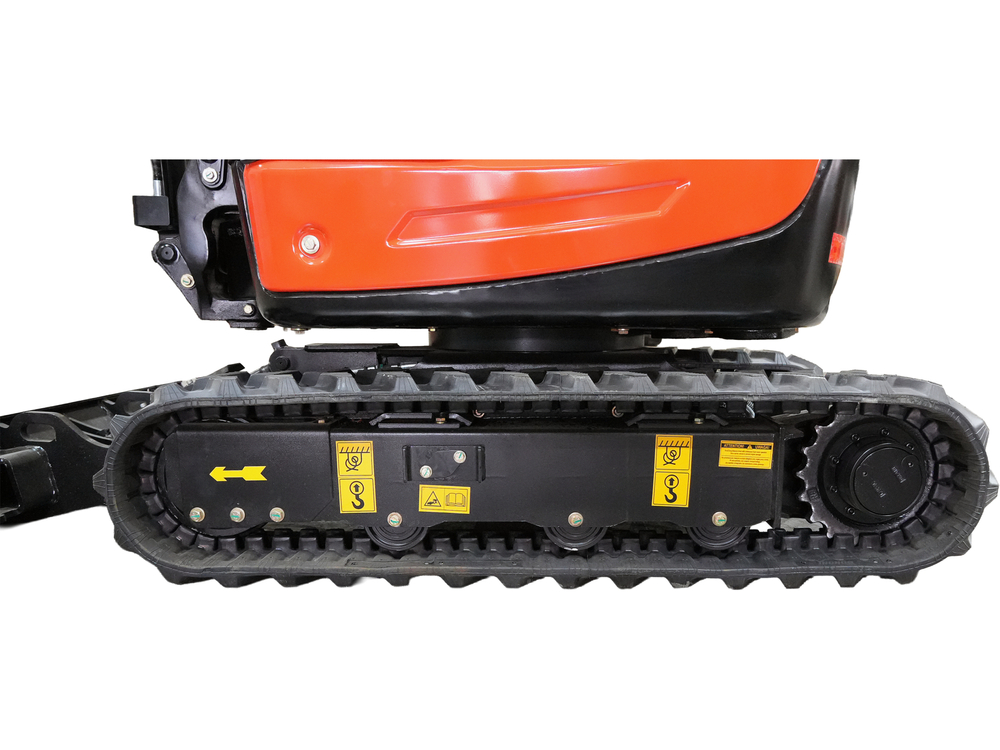

Stable crawler undercarriage with adjustable track width

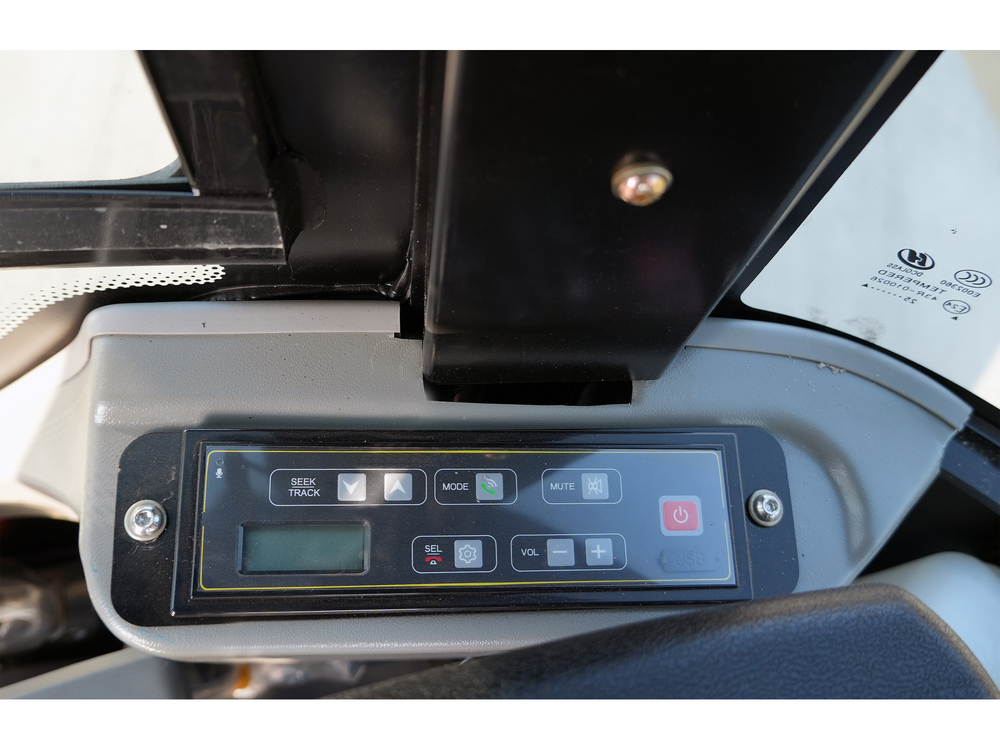

Enclosed operator's cab equipped with heating, fan, radio, and remote control
Ability to connect a wide range of attachments and hydraulics

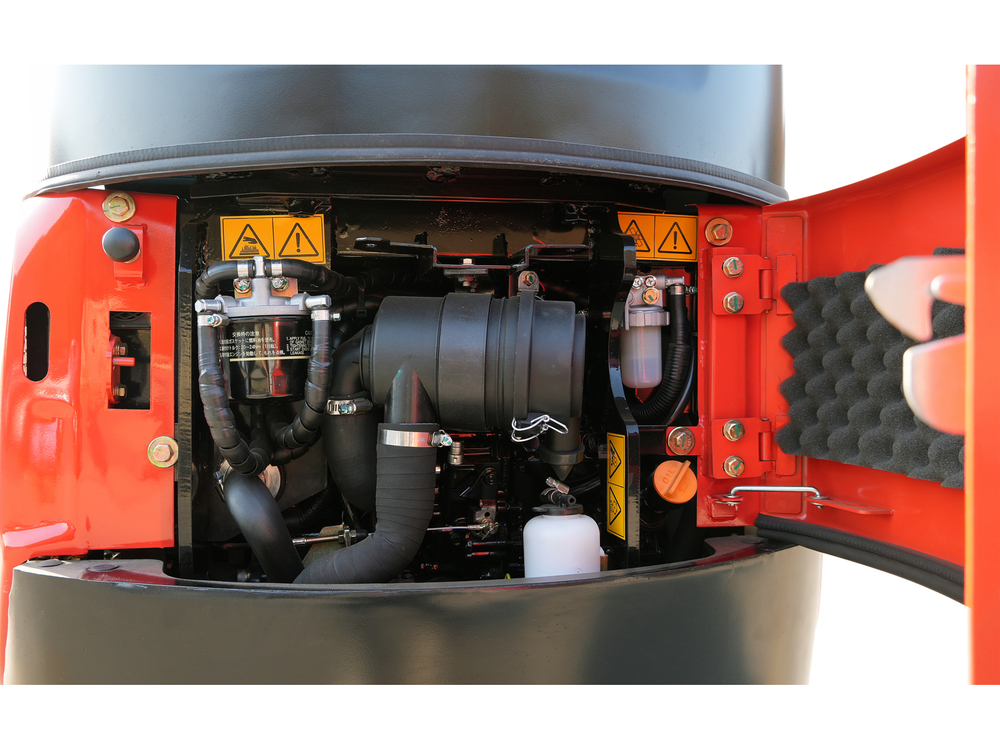

Technical data – engine:
Engine manufacturer: YANMAR
Engine model: 3TNV70F
Type: 3-cylinder, liquid-cooled diesel engine
Maximum power: 11.2 kW at 2200 rpm rpm
Fuel tank capacity: 20 l
Hydraulic system:
Hydraulic pump: In-line / Rexroth (LE-Hydraulix)
Control valve: In-line / Rexroth (LE-Hydraulix)
Swing motor: In-line
Travel motor: MaxPower
Hydraulic tank capacity: 16 l
Hydraulic system adapted to work with hydraulic attachments
Mechanical and hydraulic quick couplers can be used
Operating parameters:
Operating weight: 1.95 t

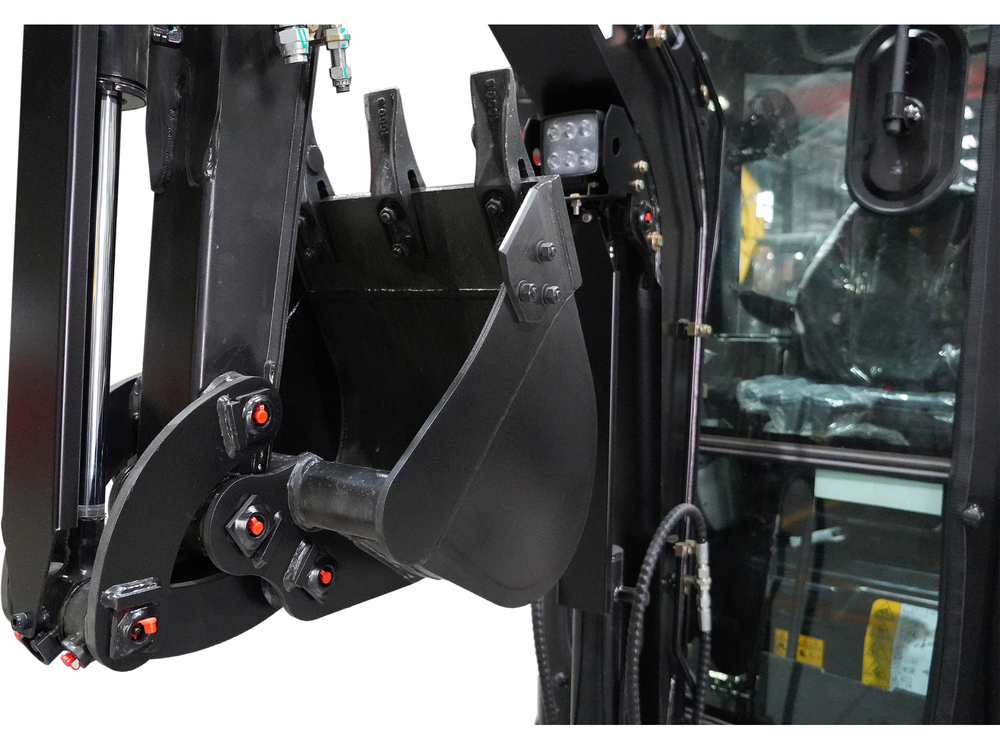

Bucket capacity: 0.05 m³
Travel speed: 2.2 / 4.2 km/h
Superstructure swing speed: 10 rpm
Gradeability: 55%
Bucket digging force: 15 kN
Arm length: 950 mm

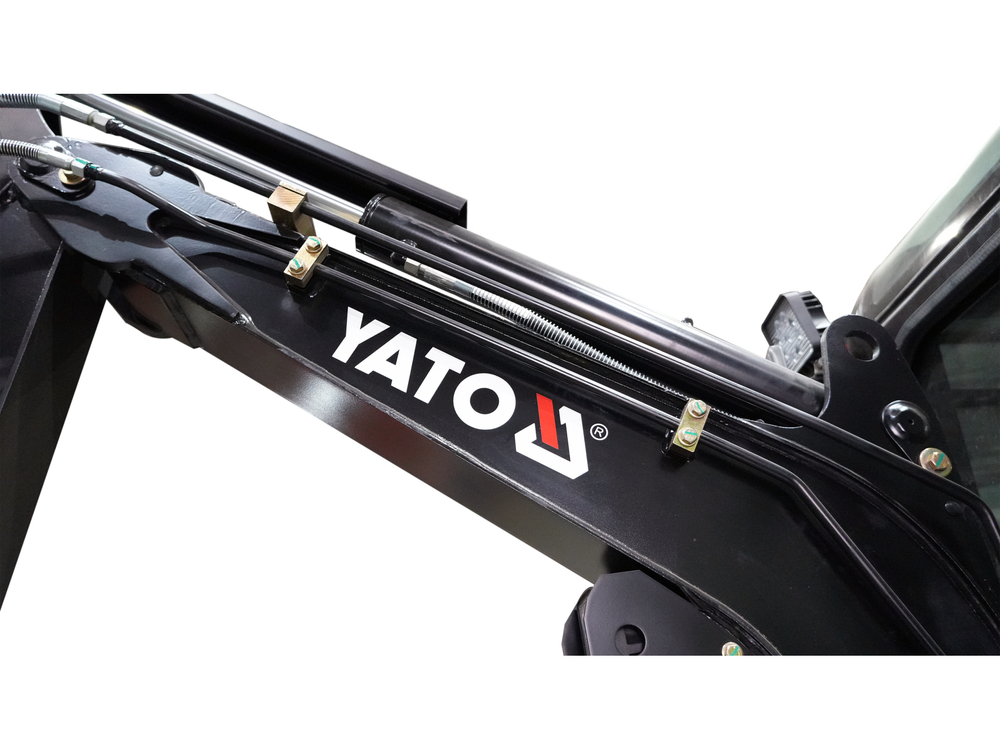

Boom length: 1720 mm
Ground pressure: 30 kPa
Overall dimensions:
Overall length: 3460 mm
Overall width: 950 / 1280 mm
Boom height (lowered): 1450 mm
Overall cab height: 2440 mm
Counterweight clearance: 460 mm
Minimum ground clearance: 175 mm
Tail swing radius: 650 mm
Track length: 1180 mm
Overall track length: 1530 mm
Track gauge: 720 / 1050 mm
Swing platform width: 950 mm
Track shoe width: 230 mm
Transport length (A1-A1): 2250 mm
Working range:
Maximum digging height: 3690 mm
Maximum unloading height: 2630 mm
Maximum digging depth: 2200 mm
Maximum digging reach: 3810 mm
Maximum reach at ground level: 3710 mm
Maximum swing radius: 1520 mm
Maximum height at minimum swing radius: 2670 mm
Distance from rear of machine to rotation axis: 650 mm
Counterweight height: 783 mm
Attachments and additional equipment*:
The YATO YT-86300 mini excavator can be used with a wide range of work tools, allowing you to tailor the machine configuration to the type of work being performed:
YT-86320 ripper
YT-86322 rake
YT-86324, YT-86325 ditch cleaning buckets
YT-86326 narrow bucket
YT-86332 slotted bucket
Knife for YT-86334 tree excavation
Quick couplers:
Mechanical YT-86330
Hydraulic YT-86328
*Attachment indexes available as per the offer.
Intended use:
Earthworks and excavation
Plumbing, sewage, and electrical installations
Foundation and drainage work
Landscaping and landscaping
Municipal and service applications
Work in confined spaces
Year-round operation thanks to the enclosed, heated cab
The YATO YT-86300 is a professional mini-excavator for users who expect high precision, reliable hydraulics, and comfortable operation in the compact construction machinery segment up to 2 ton
General
Index
YT-86300
Barcode
5906083130298
Unit of measure
PCE
Volume
10370.312
Weight 1952 kg
