Aprašymas:

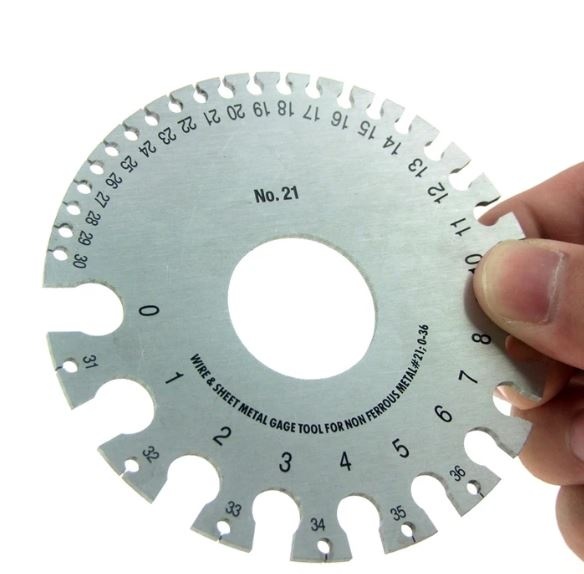

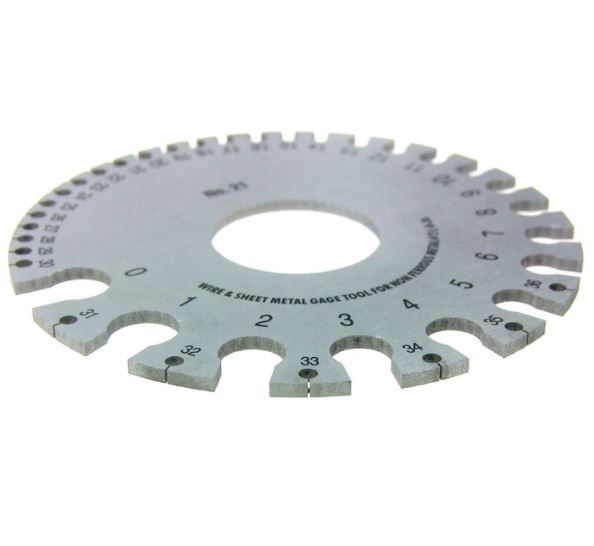

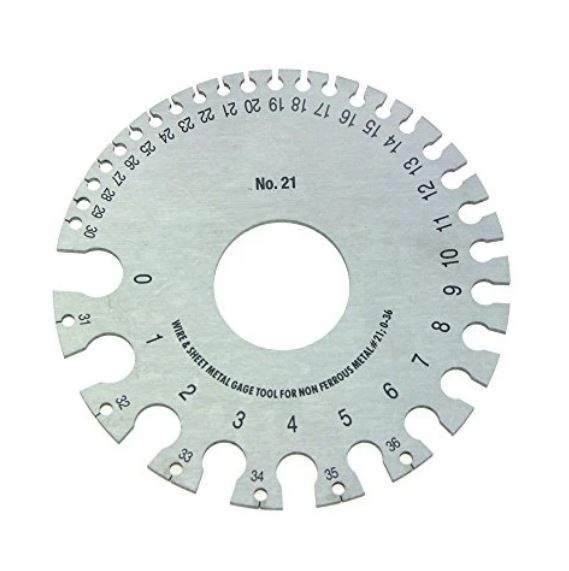

This gauge is a boon for Wire manufactures, Plate manufacturers, Fabricators, Traders, Students and Jewellers.
The preciseness of the dimensions has made wire gauge a very popular Measuring Tool among Jewellers.
Wire Gauge is a very handy and day to day usage precise tool to measure thickness of Metal Plate or Dia of a Wire.
Type: Wire & Sheet Metal Gage
For use with: sheets. wire. plates of non ferrous metal such as brass. copper. aluminum
American standard size: #0-#36
Maximum Size (wire): #0 (.3125")
Minimum Size (wire): #36 (.007")
Diameter: 3-1/4"
Product application
For gaging ferrous metal such as copper. brass. aluminum.
Product features
Made of hardened steel heavy gage
Satin chrome finish
Laser marks of gage size on front and decimal equivalent on back side
Specifications
Wire Gauge Sizes: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24,
25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36
Decimal Equivalents: .005", .0056, .0063, .007, .008, .009, .010, .011, .012, .014, .016, .018, .020,
.022, .025, .028, .032, .036, .040, .045, .051, .057, .064, .072, .081, .091, .102,
.114, .128, .144, .162, .182, .204, .229, .257, .289, .325
|
