LED prožektorius | 3 šviesos panelės | 80 W | 8800 lm | IP54 (YT-818070)

(1)

Aprašymas:

Dimensions: 780x200x300 mm
Material: P.C, aluminum
Type: SMD LED
Weight: 4.49 kg
Voltage: 220-240 V a.c.
Power: 80 W
Wire length: 5 m
Protection grade: IP54
Fold: yes
Frequency: 50/60 Hz
Electric insulation class: I
Impact resistant: 1 m
Wire section area: 3Gx1.5 mm²
Wire insulation type: H07RN-F
Luminous flux: 8800 lm
Cloche material: P.C
Cloche color: transparent
Color temperature: 6500 K
Lighting modes: 3: main spotlight mode, side spotlight mode, main and side spotlight simultaneous mode
Colors reflection factor CRI Ra: 80
Mechanical strength: IK08
Max. socket load: 3000 W
Light control: yes


The 80 W YATO YT-818070 mains-powered floodlight is designed for illuminating workstations, indoor spaces, assembly areas, and any other locations requiring intense lighting. Featuring a main central light panel along with two foldable side panels, it allows for the adjustment of the illuminated area's width and the customization of light distribution to suit specific working conditions. With an IP54 ingress protection rating, the floodlight is also suitable for limited outdoor use, provided that the conditions specified for this protection rating are met. Light source:

LED with a total rated power of 80 W
Luminous flux up to 8800 lm
Color temperature: 6500–7500 K
Color Rendering Index (CRI) >80

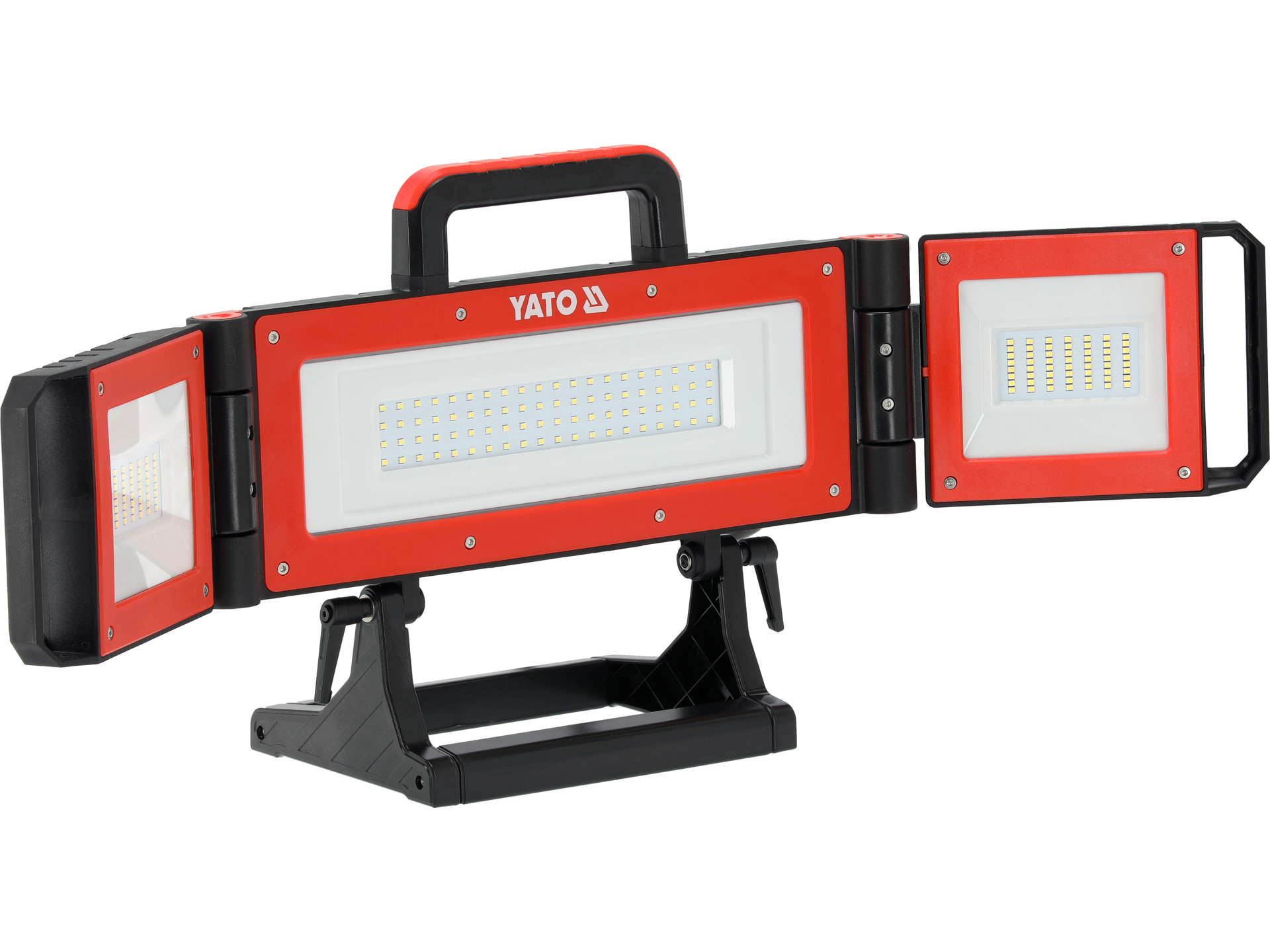

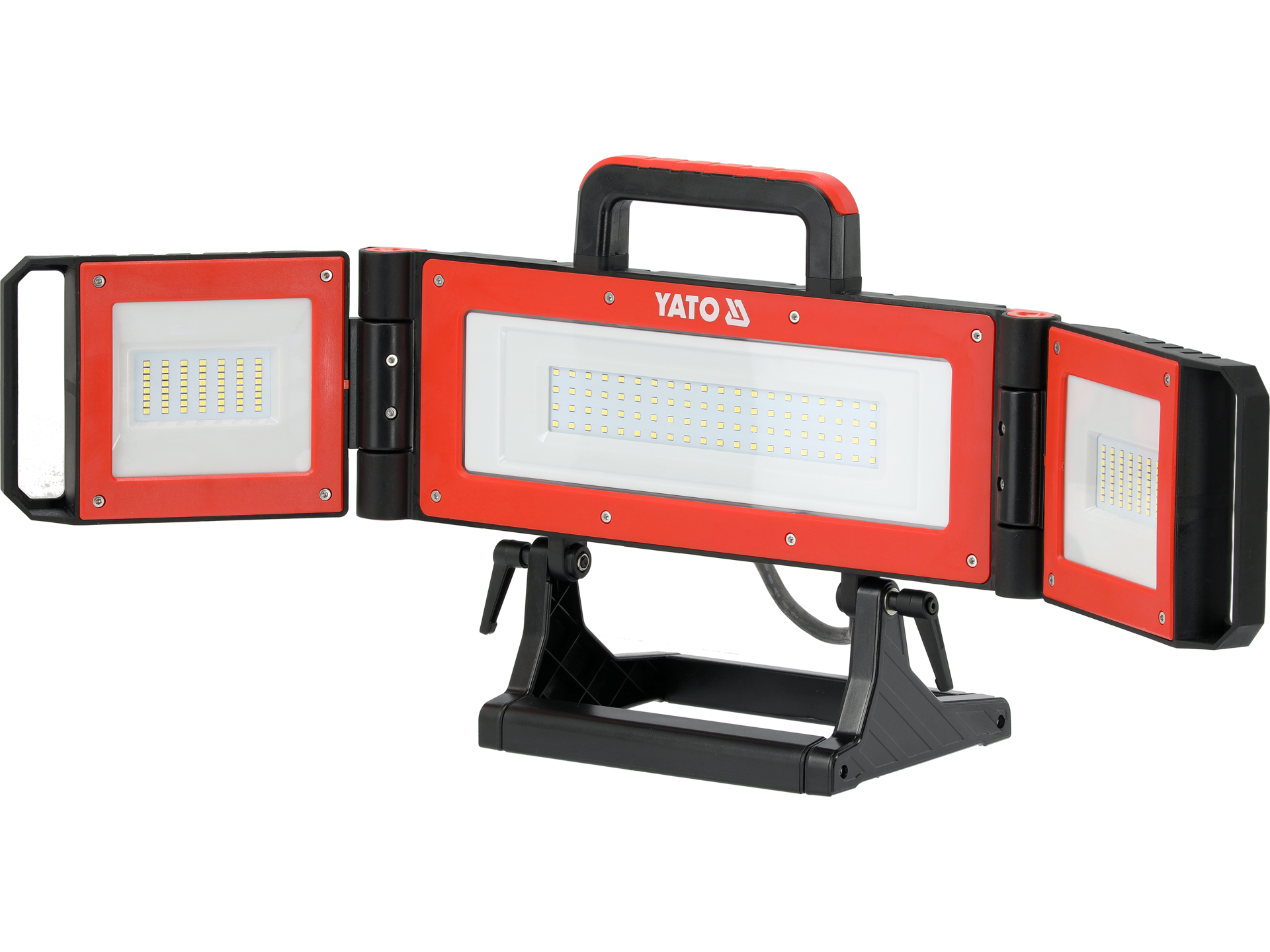

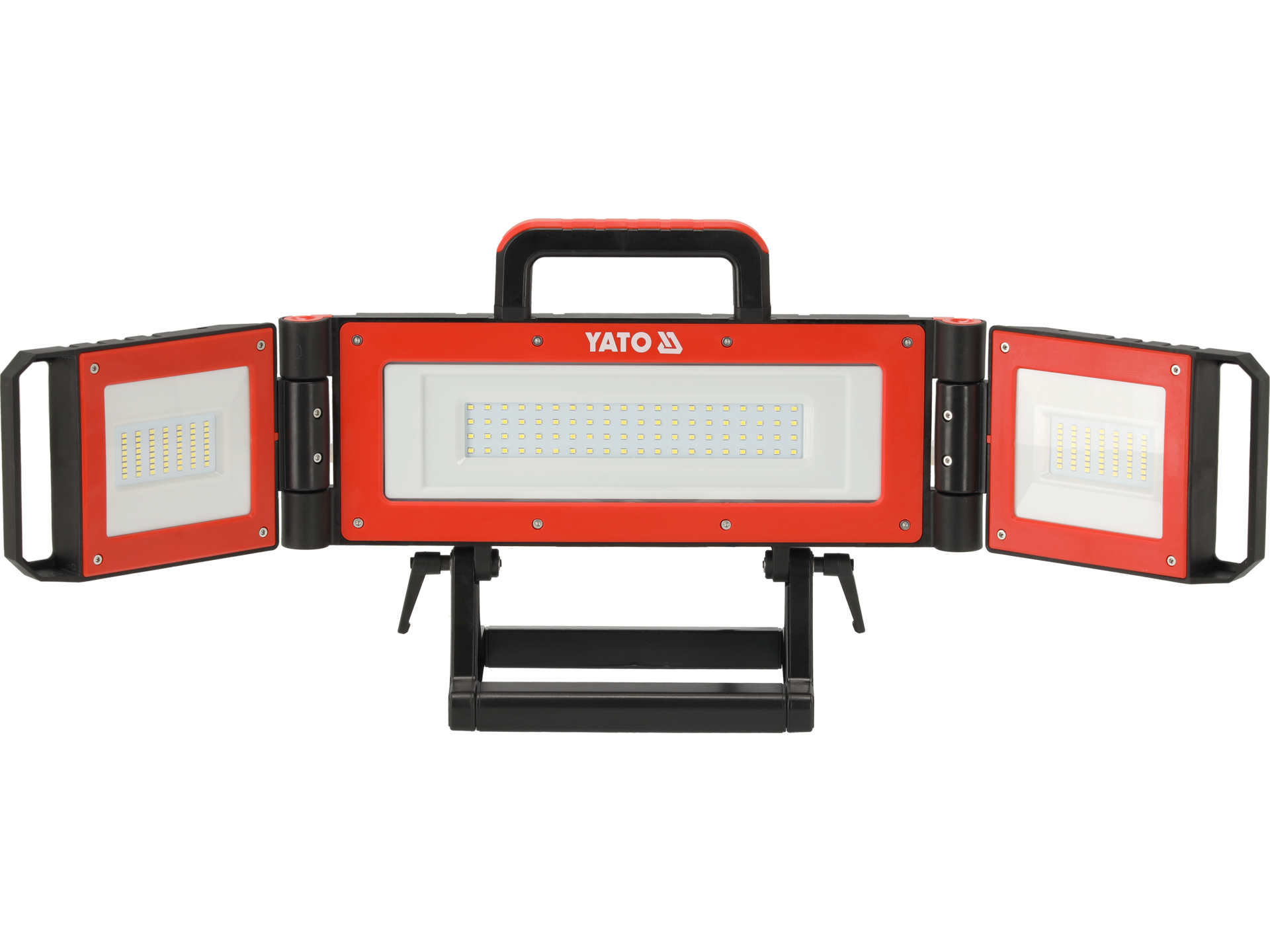

Main floodlight providing primary illumination for the workspace
Two independently deployable side floodlights, allowing for an expanded lighting range
Side floodlights can be oriented toward the area in front of the unit or positioned to provide wider coverage around the workspace
Power source:

Mains power supply: 220–240 V~ / 50–60 Hz
H07RN-F 3 × 1.5 mm² power cord, 5 m in length

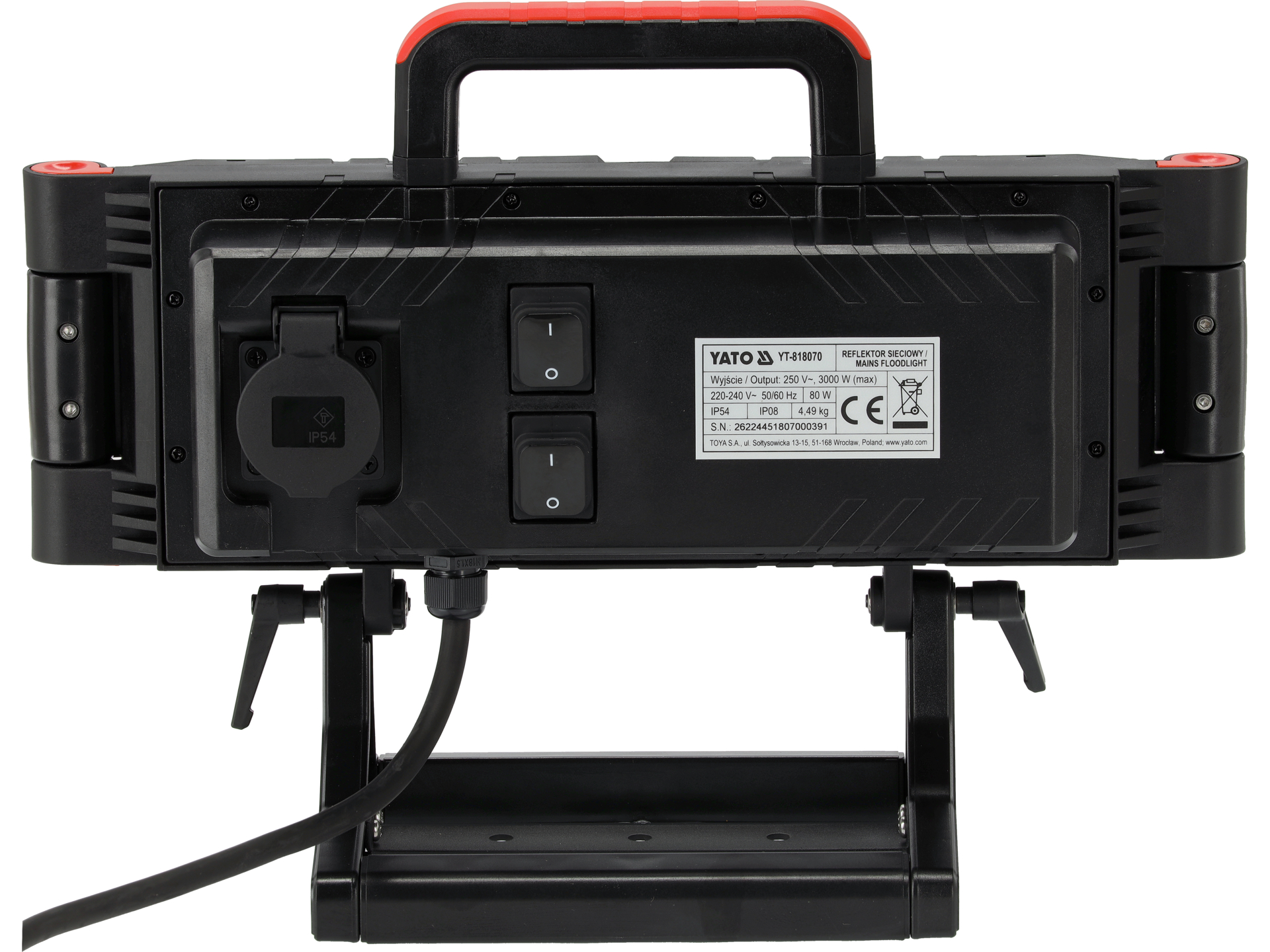

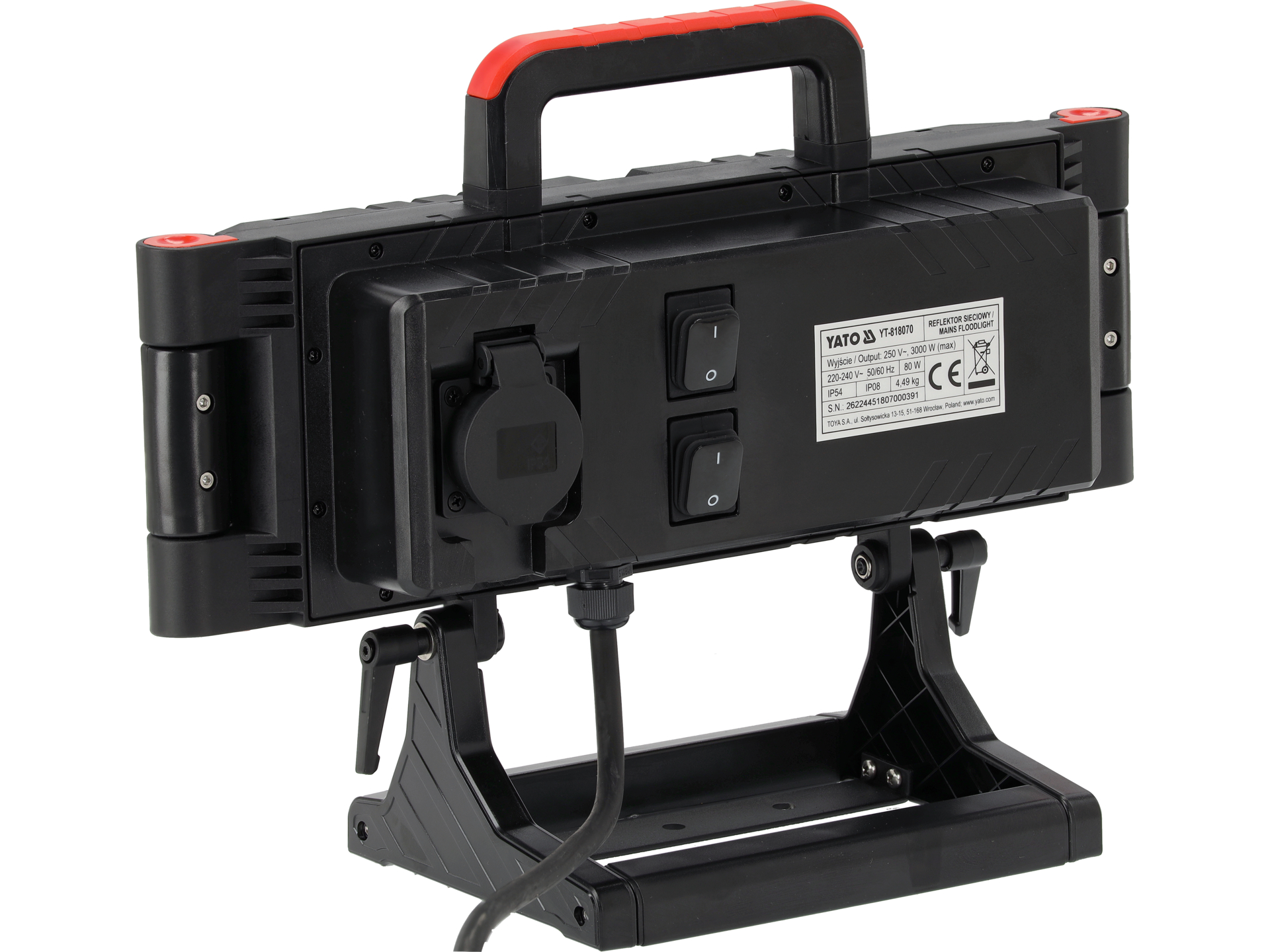

Built-in 220–240 V~ mains socket
Maximum total load for the output socket: 3000 W
Electrical protection class: I
The output socket integrated into the housing allows for the connection of an additional electrical device, enabling the floodlight to serve as a power point when working in locations where a mains outlet is not readily accessible.

Operating modes and runtime:

The floodlight is powered directly from the mains; therefore, it does not require charging or battery replacement. It features two independent control circuits:

Main floodlight mode
Side floodlight mode
The main and side floodlights can be switched on simultaneously or used independently of one another.
Independent switches allow the lighting coverage to be adjusted to suit the specific task at hand. Since there is no runtime limitation imposed by battery capacity, the unit allows for long-term illumination of a workspace when connected to the mains.

Design and features:

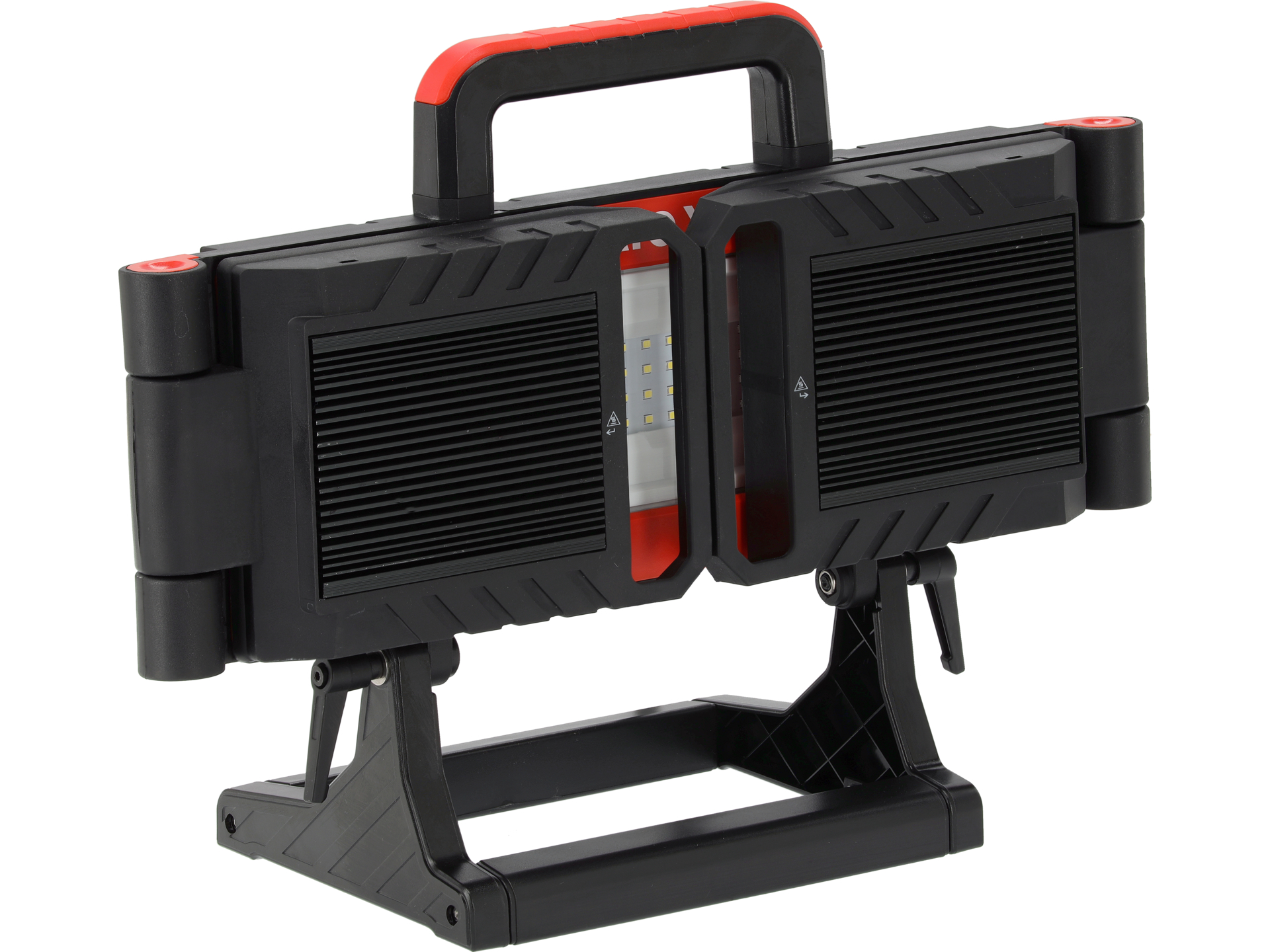

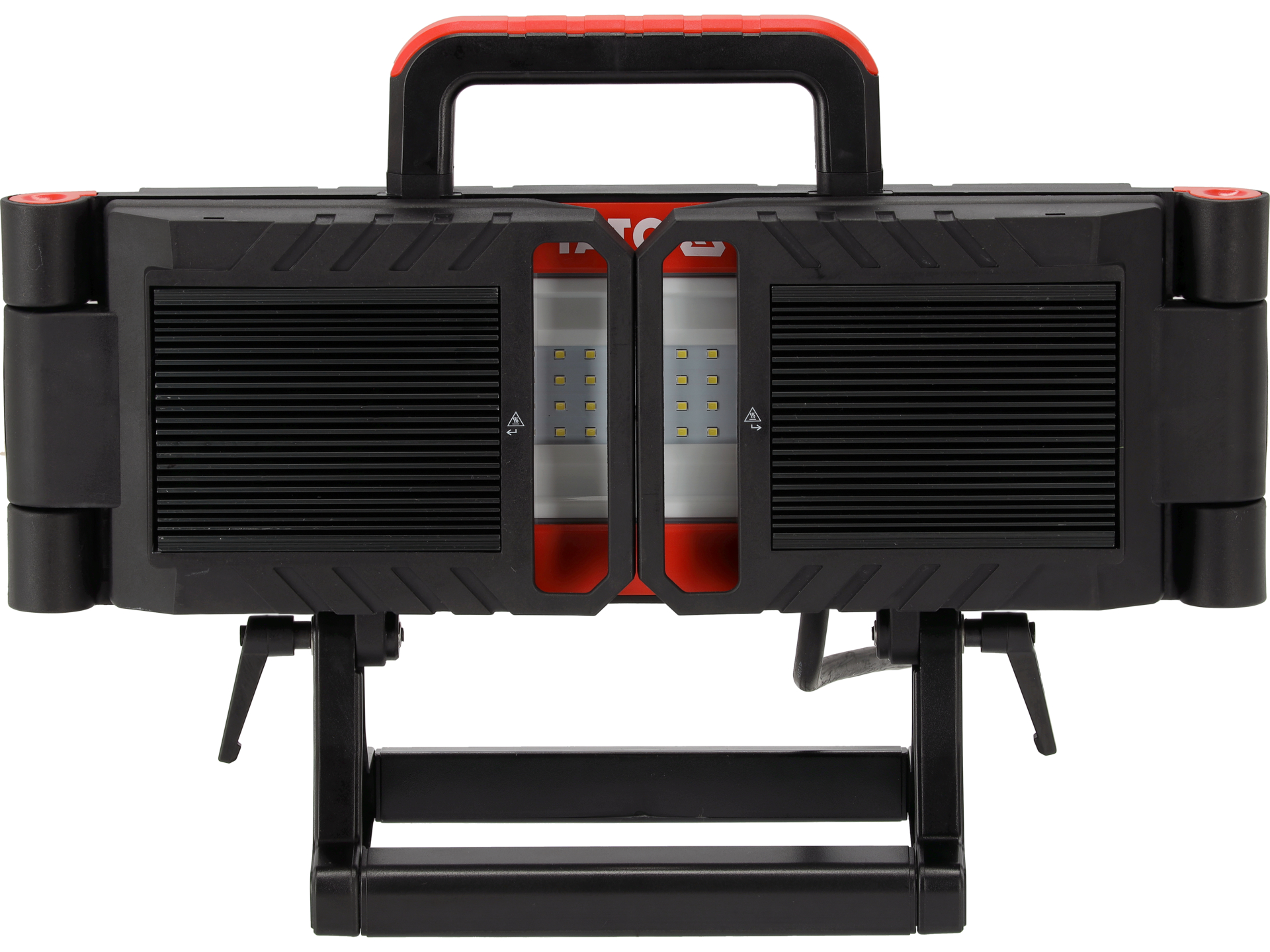

foldable design for easy storage and transport
adjustable angle for the main light head relative to the base

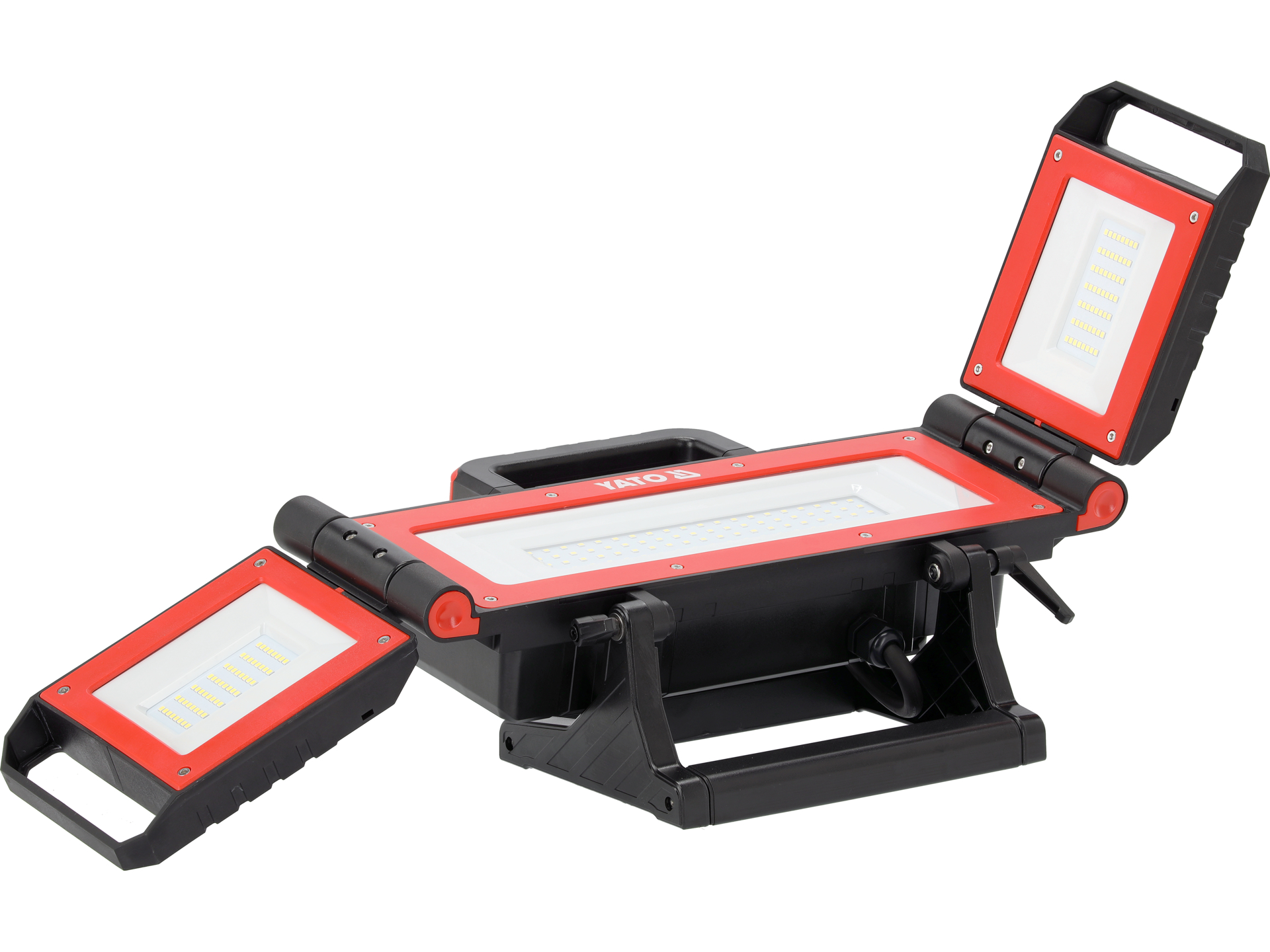

adjustable side light heads to expand the illuminated area
locking mechanisms to secure the light heads in a chosen position
stable base for placement on the ground
integrated carrying handle
housing made of aluminum and polycarbonate (PC)
IP54 ingress protection rating – protected against dust in quantities that could interfere with operation, and against water splashes from various directions
IK08 mechanical impact resistance
drop resistance from a height of up to 1 m
dimensions: 78 x 20 x 30 cm
weight: 4.49 kg
