Aprašymas:
Gamintojas:
Material:
Carbon Steel
Drive profile:
Outer hexagon
For thread/incline:
M8 x 1,0
Drive profile size, metric:
10 mm
13 mm
Number of parts:
9

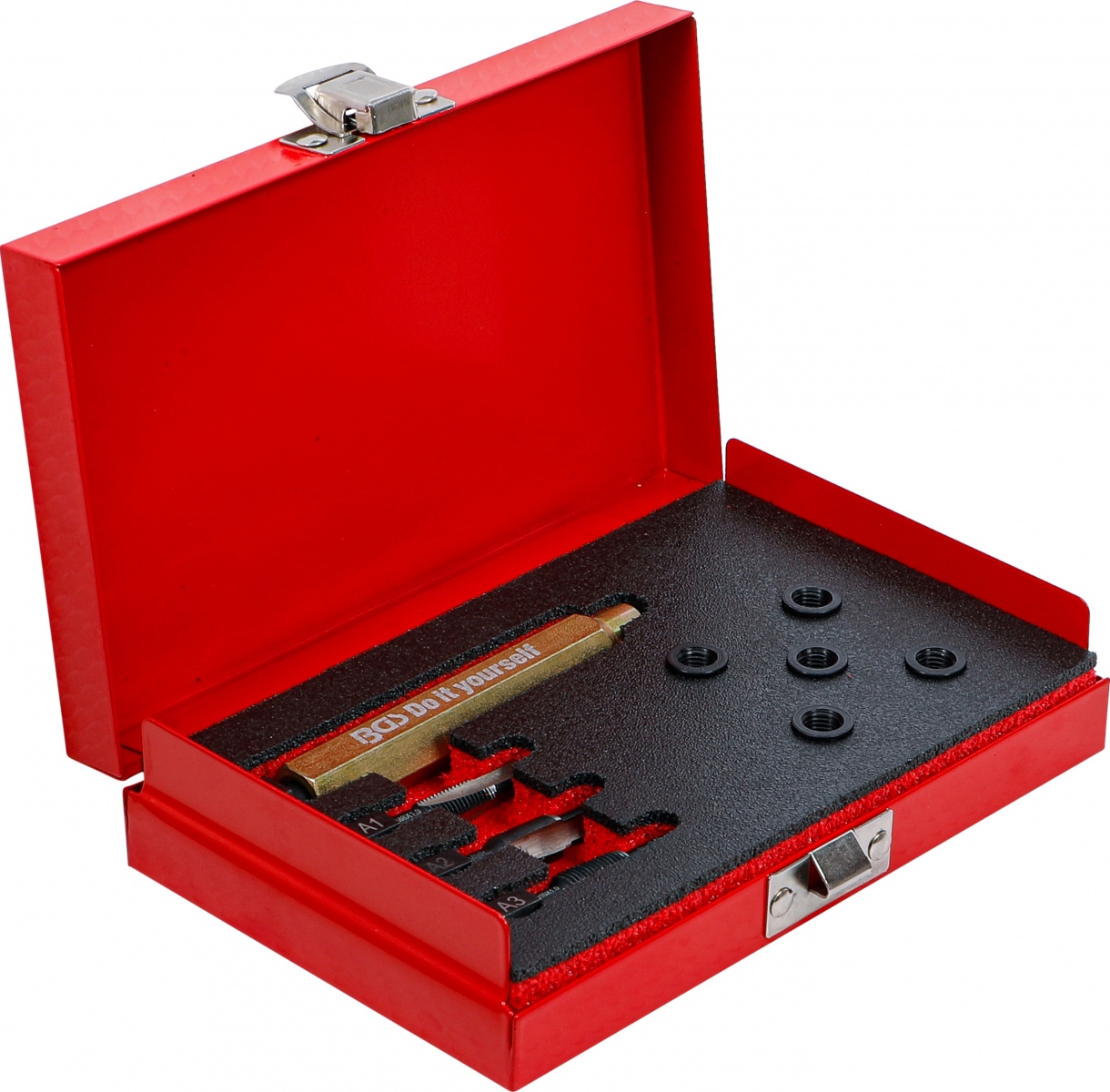

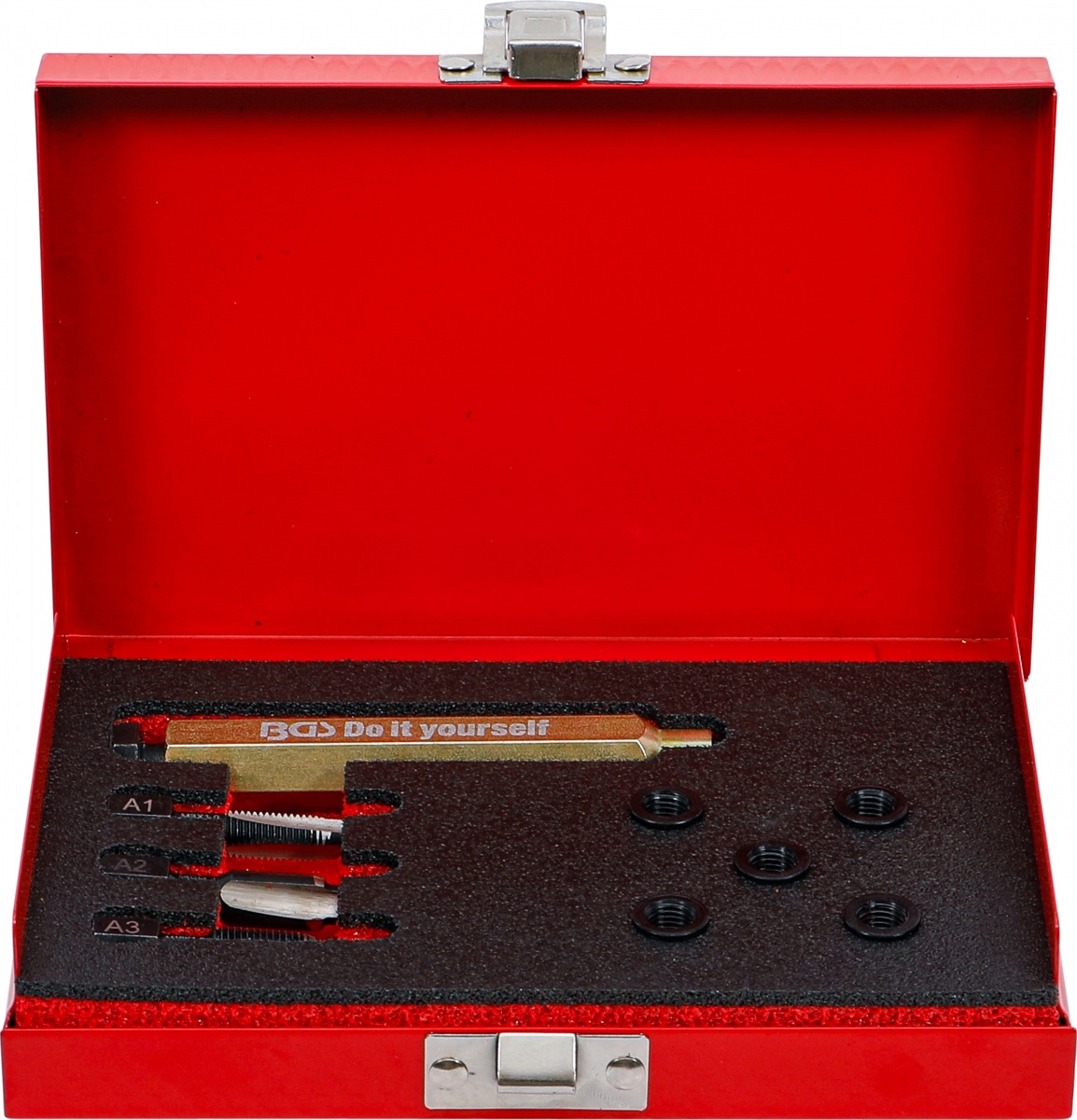

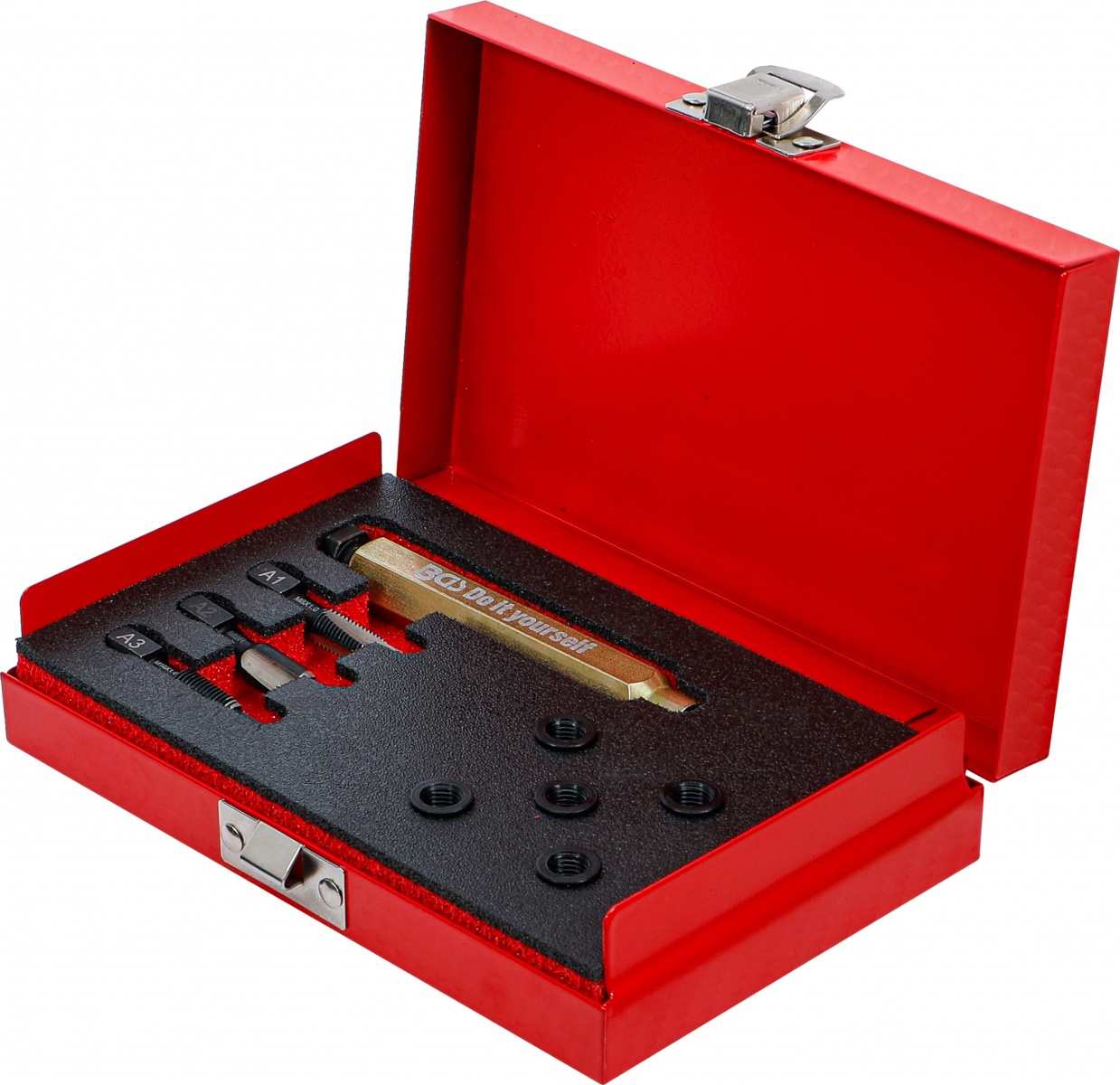

compact set composition
for repairing the glow plug mounting thread in the cylinder head
simple and safe handling
right-hand cutting taps
5 thread inserts
thin wall
secure fit
the tools are protected in the hard foam tray and are stowed in the recesses in a non-slip manner

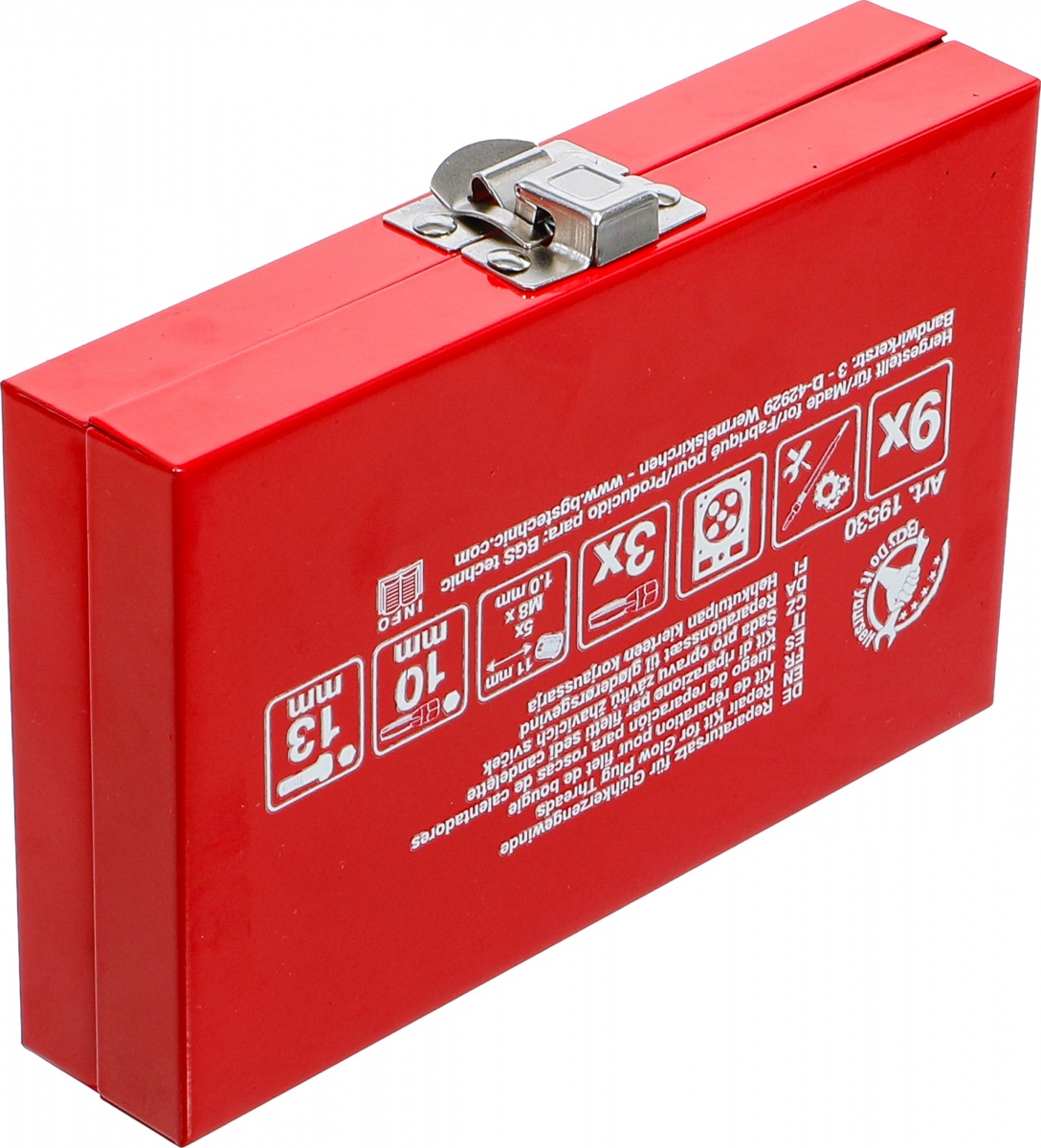

in a metal case
1 reamer for reaming the original M8 x 1.0 mm thread
1 tap for threaded sleeves M10 x 1.0 mm
1 tap for reaming the original threads M8 x 1.0 mm
1 assembly tool for inserting the threaded sleeves
5 threaded sleeves M8 x 1.0 mm (11 mm long)

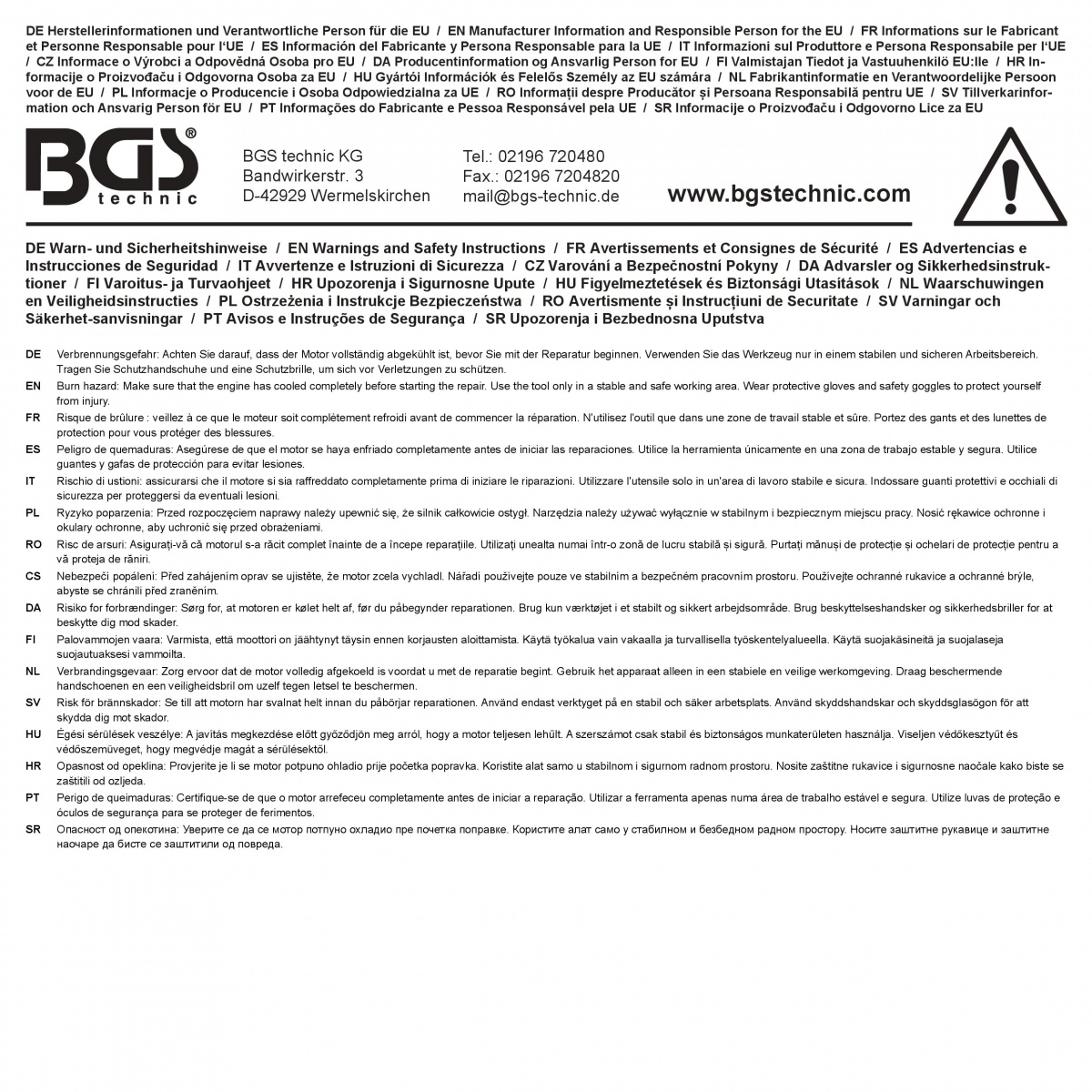

Warnings and Safety Instructions
Burn hazard: Make sure that the engine has cooled completely before starting the repair. Use the tool only in a stable and safe working area. Wear protective gloves and safety goggles to protect yourself from injury.
Package dimensions (LxwxH) :
188 x 125 x 44 mm
Gross weight: 536 g
