Aprašymas:
Gamintojas:
Material:
Carbon Steel
Number of parts:
68

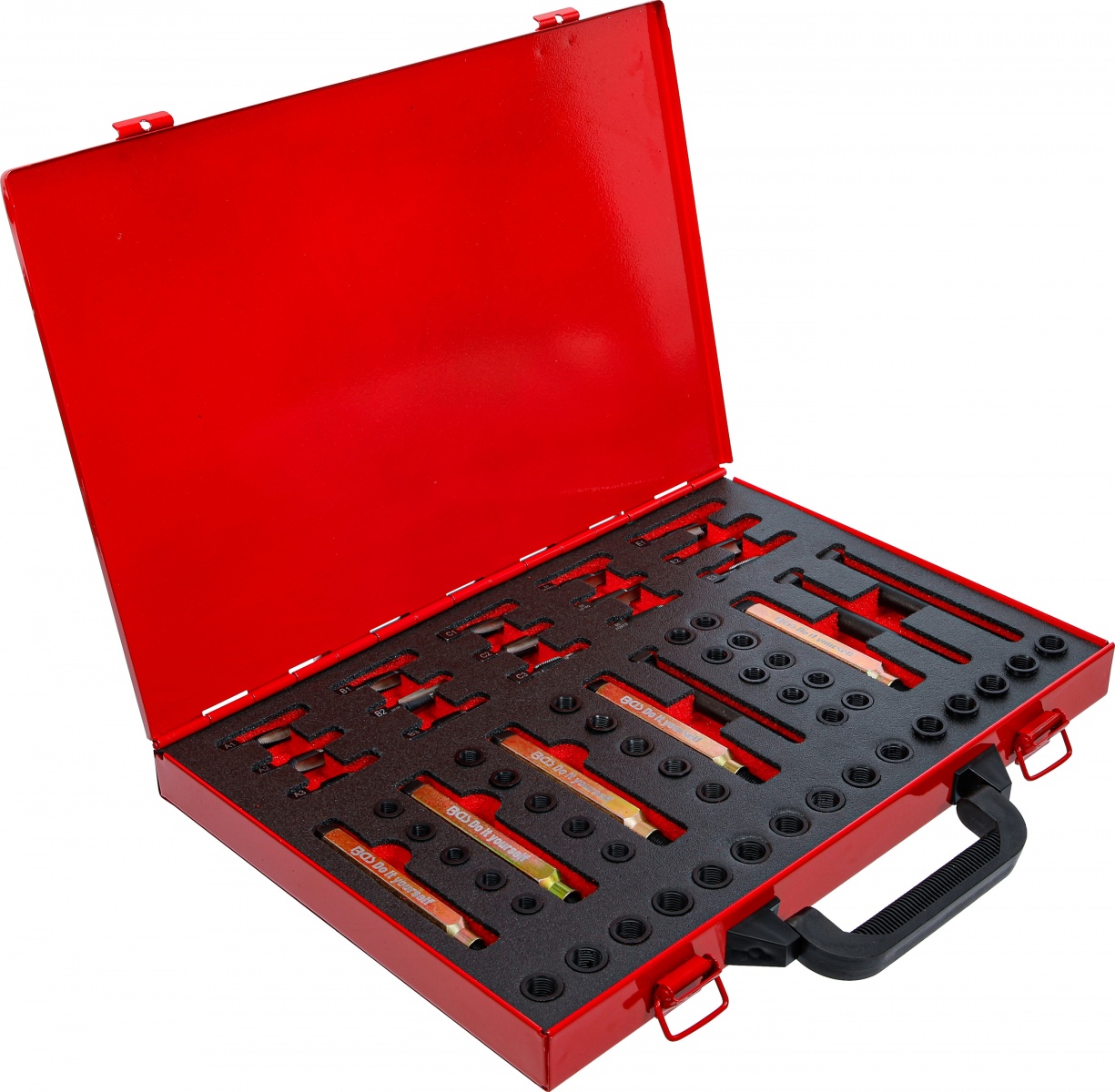

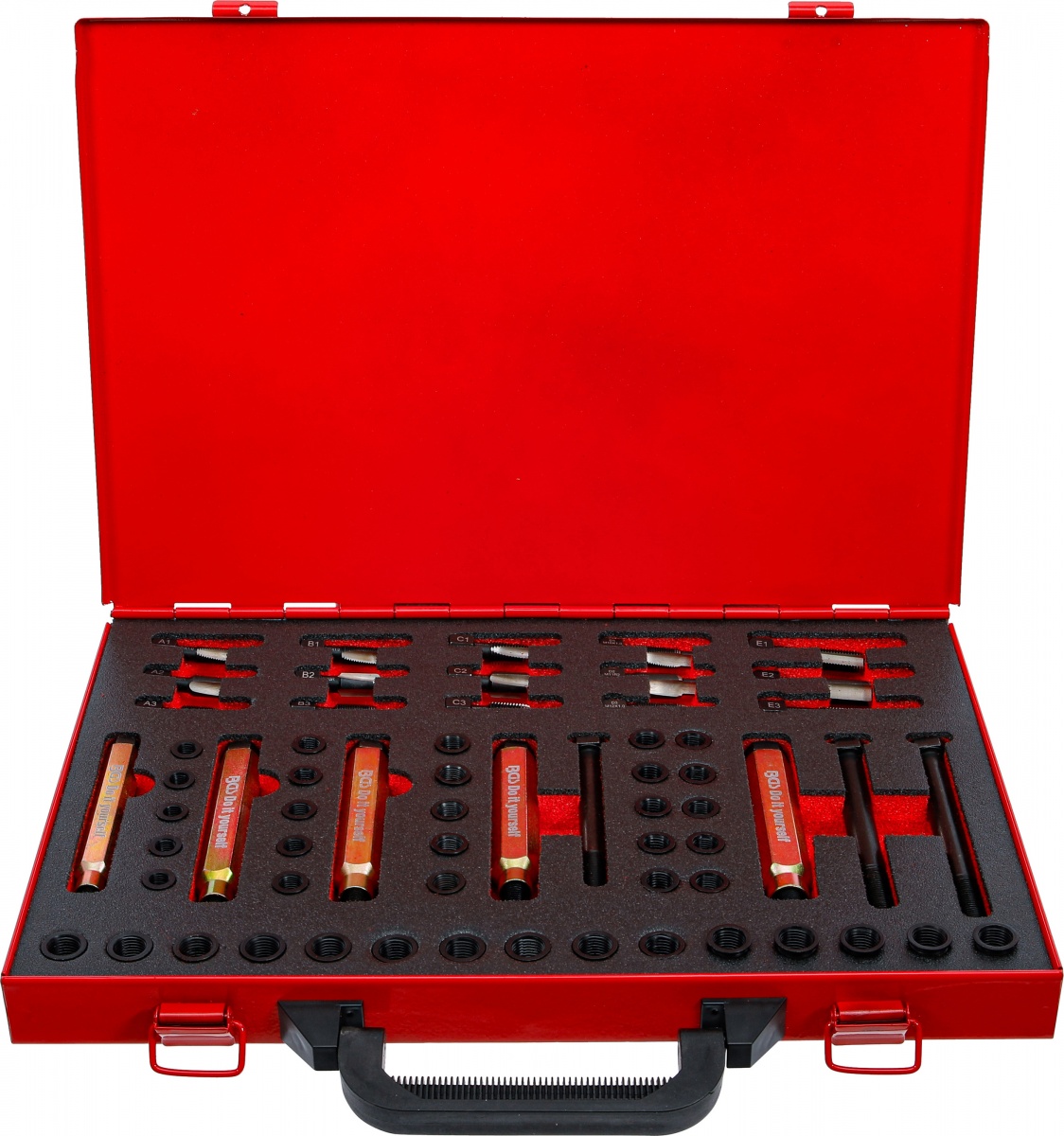

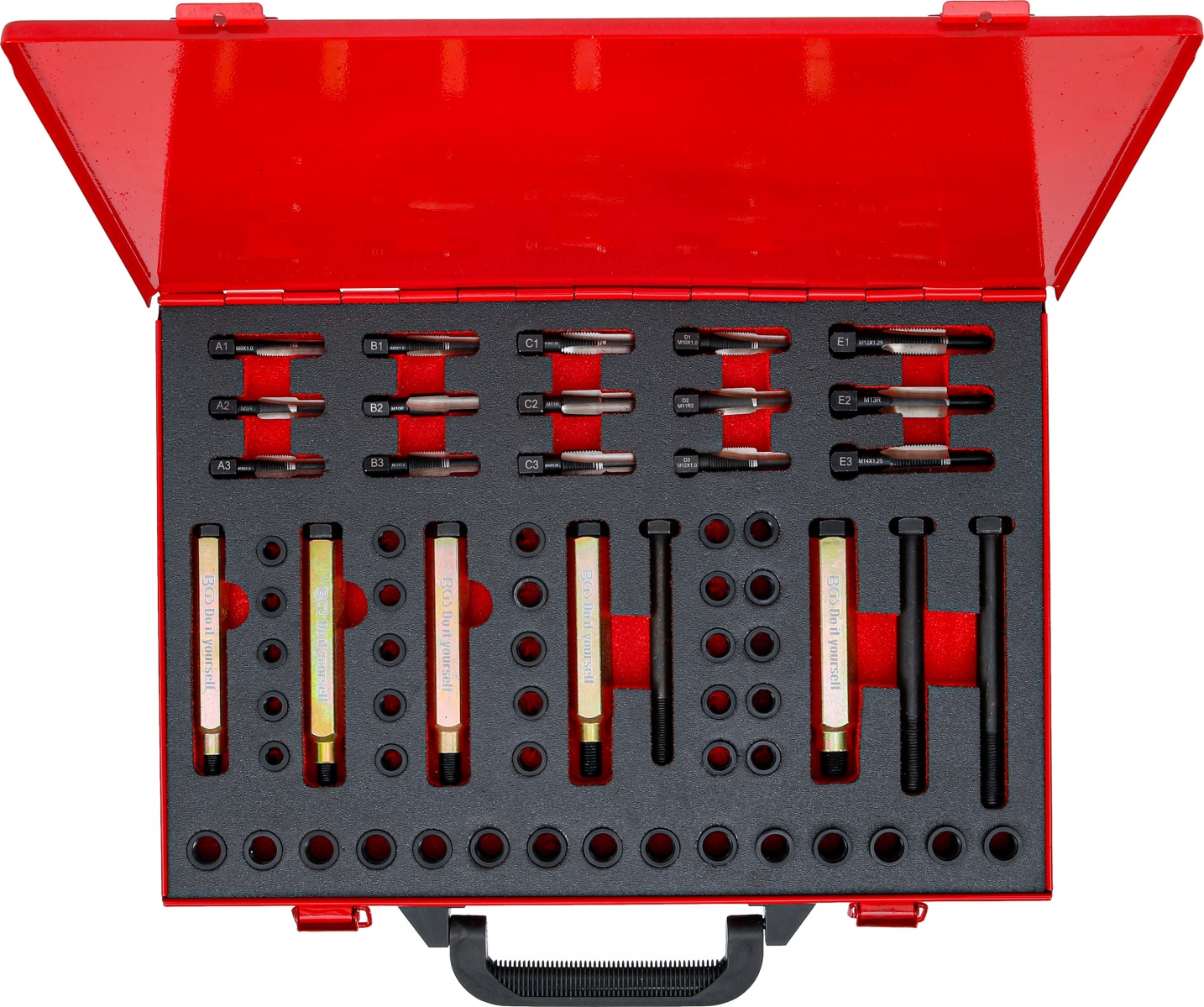

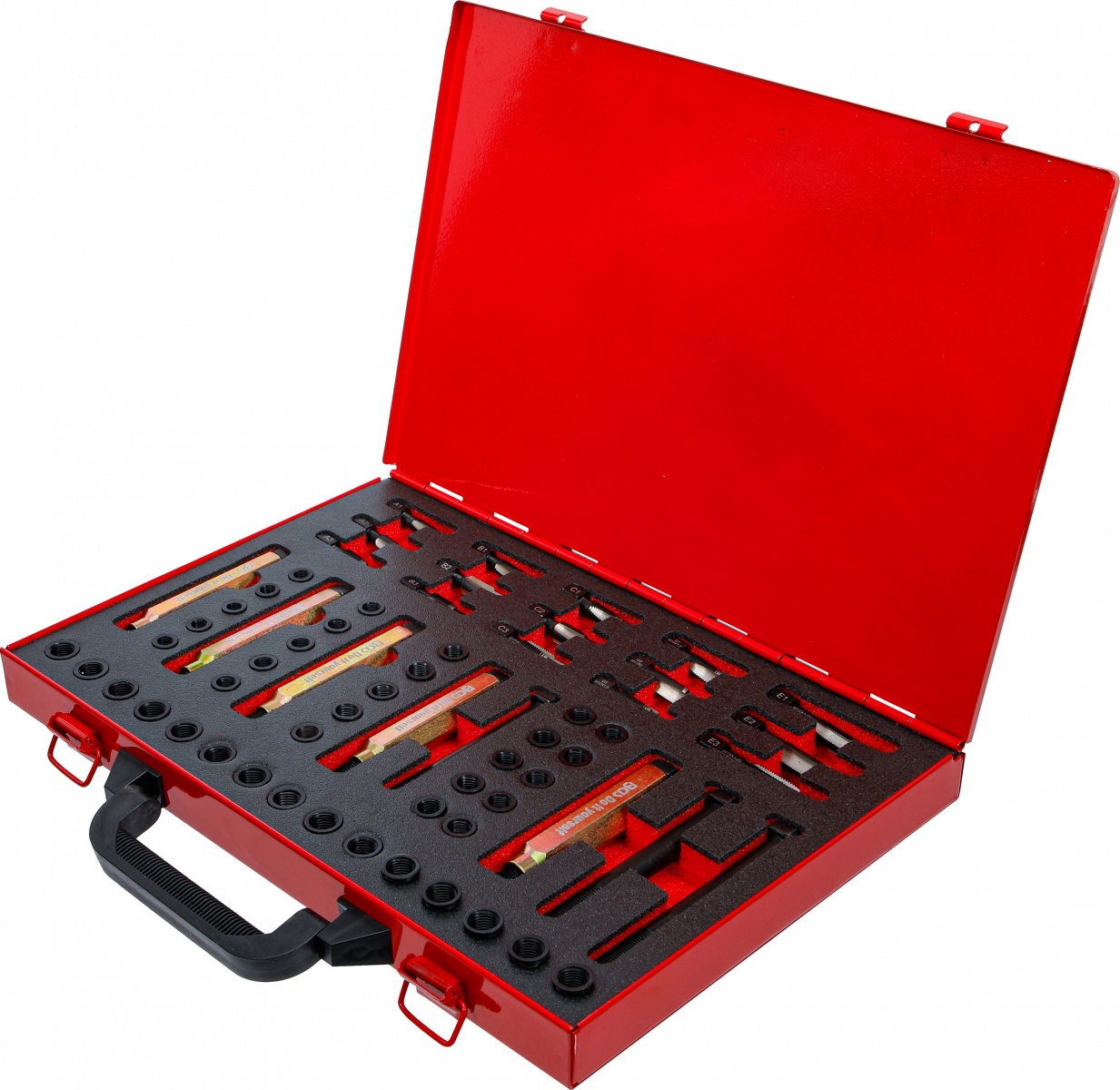

compact set composition
for repairing the glow plug mounting thread in the cylinder head
simple and safe handling
right-hand cutting taps
Replacement tap inserts for Thread Repair Kit
thin wall
secure fit
the tools are protected in the hard foam tray and are stowed in the recesses in a non-slip manner

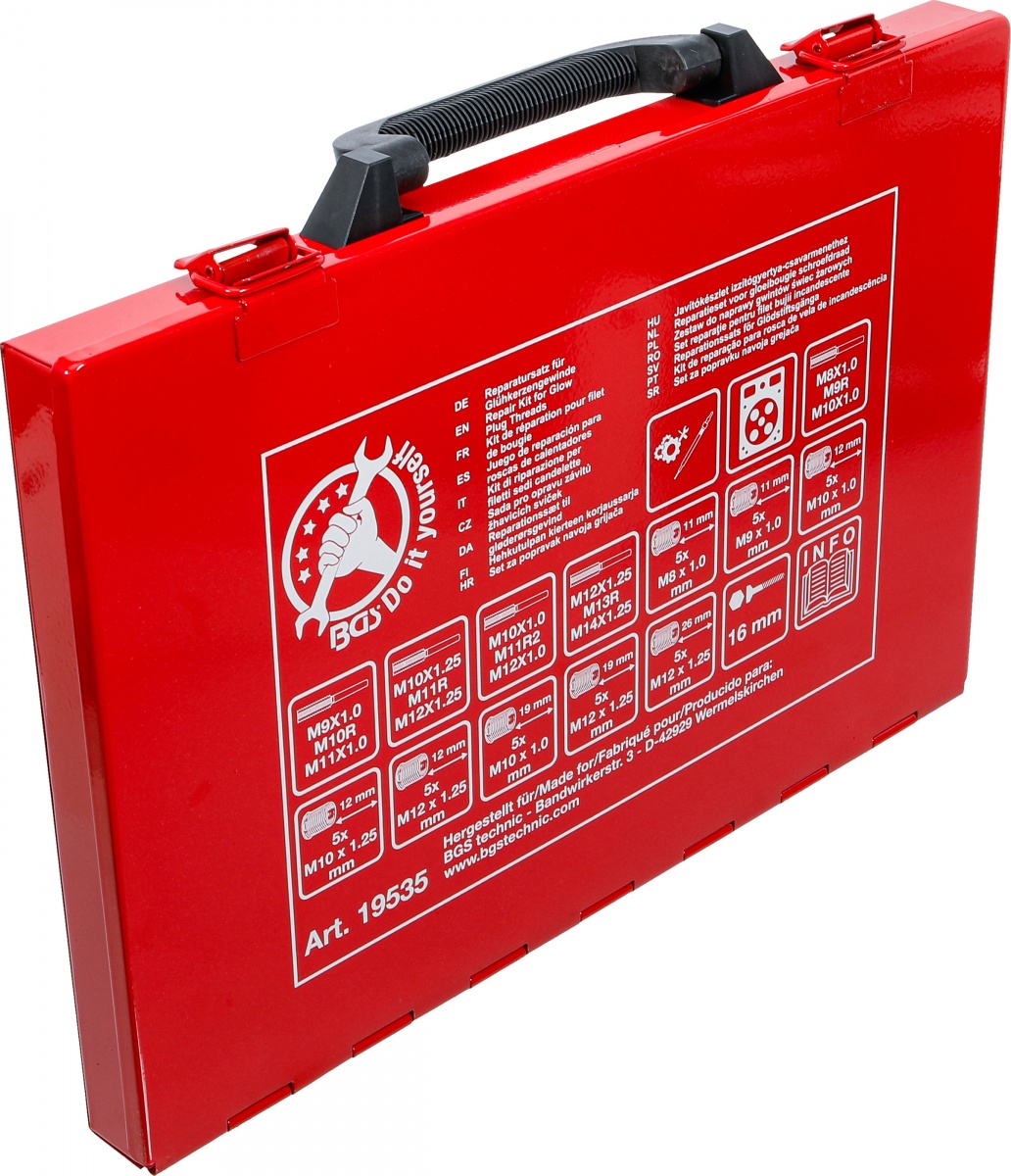

in a metal case
5 reamers for reaming the original thread M8 x 1.0 mm - M9 x 1.0 mm - M10 x 1.0 mm - M10 x 1.25 mm - M12 x 1.25 mm
5 taps for threaded sleeves M8 x 1.0 mm - M9 x 1.0 mm - M10 x 1.0 mm - M10 x 1.25 mm - M12 x 1.25 mm
5 taps for trimming the original thread M8 x 1.0 mm - M9 x 1.0 mm - M10 x 1.0 mm - M10 x 1.25 mm - M12 x 1.25 mm
5 assembly tools for inserting the threaded sleeves
5 threaded sleeves M8 x 1.0 mm (11 mm long)
5 threaded sleeves M9 x 1.0 mm (11 mm long)
5 threaded sleeves M10 x 1.25 mm (12 mm long)
5 threaded sleeves M10 x 1.0 mm (12 mm long)
5 threaded sleeves M10 x 1.0 mm (19 mm long)
5 threaded sleeves M12 x 1.25 mm (12 mm long)
5 threaded sleeves M12 x 1.25 mm (19 mm long)
5 threaded sleeves M12 x 1.25 mm (26 mm long)

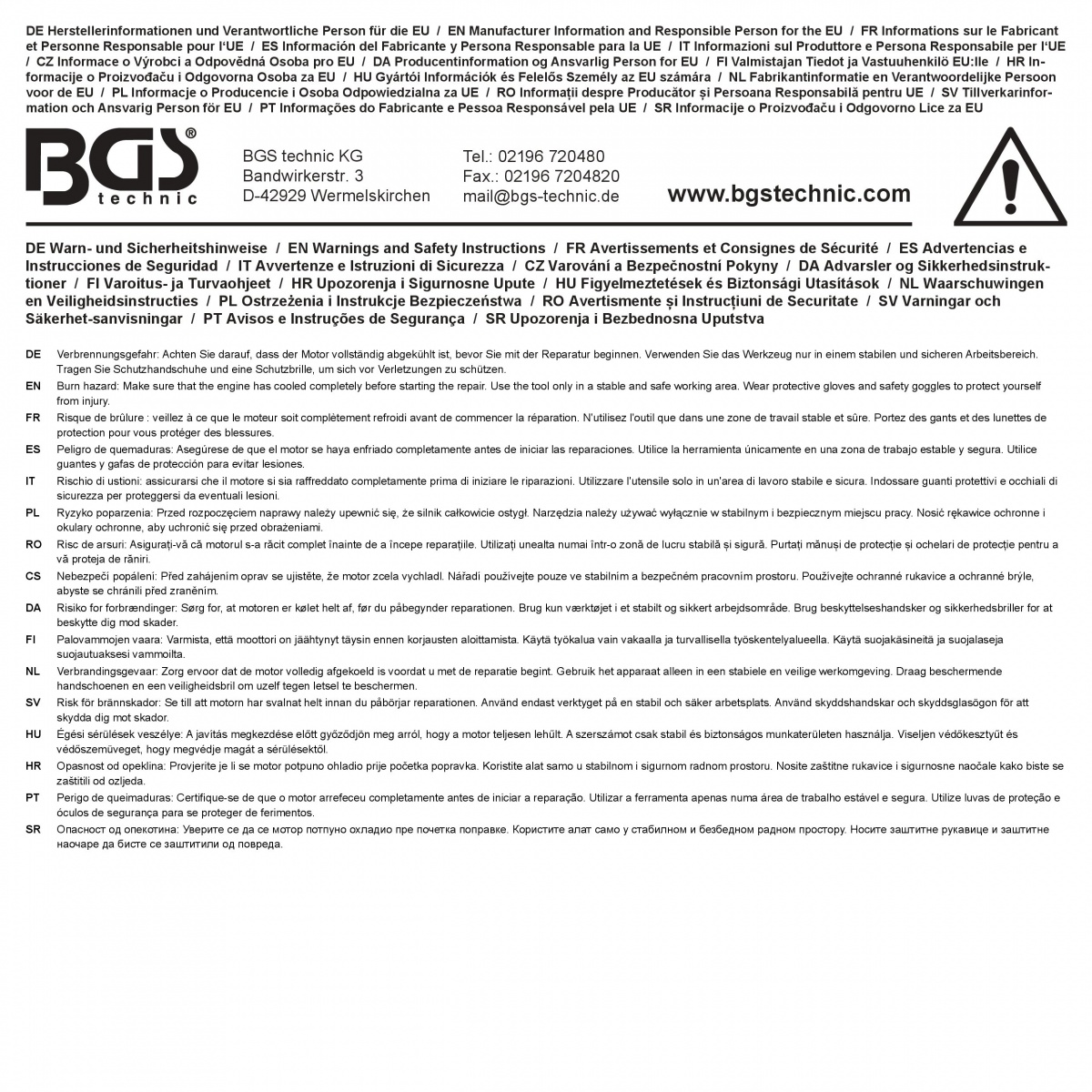

Warnings and Safety Instructions
Burn hazard: Make sure that the engine has cooled completely before starting the repair. Use the tool only in a stable and safe working area. Wear protective gloves and safety goggles to protect yourself from injury.

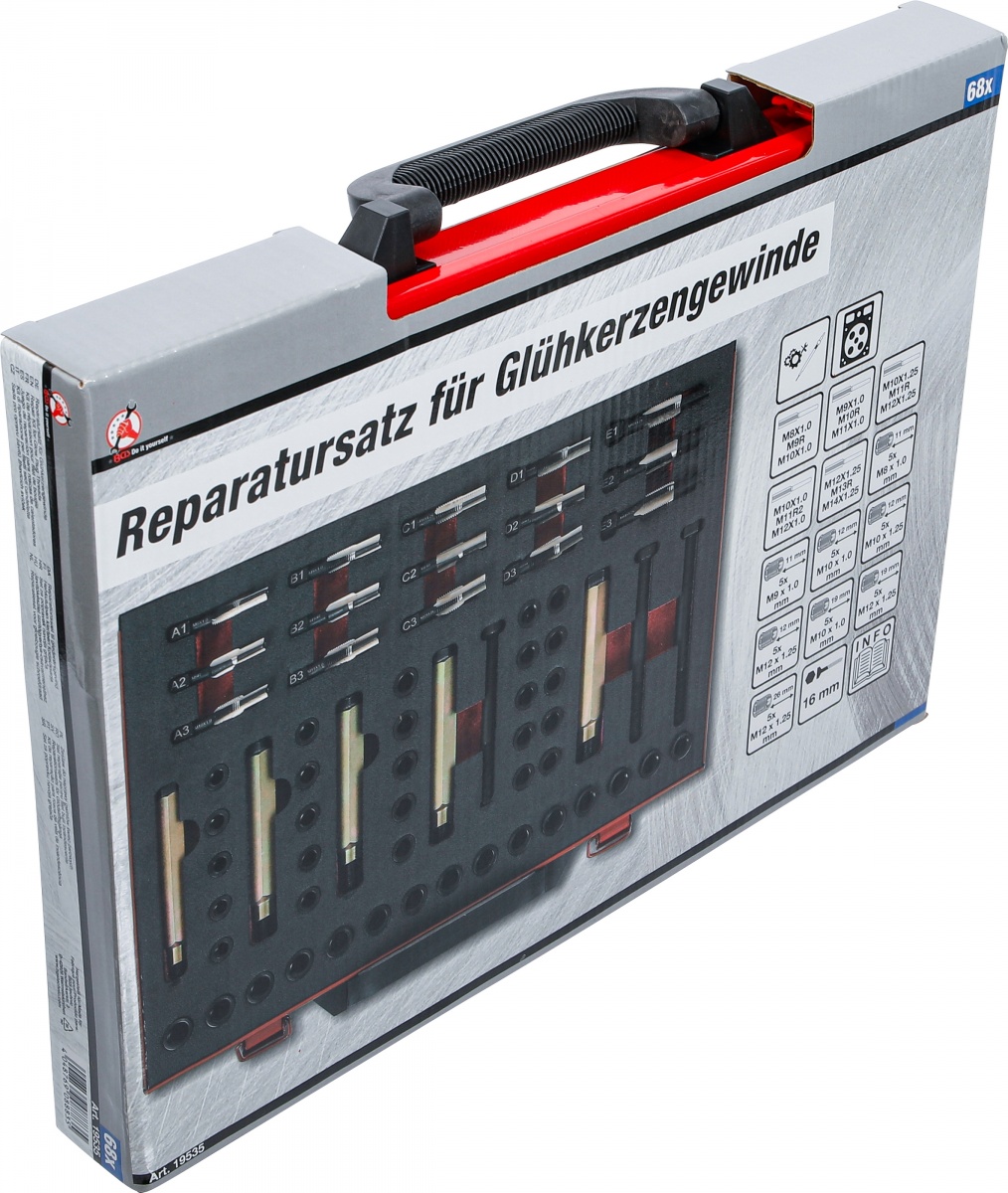

Package dimensions (LxwxH) :
380 x 289 x 59 mm
Gross weight: 2.908 kg
